SACHS PERFORMANCE 881864002574 Clutch Disc RCS 200-S7.8

SACHS PERFORMANCE 881864002574 Clutch Disc RCS 200-S7.8

€210,63

VAT included. Shipping calculated at checkout

SACHS PERFORMANCE P/N: 881864002574 GTIN: 4050451017450
Quantity:

This item is considered special order and is not available for immediate pickup or dispatch. Price and ETA may vary. Please note that no returns, cancellations, or refunds allowed on special orders.

Pickup available at Kelberg Warehouse Usually ready in 24 hours

SACHS PERFORMANCE 881864002574 Clutch Disc RCS 200-S7.8

Kelberg Warehouse

Pickup available, usually ready in 24 hours

Auf der Struth 4
53539 Kelberg
Germany

+491732982897

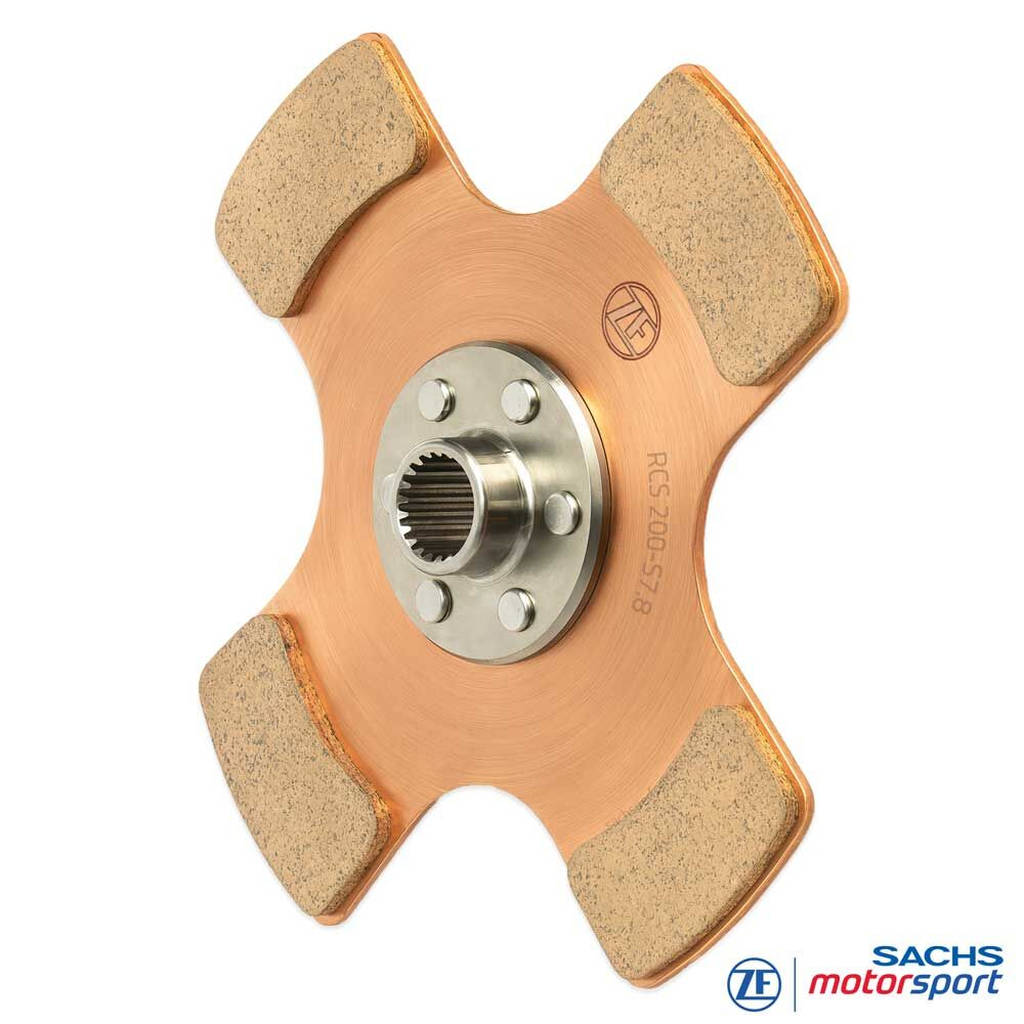

Description SACHS PERFORMANCE 881864002574 Clutch Disc RCS 200-S7.8

The SACHS RCS 200 7.8 sintered-pad clutch disc provides maximum durability, consistent performance, and long service life. Its 200 mm diameter delivers high Torque capacity and excellent heat dissipation, making it ideal for endurance racing, rally, and applications with sustained thermal loads.

The 7.8 mm lining thickness provides a larger wear reserve than 2.6 mm. This increases thermal capacity, smooths temperature spikes, and reduces fade and warpage. The result is a stable coefficient of friction, precise bite point, and repeatable engagement after numerous race starts and long stints.

Compared with 2.6 mm discs, the 7.8 mm version sacrifices some rotating mass in favor of durability and thermal security. Individually riveted sintered pads ensure even surface pressure, clean Torque transfer, and consistent Pedal feel.

Technology

The SACHS RCS 200 7.8 sintered-metal clutch disc from ZF Motorsport is built for competition use. Compared with organic discs, it offers markedly higher thermal stability, higher rpm capability, and strong resistance to dirt and oil.

The dedicated sintered Friction material provides aggressive launch behavior, hard bite, and instant engagement off the line. It also transfers significantly higher Torque, making it suitable for powerful race cars. As a core component of the modular SACHS RCS 200 system, it is matched to motorsport use.

SACHS RCS Hub

SACHS RCS 200 7.8 motorsport discs are available with multiple hub spline profiles matched to the respective gearbox input shaft. This provides precise fit, reliable Torque transfer, and durability under racing conditions.

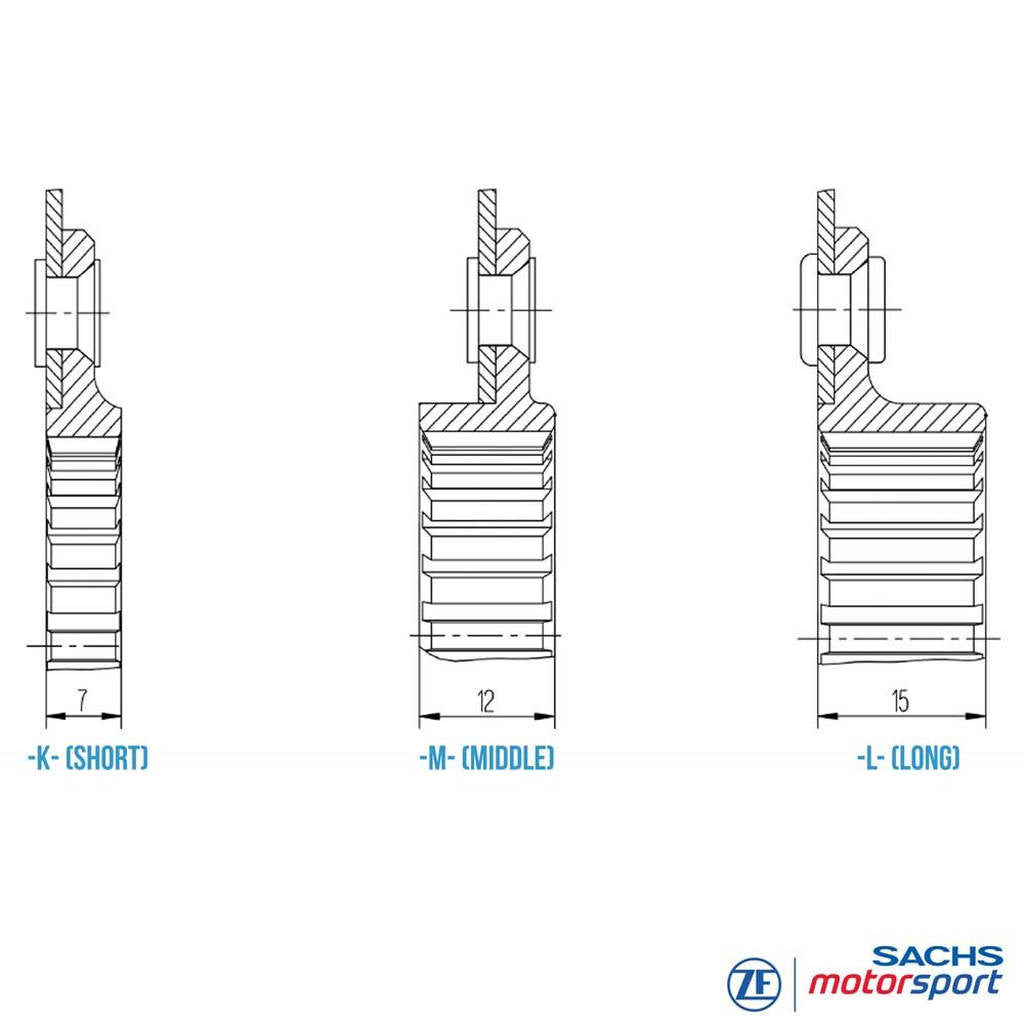

Hub Length options include short, medium, and long versions to suit the available installation space and ensure correct actuation. The modular RCS 200 concept enables a tailored, low-inertia, high-performance clutch with thermal robustness and long service life.

Specifications:

  • Clutch disc RCS 200-S7.8-M-091
  • Friction material: Sinterpad, 7.8 mm
  • Spline profile: (091) - 24 / 48 - 23 - 30º
  • Hub length: medium
