SPEED Engineering 13990 Brake Cooling Complete Kit for TOYOTA GR Yaris

Description SPEED Engineering 13990 Brake Cooling Complete Kit for TOYOTA GR Yaris

Engineered for demanding track environments, this complete brake cooling solution for the Toyota GR Yaris enhances thermal load management without compromising the factory system. The inlet utilizes an underbody recess that avoids lowering the car’s ground clearance and complements the OEM air guide to achieve dual-stage cooling. The outlet precisely channels airflow toward the brake disc center, utilizing the turbine effect to dissipate heat internally with minimal loss. Fixed to the control arm, the outlet ensures consistent airflow independent of steering input. The short, minimally curved hose enables compact routing with reduced turbulence and virtually no wear during operation.

• Utilizes factory underbody recess for optimal airflow without reducing ground clearance
• Retains OEM air guide to supplement cooling performance
• Outlet design targets rotor center at optimal angle to exploit turbine cooling effect
• Hose remains fixed to the control arm, minimizing movement and abrasion
• Compact hose design with narrow diameter and high flow efficiency

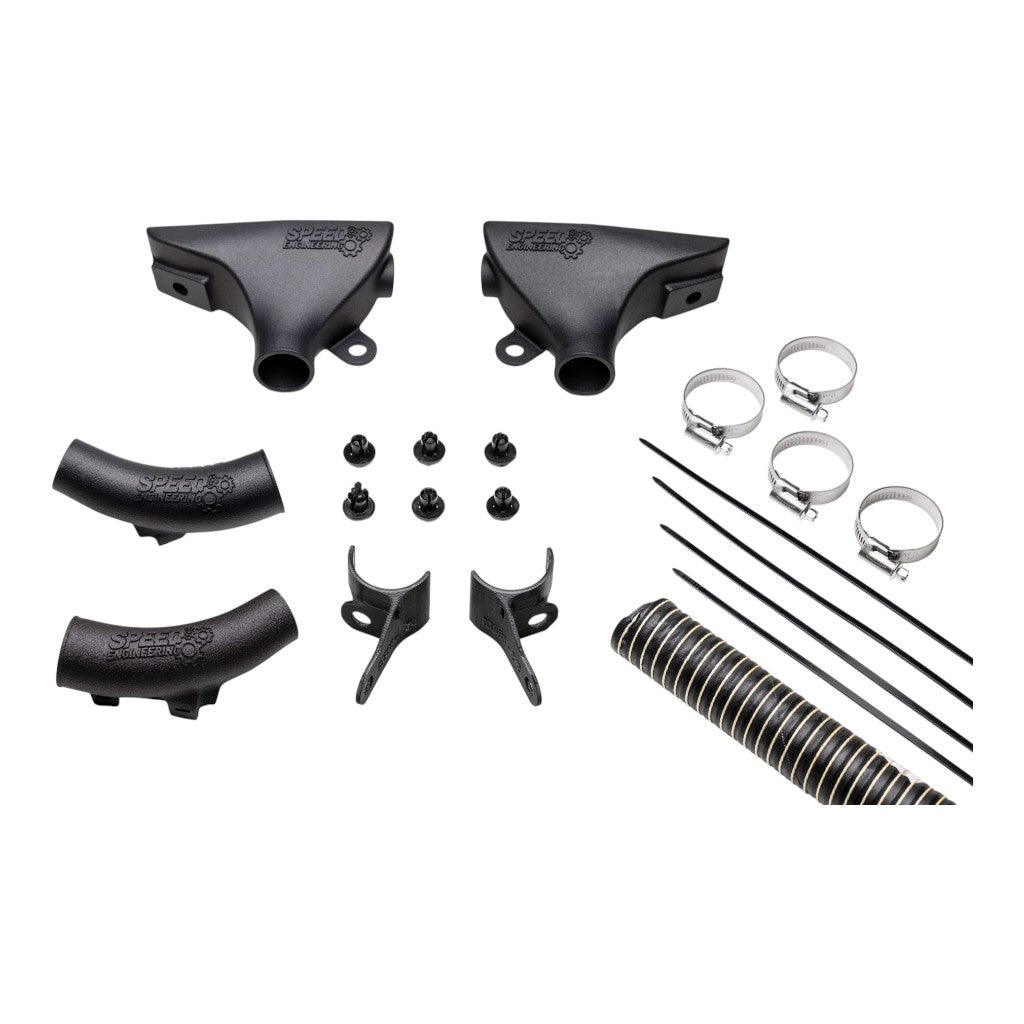

Kit Contents:

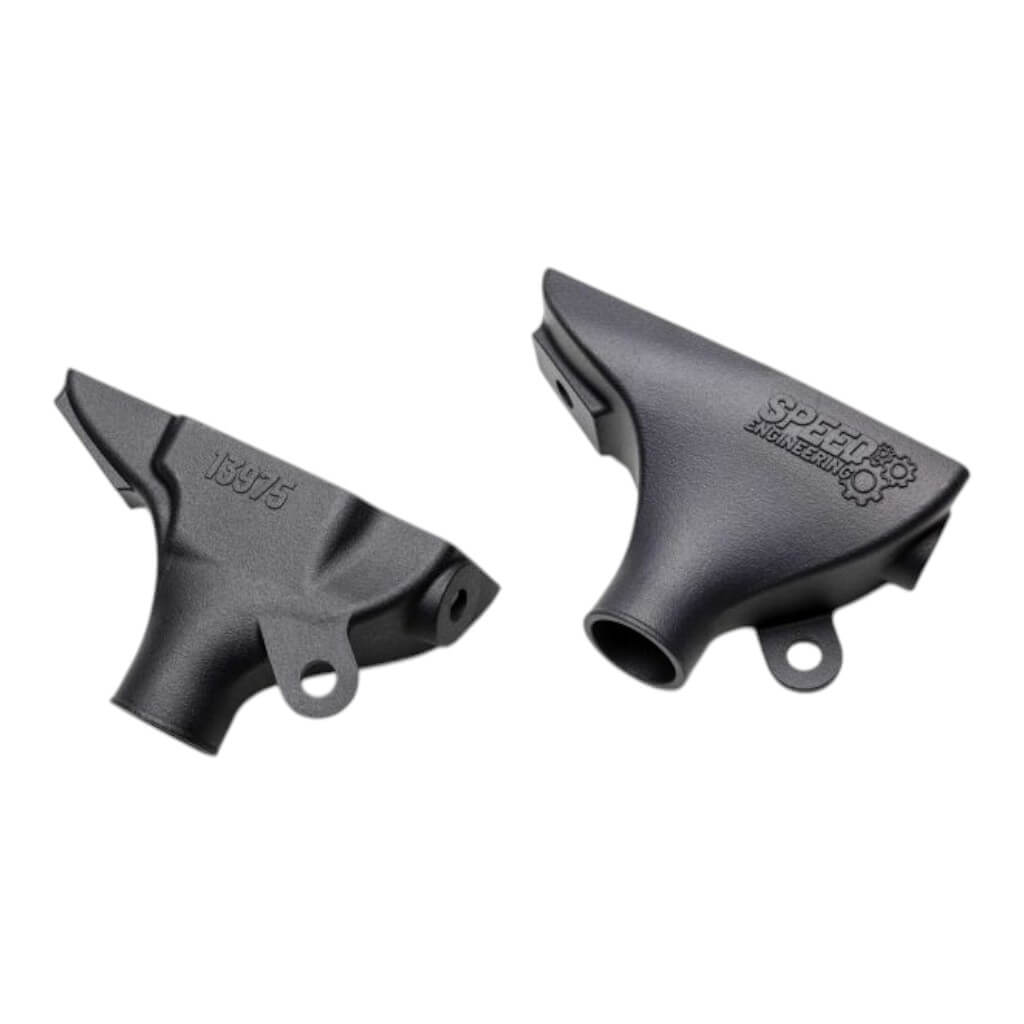

• 1 × Air Duct Inlet (Front Left)
• 1 × Air Duct Inlet (Front Right)
• 1 × Brake Backing Plate (Front Left)
• 1 × Brake Backing Plate (Front Right)
• 1 × Air Hose (0.5 Meter)
• 4 × Hose Clamps
• 6 × Mounting Clips
• 2 × Hose Guides
