SYVECS S7i- JimnyDF Direct Fit Engine ECU S7i Kit for SUZUKI Jimny 2018-

Description SYVECS S7i- JimnyDF Direct Fit Engine ECU S7i Kit for SUZUKI Jimny 2018-

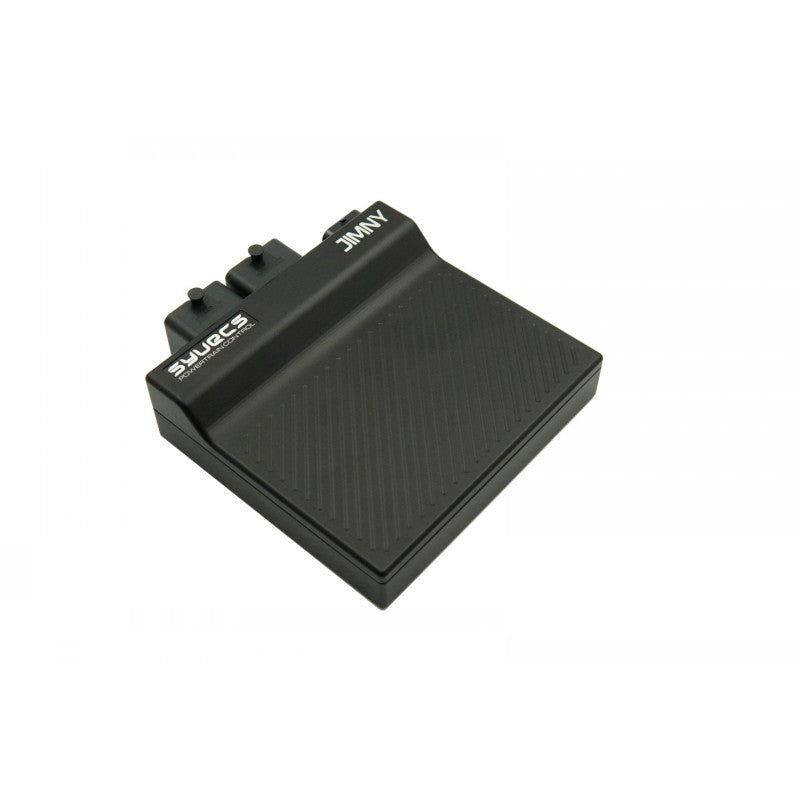

The Syvecs Suzuki Jimny JB74 plug-in ECU brings a new level of engine management control to the Suzuki Jimny range with a complete replacement Engine Control Module.

It supports both manual and automatic transmission models. Simply plugging in the kit provides the control required to safely manage turbocharger and supercharger installations.

Kit comes with:

• NTK lambda sensor
• NTK loom
• 4-bar MAP sensor
• Air charge temperature sensor

Features:

• Flat shift/GearCut with full-throttle shifts and rev matching on downshifts for manual transmissions; automatic transmission support with line-pressure monitoring and custom Torque reductions; adjustable launch control; rolling anti-lag and pit-lane limiter strategies; and adjustable traction control based on lateral G and individual wheel-speed monitoring.
• Flex-fuel control; eight-injector support; high- or low-impedance injector control; forced-induction support using an external MAP sensor and air charge temperature sensor; closed-loop lambda control using the supplied NTK lambda sensor; fully adjustable closed-loop boost control; fuel-pump control; relative fuel-pressure monitoring; and wet or dry nitrous control.
• DBW support with cruise control when the correct parts are fitted; compatibility with any size DBW Throttle body; 12 switchable maps through an optional rotary switch; individual-cylinder knock control; configurable limp-protection and engine-safety strategies; external sensor support, including crankcase pressure and Shock absorber / Damper position; and control of external vehicle features based on sensor inputs.
• Full compatibility with every other vehicle module; live calibration tuning; up to eight hours of built-in data logging at rates up to 1000 Hz; live input viewing with a built-in scope up to 1000 Hz; anti-theft and valet modes; RJ45 Ethernet connectivity for local or remote tuning using a compatible Wi-Fi module; support for MAP sensors up to 7 bar; and connectivity with any Race Series dash or Syvecs Edition SDM display unit.
