SYVECS S7Plus-P991.2LL Engine ECU Long Loom PnP Kit for PORSCHE 991.2 Turbo

Designed to work with the Porsche 991 Turbo Gen2, the Syvecs 991.2 Plug N Play kit brings a new level of engine management control to the 991 platform with a complete standalone ECU solution.

The S7-Plus ECU offers an extremely high level of precise engine management control. The triple processor unit uses a high speed RISC processor for code execution and an additional large FPGA for high speed engine position tracking, allowing the scheduling of code to be independent of signal patterns, increasing flexibility, efficiency and accuracy under transient conditions. This powerful combination also allows advanced control algorithms but yet easy to map for the end user still using our SCal software and S7 Firmware.

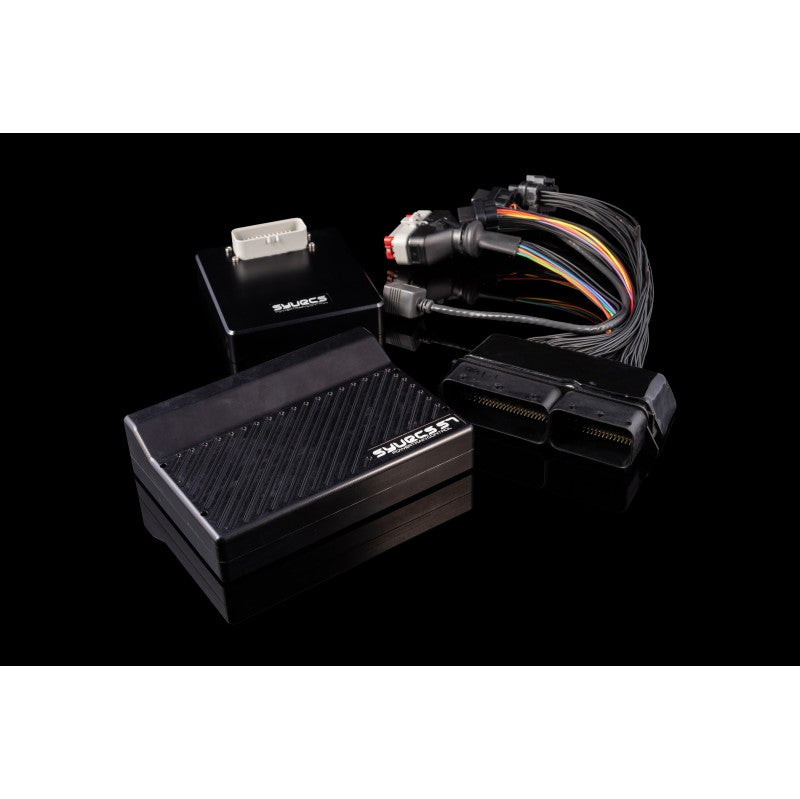

The kit contains the following:

• 1 x S7Plus
• 1 x GDI12
• 1 x Porsche 991.2 Long Loom

By simply pluging in the kit, a whole new level of control is available allowing some of the following features:

• Direction Injection and Port Injection Support – 12 injector Option
• PDK Supported
• VTG Supported
• Up to 12 maps to switch between
• Adjustable traction control
• Adjustable launch control
• Adjustable knock control
• Adjustable direct injection pump control
• Rolling antilag
• Pit lane limiter
• Clutch pressure adjustment and fast logging
• DTC clearing from onboard
• Live tuning of every aspect of the engine’s calibration
• Ability to select desired engine map, boost level, traction and launch control levels through 12 Position switch or via OEM Steering wheel control
• Fully adjustable launch control with Anti-lag strategies and ramp in maps
• Full Variable Valve Timing control
• Closed loop Lambda control using OEM lambda
• Flex Fuel control
• Flat foot shifting
• Fully adjustable closed loop boost control with launch level adjustments and trims for turbo speed, air charge, engine coolant temp, exhaust gas temperatures etc
• Monitor and trimming of exhaust gas temperatures
• Built in data logging using a market leading analysis software of up to 8 hours, with data rates at up to 1000hz
• Rolling Antilag / Pit lane limiter strategies, great for building boost on a roll
• Anti-theft and valet modes
• Super fast connection via RJ45 Ethernet port for live tuning anywhere in the world or evenremotely if on track if connected to one of our wifi modules.
• Adjustable traction control strategies based on lateral G, steering angle and/or individual wheel speed monitoring.
• 4 programmable and selectable target slip maps. An immediate torque reduction can be applied by the ECU via ignition retard or a fuel cut.
• Configurable Engine Safety Trips on all important parameters like oil temperature, oil pressure.
• Fuel pump control of both main, and sub pumps, as well as relative fuel pressure monitoring and limiting in the event of fuel pressure dropping on boost.
• 4 different Pedal to Throttle angle maps with multipliers for different parameters e.g. speed. Again adjustable via steering wheel buttons
• Configurable individual cylinder closed loop knock control, to suit any cylinder modification with adjustments to frequency, windows for listening and gains for each cylinder.
• Ability to trigger full cylinder shutdown in severe knock conditions.
• Ability to change Torque ramp in after launch
• Run up to 7bar map sensors
• Change injector dead times based on voltage levels for proper control
• Change injector end angle to ensure injection point is properly calibrated
• Ability to fit any type of external sensor to monitor and trigger safety trips from anything from crank case pressure to damper position
• Ability to use any size DBW throttle body e.g. Chevrolet LS7
• Wet and Dry – Wet and dry nitrous control with ability to drive solenoids directly and control n20 heaters via pressure monitoring
• Ability to control any external vehicle features based on sensor inputs e.g. Adjustable rear wing linked to G force or exhaust control valves
• Connect any race series dash or even one of our Syvecs edition SDM display units
• View any input live with built in scope up to 1000hz
• And much, much more!
