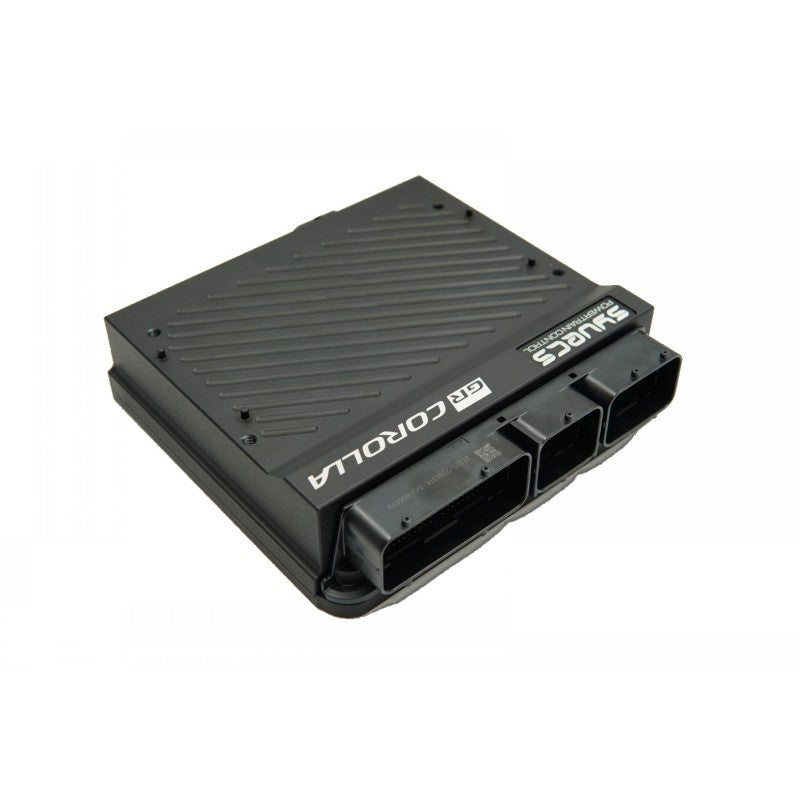

SYVECS SGDI-Corolla Engine ECU GDI4 Kit for TOYOTA GR Corolla (GZEA14)

Description SYVECS SGDI-Corolla Engine ECU GDI4 Kit for TOYOTA GR Corolla (GZEA14)

The Toyota Corolla GR Plug-in Kit brings a new level of engine management control to the Toyota Corolla GR platform as the world's first complete standalone ECU package.

Designed for factory vehicles or the highest level of motorsport, the Syvecs plug-in ECU provides comprehensive engine calibration, Torque control, safety monitoring, data logging, and motorsport strategies.

Note: Pre-collision, radar control, and lane assist are not supported. However, DSC and low-speed collision warning system dashboard error lights are not illuminated.

• Live tuning of engine calibration and Torque control; adjustable Torque limiters, AWD operation, launch control, rolling anti-lag, flat-foot shifting, traction control, cruise control, Flex Fuel, EVAP control, electronic wastegate support, electronic valve control, IMT functionality, and full variable valve timing control.
• Direct and port injection control; six-injector support; factory and larger aftermarket turbo support; closed-loop Lambda and boost control; fuel pump and relative fuel pressure control; configurable knock control; injector dead-time and end-angle adjustment; and wet or dry nitrous control.
• Configurable engine safety trips; K-type EGT monitoring; support for up to 10-bar MAP sensors; external sensor support, including crankcase pressure and Shock absorber / Damper position; anti-theft and valet modes; four target-slip maps; four pedal-to-Throttle body angle maps; and support for any size DBW Throttle body.
• Control of external vehicle features; connection to any Race Series dash through spare CAN bus; live input viewing with a built-in scope up to 1000 Hz; calibration selection through an external 12-position switch or OEM cruise-control buttons; and RJ45 Ethernet connectivity for local or remote live tuning.

Specifications:

• Data Logging: 64 MB built-in logging with over eight hours of data and rates up to 1000 Hz
• Additional I/O: 26-way Header with one K-type input, one GDI injector output, one NTK/LSU input, two CAN bus connections, three spare outputs, and RS232 connection
• Lambda Control: Closed-loop control using the supplied NTK sensor
• Traction Control: Adjustable strategies based on lateral G, GPS speed, and/or individual wheel-speed monitoring
• Target-Slip Maps: Four programmable and selectable maps with immediate Torque reduction through ignition retard or fuel cut

Frequently Asked Questions:

Is OEM VVT controlled? Yes. Variable valve timing calibrations are adjustable, including Intake and exhaust cam targets.

Can the kit be used when the engine is installed in another vehicle without CAN bus requirements? Yes. The dealer must complete the vehicle-side wiring, including 12 V, pedal signal, and fuel pump control.

Is anti-lag supported? Yes. The ECU is used by top rally teams in competition.

Can the launch RPM be adjusted? Yes.

Is Flex Fuel supported? Yes. Recommended installation is covered in the installation manual, and ethanol content is displayed on the dashboard when changing calibration.

Can AWD operation be altered? Adjusting the Torque demand table output affects AWD operation. Full control requires the standalone AWD controller for the Corolla GR: https://www.syvecs.com/product/awd-4wd-controller-toyota-corolla-gr/

Is a base map supplied? Yes. A base calibration is supplied through the Syvecs dealer.

How are calibrations changed? Calibrations are changed through the OEM cruise-control buttons. Pressing the cruise-cancel button activates calibration override for rolling anti-lag.

Which original OEM features will not work? The pre-collision system and lane assist are not supported.

Can the OEM BOV setup be changed? Yes. Any type may be fitted.
