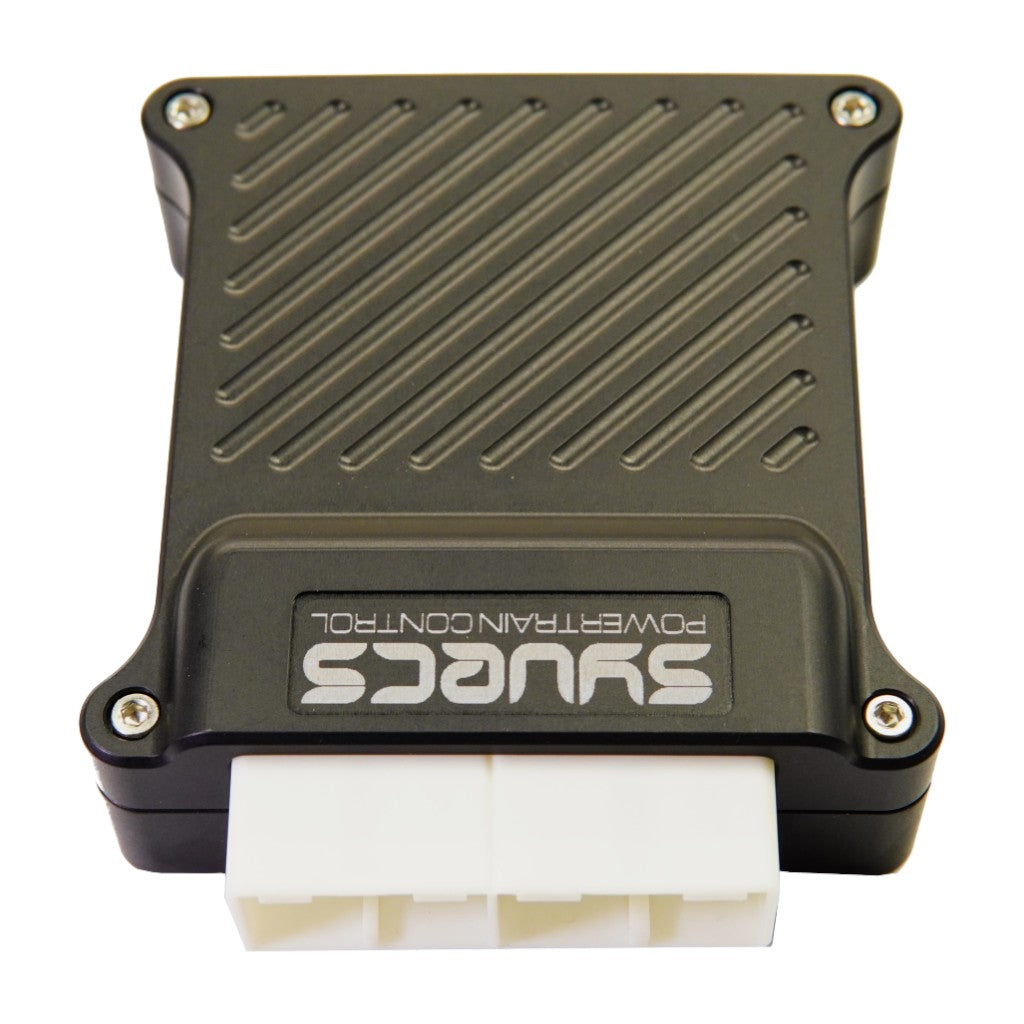

SYVECS SYV-4WDYaris AWD/4WD Controller for TOYOTA Yaris GR 2020–2023

Description SYVECS SYV-4WDYaris AWD/4WD Controller for TOYOTA Yaris GR 2020–2023

The SYVECS SYV-4WDYaris is a standalone AWD/4WD/Centre Differential controller engineered for the Toyota Yaris GR (2020–2023), providing full control over the vehicle’s all-wheel-drive system. Unlike the OEM controller, which is non-adjustable and prone to disengagement during high-load operation, this module enables precise tuning and prevents instant AWD dropouts under circuit conditions. It replicates OEM CAN signals while incorporating additional inputs such as steering angle, brake pressure, RPM, throttle position, lateral and longitudinal G-force, wheel speeds, temperatures, and mode switch status.

The unit supports live AWD duty map switching via the factory diff mode buttons and includes features such as burnout mode activation, optional external control looms, and real-time AWD duty adjustment. Integrated limp protection maintains AWD operation under extreme conditions, avoiding sudden disengagement that can occur with factory units. Using the dedicated Scal software, over 40 control maps are available, covering base duties, adders, multipliers, and limiters for advanced torque distribution management. The system is compatible with both OEM and rally configurations and supports extensive sensor integration.

• Fully adjustable AWD control with live map switching
• Prevents instant AWD disengagement under load
• Compatible with OEM CAN and additional sensor inputs
• Limp protection for high slip, current, and temperature
• Over 40 tunable maps via Scal software

Specifications:

• Max Output Current: 30 A via pin sharing
• Onboard Current Monitoring: Yes
• CAN Bus Channels: 2 (configurable)
• Analog Inputs: 4
• ABS Sensor Inputs: 4 magneto-resistive
• Connection: USB with full calibration control
• Operating Voltage: 6–25 V
• Enclosure: Weatherproof, 125°C capable
