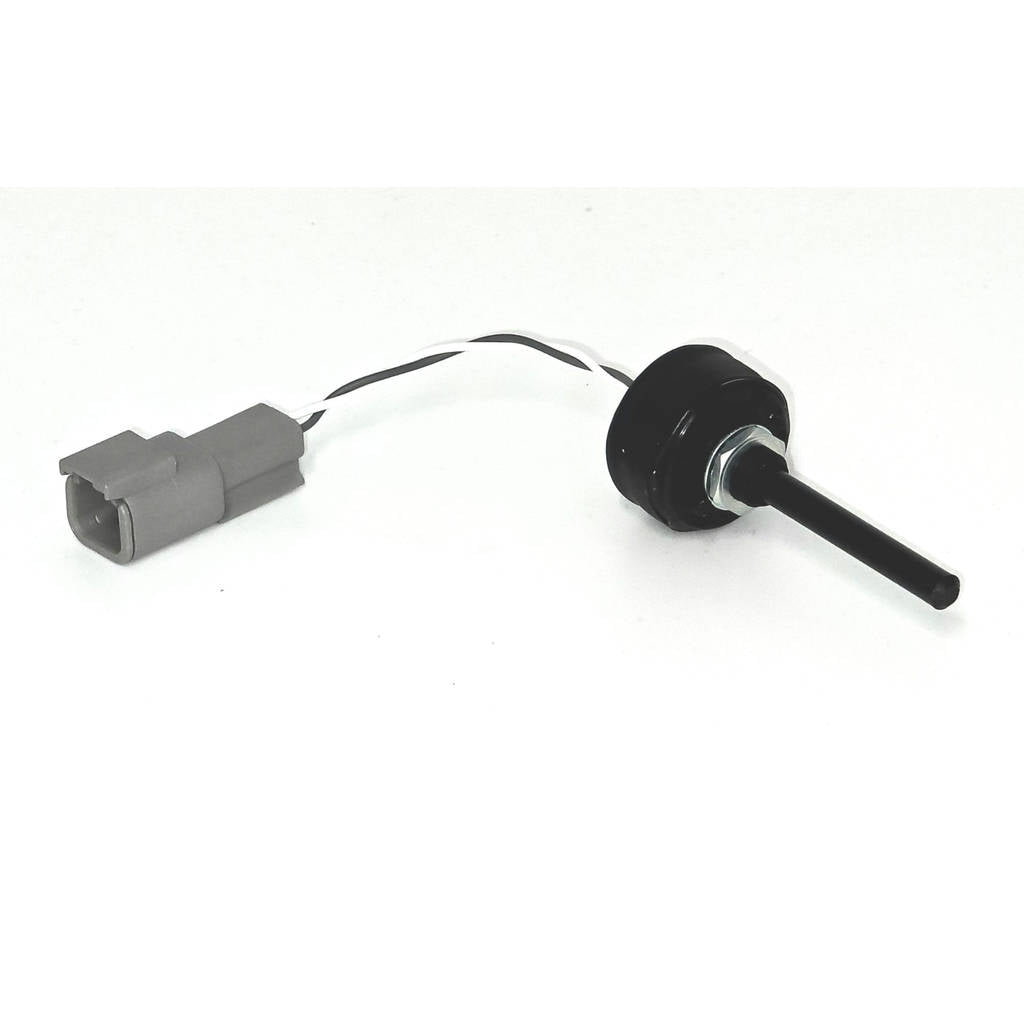

SYVECS SYV-CAL Calibration Switch Photo-0

SYVECS SYV-CAL Calibration Switch

€211,84

VAT included. Shipping calculated at checkout

SYVECS P/N: SYV-CAL
Quantity:

This item is considered special order and is not available for immediate pickup or dispatch. Price and ETA may vary. Please note that no returns, cancellations, or refunds allowed on special orders.

Pickup available at Kelberg Warehouse Usually ready in 24 hours

SYVECS SYV-CAL Calibration Switch

Kelberg Warehouse

Pickup available, usually ready in 24 hours

Auf der Struth 4
53539 Kelberg
Germany

+491732982897

Description SYVECS SYV-CAL Calibration Switch

The Syvecs Calibration Switch is a simple universal multi-position switch used for map switching on almost any aftermarket ECU.

  • Simple two-wire connection
  • Up to 11 positions from a 5 V external pull-up
  • Adjustable detent lockout ring with 2 to 11 positions
  • Fitted with a Deutsch 2-pin connector

Specifications:

  • Outputs: 11 positions via one signal wire
  • Power Supply: 5 V; 3 kOhm pull-up required if no internal pull-up is available. Syvecs unipolar and thermistor inputs already have a 3 kOhm pull-up
  • Mounting: Panel mount via 10 mm hole
  • Maximum Panel Thickness: 4 mm
  • Maximum External Diameter: 30 mm
  • Maximum Shaft Length: 42 mm
  • Maximum Overall Length: 75 mm
  • Mating Fly-Lead Length: 80 mm

Kit comes with:

  • Deutsch 2-pin connector
  • Mating pins and connector
