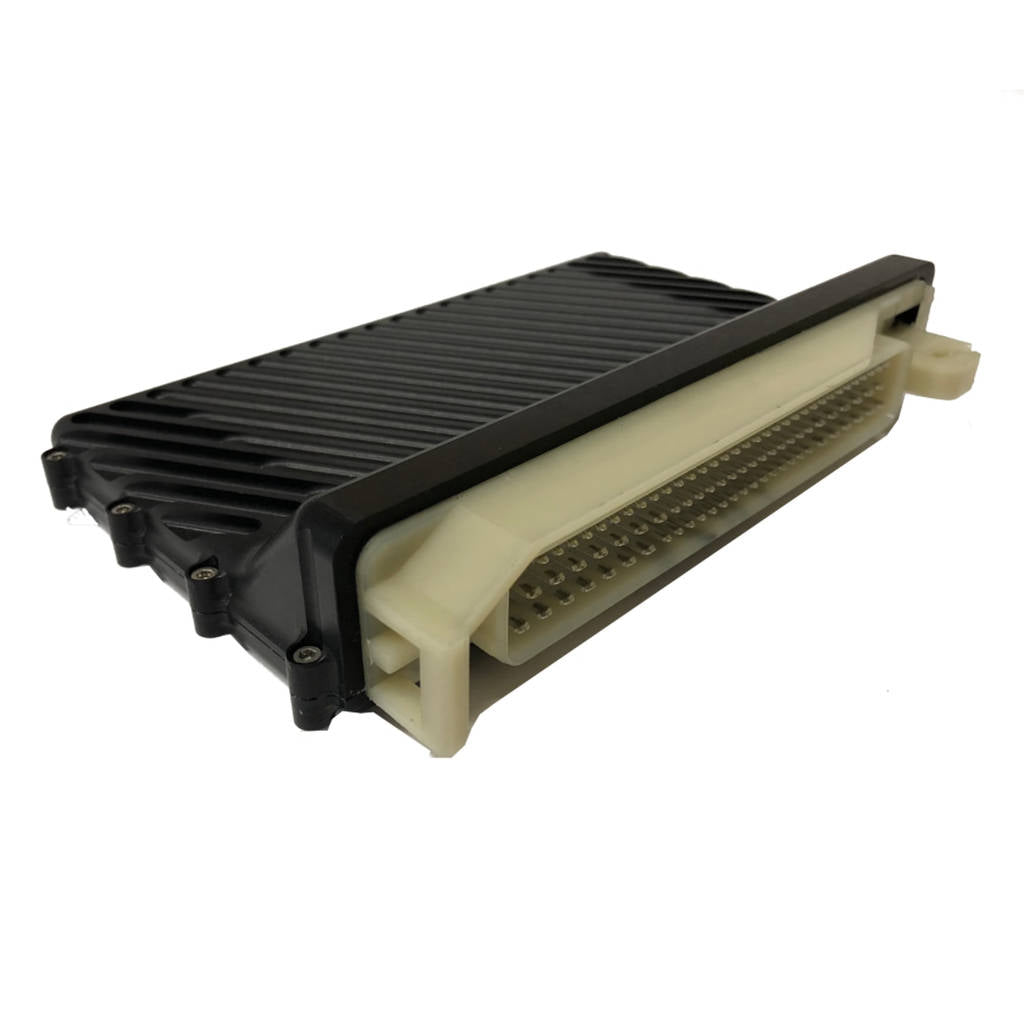

SYVECS SYV-S8 Stand Alone Engine ECU S8

Description SYVECS SYV-S8 Stand Alone Engine ECU S8

The S8 ECU is the most popular unit, offering 24 inputs, 28 outputs, 2 lambda inputs, 2 knock inputs, 2 EGT inputs, and 2 DBW drivers. It provides an extremely high level of precise engine management control.

The twin-processor unit uses a high-speed RISC processor for code execution and an additional large FPGA for high-speed engine position tracking. This allows code scheduling to be independent of signal patterns, increasing flexibility, efficiency, and accuracy under transient conditions.

Note: All software features are enabled from the factory except Direct Injection Control and Paddle-Shift Control, which are optional upgrades.

• Advanced control algorithms with straightforward mapping
• Sealed billet aluminium housing
• Single waterproof 88-pin connector

Specifications:

• General-Purpose Analogue Inputs: 24
• 5V/Bipolar, Sensor/Sync/Speed Inputs: 16 with programmable trigger voltages
• 5V Sensor Inputs: 4
• Thermistor Sensor Inputs: 4
• NTK Lambda Inputs: 2
• K-Type Thermocouple Circuits: 2
• Knock Inputs: 2
• High/Low-Side Driver Outputs: 28
• Half-Bridge Outputs: 4, maximum 10 amps
• Low-Side Injection/PWM Outputs: 16, maximum 10 amps
• TTL/IGBT Ignition Drivers: 8
• CAN 2.0B: 2
• RS232 Output: 1
• Ethernet: 100 MHz full duplex for PC programming and data download
• Internal Logging Memory: Up to 64 MB
• Logging: Onboard laptop logging
• Input Voltage Range: 6–20 V with reverse-polarity protection
• Regulated 5V Sensor Supply Outputs: 2 with protection
• Operating Temperature: -25 to +95°C
• Dimensions: 178 x 122 x 36 mm
