SYVECS SYV-X4 Expander X4

Description SYVECS SYV-X4 Expander X4

Syvecs Input/Output expansion units provide additional I/O, allowing more strategies to be used across the Syvecs range or more sensors and parameters to be logged via datalogging. CAN interfaces provide communication with ECUs or displays.

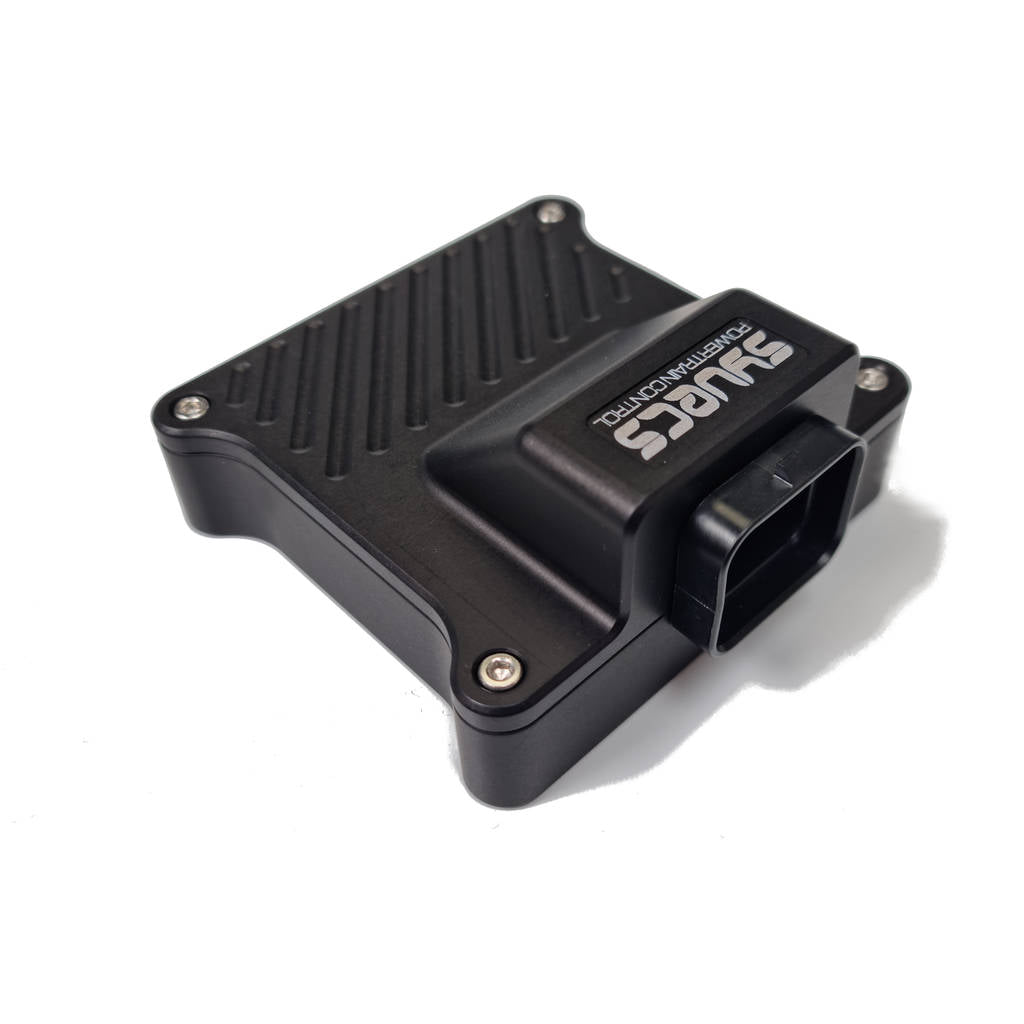

The Syvecs X4 Expander is a compact, powerful expansion unit for enhancing the input and output complement of a powertrain electronics installation. Four half-bridge drivers can drive low-side, high-side, or joined pairs as full-bridge motor drivers. Each output includes current monitoring for assignment within Syvecs Engine Controller strategies or as a current-limiting function in other applications.

Four magnetoresistive circuits simplify connection to ABS sensors found in most new automotive applications. Four 0–5 V analog inputs support switches, pressure transducers, and positional sensors, but do not support frequency detection. The X4 withstands demanding conditions and high temperatures for applications including external drive-by-wire support, electronic wastegates, and fuel pump control.

• Four half-bridge outputs supporting full-bridge, low-side, or high-side drive
• Four magnetoresistive wheel-speed sensor inputs
• Four 0–5 V analog or switch inputs
• Two CAN bus interfaces configured for slave control with an S7, S8, or S12 ECU, or XCan support for other ECUs

Specifications:

• Peak Output Current: 15 A for 100 ms
• Continuous Output Current: 8 A
• Current Monitoring: Each output pin
• Gen2 Input Option: Optional 3 kΩ pull-ups
• USB Interface: Updates and configuration
• CAN Interfaces: 2 x CAN 2.0B for communication with other controllers or logging systems
• K-Line Interface: 1
• Input Voltage Range: 6–26 V
• Power Supply: Ignition switch logic with high-current supply
• Sealing: IP67 automotive specification
• Operating Temperature: -40°C to 125°C
• Connector: 34-way Superseal 1.0
• Dimensions: 89 cm x 88 mm x 40 mm
