TECHART 091.200.860.009 Noselift System (RHD) for PORSCHE 911 Carrera 4/S/4S/GTS/4 GTS/Turbo/Turbo S (991)/GTStreet R Touring (992.1)

Description TECHART 091.200.860.009 Noselift System (RHD) for PORSCHE 911 Carrera 4/S/4S/GTS/4 GTS/Turbo/Turbo S (991)/GTStreet R Touring (992.1)

The TECHART 091.200.860.009 Noselift System is designed for right-hand drive PORSCHE 911 Carrera, Carrera S, Carrera 4S, GTS, 4 GTS, Turbo, and Turbo S 991 models, as well as GTStreet R Touring 992.1. The hydraulic TECHART Noselift system provides additional ground clearance at the front spoiler to help prevent grounding on ramps, speed humps, and curbs.

Depending on the model, the system provides 60 – 65 mm of additional ground clearance at the front spoiler through hydraulic ride-height control at the front axle. Operation is possible at standstill or while driving, with automatic lowering at over 37 mph.

The system features rapid height adjustment, integrated operation via an illuminated interior button with status indicator, particularly silent operation, and a compact hydraulic unit designed to avoid reduction of luggage space. The development includes EMC-safe electronic control units, vehicle-specific CAN bus integrated wiring harnesses, and high-performance test procedures.

The lower suspension setting is adjustable between -10 mm to -30 mm without PASM, between 0 mm to -20 mm with PASM, standard on Turbo / Turbo S, and between +10 mm to -10 mm with PASM Sport. Vehicles using batteries over 70Ah capacity require Porsche 999.611.070.10 70Ah AGM battery. The system does not fit GT3 and GT3RS models.

• TECHART Noselift System for RHD PORSCHE 911 991 models and GTStreet R Touring 992.1
• Hydraulic ride-height control at the front axle
• Provides 60 – 65 mm additional ground clearance at the front spoiler depending on model
• Ride height adjustment at the front axle approx. 45 mm
• Approx. 65 mm lift at the splitter
• Operation at standstill or while driving
• Operation while driving below 60 km/h
• Automatic re-lowering at 60 km/h / over 37 mph
• Rapid height adjustment

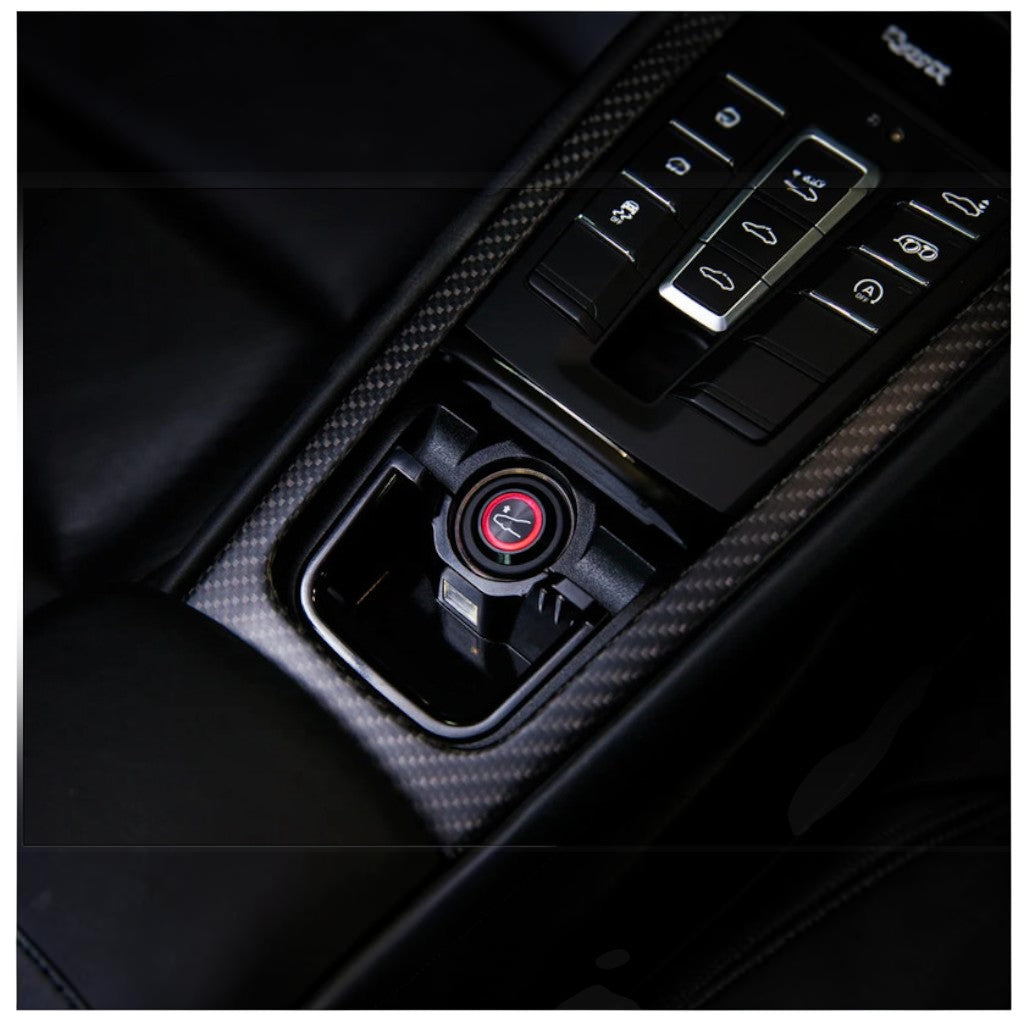

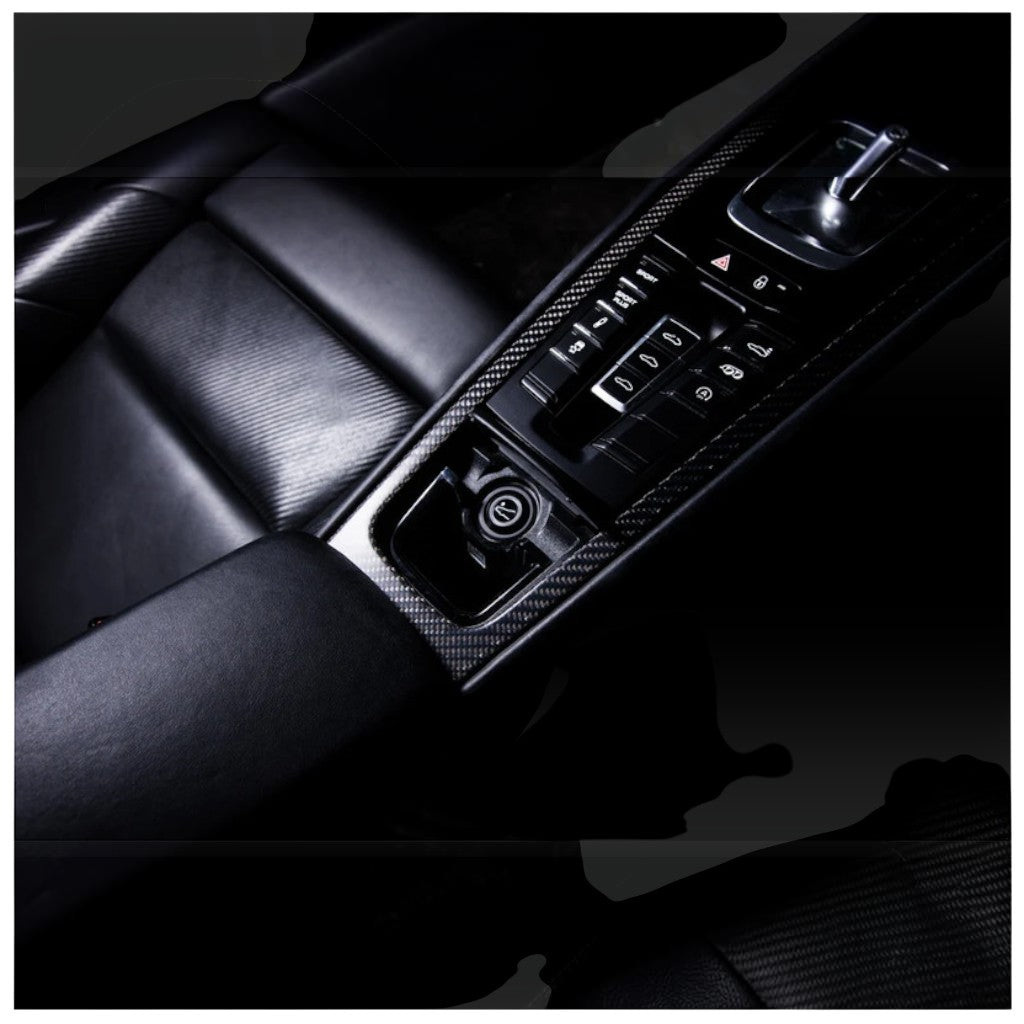

• Integrated operation via illuminated interior button with status indicator
• Particularly silent during operation
• Compact hydraulic unit with no reduction of luggage space
• Includes TÜV certification
• Does not fit GT3 and GT3RS models

Specifications:

• Steering Configuration: RHD
• Fitment: 991 Carrera all models
• Fitment Turbo: 991 Turbo(S)
• Exclusion: Does not fit GT3(RS)
• Front Axle Ride Height Adjustment: Approx. 45 mm
• Front Splitter Ground Clearance Increase: Approx. 65 mm
• Additional Ground Clearance at Front Spoiler: 60 – 65 mm depending on model
• Operation Speed: Below 60 km/h
• Automatic Lowering: At 60 km/h / over 37 mph
• Lower Suspension Setting Without PASM: Adjustable between -10 mm to -30 mm
• Lower Suspension Setting With PASM: Adjustable between 0 mm to -20 mm
• Lower Suspension Setting With PASM Sport: Adjustable between +10 mm to -10 mm
• Battery Note: Vehicles using batteries over 70Ah capacity require Porsche 999.611.070.10 70Ah AGM

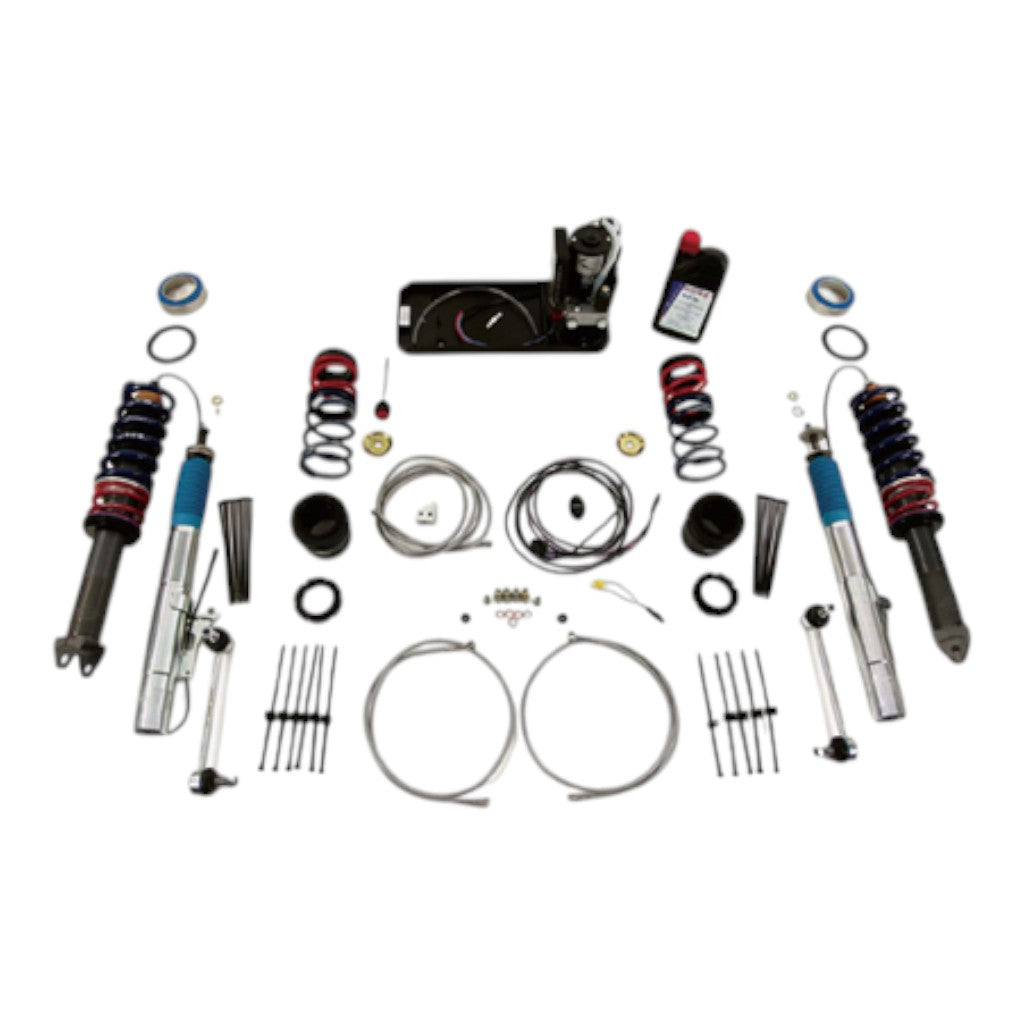

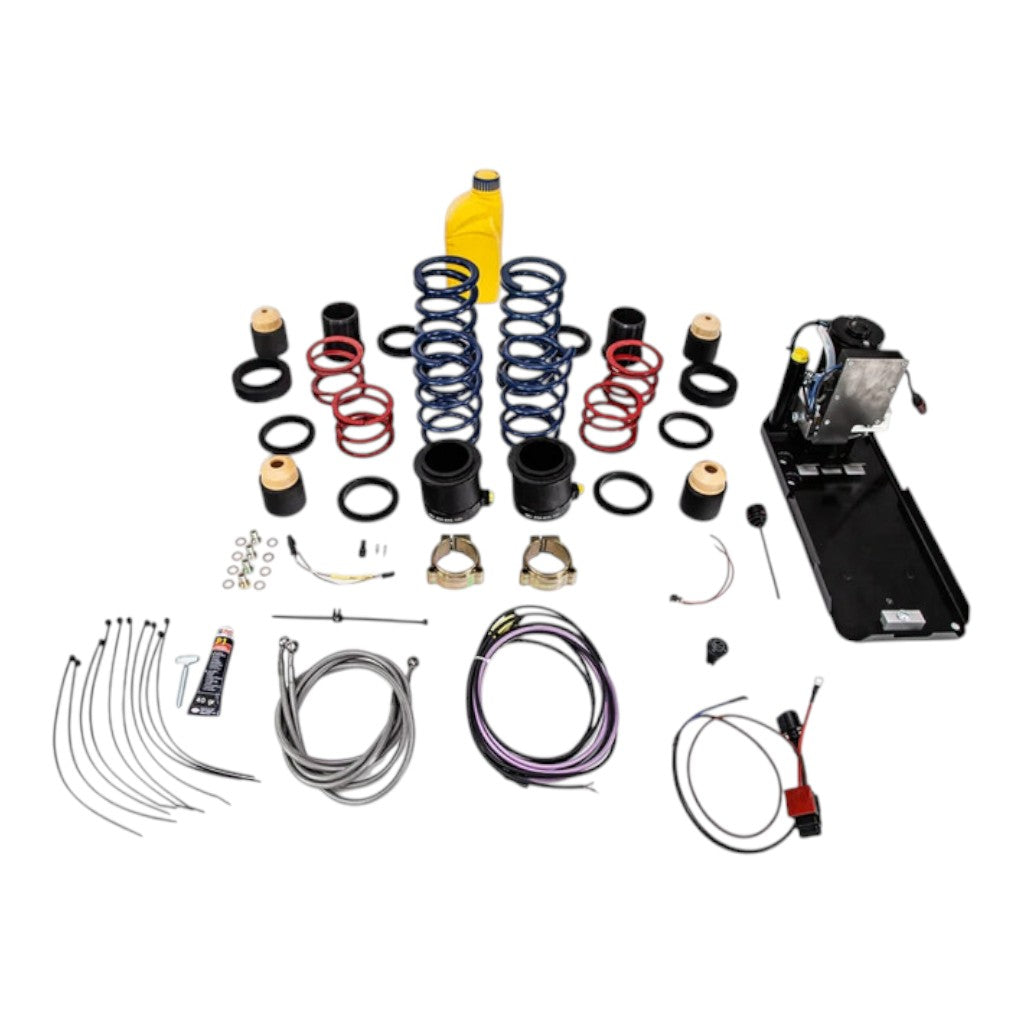

• Included Components: 2 sport springs front axle main springs, 2 sport springs front axle helper springs, 2 sport springs rear axle main springs, 2 sport springs rear axle helper springs, 2 threaded rings RA height adjustable, 2 hydraulic cylinder 45 mm for suspension strut round thread 54x1/10", TECHART hydraulic unit, installation kit, assembly instructions, TÜV certification
