TIAL 002460 TIALVB3082 V-BAND HOUSING GT30 .82 A/R Photo-0

TIAL 002460 TIALVB3082 V-BAND HOUSING GT30 .82 A/R

Sale price€589,15

VAT included. Shipping calculated at checkout

TIALP/N: 002460 GTIN: 2000000012216
Quantity:

This item is considered special order and is not available for immediate pickup or dispatch. Price and ETA may vary. Please note that no returns, cancellations, or refunds allowed on special orders.

Pickup available at Kelberg Warehouse Usually ready in 24 hours

TIAL 002460 TIALVB3082 V-BAND HOUSING GT30 .82 A/R

Kelberg Warehouse

Pickup available, usually ready in 24 hours

Auf der Struth 4
53539 Kelberg
Germany

+4926916879995

Nürburgring Showroom

Pickup available, usually ready in 24 hours

Nürburgring Boulevard 2
53520 Nürburg
Germany

+4926916879995

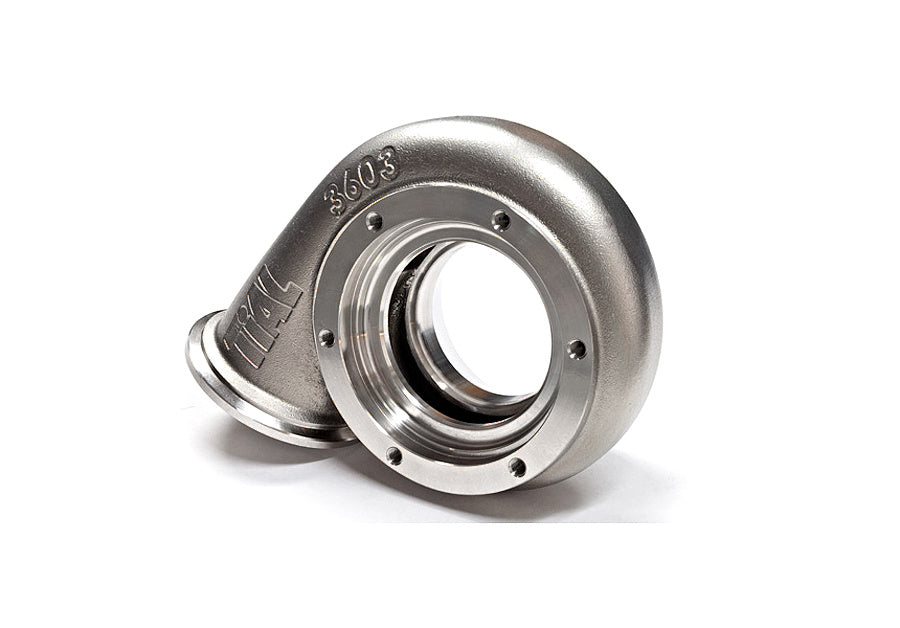

Lightweight stainless steel turbine housings for the GT/X 30 series turbochargers. Compatible with the 60mm 84 trim turbine wheel. Note: these housings will not work with the 700177-23 GT3071R CHRA, the heat shield is different, you must use the 700177-22 CHRA

SPECIFICATIONS
Typically lighter weight than a corresponding iron housing of the same A/R
Investment cast stainless steel for a beautiful, smooth interior and exterior
Vband inlet and outlet gets rid of gaskets and bolts, no leaks and no broken bolts
Three A/R options
Overall physical size is smaller than standard housing, allowing it to fit in tight engine bays
Better heat retention than cast iron
Inconel bolts provided for vibration and stretching resistance in extreme applications
Locking tabs included for high vibration applications
Pivoting of the turbo 360* possible
Note: these housings will not work with the 700177-23 GT3071R CHRA, the heat shield is different, you must use the 700177-22 CHRA

CONFIGURATION
Flange Materials 304L Stainless
Pipe Size Inlet Flange: 2.125" OD, Outlet Flange: 3.00" OD
Flanges/Clamps Included? No
Housing Weight 5.8lbs (largest A/R)
Turbine Wheel 60mm 84 Trim

INCLUDED WITH EVERY HOUSING
Turbine Housing
Three Moon Tabs
Six Inconel Bolts
Three Locking Tabs

AVAILABLE A/R
.63
.82
1.06

TIAL V-BAND CLAMP AND FLANGE SYSTEM
TiAL V-Band flanges are manufactured in house
GTVFL3.0 - Inlet Flange
VC300 - Inlet Clamp
VBF300M - Outlet Flange
VC355 - Outlet Clamp
