TIAL 002659 V60.822 Wastegate 60mm .822 bar (11.935 psi) Silver
This item is considered special order and is not available for immediate pickup or dispatch. Price and ETA may vary. Please note that no returns, cancellations, or refunds allowed on special orders.
TIAL 002659 V60.822 Wastegate 60mm .822 bar (11.935 psi) Silver
Kelberg Warehouse
Auf der Struth 4
53539 Kelberg
Germany
Nürburgring Showroom
Nürburgring Boulevard 2
53520 Nürburg
Germany

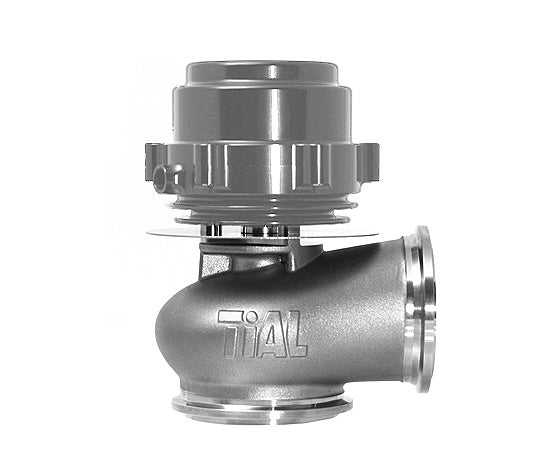

V60: TiAL's Largest Unit Controls Boost with Perfect Precision
The largest unit in the TiAL lineup. This massive 60mm wastegate will control boost with dead on accuracy in the most demanding situations. The V60 is a favorite in the drag racing and road racing industries, from the burnout box to the finishing line at Watkins Glen!
Features:
- Repeatability & Reliability Ideal for Drag & Road Racing
- 2.36" Valve (60mm), 2.5" Inlet Flange, 2.375" Outlet Flange
- Valve Made from High-Temperature NiCrFe-Based Alloy
- Nitronic 60 Stainless Steel Valve Seat & Valve Bushing
- Flows 330 cfm at 1 psi Differential Pressure
- Nomex-Reinforced Actuator Diaphragm
- 347 Stainless Steel Valve Housing
- Stainless Steel Hardware
- Stainless Steel Actuator Spring Provides Consistent Pressure & Resists Relaxing up to 900° F
- Color anodized aluminum actuator (Silver, Red, Blue, Purple, Black)
Included with Every Tial V60 Series Wastegate:
- V60 Wastegate Assembly
- V60 Valve Seat
- Two TiAL Air Fittings
- Inlet Flanges and Clamps
- Outlet Flanges and Clamps
