TIAL 002957 MV-SA BK MVS wastegate all spring - black Photo-0
TIAL 002957 MV-SA BK MVS wastegate all spring - black Photo-1
TIAL 002957 MV-SA BK MVS wastegate all spring - black

TIAL 002957 MV-SA BK MVS wastegate all spring - black

Sale price€523,10

VAT included. Shipping calculated at checkout

TIALP/N: 002957
Quantity:

This item is considered special order and is not available for immediate pickup or dispatch. Price and ETA may vary. Please note that no returns, cancellations, or refunds allowed on special orders.

Pickup available at Kelberg Warehouse Usually ready in 24 hours

TIAL 002957 MV-SA BK MVS wastegate all spring - black

Kelberg Warehouse

Pickup available, usually ready in 24 hours

Auf der Struth 4
53539 Kelberg
Germany

+4926916879995

Nürburgring Showroom

Pickup available, usually ready in 24 hours

Nürburgring Boulevard 2
53520 Nürburg
Germany

+4926916879995

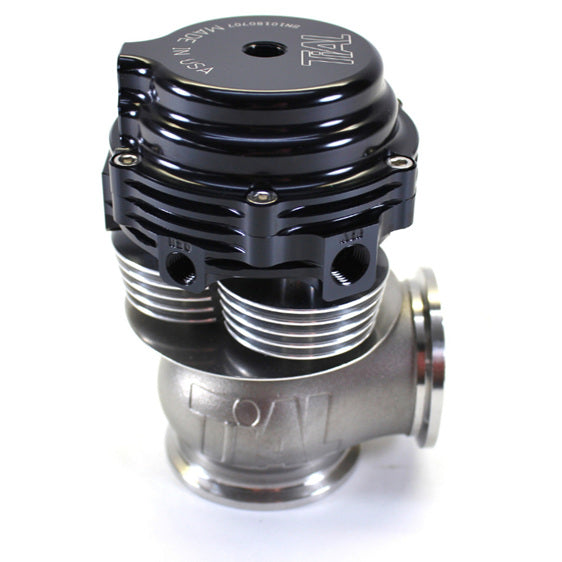

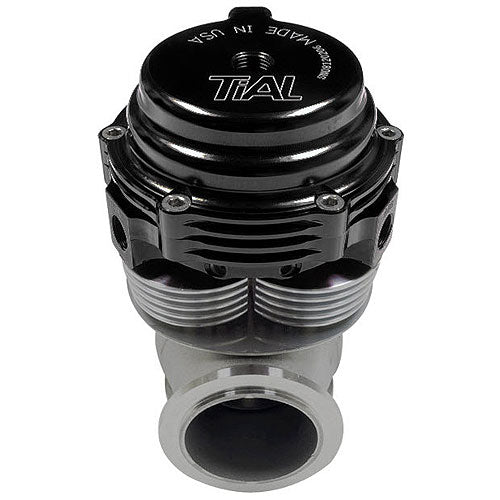

TiAL Sport MV-S-A 38mm Wastegate 1.75" OD Inlet Flange

This MV-S-A & MV-S-AR 38mm unit is designed specifically for motorsport applications that can't utilize the water cooling ports on the standard MV-S wastegate. The MV-S-A & MV-S-AR has a 38mm valve but also has heat isolating and dissipation fins that separate the casting from the actuator top. Born into the world of Motorsport this wastegate can handle the harshest of conditions and give the confidence of 100% performance. It is the choice wastegate of many WRC and Grand-am teams.

Features:

  • High temp NiCrFe based alloy is used for valve and 347SS valve housing will offer longer product life compared to competing designs
  • High temperature silicone Nomex reinforced actuator diaphragm
  • 17-7 PH Stainless Steel actuator spring gives consistent pressure at high temperature, resist ''relaxing'' at temperature to 900°F (483°C)
  • Nitronic 60 Stainless Steel is used for the valve seat, and valve bushing
  • All Stainless Steel hardware
  • Mating weld flanges are 304L
  • Three lower ports and two top ports for easy install (air ports (5): M10 x 1.0 thread), no need to rotate the actuator top at all, plugs included for unused ports
  • V-Band inlet and outlet make install easy, flanges and clamps are in the box
  • Integrated -04 AN water cooling ports (water ports (2): M8 x 1.0 thread) that cycle a small amount of coolant through the actuator top to keep the temperatures down in extreme conditions such as road racing. These are leak tested after installation from the factory and can be removed if not utilized.
  • Adjustable from 0.3 to 1.7 BAR (Springs Included)
  • Five heat sinks raise the actuator top away from the casting to dissipate heat when water cooling can not be used
  • Color anodized aluminum actuator (Silver, Red, Blue, Purple, Black)
