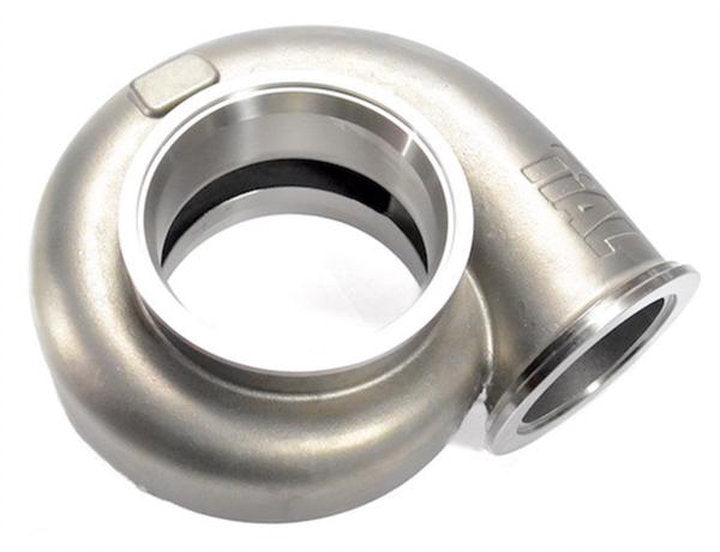

Lightweight stainless steel turbine housing for the GT/X 42 series turbochargers. Compatible with the 82mm 84 trim turbine wheel
SPECIFICATIONS
Typically lighter weight than a corresponding iron housing of the same A/R
Investment cast stainless steel for a beautiful, smooth interior and exterior
Vband inlet and outlet gets rid of gaskets and bolts, no leaks and no broken bolts
Three A/R options
Overall physical size is smaller than standard housing, allowing it to fit in tight engine bays
Better heat retention than cast iron
Pivoting of the turbo 360* possible
CONFIGURATION
Flange Materials 304L Stainless
Pipe Size Inlet Flange: 2.75" OD, Outlet Flange: 4.00" OD
Flanges/Clamps Included? No
Housing Weight 13.3lbs (largest A/R)
Turbine Wheel 82mm 84 Trim
INCLUDED WITH EVERY HOUSING
Turbine Housing
AVAILABLE A/R
1.02
1.16
1.30
TIAL V-BAND CLAMP AND FLANGE SYSTEM
TiAL V-Band flanges are manufactured in house
TVBFL42INLET - Inlet Flange
VC381 - Inlet Clamp
TVBFL42DC40 - Outlet Flange
VC450 - Outlet Clamp
VC450 - CHRA to Housing Clamp
