TIAL 004097 TIALVB2852 V-BAND HOUSING GT28 .52 A/R Photo-0

TIAL 004097 TIALVB2852 V-BAND HOUSING GT28 .52 A/R

€468,06

VAT included. Shipping calculated at checkout

TIAL P/N: 004097
Quantity:

This item is considered special order and is not available for immediate pickup or dispatch. Price and ETA may vary. Please note that no returns, cancellations, or refunds allowed on special orders.

Pickup available at Kelberg Warehouse Usually ready in 24 hours

TIAL 004097 TIALVB2852 V-BAND HOUSING GT28 .52 A/R

Kelberg Warehouse

Pickup available, usually ready in 24 hours

Auf der Struth 4
53539 Kelberg
Germany

+4926916879995

Nürburgring Showroom

Pickup available, usually ready in 24 hours

Nürburgring Boulevard 2
53520 Nürburg
Germany

+4926916879995

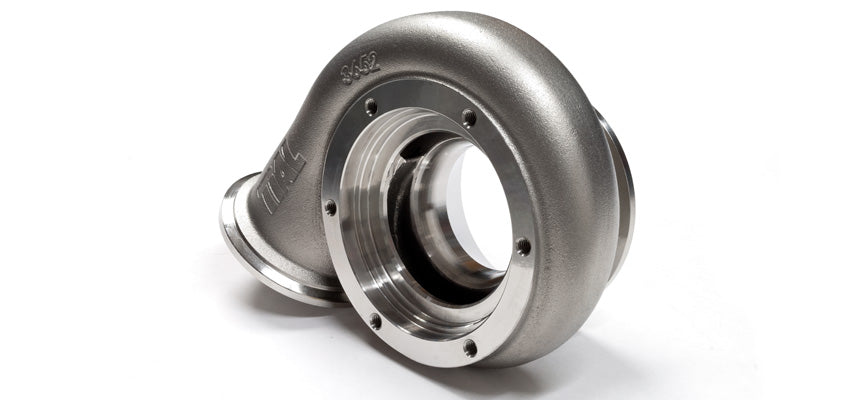

Lightweight stainless steel turbine housings for the GT/X 28 series turbochargers, compatible with the 76 trim 53.9mm turbine wheel

SPECIFICATIONS
Typically lighter weight than a corresponding iron housing of the same A/R
Investment cast stainless steel for a beautiful, smooth interior and exterior
Vband inlet and outlet gets rid of gaskets and bolts, no leaks and no broken bolts
Two A/R options
Overall physical size is smaller than standard housing, allowing it to fit in tight engine bays
Better heat retention than cast iron
Inconel bolts provided for vibration and stretching resistance in extreme applications
Locking tabs included for high vibration applications
Pivoting of the turbo 360* possible

CONFIGURATION
GT28 Housing Option
Flange Materials 304L Stainless
Pipe Size Inlet Flange: 2.125" OD, Outlet Flange: 3.00" OD
Flanges/Clamps Included? No
Housing Weight 4.5lbs (largest A/R)
Turbine Wheel 53.9mm 76 Trim

NCLUDED WITH EVERY HOUSING
Turbine Housing
Three Moon Tabs
Six Inconel Bolts
Three Locking Tabs

TIAL V-BAND CLAMP AND FLANGE SYSTEM
altTiAL V-Band flanges are manufactured in house
GTVFL3.0 - Inlet Flange
VC300 - Inlet Clamp
VBF300M - Outlet Flange
VC355 - Outlet Clamp
