TIAL 006423 V-BAND HOUSING GT55 1.45 A/R Photo-0

TIAL 006423 V-BAND HOUSING GT55 1.45 A/R

€1.081,92

VAT included. Shipping calculated at checkout

TIALP/N: 006423
Quantity:

This item is considered special order and is not available for immediate pickup or dispatch. Price and ETA may vary. Please note that no returns, cancellations, or refunds allowed on special orders.

Pickup available at Kelberg Warehouse Usually ready in 24 hours

TIAL 006423 V-BAND HOUSING GT55 1.45 A/R

Kelberg Warehouse

Pickup available, usually ready in 24 hours

Auf der Struth 4
53539 Kelberg
Germany

+4926916879995

Nürburgring Showroom

Pickup available, usually ready in 24 hours

Nürburgring Boulevard 2
53520 Nürburg
Germany

+4926916879995

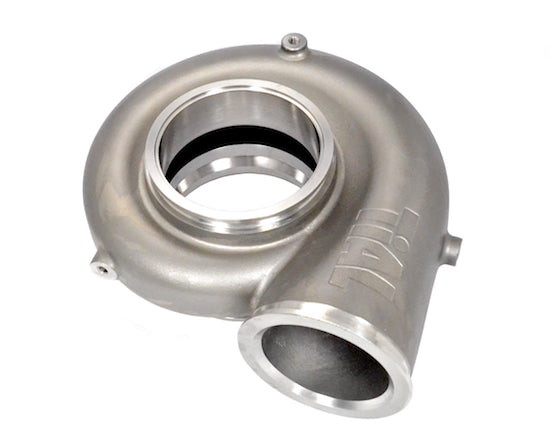

Lightweight stainless steel turbine housing for the GT/X 55 series turbochargers, compatible with the 111.5mm 84 trim turbine wheel

SPECIFICATIONS
Typically lighter weight than a corresponding iron housing of the same A/R
Investment cast stainless steel for a beautiful, smooth interior and exterior
Vband inlet and outlet gets rid of gaskets and bolts, no leaks and no broken bolts
Two A/R options
Overall physical size is smaller than standard housing, allowing it to fit in tight engine bays
Better heat retention than cast iron
Pivoting of the turbo 360* possible
Mounting bosses cast into housing

INCLUDED WITH EVERY HOUSING
Turbine Housing

AVAILABLE A/R
1.15
1.30

TIAL V-BAND CLAMP AND FLANGE SYSTEM
TiAL V-Band flanges are manufactured in house
GT55Inlet - Inlet Flange
VC425 - Inlet Clamp
GT55Outlet - Outlet Flange
VC475 - Outlet Clamp

CONFIGURATION
Flange Materials 304L Stainless
Pipe Size Inlet Flange: 3.50" OD, Outlet Flange: 4.50" OD
Flanges/Clamps Included? No
Housing Weight 22.6lbs (largest A/R)
Turbine Wheel 111.5mm 84 Trim
