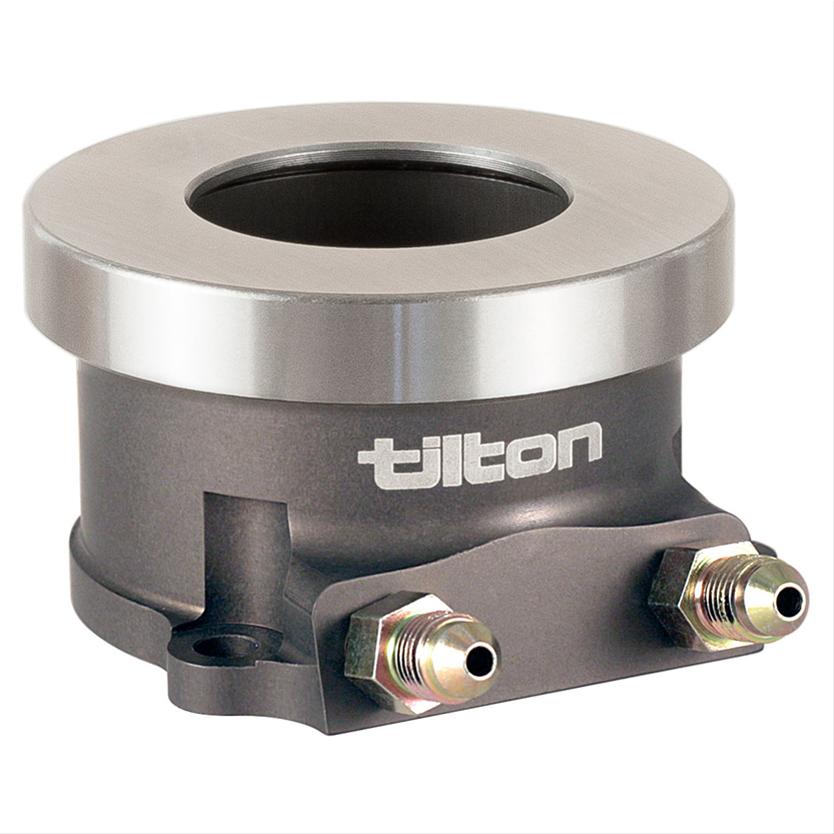

TILTON 60-1100 Hydraulic Throwout Bearings 1100-Series Photo-0

TILTON 60-1100 Hydraulic Throwout Bearings 1100-Series

€458,17

VAT included. Shipping calculated at checkout

TILTONP/N: 60-1100
Quantity:

This item is considered special order and is not available for immediate pickup or dispatch. Price and ETA may vary. Please note that no returns, cancellations, or refunds allowed on special orders.

Pickup available at Kelberg Warehouse Usually ready in 24 hours

TILTON 60-1100 Hydraulic Throwout Bearings 1100-Series

Kelberg Warehouse

Pickup available, usually ready in 24 hours

Auf der Struth 4
53539 Kelberg
Germany

+4926916879995

Nürburgring Showroom

Pickup available, usually ready in 24 hours

Nürburgring Boulevard 2
53520 Nürburg
Germany

+4926916879995

Tilton’s 1100-Series hydraulic release bearing (also known as hydraulic throwout bearings) features a flat-face contact bearing. Ideal for 8.5″ – 11.0″ bent-finger clutches, the 1100-Series HRBs fit many popular racing transmissions designed to accept 3-bolt pattern “Saab-type” hydraulic release bearings.

Features

Superior lightweight aluminum construction
Tilton HRBs are designed, machined, assembled and checked by Quality Control at Tilton’s headquarters before they are approved and shipped. By using the highest quality materials, combined with the latest machining methods, our designs can be light, strong, and provide race-proven results, time and time again.
Proprietary low-friction surface treatments
Using the latest technologies, Tilton HRBs are treated with a durable, low-friction coating, created specifically for our use on HRBs. This coating aids in the long-wearing durability and high-performance they are known for.
Unique monoseal technology
For proper seal tension, Tilton has created a unique multi-edged quad-tension seal, to ensure consistent feel, long term wearability, and lasting reliability. Seals have been tested to hundreds of thousands of actuations without failure, which is why this technology is built into every Tilton HRB.
Wiper-seal debris prevention
The resilient orange seal is your guard against unwanted HRB bore damage.
Smooth and reliable high-quality bearings
Using the highest quality components, Tilton bearings are tested extensively for long life durability.
Constant contact design
Coupling high-quality, durable bearings with a constant contact design, your system is always ready to engage.
Self-adjusting
As your clutch wears, Tilton HRBs compensate to maintain the same pedal feel, shift after shift.


Mount: 3-bolt “Saab-type” pattern
Weight: .95 lbs
Application: 8.5″ – 11.0″ bent finger clutches
Overall height: 1.79″ (45.5mm)
Contact: 1.71″ – 3.03″ (43.4mm – 77.0mm)
Bearing type: Flat-face
Body and piston material: Billet aluminum
Piston area: 1.215 in2 (784mm2)
Maximum stroke: .700″ (17.8mm)
Ports: AN-3 (3/8″-24)
Included in kit: AN-3 fittings (2)

Typical applications: Fits many popular racing transmissions designed to accept 3-bolt pattern “Saab-type” hydraulic release bearings.
