TILTON 72-856-S 850-Series 3-Pedal Underfoot Assembly (Floor Mount)
This item is considered special order and is not available for immediate pickup or dispatch. Price and ETA may vary. Please note that no returns, cancellations, or refunds allowed on special orders.
TILTON 72-856-S 850-Series 3-Pedal Underfoot Assembly (Floor Mount)
Kelberg Warehouse
Auf der Struth 4
53539 Kelberg
Germany
Choose options
This item is considered special order and is not available for immediate pickup or dispatch. Price and ETA may vary. Please note that no returns, cancellations, or refunds allowed on special orders.
This item is considered special order and is not available for immediate pickup or dispatch. Price and ETA may vary. Please note that no returns, cancellations, or refunds allowed on special orders.
Description TILTON 72-856-S 850-Series 3-Pedal Underfoot Assembly (Floor Mount)

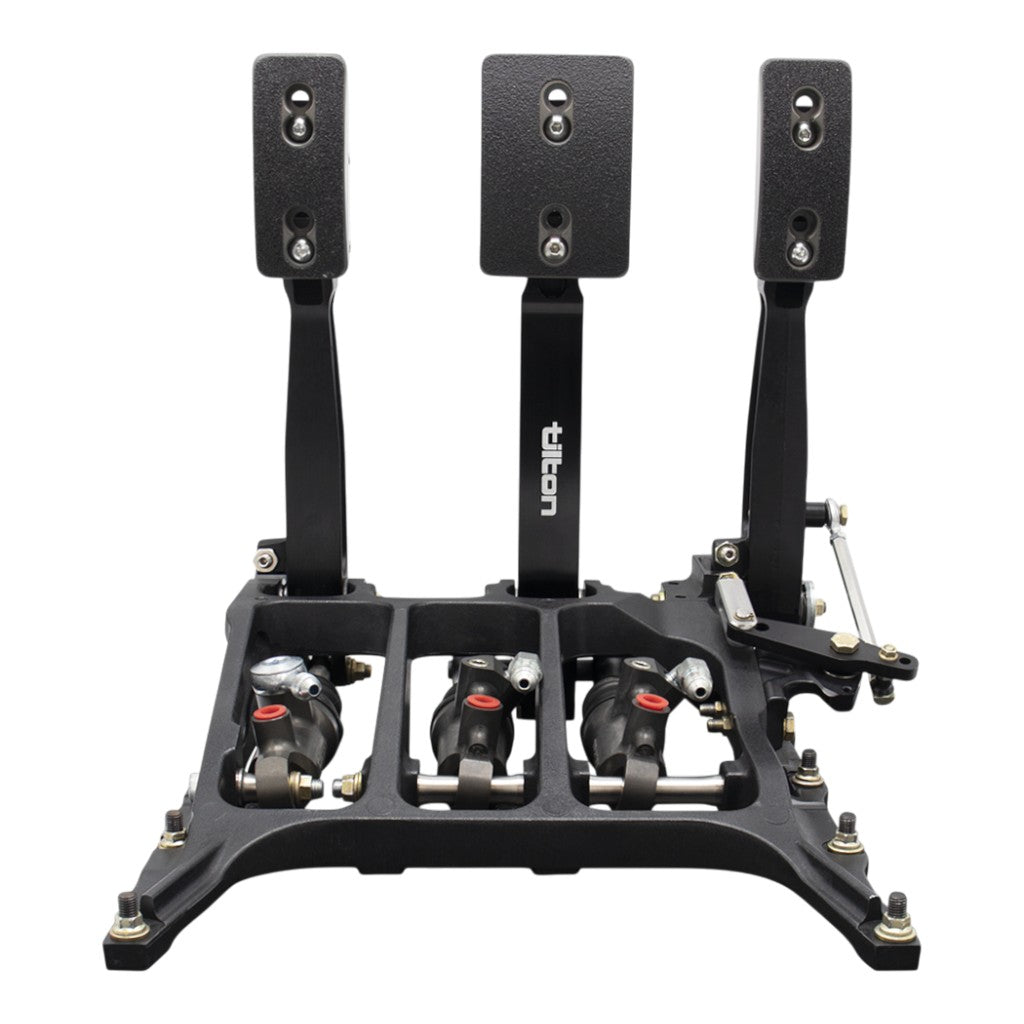

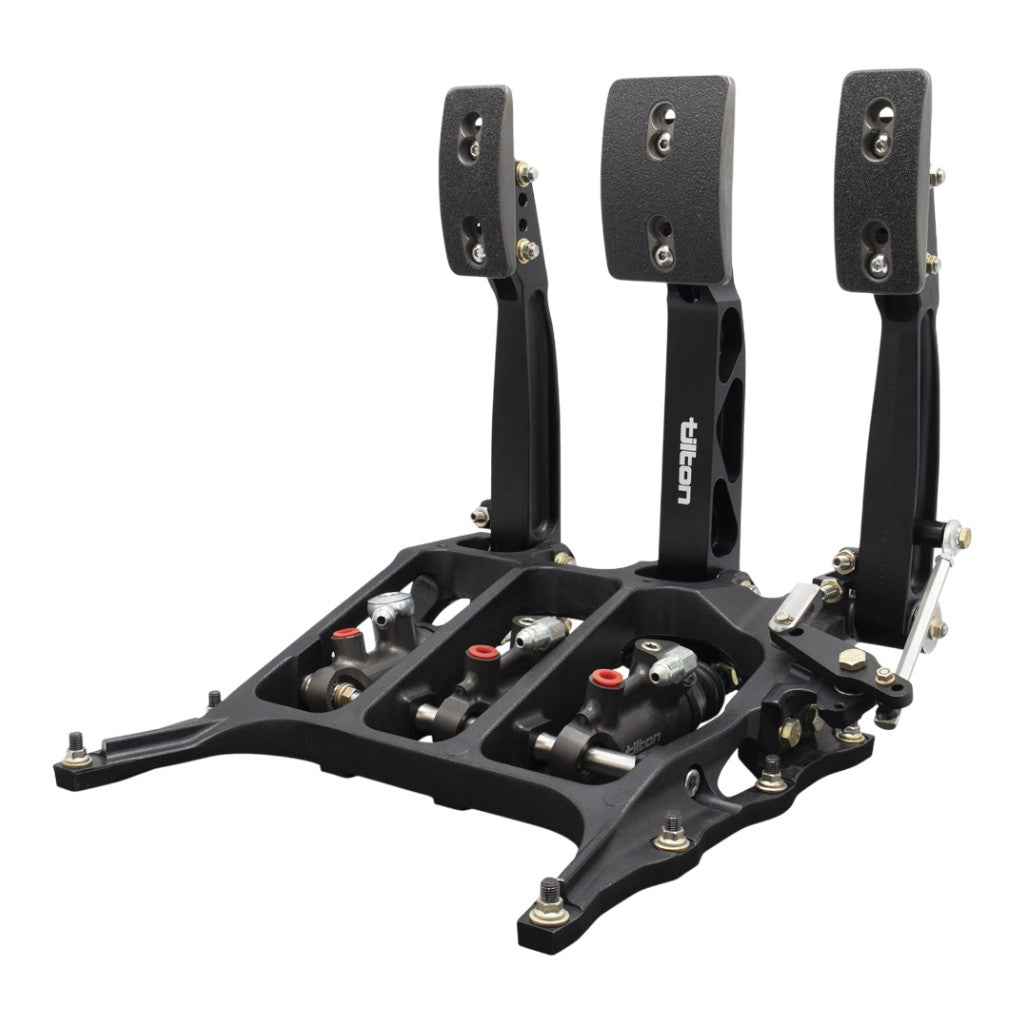

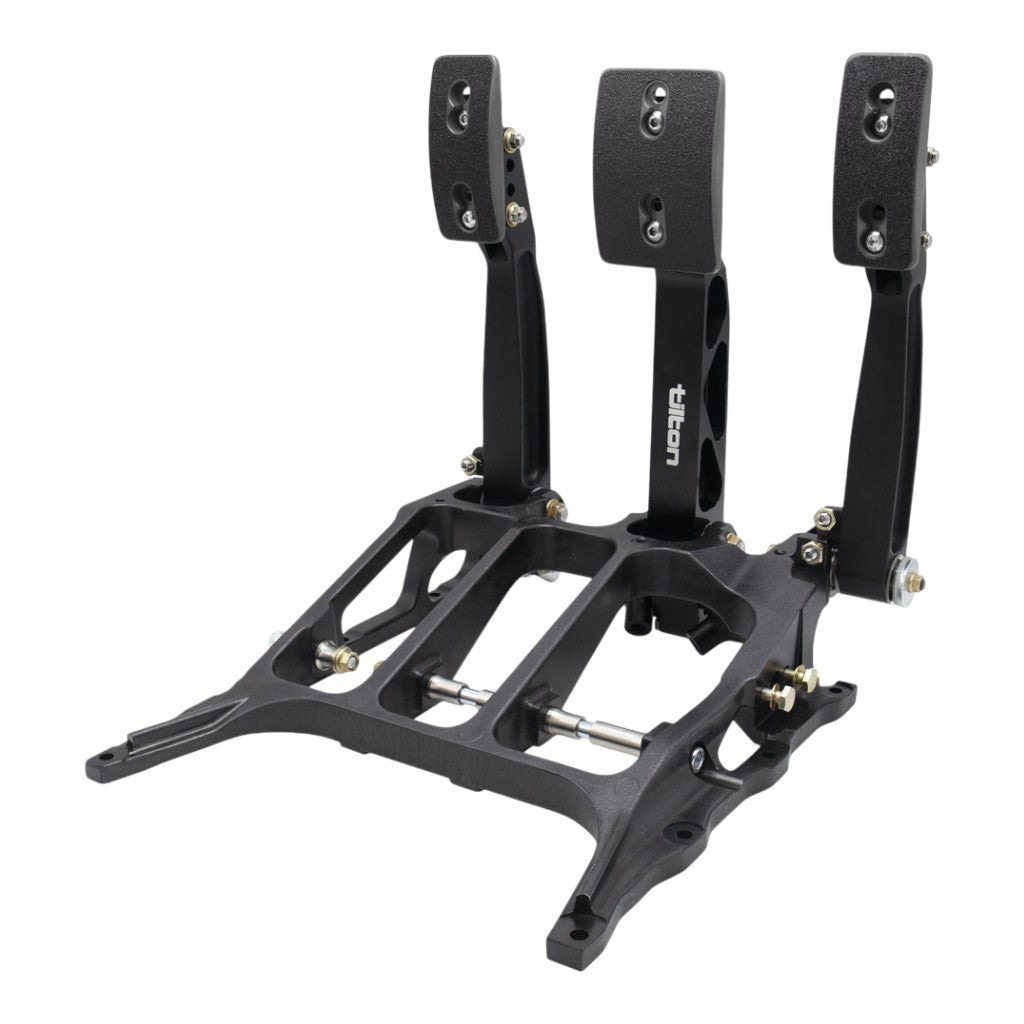

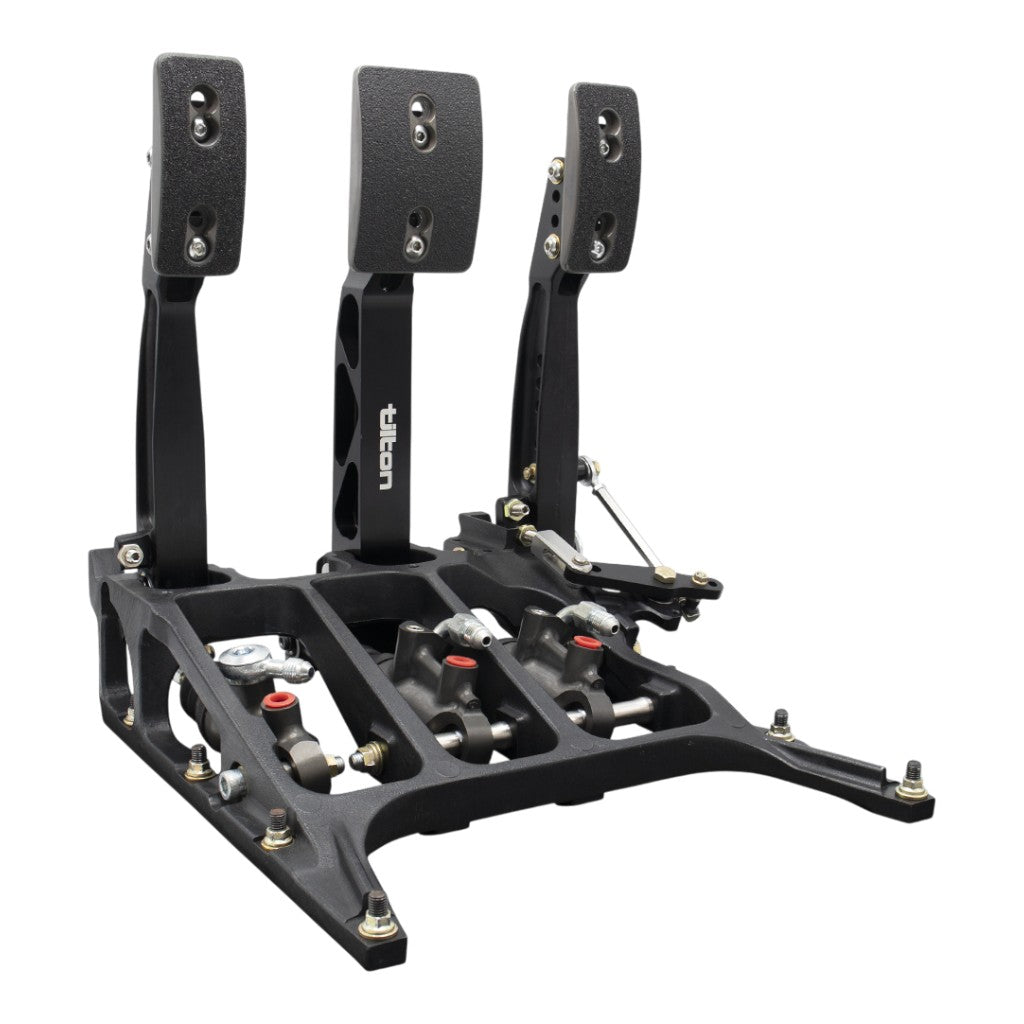

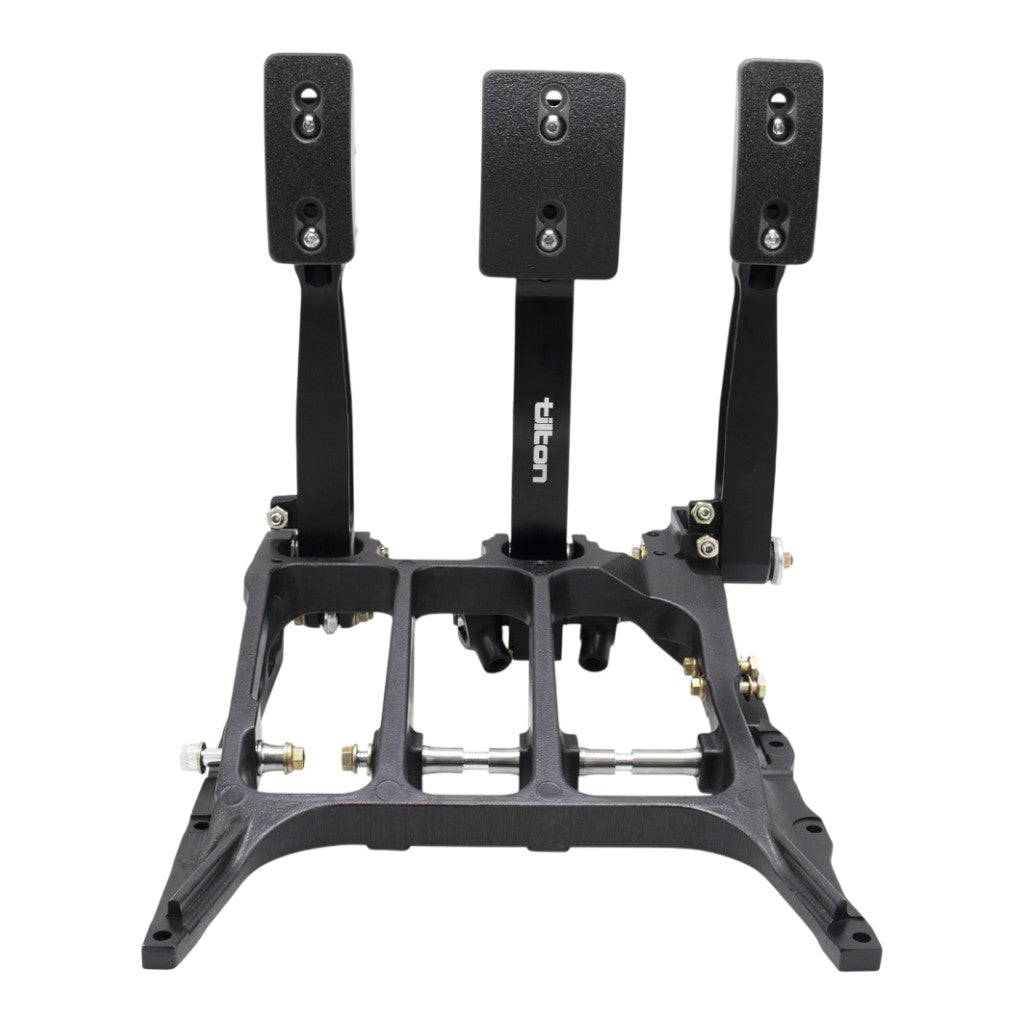

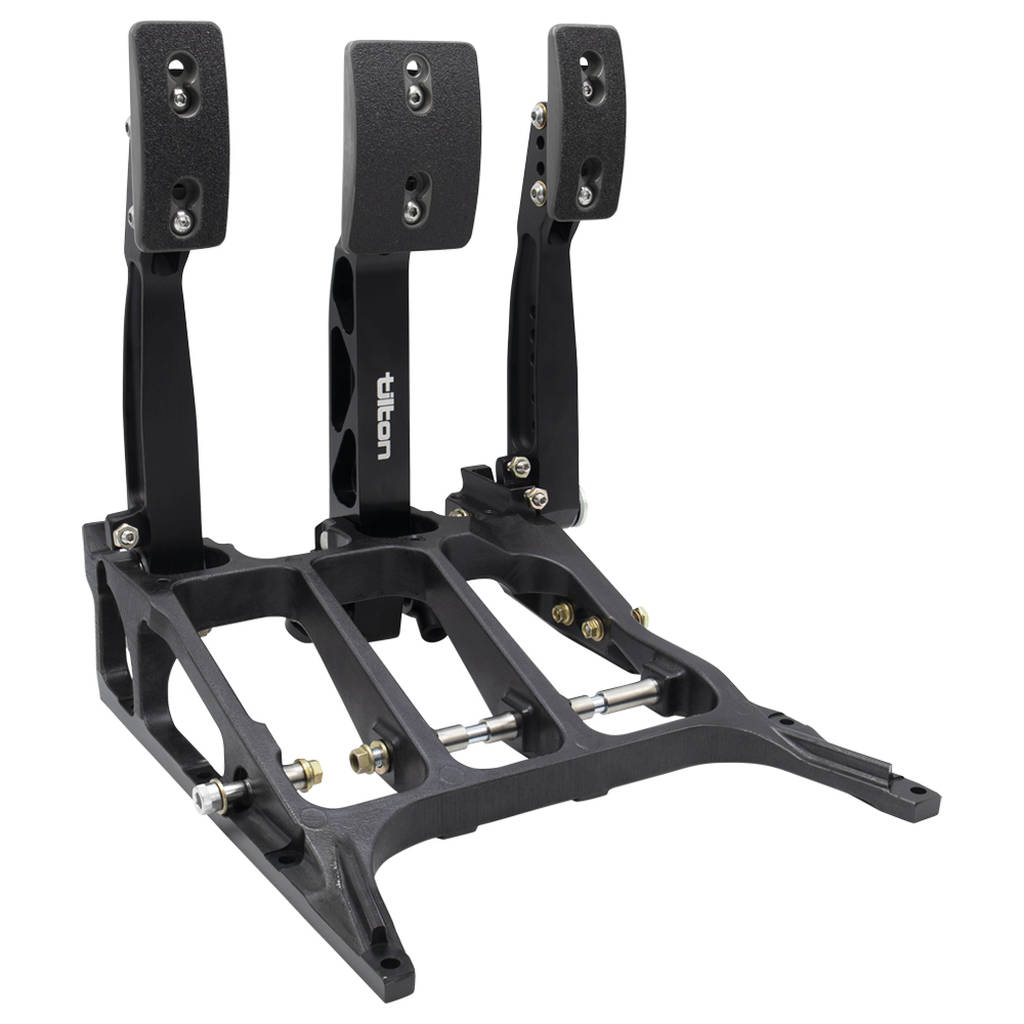

The TILTON 72-856-S 850-Series 3-Pedal Underfoot Assembly is a professional-grade floor-mounted pedal box engineered for motorsport and high-performance vehicle applications. Designed with lightweight aluminum construction and precision-machined components, the assembly provides exceptional pedal feel, durability, and adjustability for demanding racing environments.
The system features an ultra-efficient 7/16”-20 trunnion-type balance bar that minimizes brake bias migration under heavy braking. The billet aluminum brake pedal incorporates ball-bearing pivots for smooth operation, while the forged aluminum throttle and clutch pedals utilize oil-impregnated bronze bushings for long-term reliability. Adjustable pedal ratios and customizable foot pad positions allow precise tailoring to individual driver preferences.
- Floor-mounted 3-pedal assembly for motorsport applications

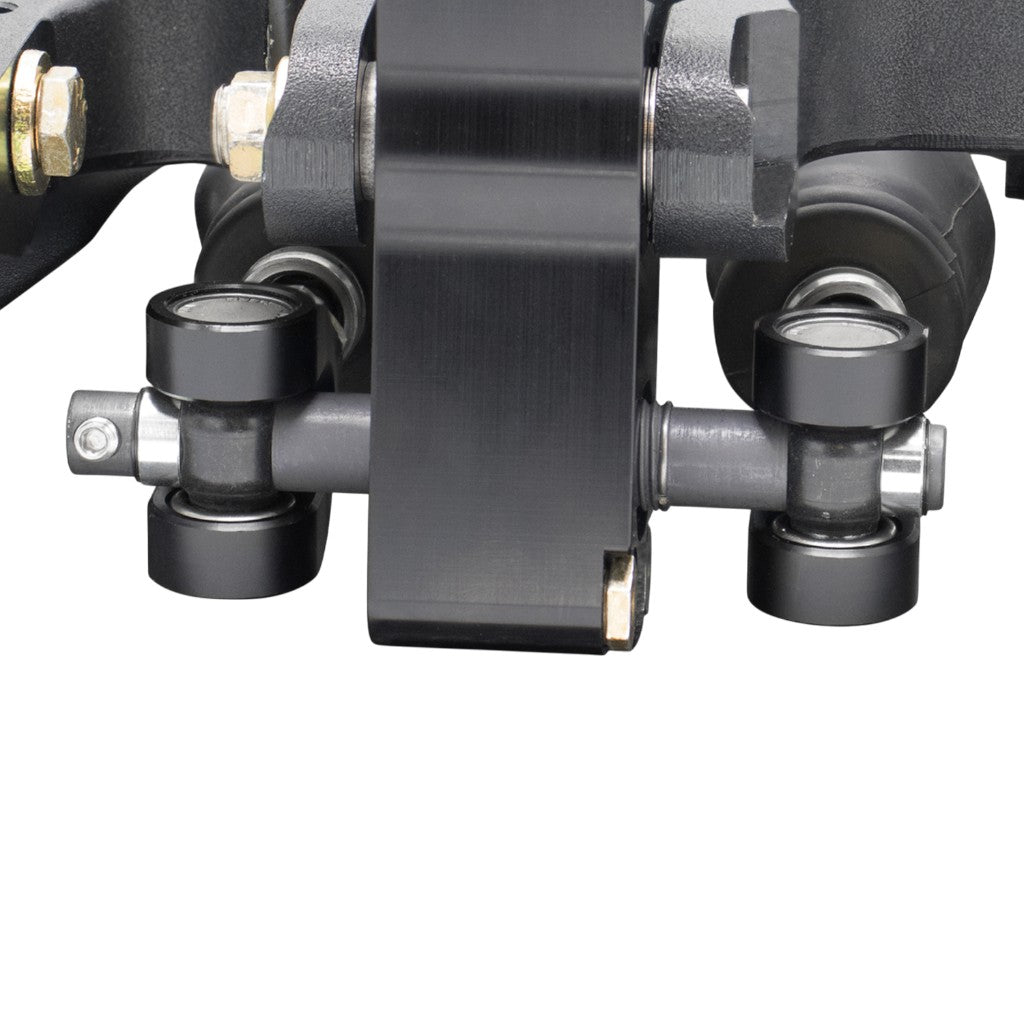

- 7/16”-20 trunnion-style balance bar minimizes brake bias migration
- Billet aluminum brake pedal with ball-bearing pivot
- Forged aluminum throttle and clutch pedals
- Oil-impregnated bronze bushings in throttle and clutch pivots
- Lightweight, high-strength aluminum frame construction
- Adjustable brake pedal ratio for customized pedal feel
- Adjustable foot pads for position and angle optimization
- Compatible with mechanical throttle linkage and Drive-by-Wire systems
- Designed for use with Tilton racing master cylinders
Specifications:
- Series: 850-Series
- Mounting Type: Floor mount
- Balance Bar Thread: 7/16”-20
- Brake Pedal Material: Billet aluminum
- Throttle & Clutch Pedal Material: Forged aluminum
- Frame Material: Aluminum
- Pedal Ratio Adjustment Range: 4.8:1 to 6.1:1
- Weight: 7.6 lbs
- Brake Master Cylinder Compatibility: Tilton 78-Series or 79-Series (sold separately)
- Clutch Master Cylinder Compatibility: Tilton 78-Series (sold separately)
- Throttle Linkage Compatibility: Mechanical linkage or Drive-by-Wire systems
- Important Note: Remote Brake Bias Adjuster required for 800/850-Series pedal assemblies
