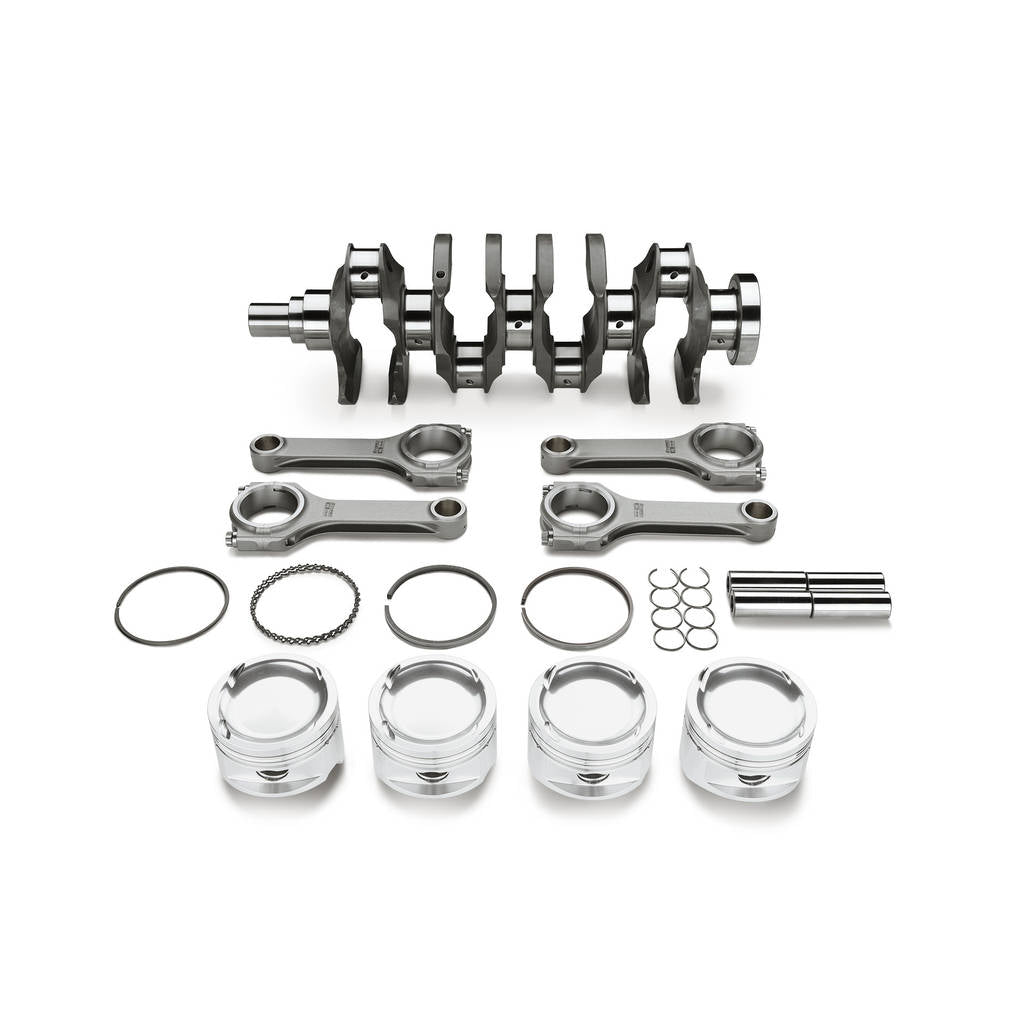

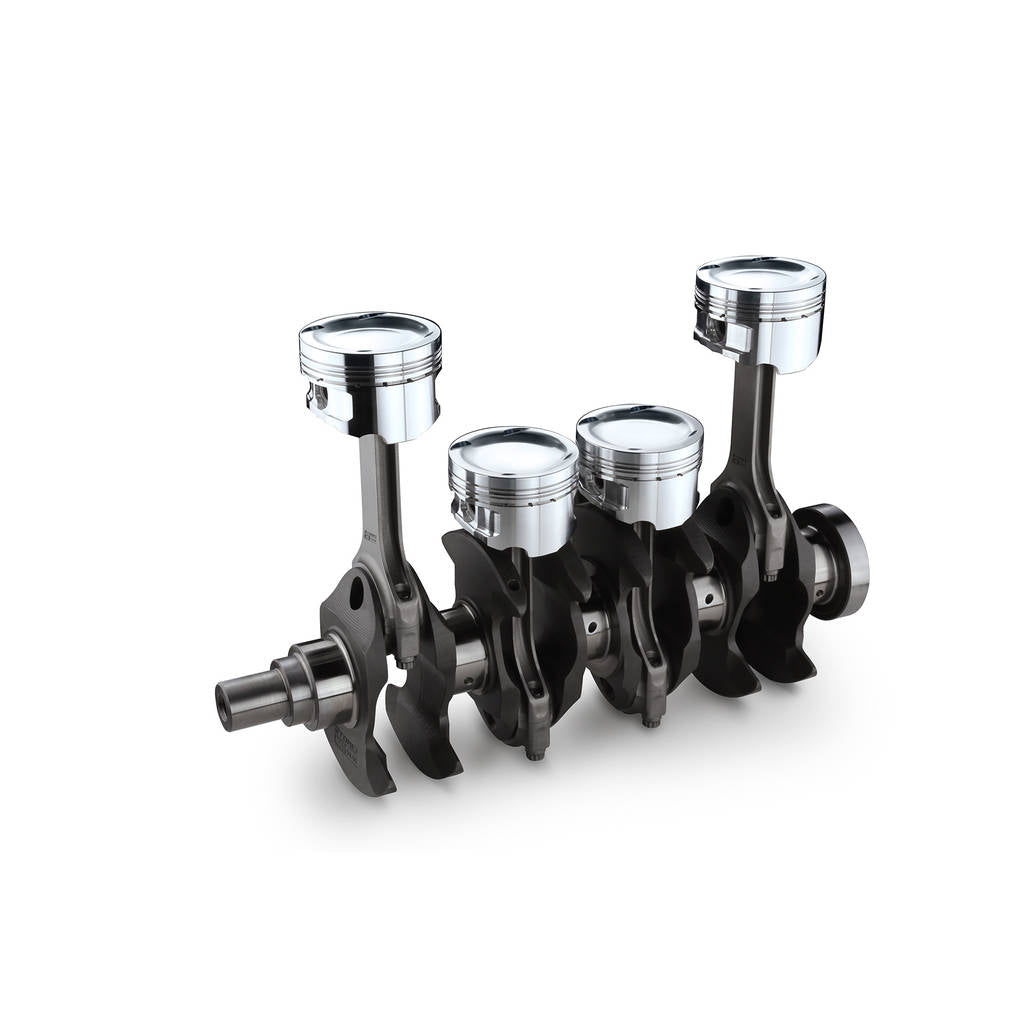

TOMEI TA201A-MT01A 4G63-22KIT 86.0mm
Available for order at Partners Worldwide
Usually ready in 1-2 weeks
updated 30.10.2025
Quantity:
This item is considered special order and is not available for immediate pickup or dispatch. Price and ETA may vary. Please note that no returns, cancellations, or refunds allowed on special orders.
Pickup available at Kelberg Warehouse
Usually ready in 24 hours
TOMEI TA201A-MT01A 4G63-22KIT 86.0mm
Kelberg Warehouse
Pickup available, usually ready in 24 hours
Auf der Struth 4
53539 Kelberg
Germany
Choose options
Available for order at Partners Worldwide
Usually ready in 1-2 weeks
updated 30.10.2025
Quantity:
This item is considered special order and is not available for immediate pickup or dispatch. Price and ETA may vary. Please note that no returns, cancellations, or refunds allowed on special orders.
Available for order at Partners Worldwide
Usually ready in 1-2 weeks
updated 30.10.2025
Quantity:
This item is considered special order and is not available for immediate pickup or dispatch. Price and ETA may vary. Please note that no returns, cancellations, or refunds allowed on special orders.
| BORE (mm) | 86.00 (STOCK +1.0) |
| STROKE (mm) | 94.00 (STOCK +6.0 ) |
| DISPLACEMENT (cc) | 2184.1 |
| C.C. VOLUME (cc) | 43.0 |
| PISTON DOME VOL. (cc) | -19.5 |
| PISTON DECK CLEARANCE/HIGHT (mm) | -0.35 |
| PISTON COMP.HEIGHT (mm) | 31.65 (STOCK -3.35) |
| ROD C-to-C (mm) | 150.00 (STOCK ±0.0) |
| HEAD GASKET BORE (mm) | 86.5 |
| C/R With 86.5-1.0 | 8.76 |
| C/R With 86.5-1.2 | 8.63 |
| C/R With 86.5-1.5 | 8.44 |
| C/R With 86.5-1.8 | 8.27 |
