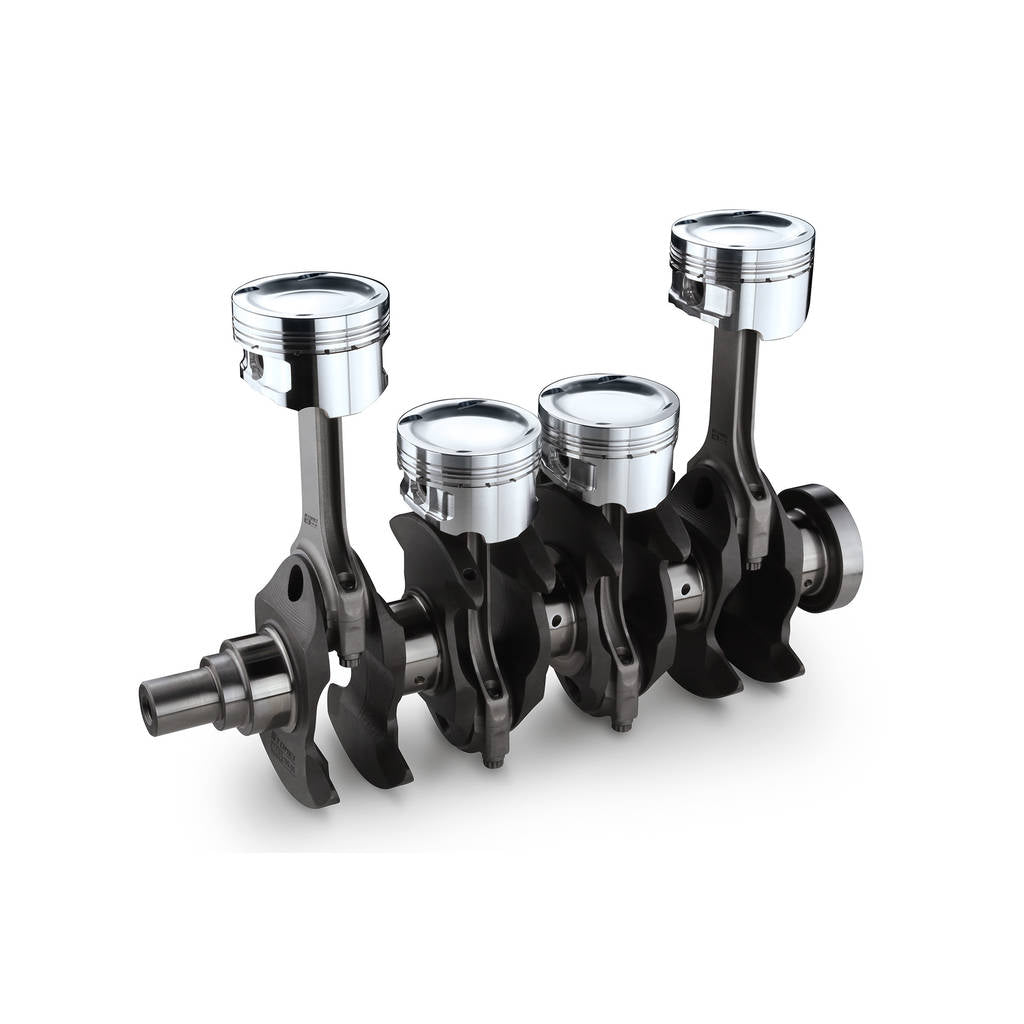

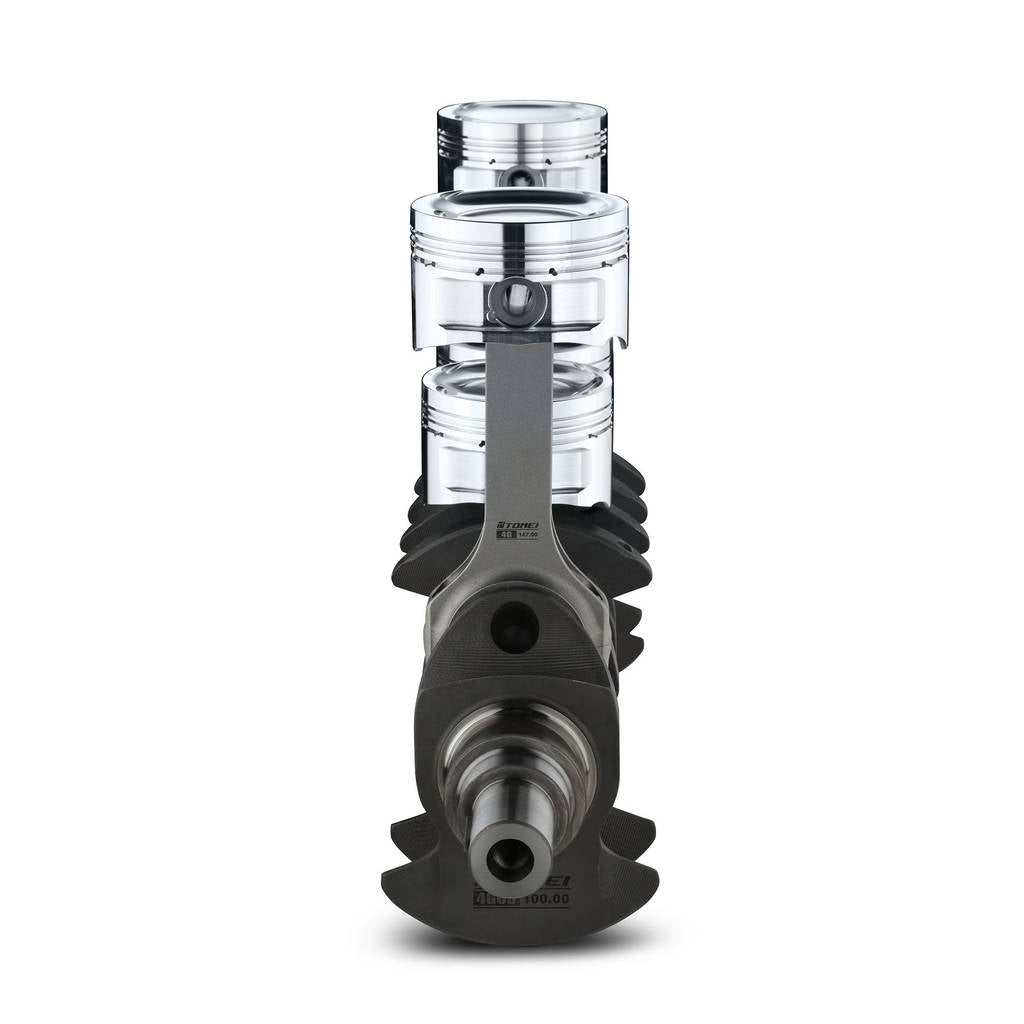

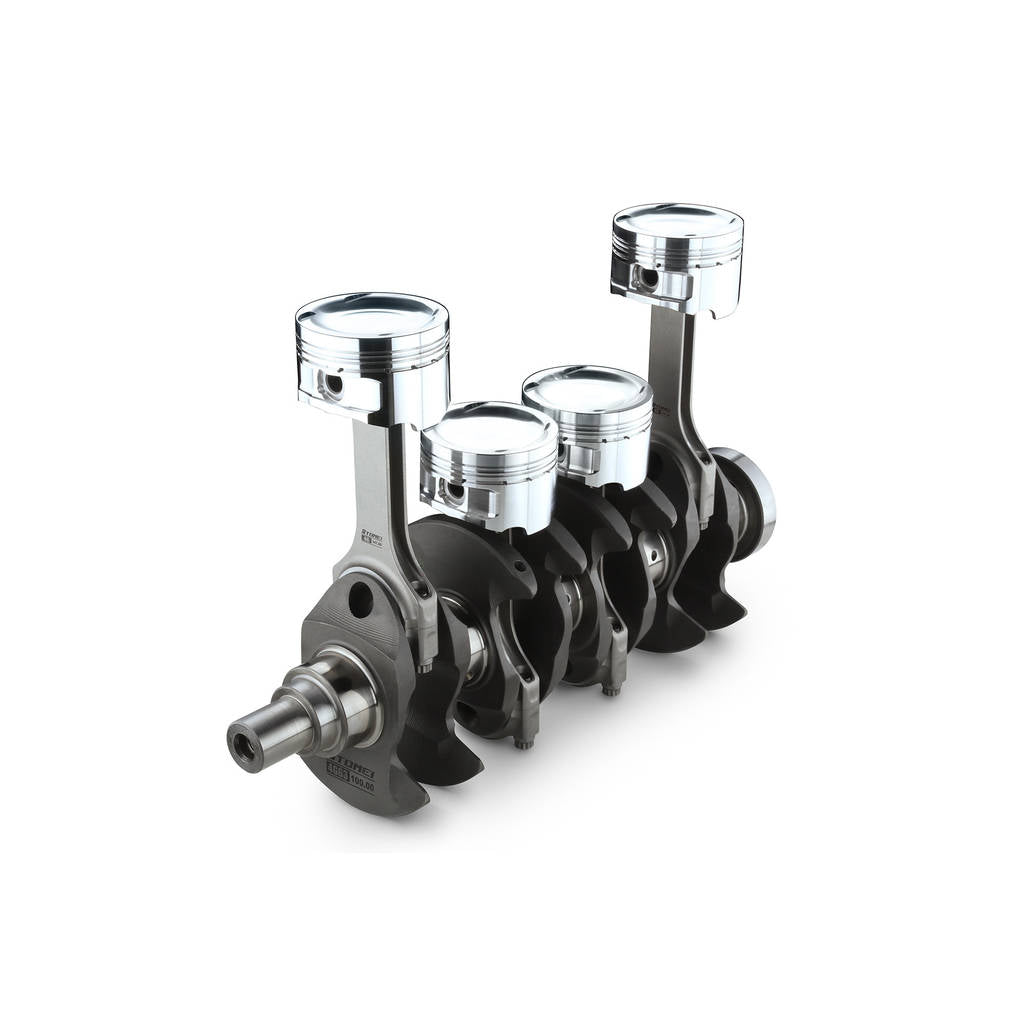

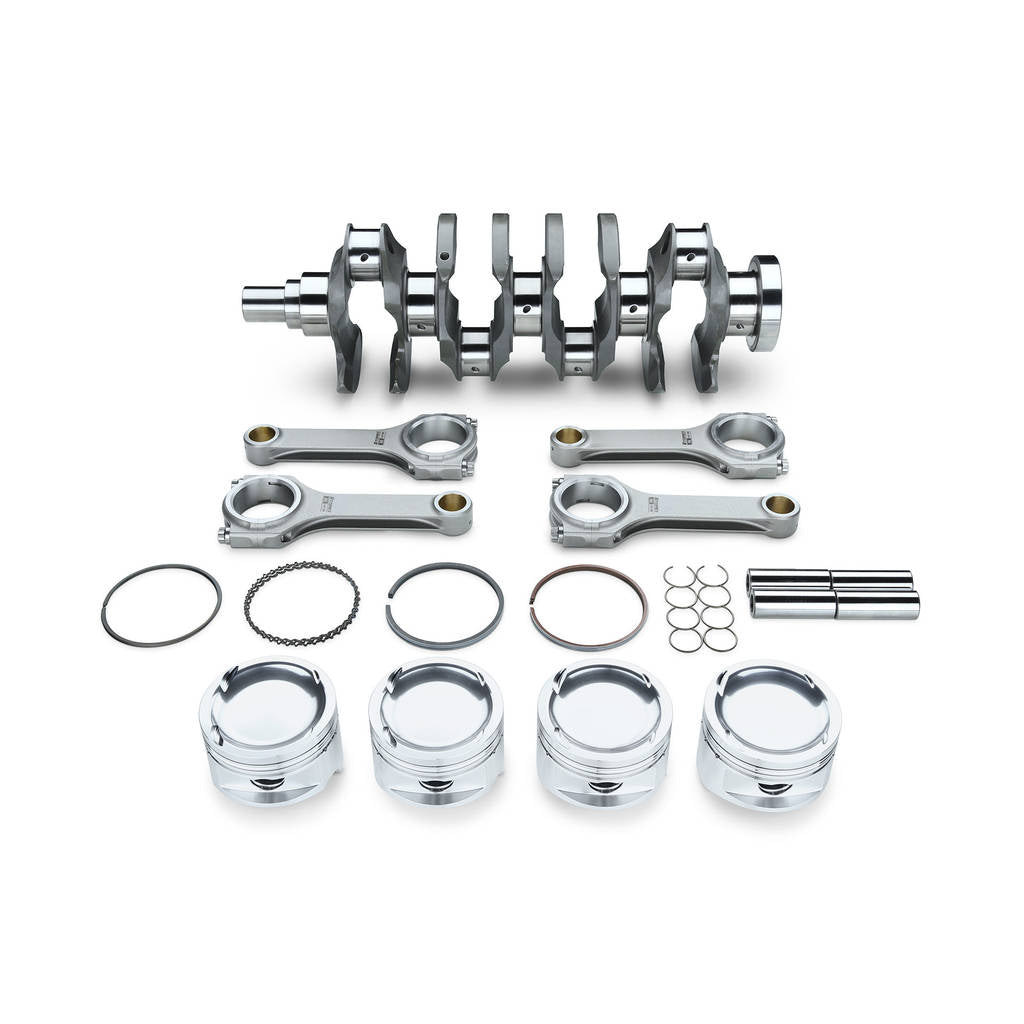

TOMEI TA201A-MT01B Stroker Kit 2.3 for MITSUBISHI EVO 1-9 (4G63) 1992-2007
Quantity:
This item is considered special order and is not available for immediate pickup or dispatch. Price and ETA may vary. Please note that no returns, cancellations, or refunds allowed on special orders.
Pickup available at Kelberg Warehouse
Usually ready in 24 hours
TOMEI TA201A-MT01B Stroker Kit 2.3 for MITSUBISHI EVO 1-9 (4G63) 1992-2007
Kelberg Warehouse
Pickup available, usually ready in 24 hours
Auf der Struth 4
53539 Kelberg
Germany
Nürburgring Showroom
Pickup available, usually ready in 24 hours
Nürburgring Boulevard 2
53520 Nürburg
Germany
| Application | 4G63 | |
| Type | TOMEI | CP |
| Bore (mm) | 86.00 (OEM +1.0) | 86.00 (OEM +1.0) |
| STROKE (mm) | 100.00 (OEM +12.0 ) | 100.00 (OEM +12.0) |
| DISPLACEMENT (cc) | 2323.5 | 2323.5 |
| C.C. VOLUME (cc) | 43.0 | 43.0 |
| PISTON VOLUME (cc) | -19.5 | -19.6 |
| PISTON DECK CLEARANCE/HIGHT (mm) | -0.35 | -0.35 |
| PISTON COMP.HEIGHT (mm) | 31.65 (OEM -3.35) | 31.65 (OEM -3.35) |
| ROD C-to-C (mm) | 147.00 (OEM -3.0) | 147.00 (OEM -3.0) |
| HEAD GASKET BORE (mm) | 86.5 | 86.5 |
| C/R With 86.5-1.0 | 9.25 | 9.24 |
| C/R With 86.5-1.2 | 9.11 | 9.10 |
| C/R With 86.5-1.5 | 8.92 | 8.91 |
| C/R With 86.5-1.8 | 8.73 | 8.72 |
| Compatibility | ||
