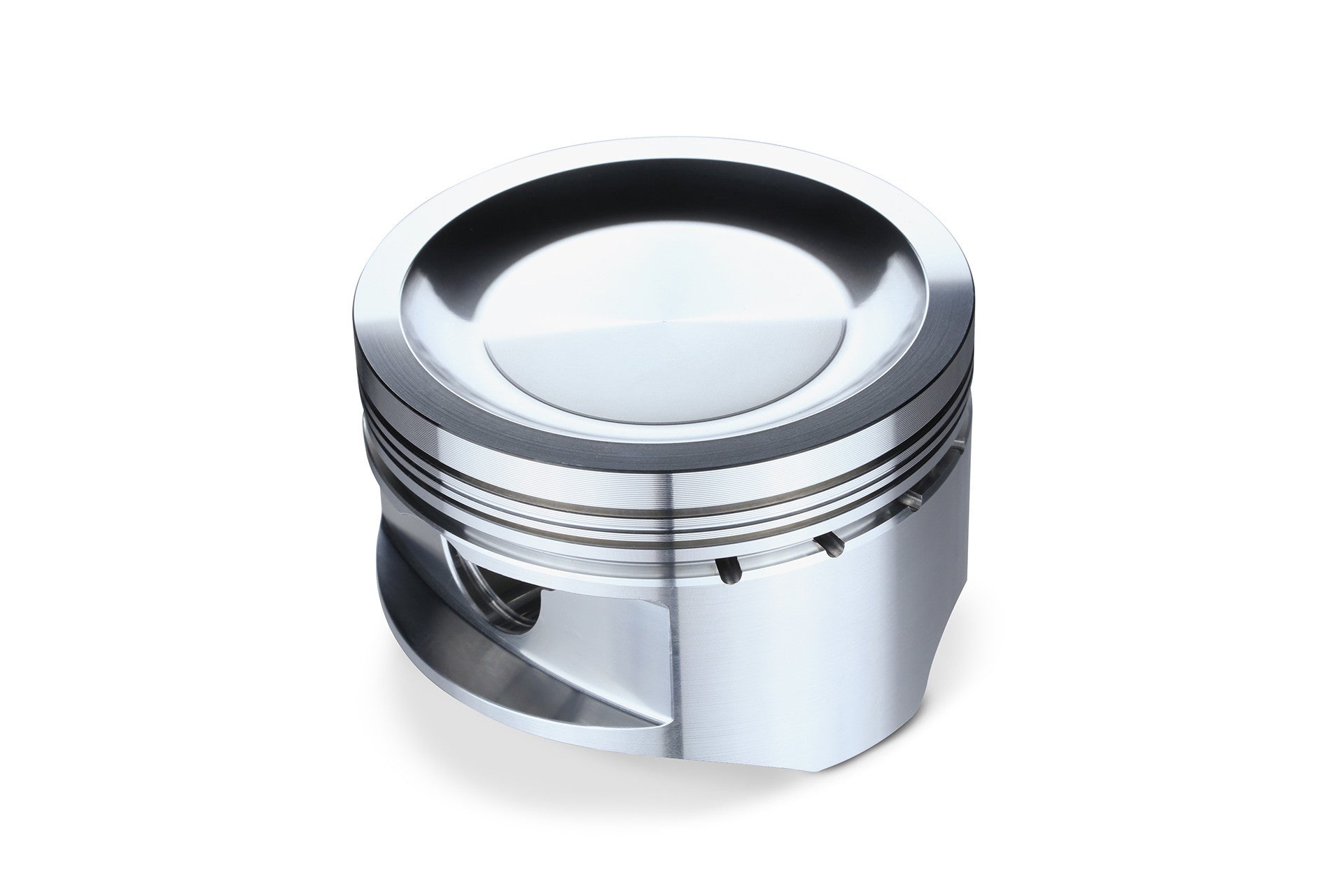

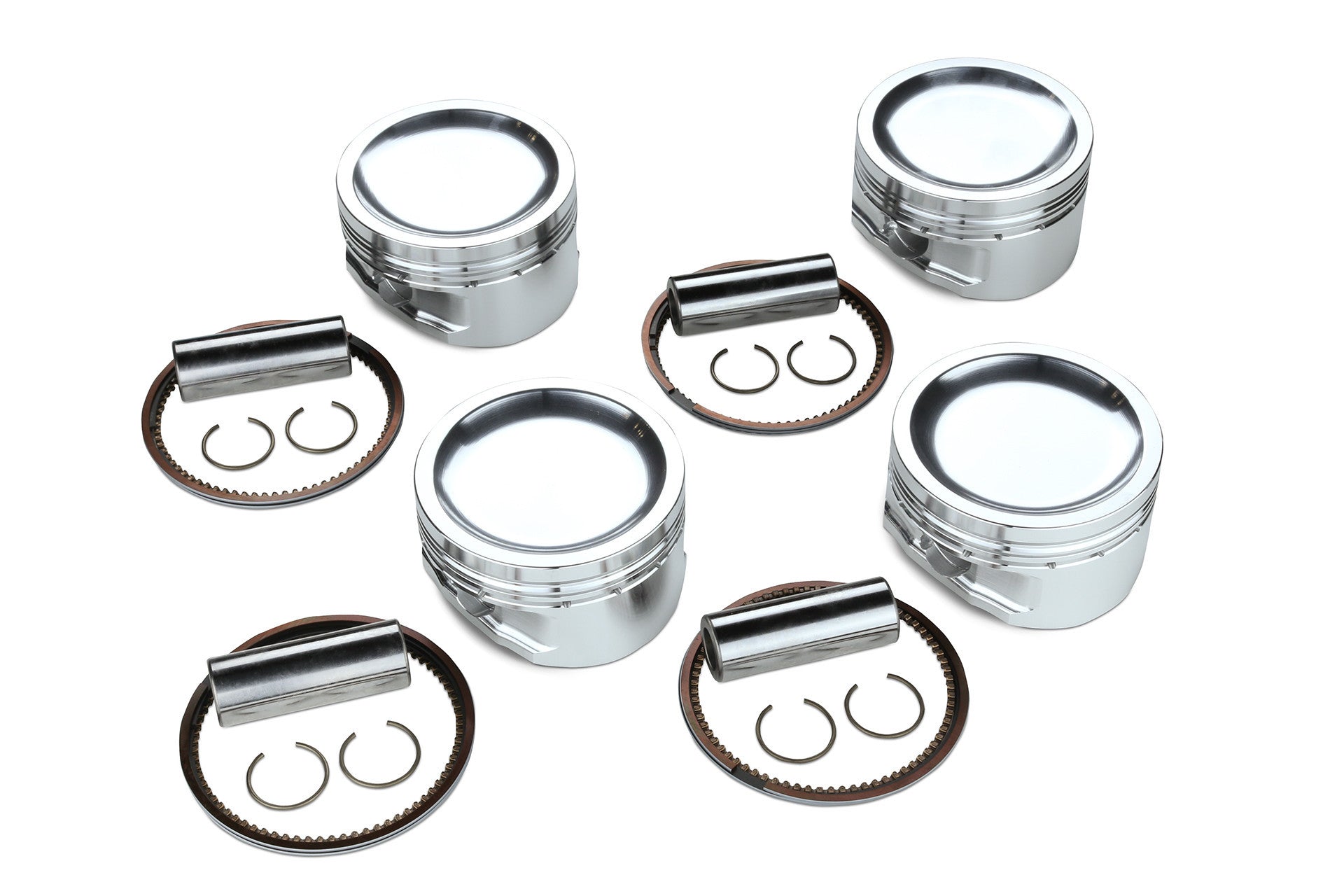

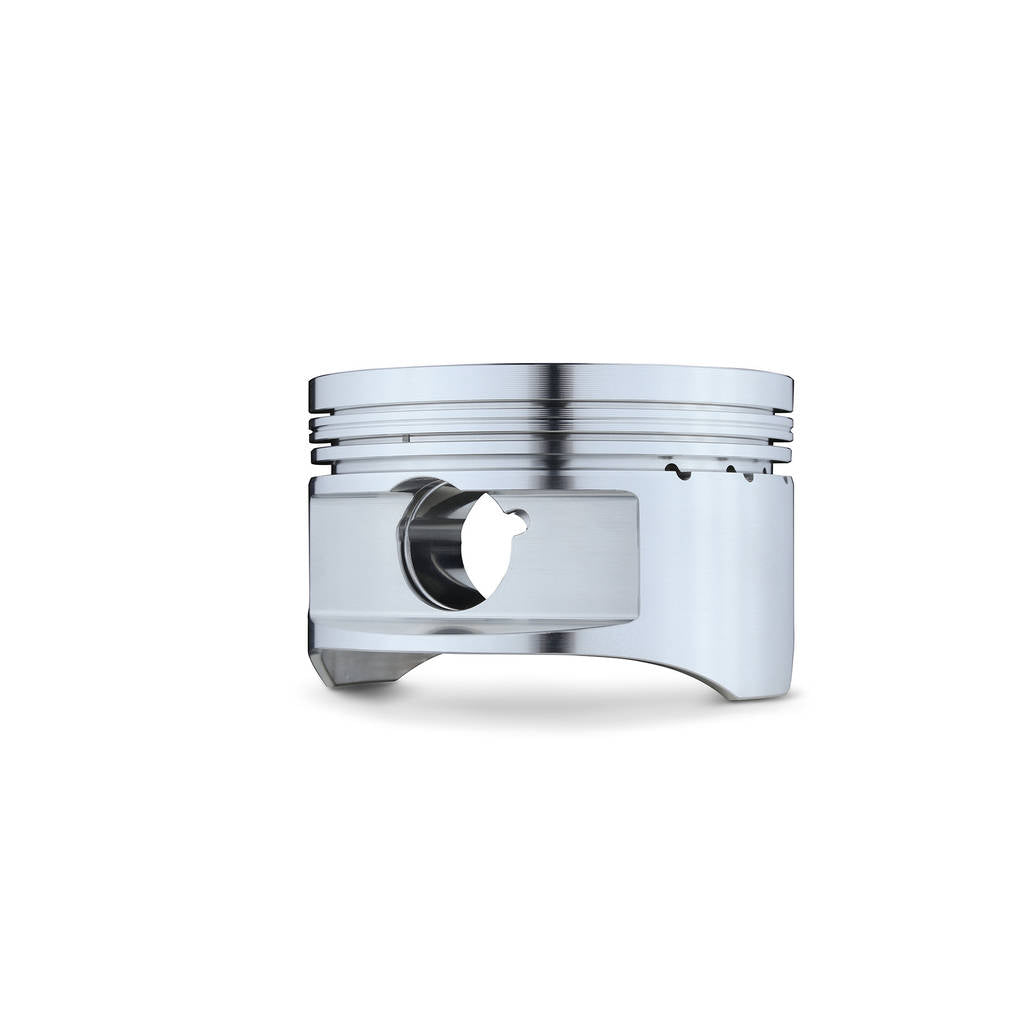

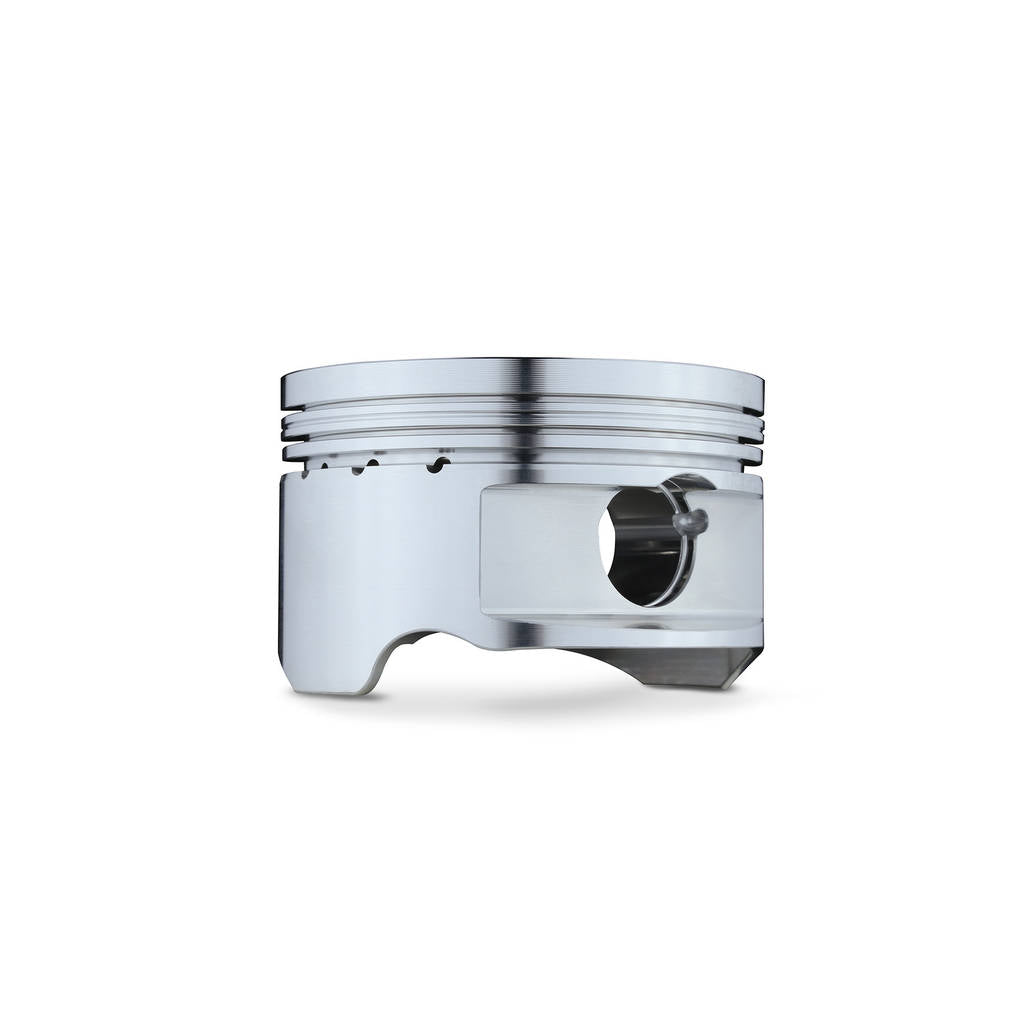

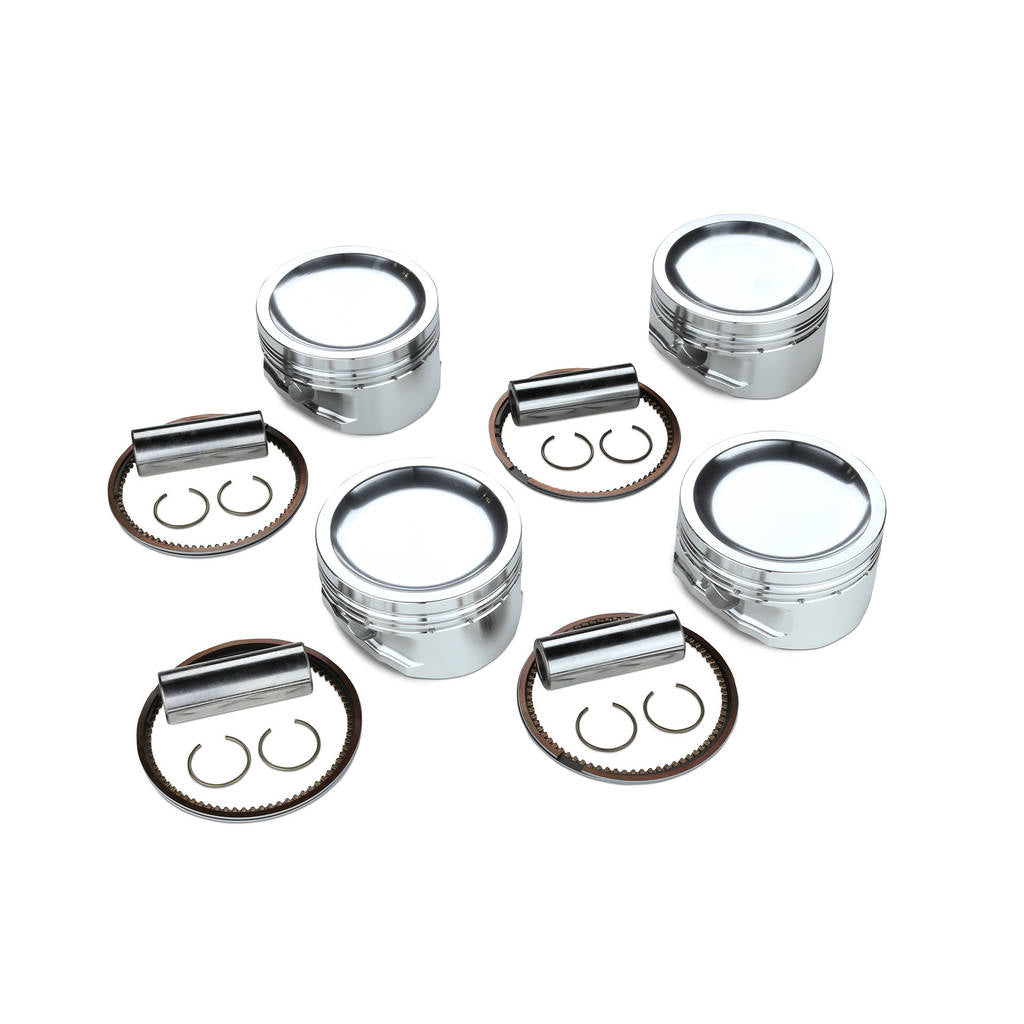

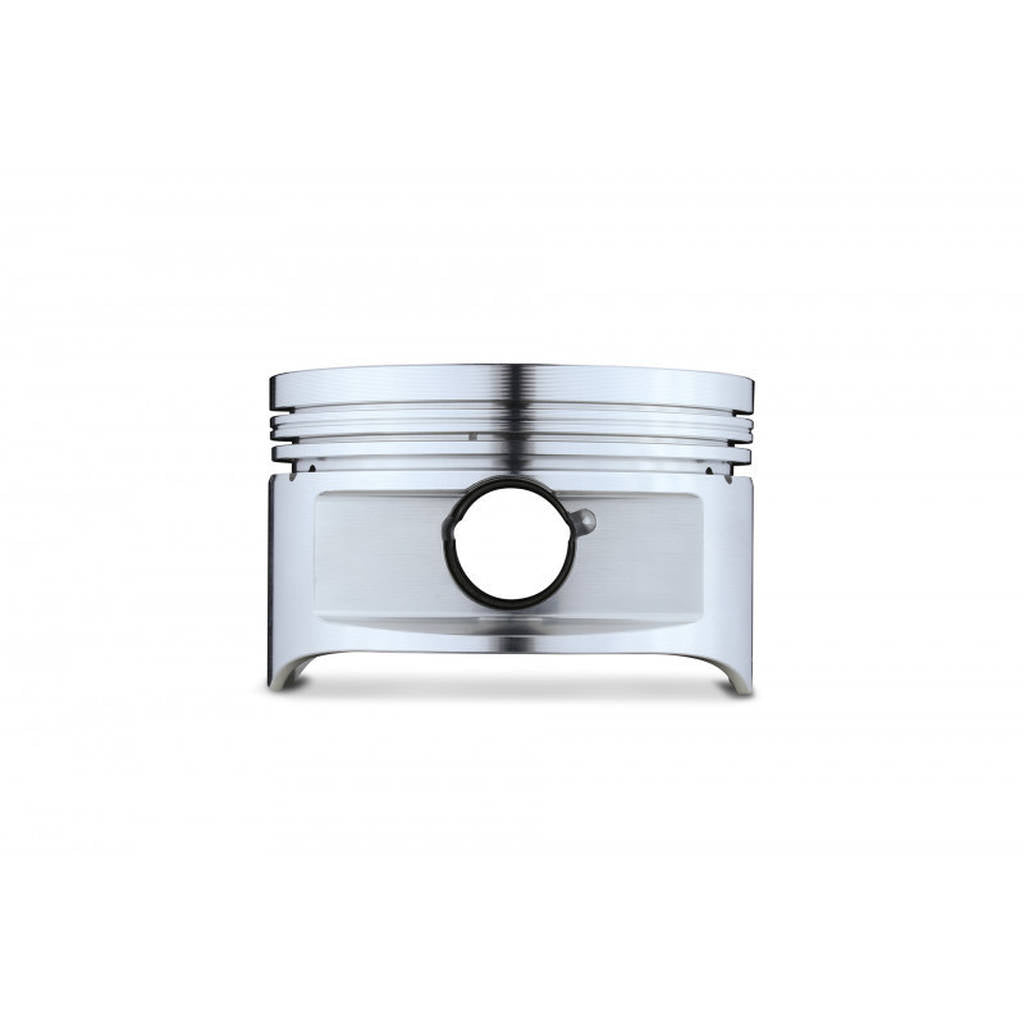

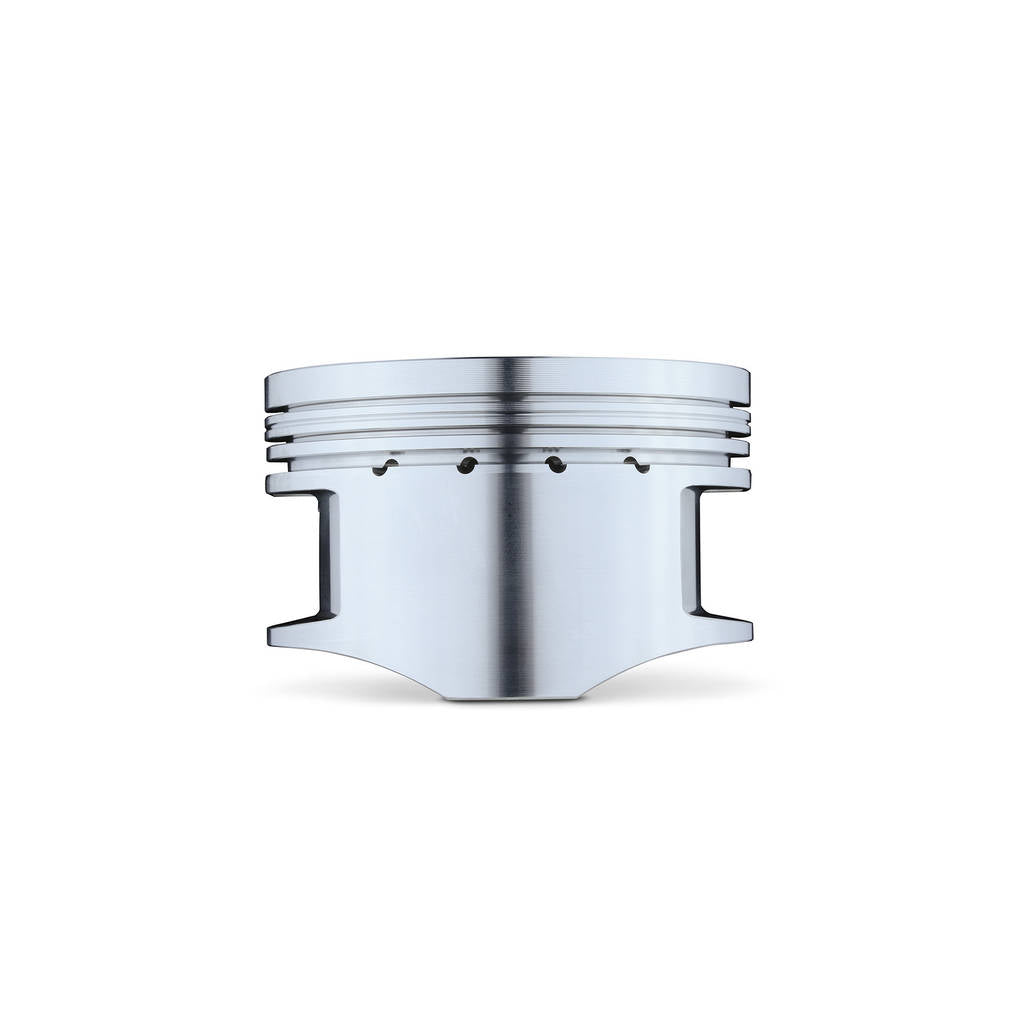

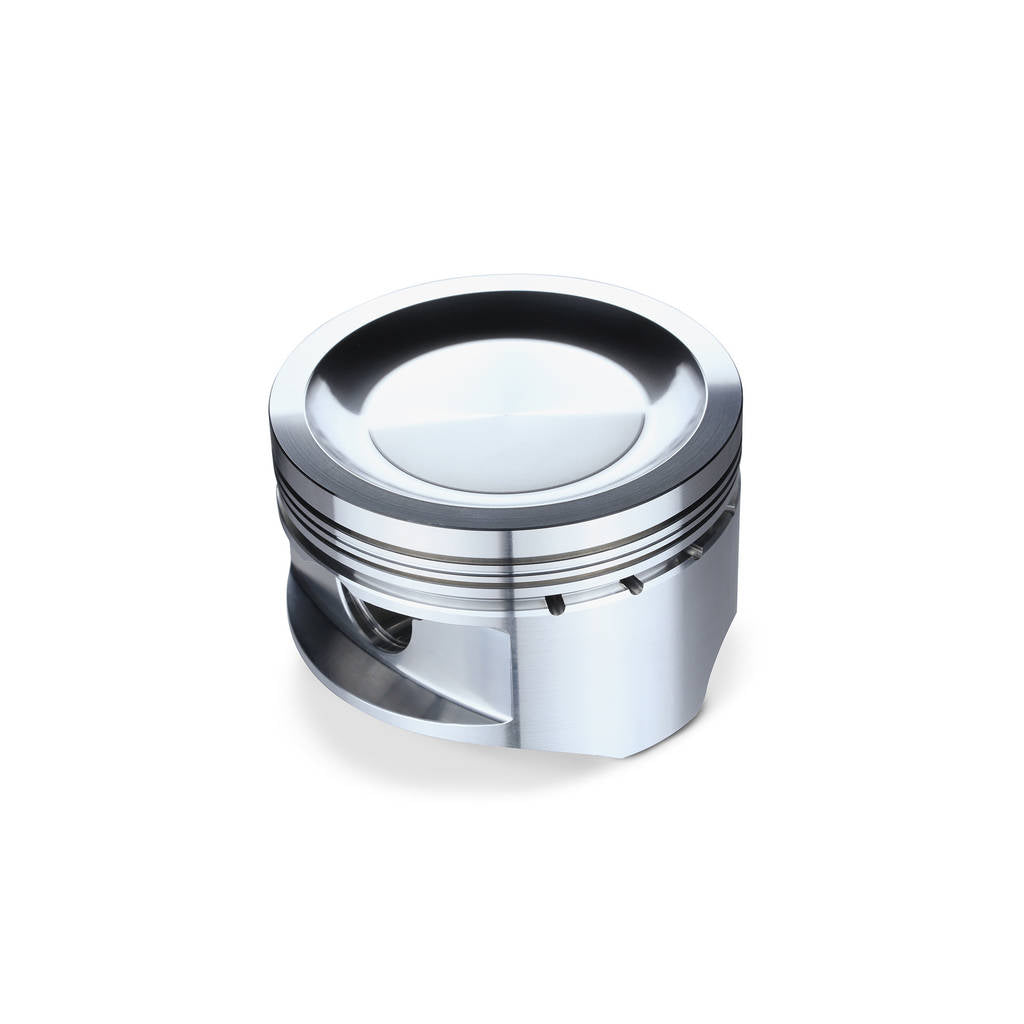

TOMEI TA202A-NS08D Forged Piston Kit 86.50 mm for SR20DET
Quantity:
This item is considered special order and is not available for immediate pickup or dispatch. Price and ETA may vary. Please note that no returns, cancellations, or refunds allowed on special orders.
Pickup available at Kelberg Warehouse
Usually ready in 24 hours
TOMEI TA202A-NS08D Forged Piston Kit 86.50 mm for SR20DET
Kelberg Warehouse
Pickup available, usually ready in 24 hours
Auf der Struth 4
53539 Kelberg
Germany
Nürburgring Showroom
Pickup available, usually ready in 24 hours
Nürburgring Boulevard 2
53520 Nürburg
Germany
High-strength forging manufacturing method is adopted rather than the mainstream casting method used for commercial vehicles. Taking advantage of high temperature strength and high strength, weight reduction is achieved by making the walls thinner.
| Application | SR20DET |
| Type | TOMEI |
| Bore (mm) | 86.50 (OEM +0.5) |
| Pin Diameter (mm) | 22.0 |
| Pin Length (mm) | 60.0 |
| Circlip Inner Diameter (mm) | 22.0 |
| Valve Recess | WITHOUT |
| Compression Height (mm) | 32.00 (OEM ±0.0) |
| Piston Volume (cc) | -14.2 |
| Piston Weight (g) | 370.5 |
| Pin Weight (g) | 121.5 |
| Total Weight (g) | 492.0 |
| Top Ring (mm） | 1.20 x 3.05 |
| Second Ring (mm） | 1.20 x 3.90 |
| Oil Ring (mm） | 2.50 x 2.95 |
| Piston Material | A4032 |
| Compatibility |
