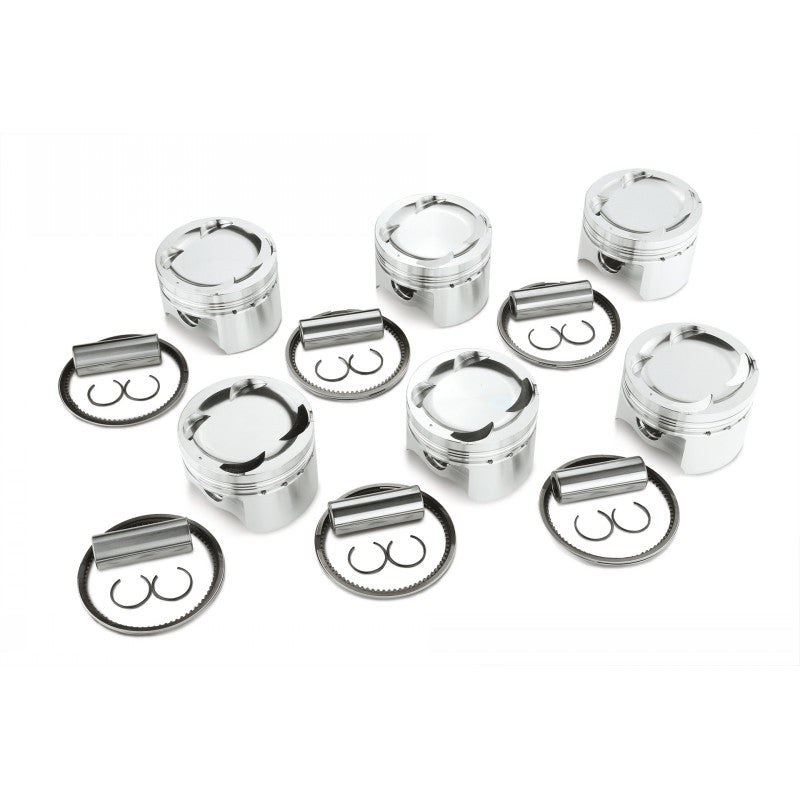

TOMEI TA202A-TY03C Forged Piston Kit 87.00 mm CH34.00 (STD) for TOYOTA Supra (2JZ-GTE)
Quantity:
This item is considered special order and is not available for immediate pickup or dispatch. Price and ETA may vary. Please note that no returns, cancellations, or refunds allowed on special orders.
Pickup available at Kelberg Warehouse
Usually ready in 24 hours
TOMEI TA202A-TY03C Forged Piston Kit 87.00 mm CH34.00 (STD) for TOYOTA Supra (2JZ-GTE)
Kelberg Warehouse
Pickup available, usually ready in 24 hours
Auf der Struth 4
53539 Kelberg
Germany
Nürburgring Showroom
Pickup available, usually ready in 24 hours
Nürburgring Boulevard 2
53520 Nürburg
Germany
| Application | 2JZ-GTE |
| Type | TOMEI |
| Bore (mm) | 87.00 (OEM +1.0) |
| Pin Diameter (mm) | 22.0 |
| Pin Length (mm) | 60.0 |
| Circlip Inner Diameter (mm) | 22.0 |
| Valve Recess | WITH |
| Compression Height (mm) | 34.00 (OEM ±0.0) |
| Piston Volume (cc) | -14.6 |
| Piston Weight (g) | 369.3 |
| Pin Weight (g) | 121.5 |
| Total Weight (g) | 490.8 |
| Top Ring (mm） | 1.20 x 3.05 |
| Second Ring (mm） | 1.20 x 3.90 |
| Oil Ring (mm） | 2.50 x 2.95 |
| Piston Material | A4032 |
| Compatibility |
