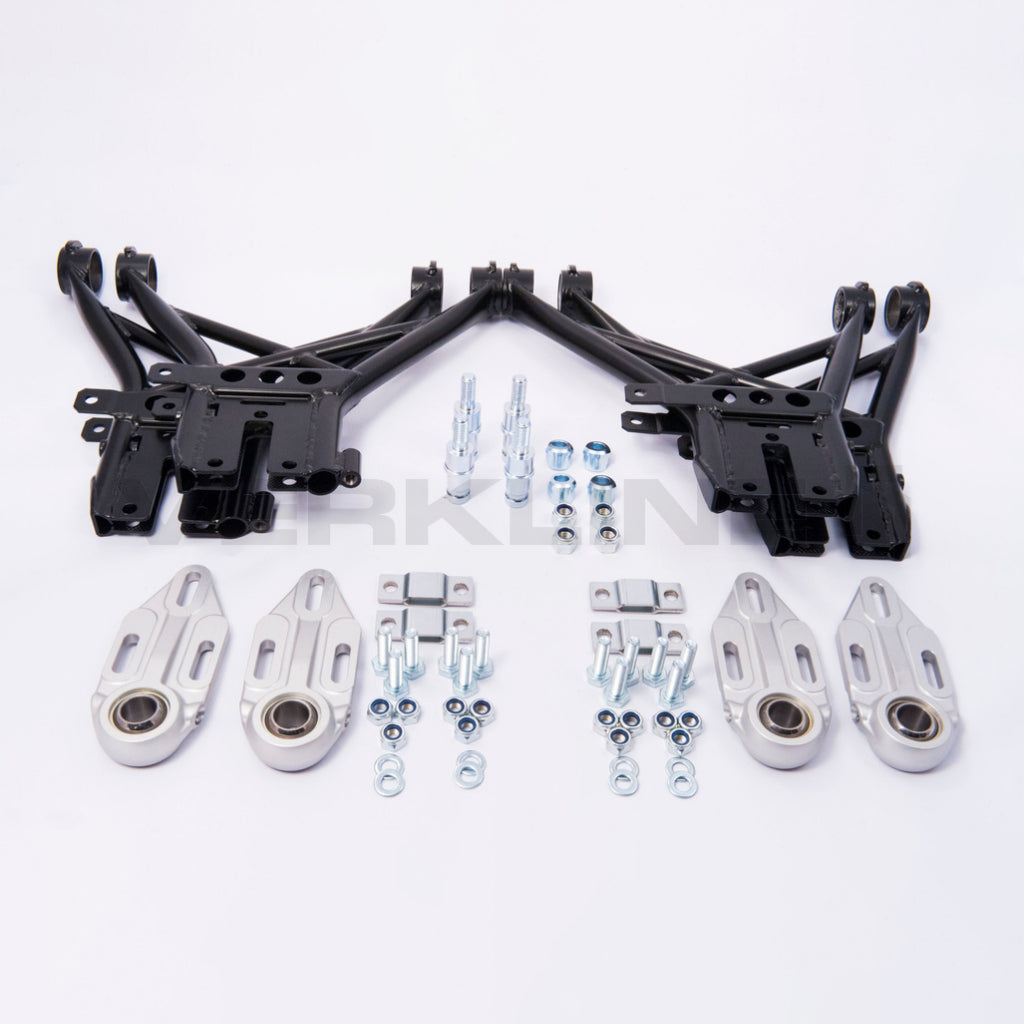

What’s Included

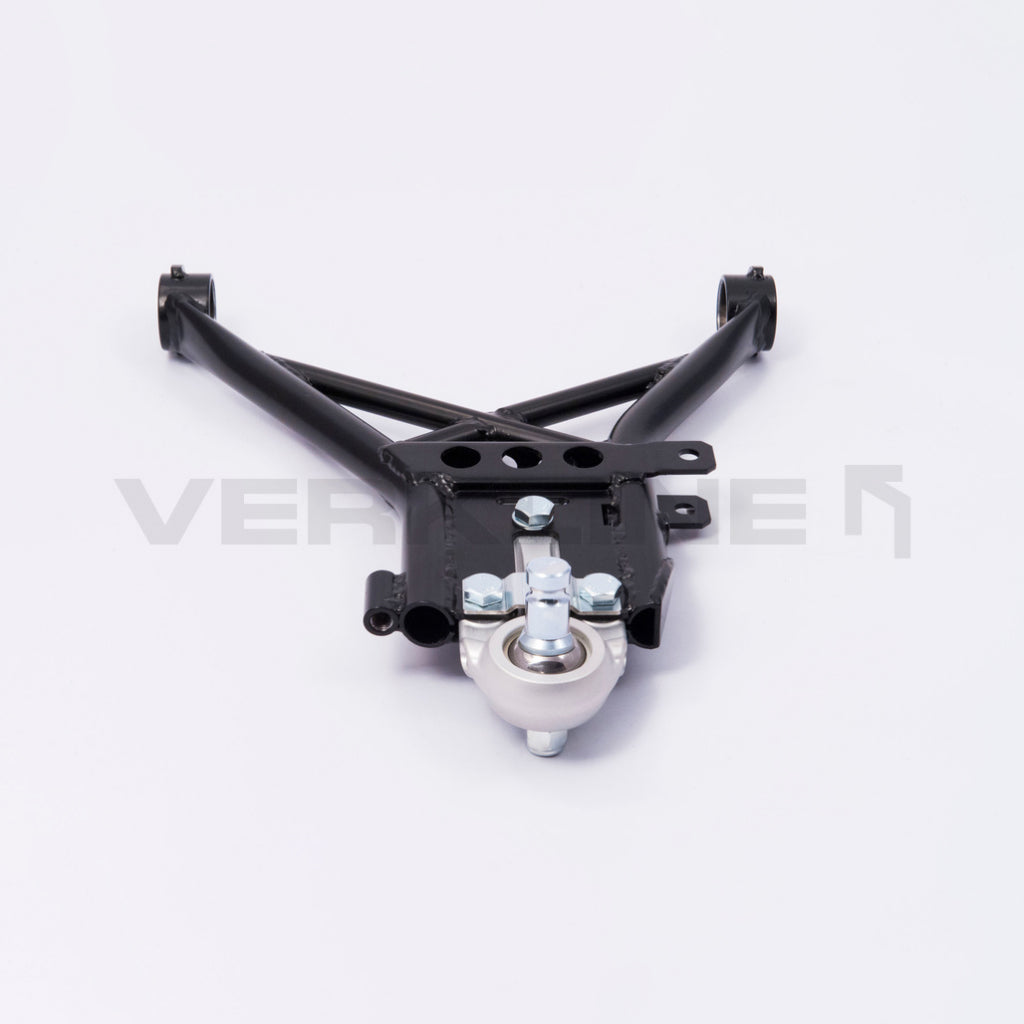

- Two wishbones (E355 N / St 52.4 steel) for front axle.
- Two wishbones (E355 N / St 52.4 steel) for rear axle.

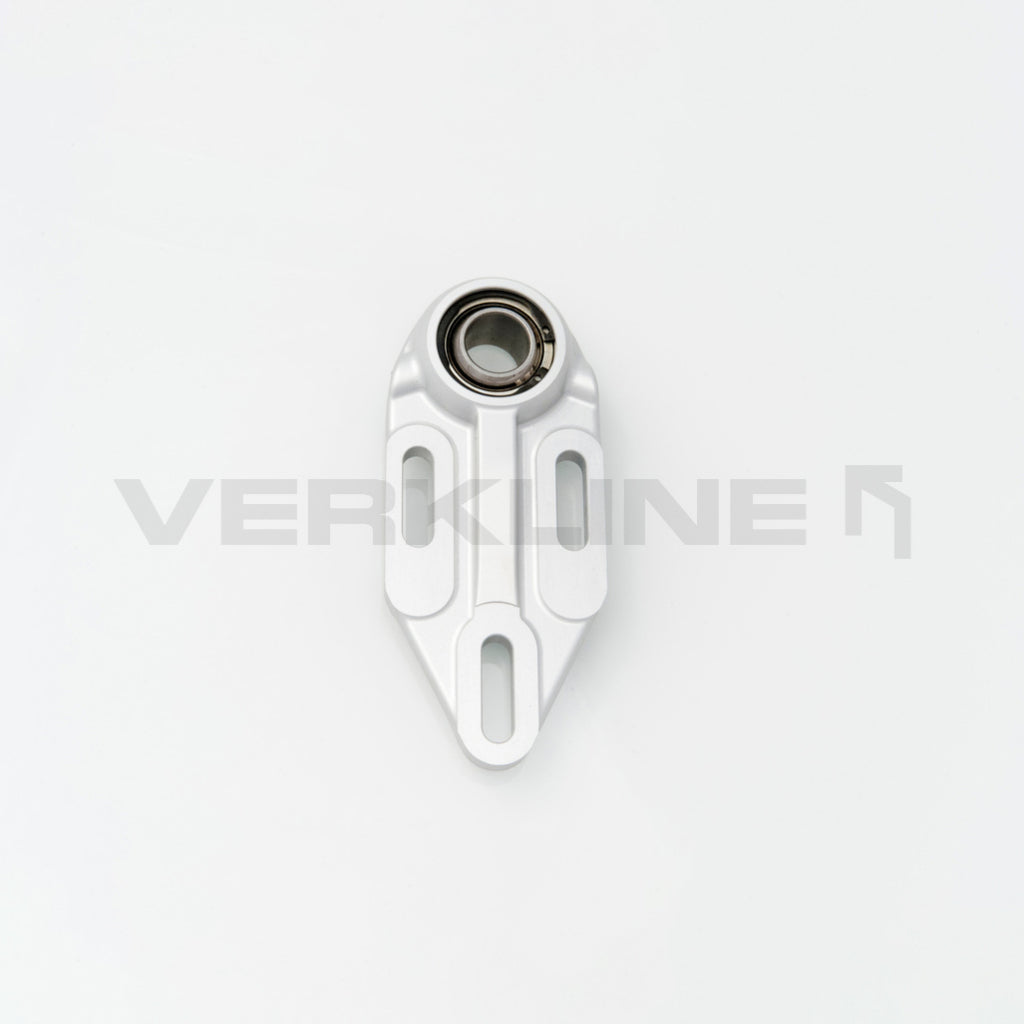

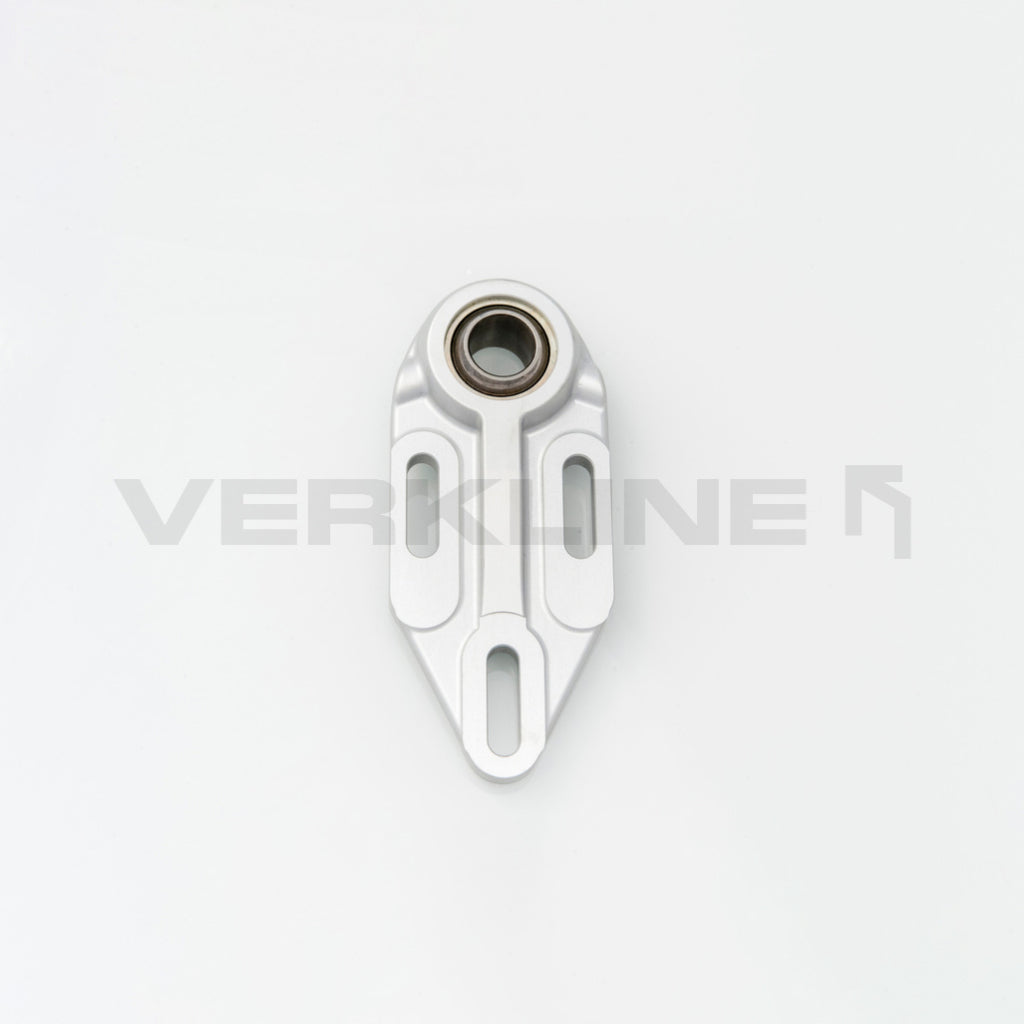

- Four aluminum (PA9 / 7075) ball joint carriers milled on CNC machine and anodized in silver.
- Four maintenance free sport Fluro bearings (22 mm hole).
- Four steel pins (EN C45) to connect with OEM struts (front and rear – B3/B4 divided type uprights).
- Eight steel galvanized locking plates for securing aluminum ball joint carriers.
- All necessary screws for mounting ball joint carriers and steel pins.
Features
- Can be used in conjunction with the standard front/rear sub-frame.

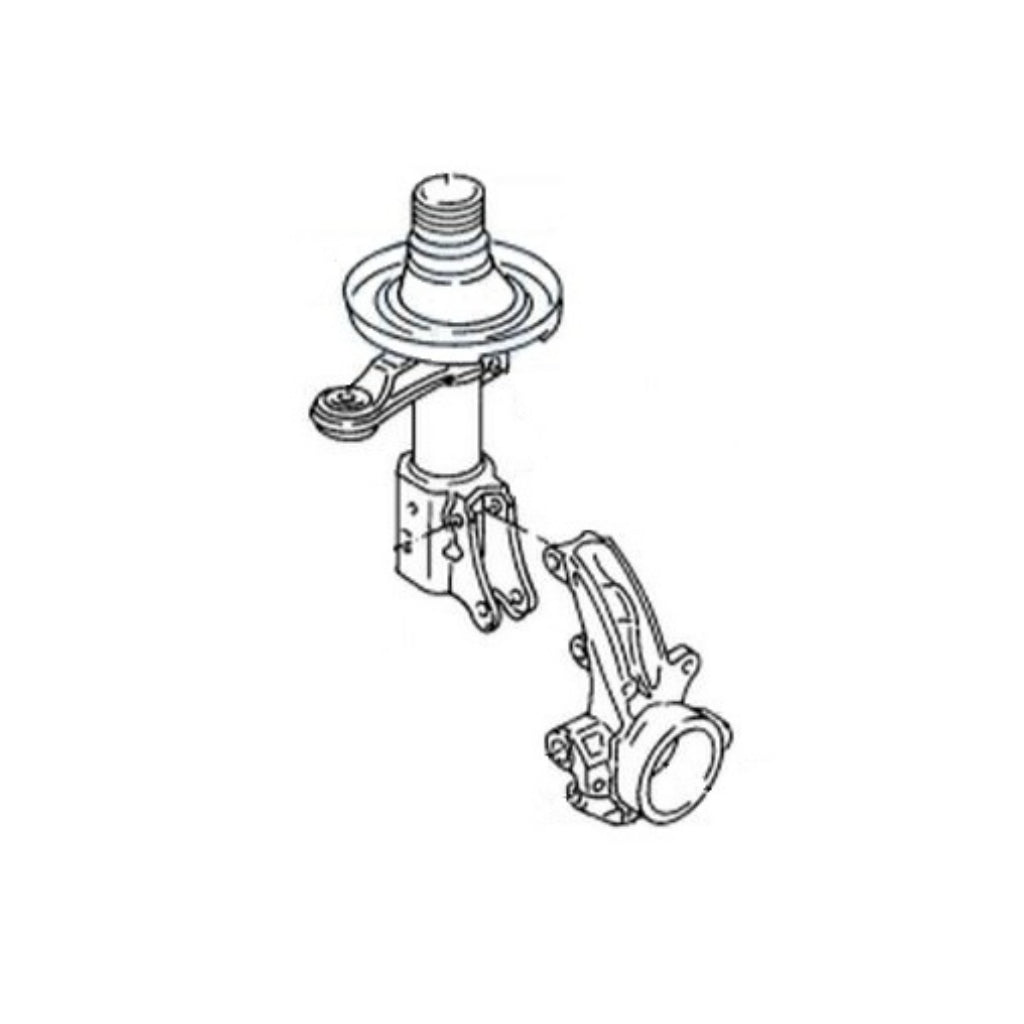

- Made to work with OEM uprights (quattro).
- Allows for massive camber adjustment (up to 25mm more versus OEM) and wider track.
- Gives additional caster. Audi B4 OEM caster is 2 and with our wishbone it is 2.65.
- Works fine with Audi Sport blade type anti roll bars.
- Works with Audi Sport uprights (22 mm bolt).
- Prepared to work with additional trailing arm (both in front and rear).
- Possible to use with “turn stop” on Audi Sport uprights.
- On the contact area between aluminum ball joint carrier and inside of the wishbone the area is knurled for better grip of the carrier.
- To be used with 37mm diameter bushes for mounting the wishbone to the subframe.
Notice: Instructions are provided to the customer on the installation of the kit. Front wishbones increase significantly caster angle.
