VERKLINE WAS-010 Adjustable Tubular Front Race Wishbones Kit for AUDI RS3 (8P) / VW Golf GTI / R (Mk5 / Mk6)

The same T45 tubes used in WRC cars are used for the front arms. The VERKLINE cross arms provide increased stiffness and additional adjustment. All factory parts are attached to this assembly, no other modifications are required.

Product functionalities

• Adjustment both caster and camber (up to -4.5 degrees).
• No rubber to bend, you will not loose the geometry set when doing aliment.
• Works with OEM subframe and our tubular subframe.
• Enables removal of the wishbones with our the need for removal of the subframe.

Features

• CNC machined 7075 aluminium insert and anodized in silver.
• T45 (BS4T45 to BS4T100) tubing imported from UK and S355 metal sheets.
• Proven motorsport M18 uniballs (the same type we use in our Lancer EVO X kits).
• Plug and play to use with the car inc xenon sensors.
• Possibility to add Audi 8V air ducts to the wishbones (air ducts are not included).

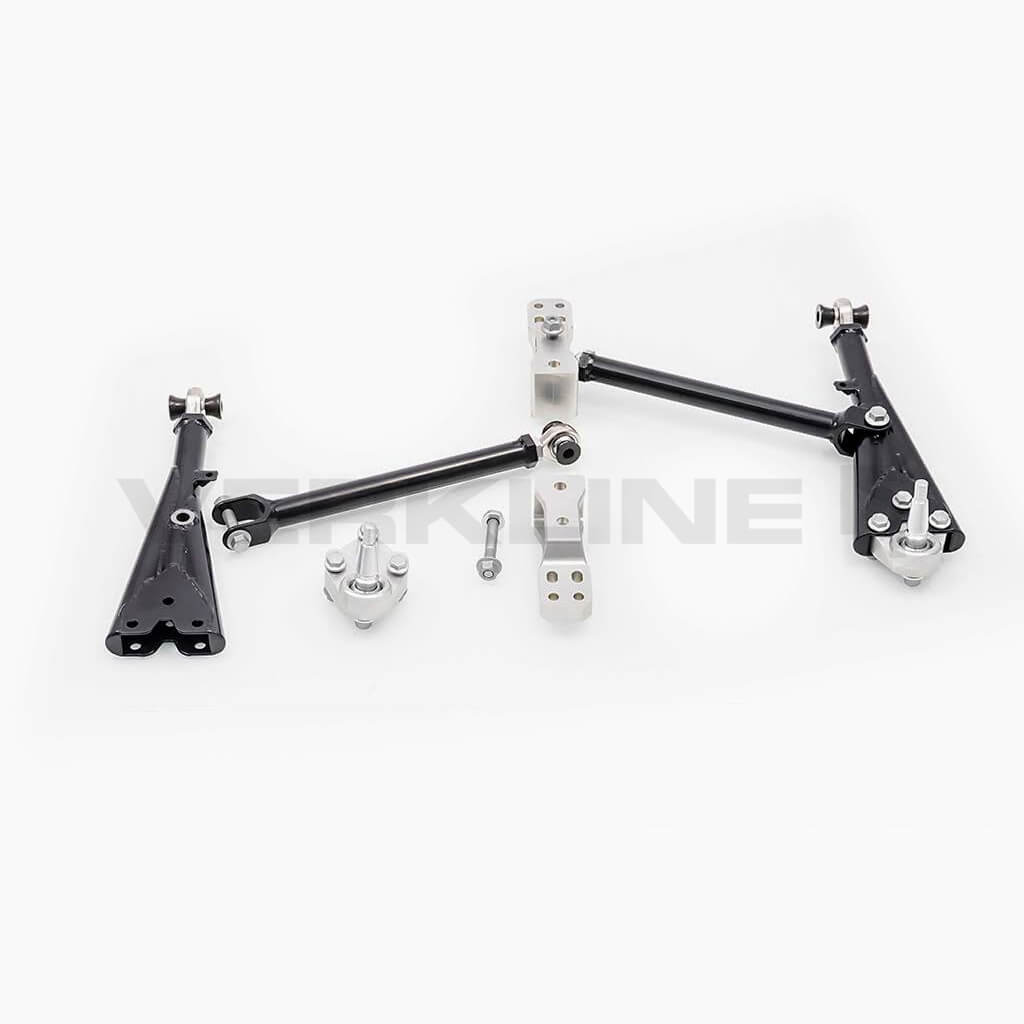

What is included

• Two (pair) front wishbones (control arms) with all hardware for install.
• Two CNC billet 7075 aluminium wishbone arm mounts.
• Four rubber caps for uniball protection.
• Printed install instructions.

Note: It is possible to obtain TUV certificate for this product. Please contact us for more details.

Note 2: Sold for off road, track and racing applications only. Installation of this rear arm kit might introduce some additional some NVH (noise, vibration, and harshness) transfer into the cabin.

Note 3: Brake disc clearance is reduced by about 2[mm] in relation to OEM wishbones – keep this in mind, if You’re going to use aftermarket brakes with reduced clearance.
