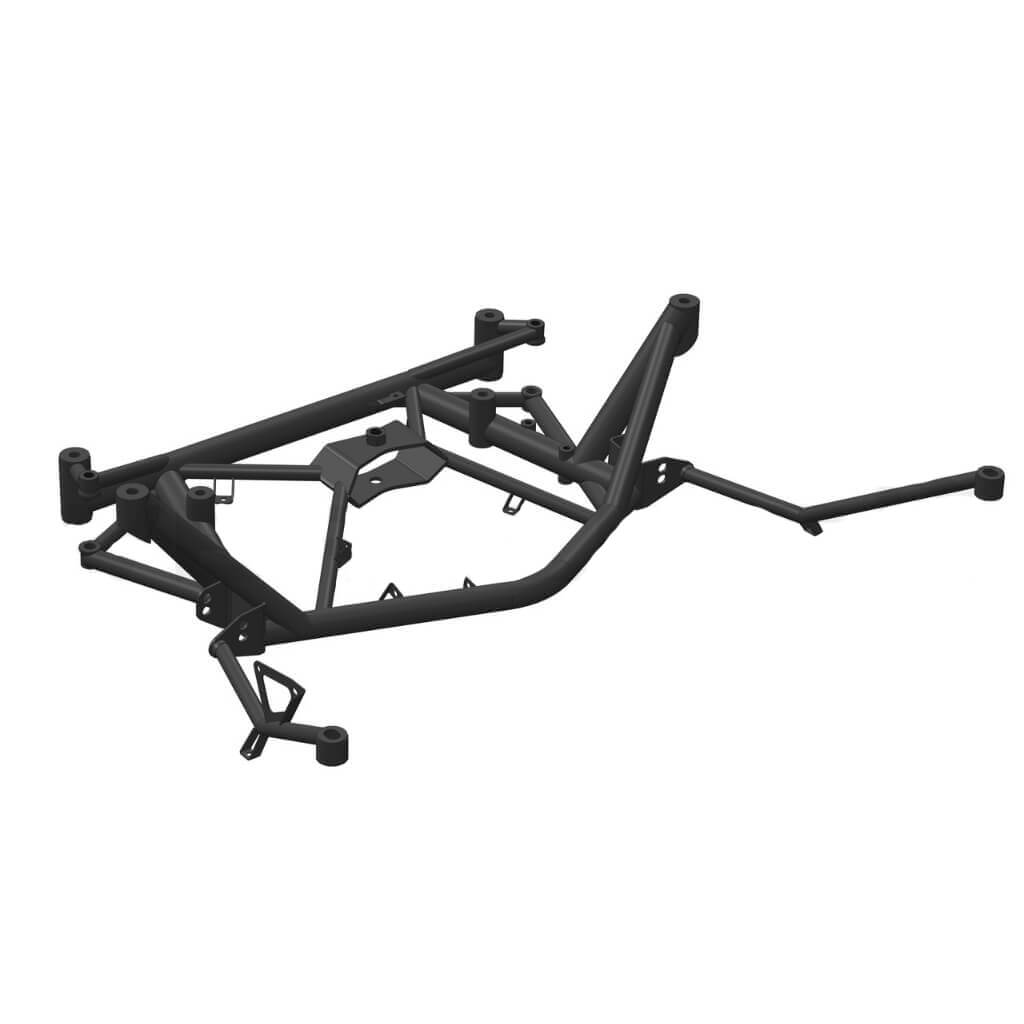

VERKLINE WAS-601 Front Lightweight Tubular Subframe Kit for TOYOTA GR Yaris (XP210) 2020-

Product Features:

• Additional (modified) suspension mounting points (cross arms, steering rack, anti-sway bar) to improve suspension kinematics for lowered race cars.
• The single subframe position eliminates subframe misalignment under the car. No subframe retainer kit / offset clamp kit required (weight saving).
• Increases chassis rigidity for improved handling. No need for additional lower beam/beam (weight saving).
• Improved access to the underside of the vehicle.

Features:

• Lighter than the factory subframe by 7 lbs. OEM weight is 17.75 kg. Our subframe weighs 10.75 kg.
• Made from heavy duty T45 tubing.
• Compatible with OEM and Verkline crossmembers

What's included

• Supplied painted (powder coated) in black color
• Set of bushings for kinematics modification (cross arms, steering rack, anti-skid bar)
• Set of mounting bolts.
• Individual air duct
• Printed installation instructions (8 pages).

Note: If you want to use the modified suspension mounting points available on our subframe, you will also need to use Verkline front lower cross arms - OEM WAS-611 cross arms will not fit there. For standard OEM mounting points on the subframe, you can use OEM cross arms.

Note2: Installing this rear insert kit will result in some additional NVH (noise, vibration and harshness) transfer to the passenger compartment.
