VERKLINE WAS-809 Rear Toe Arms Kit R4 for MITSUBISHI EVO X
Quantity:
This item is considered special order and is not available for immediate pickup or dispatch. Price and ETA may vary. Please note that no returns, cancellations, or refunds allowed on special orders.
Pickup available at Kelberg Warehouse
Usually ready in 24 hours
VERKLINE WAS-809 Rear Toe Arms Kit R4 for MITSUBISHI EVO X
Kelberg Warehouse
Pickup available, usually ready in 24 hours
Auf der Struth 4
53539 Kelberg
Germany
Nürburgring Showroom
Pickup available, usually ready in 24 hours
Nürburgring Boulevard 2
53520 Nürburg
Germany

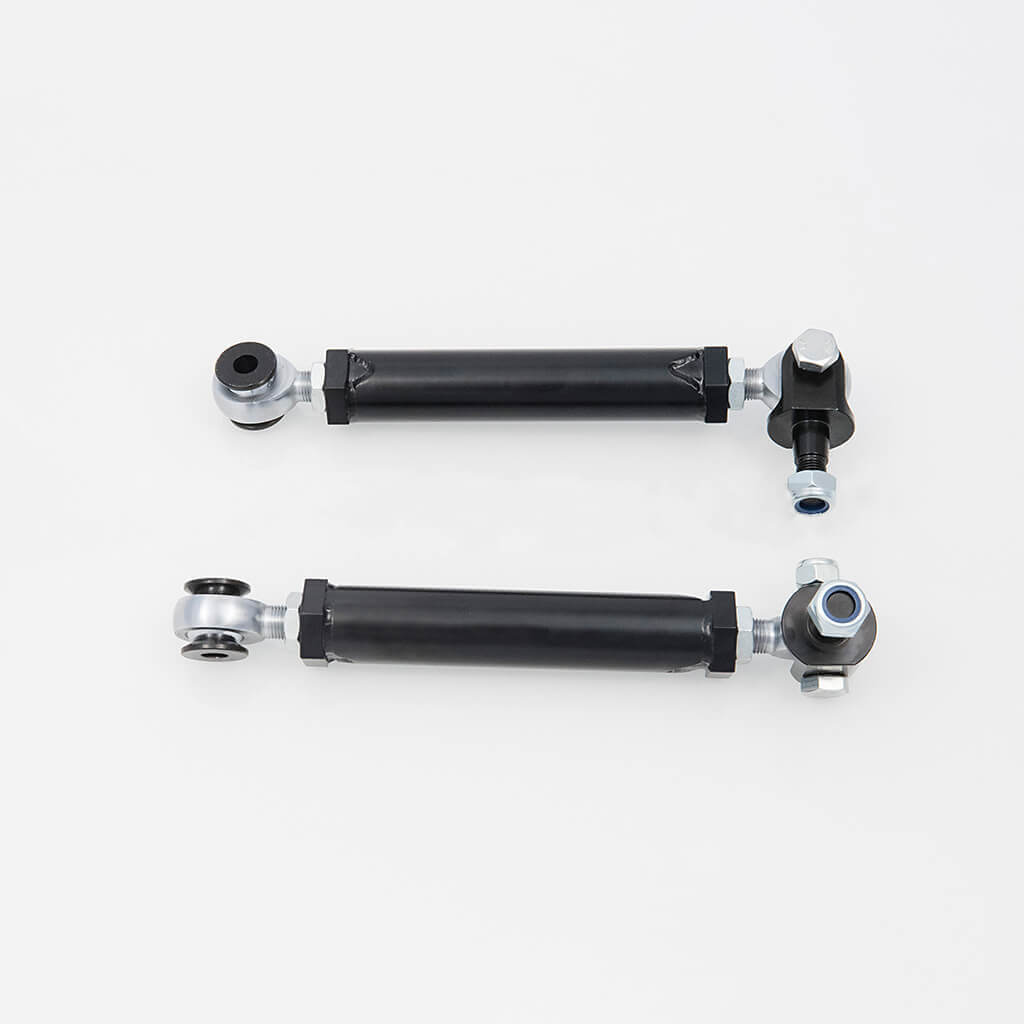

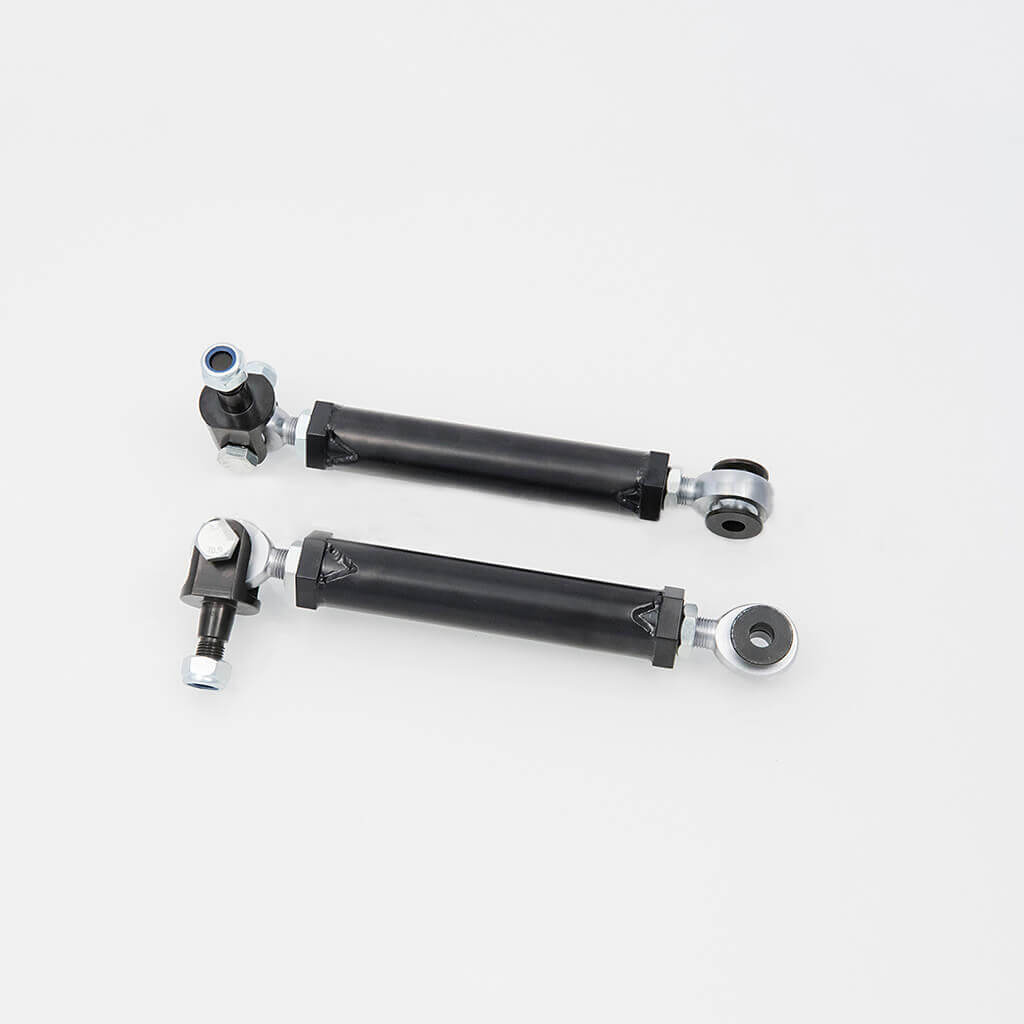

The kit included
- Rear light steel T45 35 mm rear toe link wishbones (left and right).
- Two arm fixing C45 steel mounts.
- Four M16 motorsport rod ends solid.
- Four M16 half size screw locking nuts.
- Four spacer sleeves for assemble of the arms in the rear subframe.
Features
- R4 spec rear suspension arm.
- Comes preassembled ready for fitment in the car.
- R4 rally kit compliant.
- Same rod end suppler as for original R4 kit.
- Allows massive increase in toe adjustment.
- Greater strength over OEM wishbones.
Technical details
- Full 3D CAD designed.
- FEA Tested and additional reinforcement to the original design was made.
- Manufactured from T45 steel.
- Powder painted black.
