VERKLINE WAS-903-904 Front Tubular Wishbones Kit for MITSUBISHI EVO 7 / 8 / 9
Quantity:
This item is considered special order and is not available for immediate pickup or dispatch. Price and ETA may vary. Please note that no returns, cancellations, or refunds allowed on special orders.
Pickup available at Kelberg Warehouse
Usually ready in 24 hours
VERKLINE WAS-903-904 Front Tubular Wishbones Kit for MITSUBISHI EVO 7 / 8 / 9
Kelberg Warehouse
Pickup available, usually ready in 24 hours
Auf der Struth 4
53539 Kelberg
Germany
Nürburgring Showroom
Pickup available, usually ready in 24 hours
Nürburgring Boulevard 2
53520 Nürburg
Germany
The kit consists of

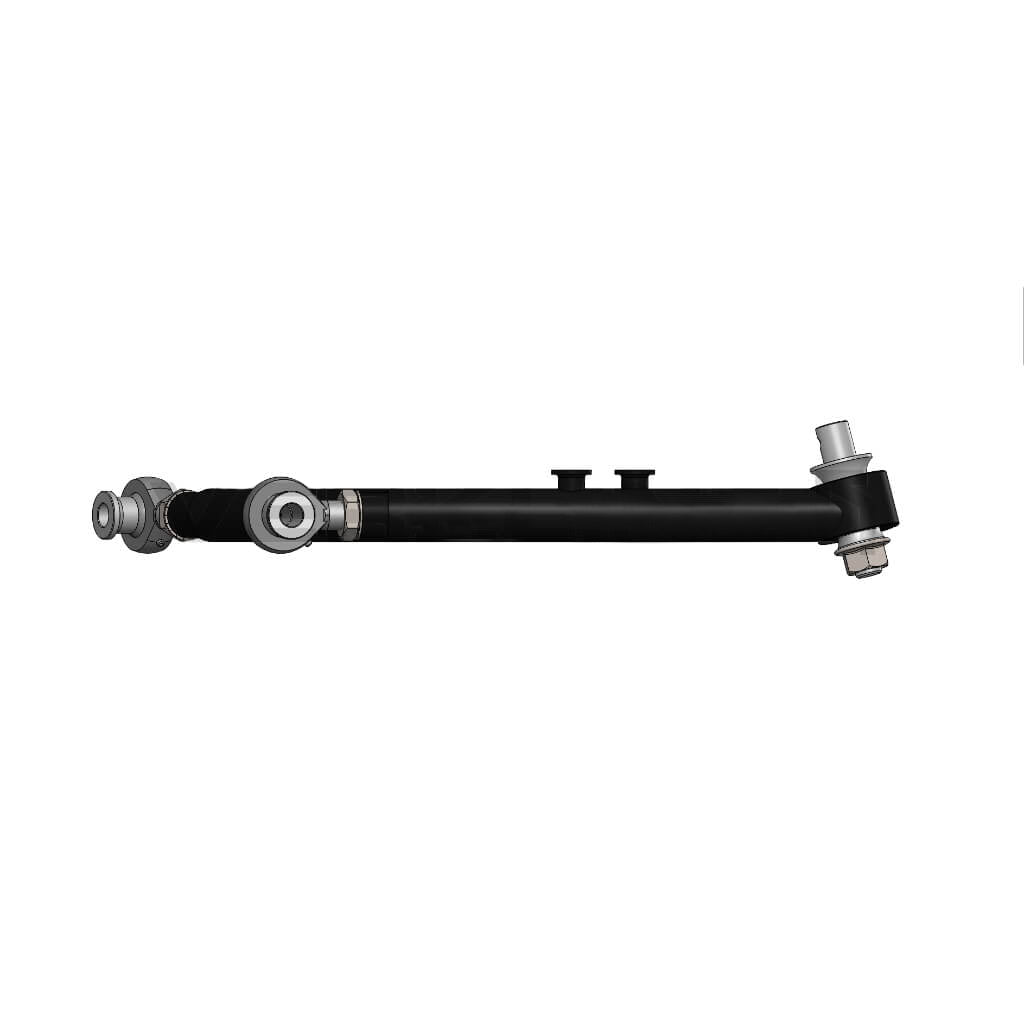

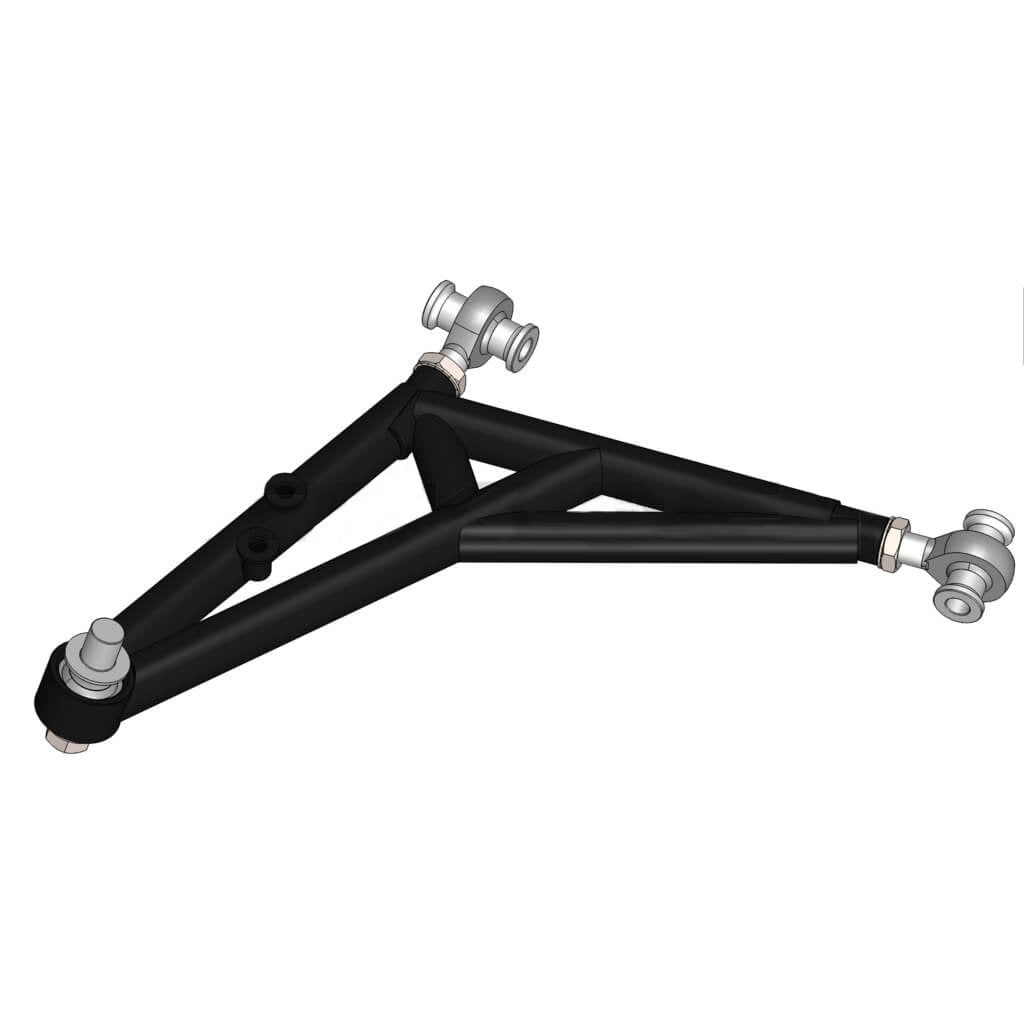

- Front light weight tubular wishbones (left and right).
- Two extended height pins for uprighs for improved kinematics (+10 mm).
- Four M18 Motorsport C0 tight fit rod ends. They are made in Europe, not in China.
- Four M18 half size screw locking nuts.
- Four spacer sleeves for assemble of the rod ends in the front subframe.
- Two M22 teflon lined spherical plain motorsport C0 tight fit bearings vibration/resonance resistant.
Features
- Comes preassembled ready for fitment in the car.
- Pin is tilted to allow more suspension travel.
- Allow increased caster and camber adjustment.
- Can be used with standard front subframe.
- Greater strength over OEM wishbones.
Technical details
- Full 3D CAD designed.
- FEA Tested and additional reinforcement to the original design was made.
- Manufactured from T45 tubing and S355 steel.
- Pins made from high strength steel and KTL coated.
- All TIG Welded.
- OEM wishbone weight is 3.10 kg. VERKLINE wishbones are 2.95 kg but provide much more rigidity.
- Wishbones are powder painted in black as standard.
