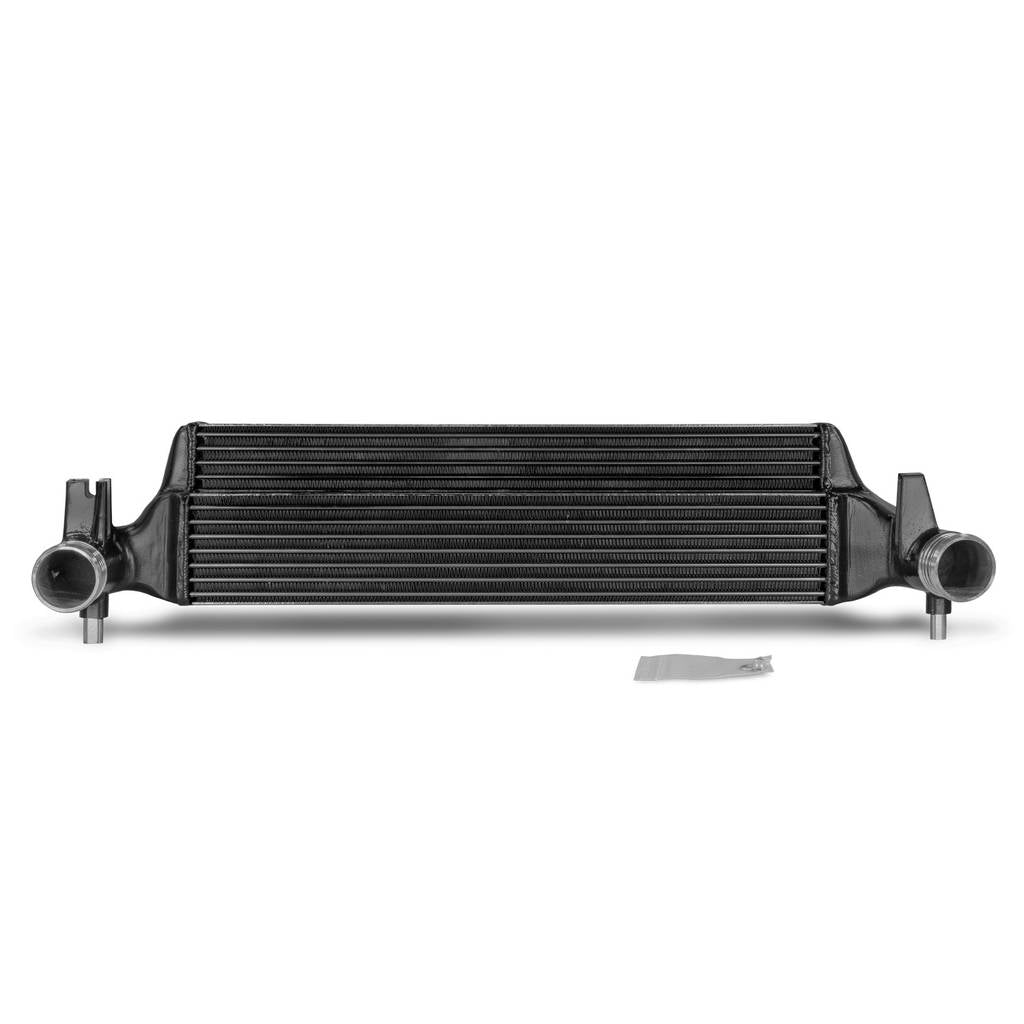

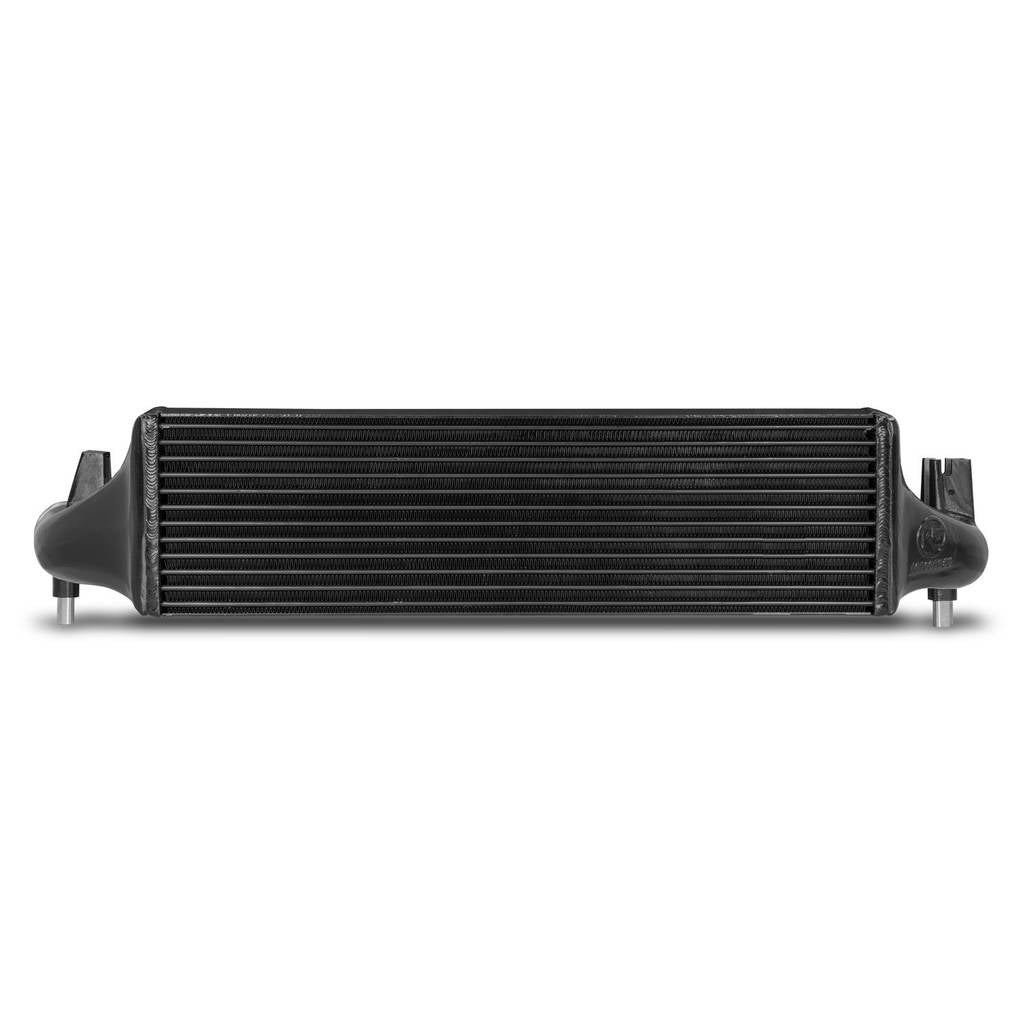

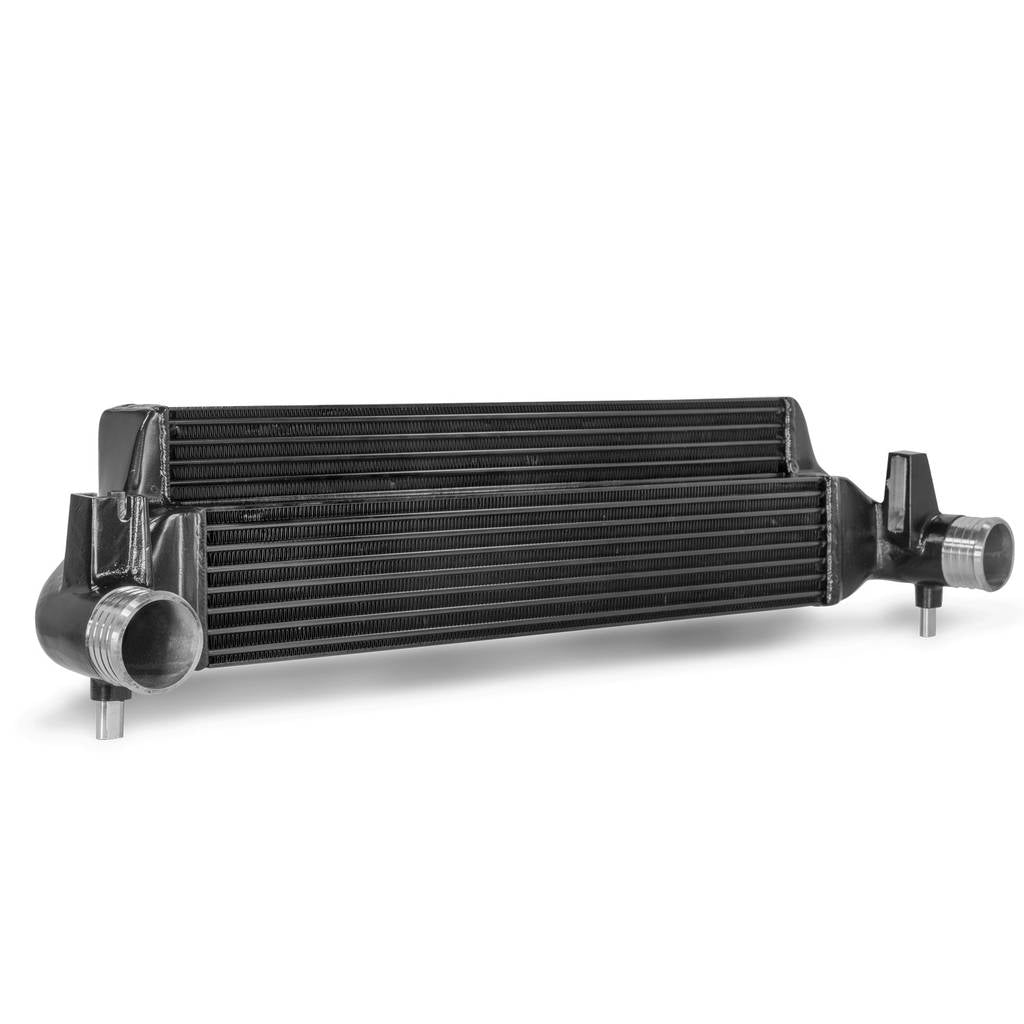

WAGNER TUNING 200001077 Competition Intercooler Kit AUDI 2.0TFSI

Description WAGNER TUNING 200001077 Competition Intercooler Kit AUDI 2.0TFSI

The Wagner Tuning Competition High-Performance Intercooler Kit is designed for the Audi S1 2.0 TSI, offering a significant increase in charge air volume and optimized engine cooling. This kit provides a 70% increase in volume compared to the factory intercooler, enabling improved performance and efficiency even under demanding conditions.

The intercooler features a 44% larger flow area and is engineered with a high-performance mesh for optimal cooling and minimal back pressure. The cast aluminum end boxes, developed using CAD, maximize internal airflow and efficiency. Tested for up to 6 bar pressure resistance, the intercooler is robust, lightweight, and equipped with a 60 mm inlet and outlet for maximum flow.

Installation is straightforward with a plug & play design, requiring no complex adjustments. The kit includes an anti-corrosion coating for durability and is specifically designed for racing applications.

• 70% increase in charge air volume compared to OEM
• 44% larger flow area for improved cooling and performance
• Pressure tested up to 6 bar for reliability
• Plug & play installation with no complex adjustments required

Specifications:

• Intercooler dimensions: 620 mm x 175 [110] mm x 110 [65] mm (stepped)
• Volume (V): 10.2 liters (+70% vs. OEM)
• Flow area (A): 1085 cm² (+44% vs. OEM)
• Inlet and outlet diameter: 60 mm
• Weight: 7.65 kg
• Pressure resistance: Up to 6 bar (tested)
• Coating: Anti-corrosion coating
• Installation: Plug & Play
• OEM intercooler dimensions: 685 mm x 110 mm x 80 mm
• OEM volume (V): 6.0 liters
• OEM flow area (A): 753.5 cm²
• Part number: 200001077

Kit comes with::

• 1x Wagner Tuning Competition high-performance intercooler
• 1x Mounting material
• 1x Installation instructions

Vehicle Compatibility:

• Audi S1 2.0 TSI (8X, 2014-2018)
