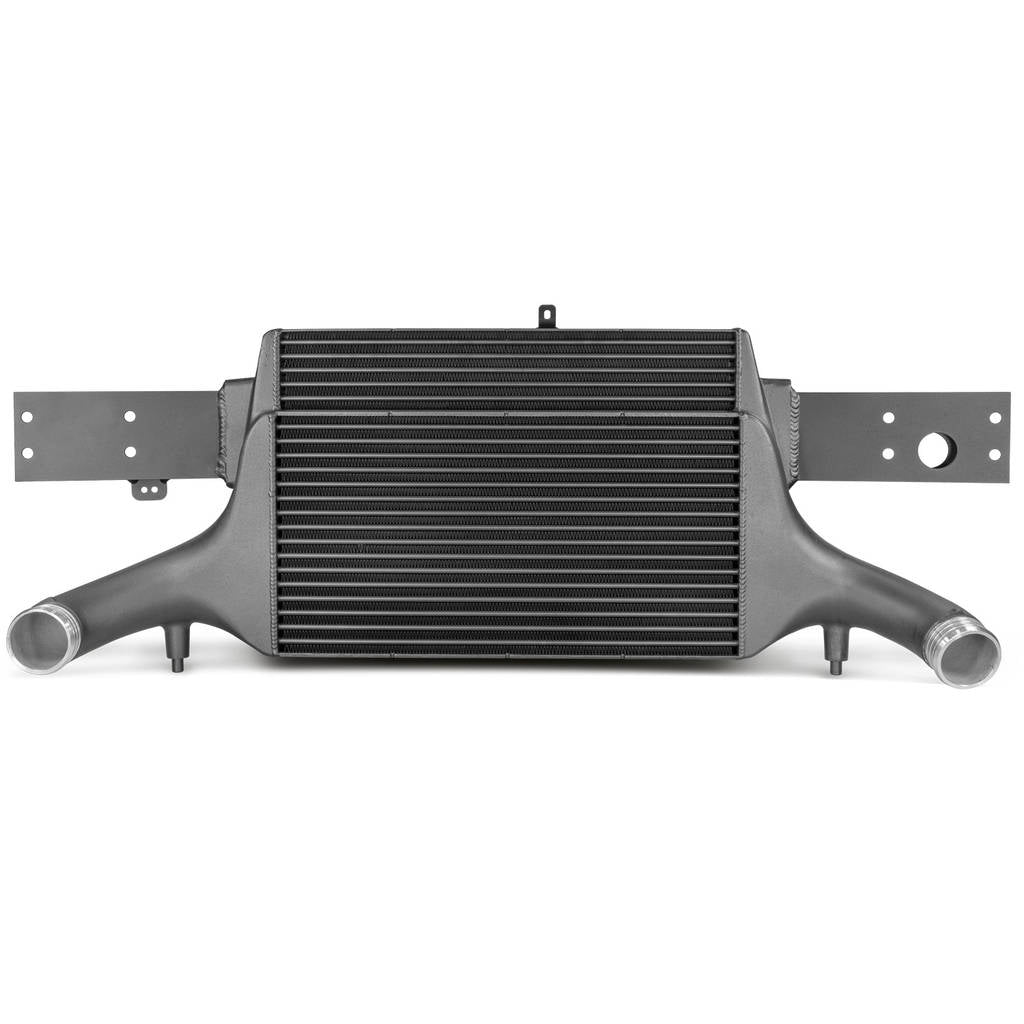

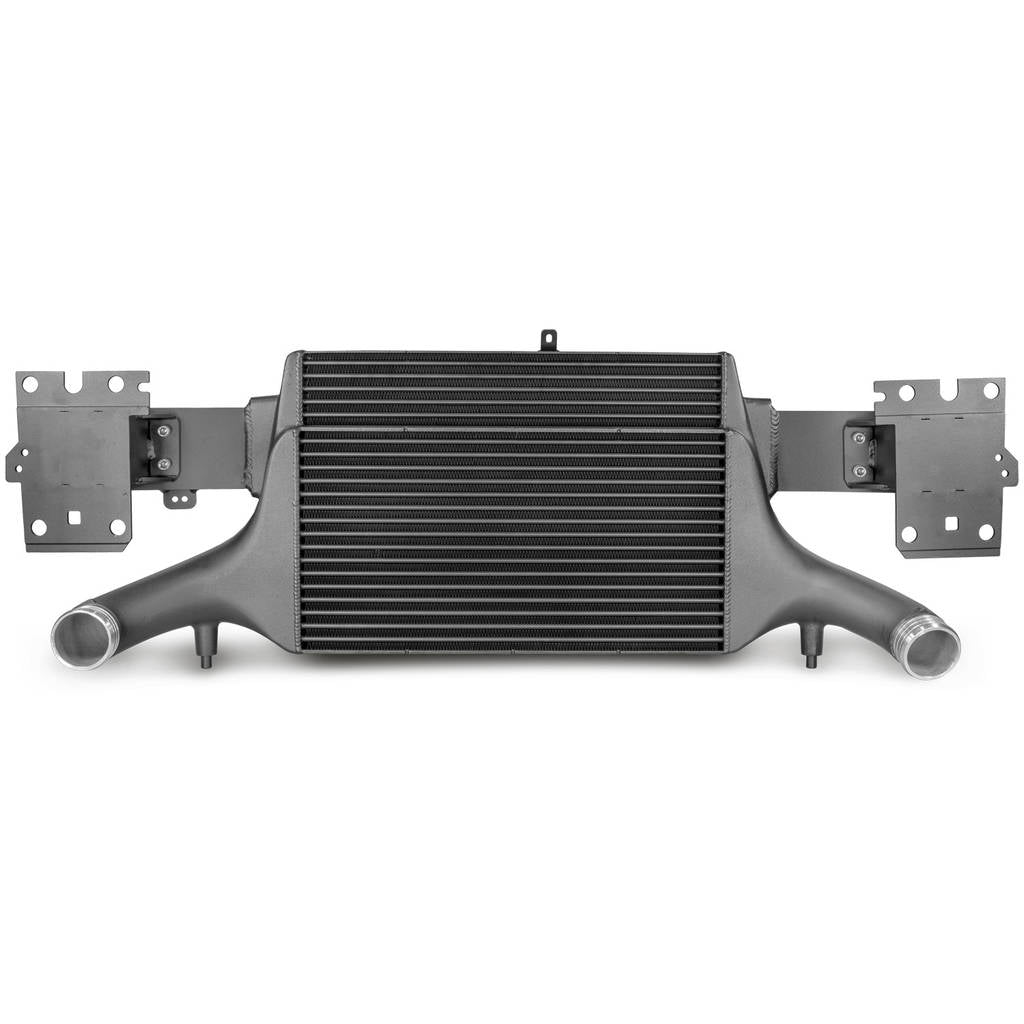

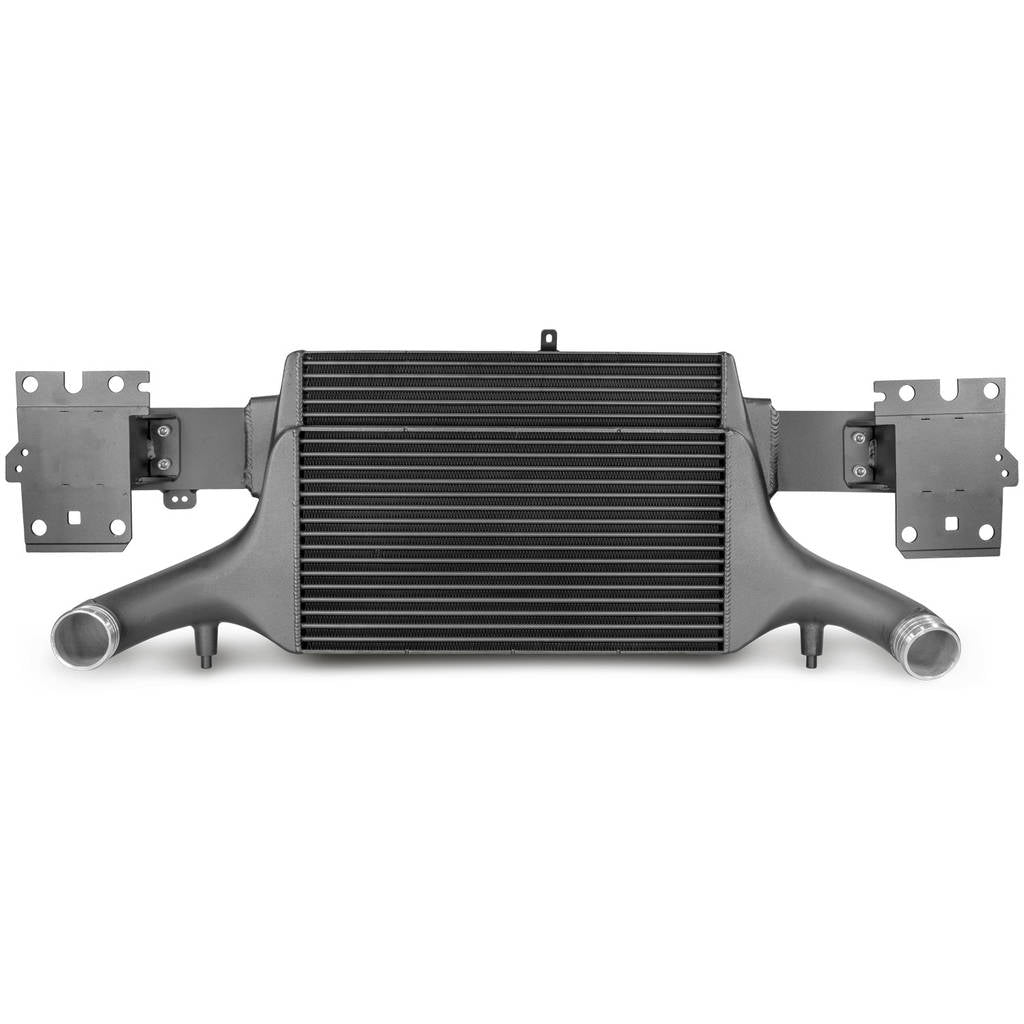

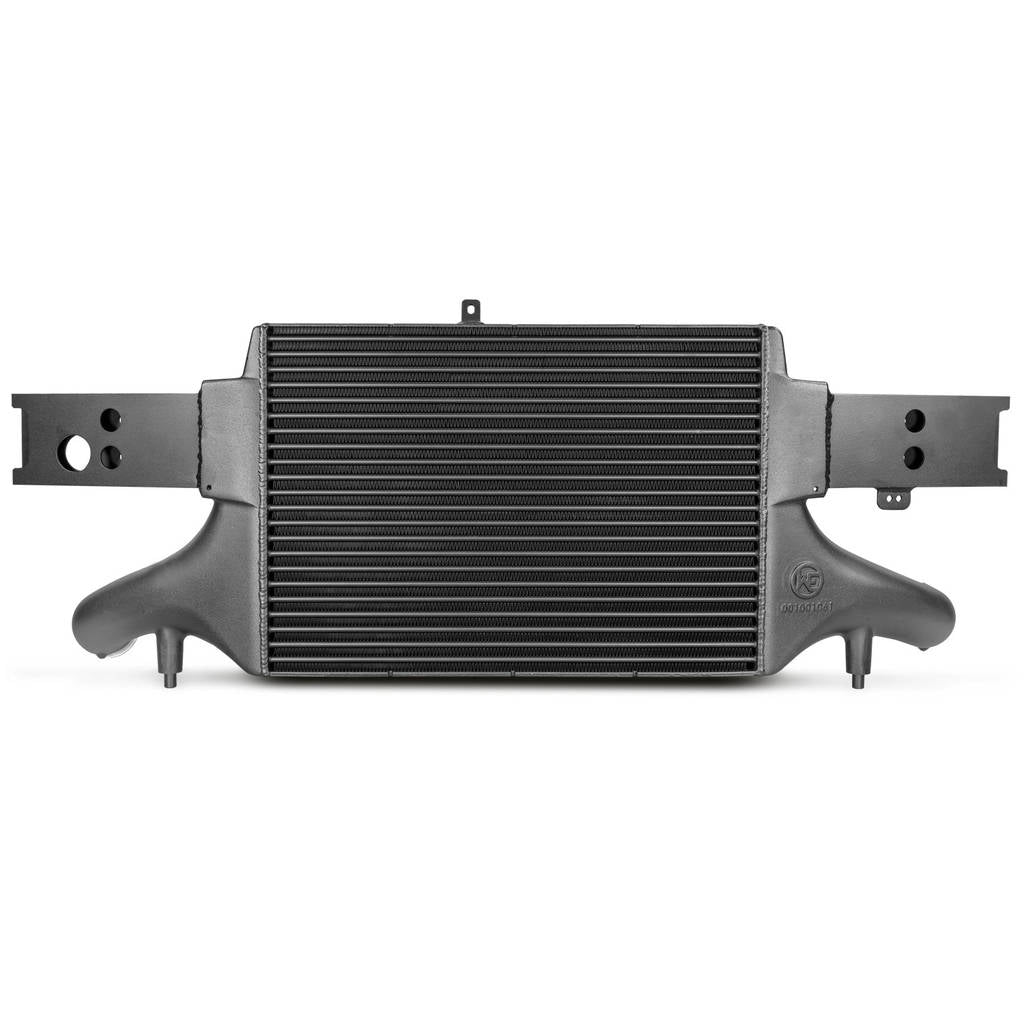

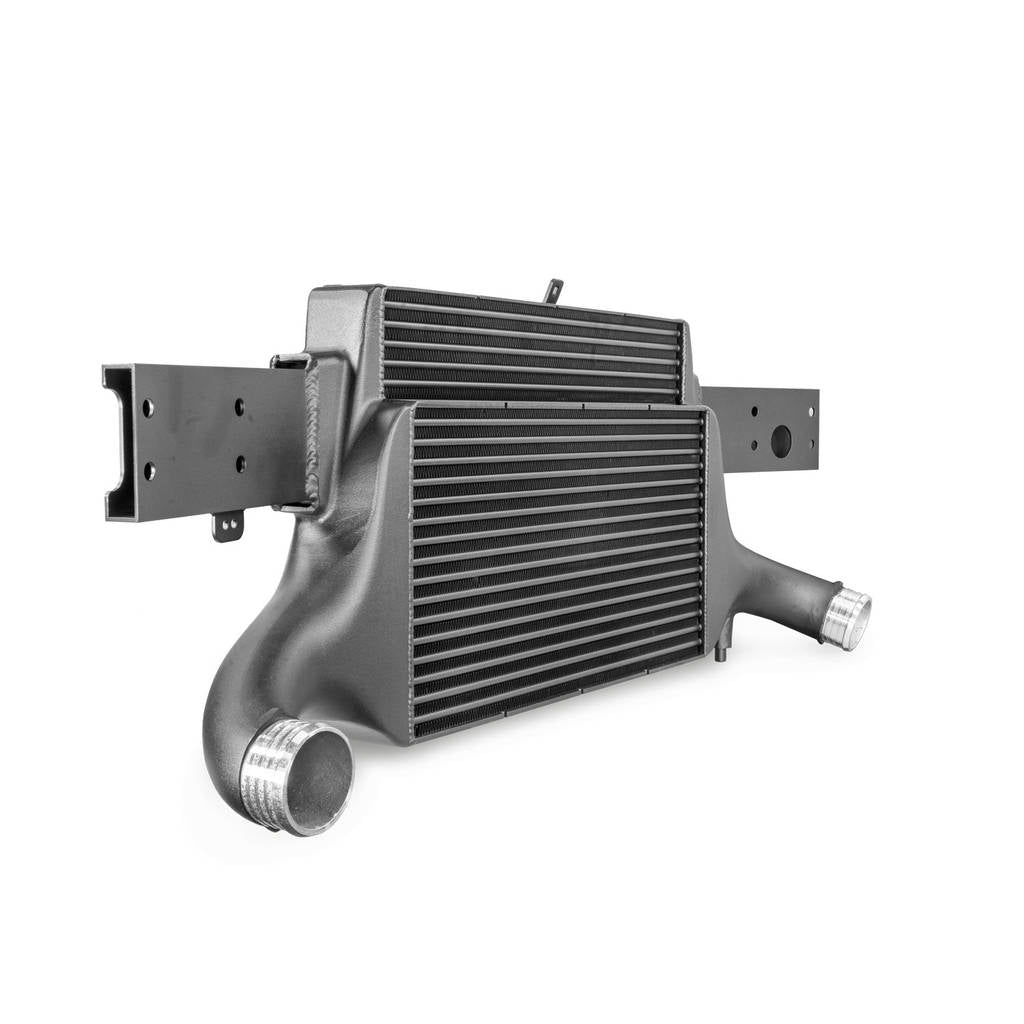

WAGNER TUNING 200001081.ACC.S Competition Intercooler EVO3 AUDI RS3 8V 2.5 TFSI

Description WAGNER TUNING 200001081.ACC.S Competition Intercooler EVO3 AUDI RS3 8V 2.5 TFSI

The Competition Intercooler EVO 3 for Audi RS3 8V is now available with certification and two different intercooler core options. The Wagner Tuning intercooler offers improved cooling performance, an 84% larger inflow area, and 101% more charge air volume compared to the original intercooler. The unit weighs 15 kg and features 68mm inlet and outlet connections. Installation is plug and play.

The high performance intercooler has a core dimension of 515mm x 367mm x 95mm (16.5L), providing a significant increase in cooling surface and charge air volume. The core is constructed from high-quality tube and fin materials with inside turbulators and cast aluminum end tanks optimized by CFD for optimal internal airflow. Additional air guides inside the inlet ensure uniform filling of the intercooler, resulting in excellent cooling properties with minimal pressure drop. The intercooler and crossmember form a stable unit, mounted to the original points for easy 1:1 exchange.

Important note: It is recommended to use the standard version for power applications up to 600HP and the X-version for power applications above 600HP.

• Improved cooling performance
• 84% larger inflow area
• 101% more charge air volume
• Plug and play installation

Specifications:

• Weight: 15 kg
• Inlet and outlet: 68mm (2.67 inch)
• Core dimensions: 515mm x 367mm x 95mm (16.5L)
• OEM intercooler cooling surface: 1024 cm² (158.7 in²)
• OEM charge air volume: 8.2L (500.4 in³)
• Wagner Tuning EVO 3 cooling surface: 1890 cm² (293 in²)
• Wagner Tuning EVO 3 charge air volume: 16.5L (1006.9 in³)

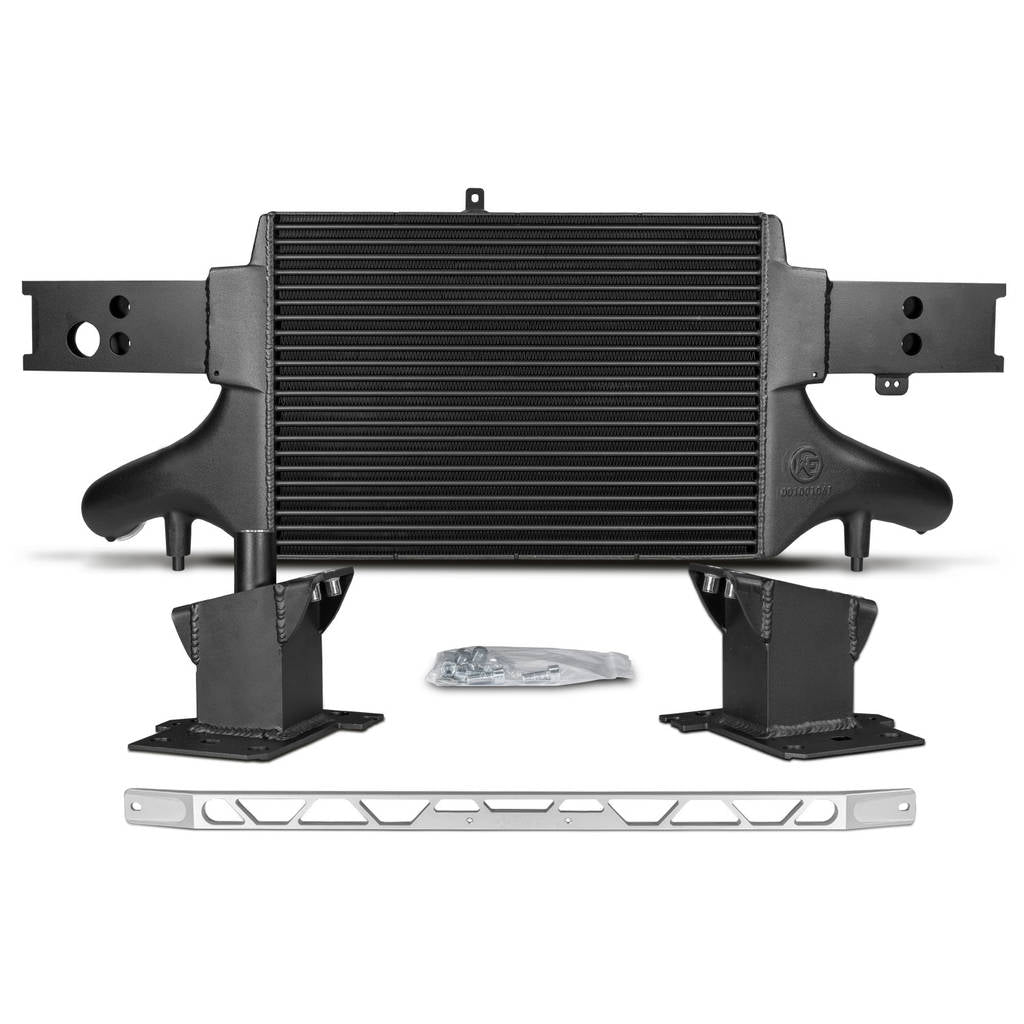

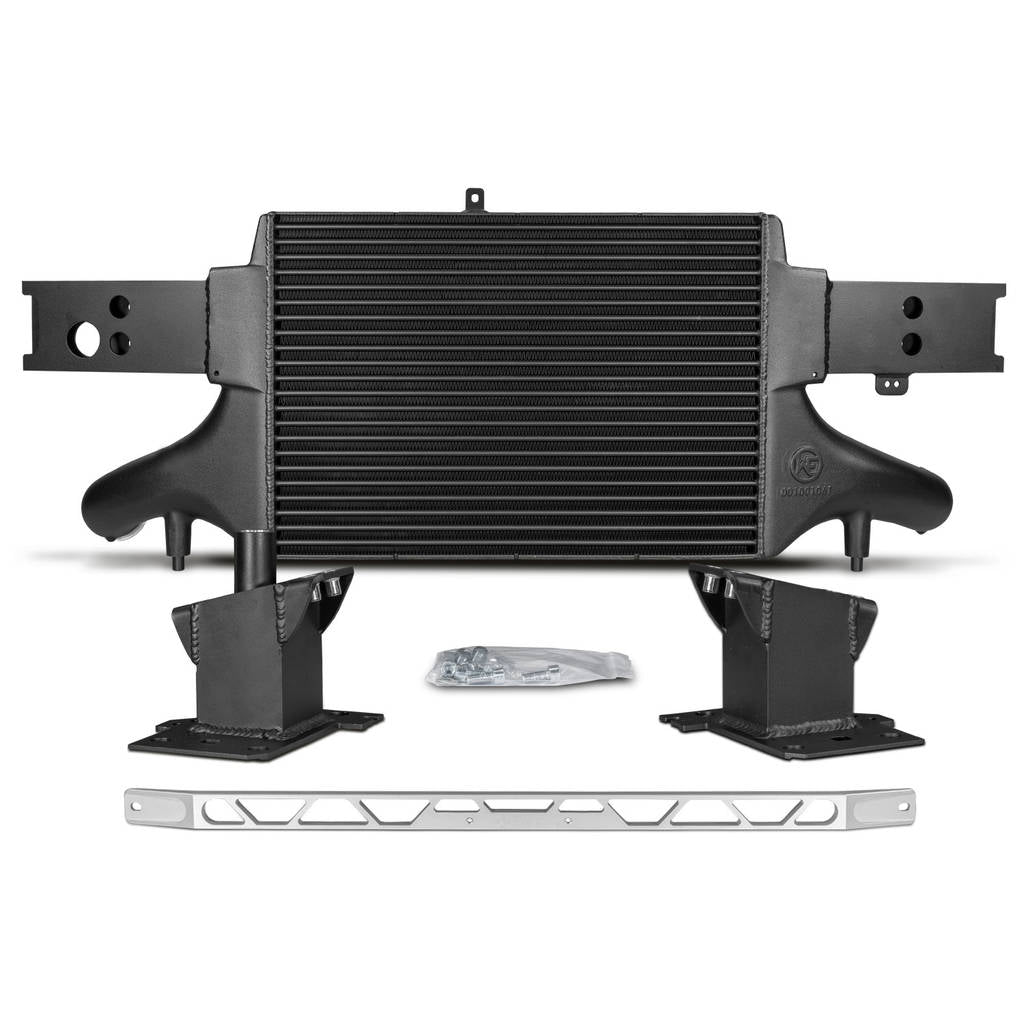

Kit comes with::

• 1 intercooler including crossmember
• 1 mounting material
• 1 installation instruction
• 1 certification

Vehicle Compatibility:

• 2015-2016 Audi RS3 8V Sportback 270kW/367PS
• 2017+ Audi RS3 8V Sportback/Sedan 294kW/400PS
