Description WAGNER TUNING 200001081.NOACC.X Competition Intercooler EVO3 AUDI RS3 8V 2.5 TFSI

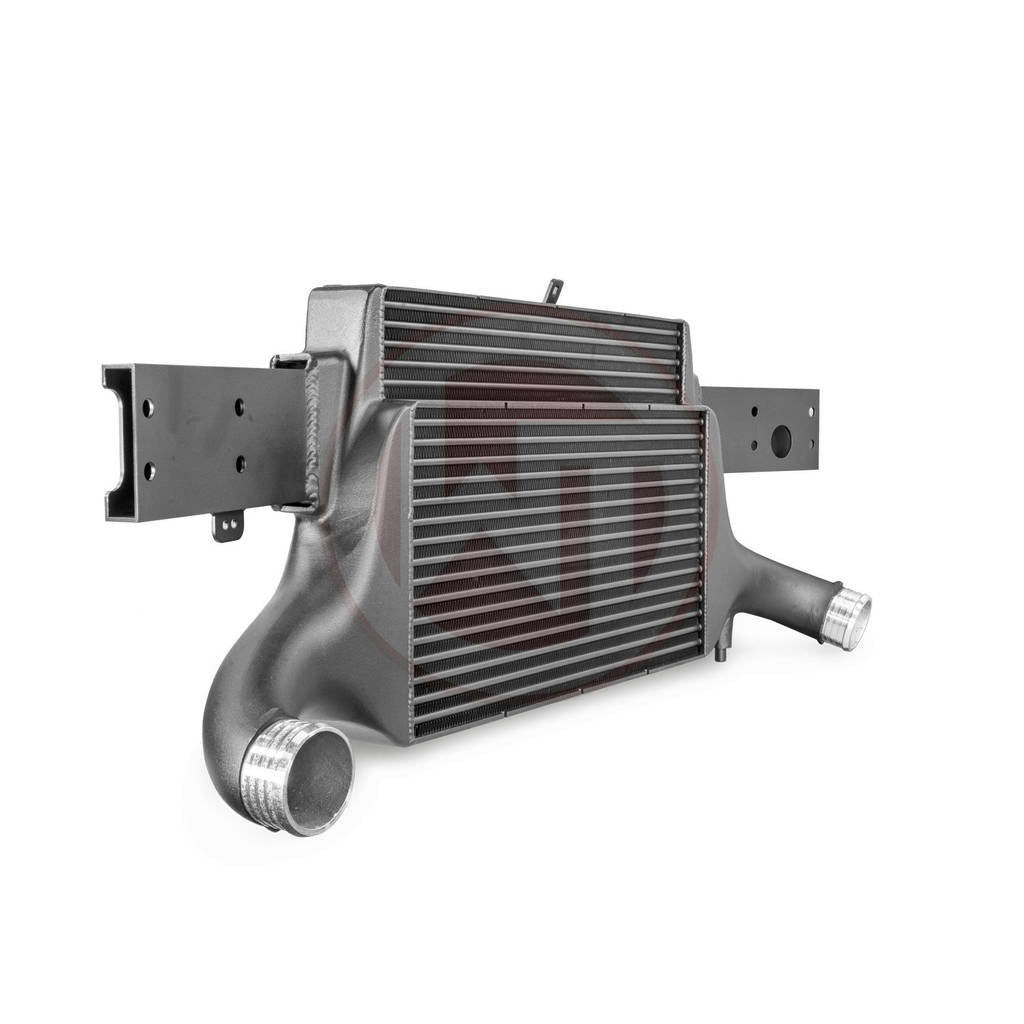

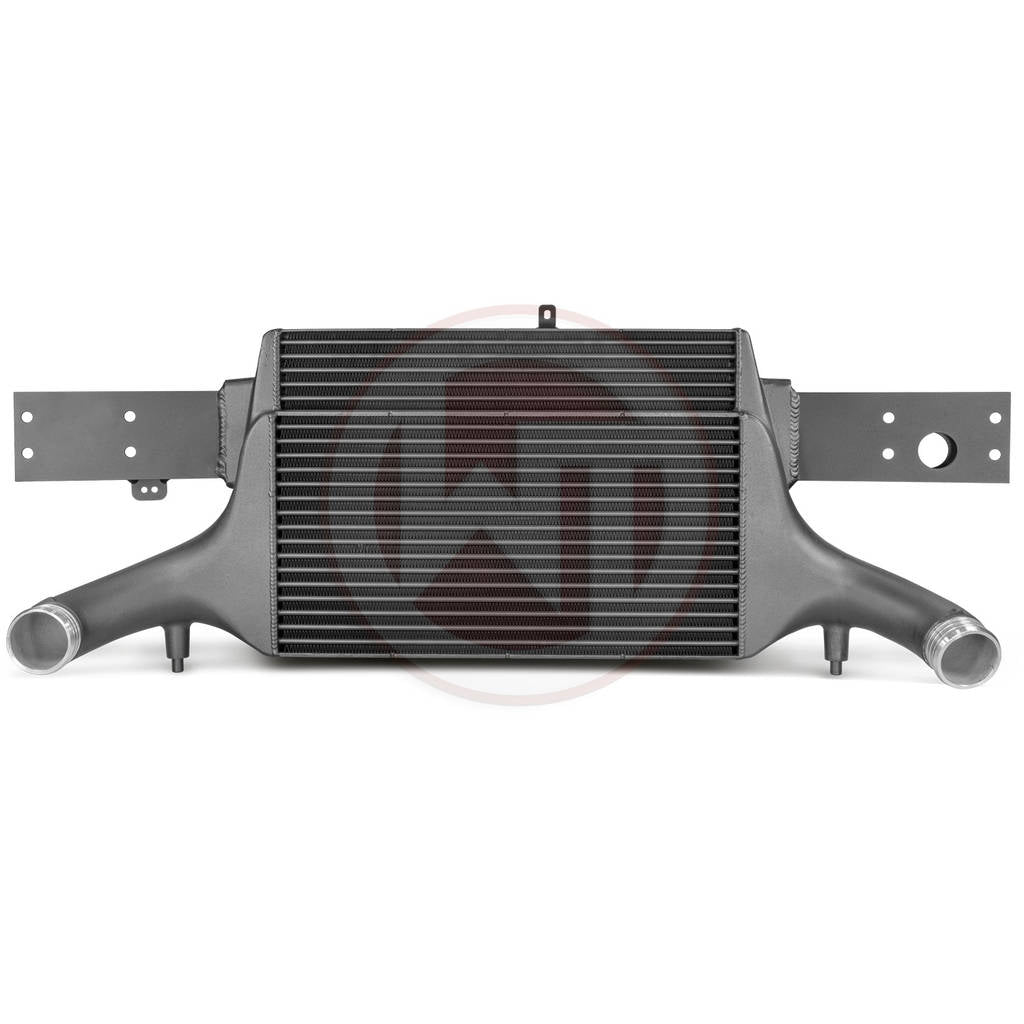

The Competition Intercooler EVO 3 for Audi RS3 8V is now available with a part certificate and two different intercooler core options. The Wagner Tuning intercooler offers improved cooling performance, an 84% larger inflow area, and 101% more charge air volume compared to the original intercooler.

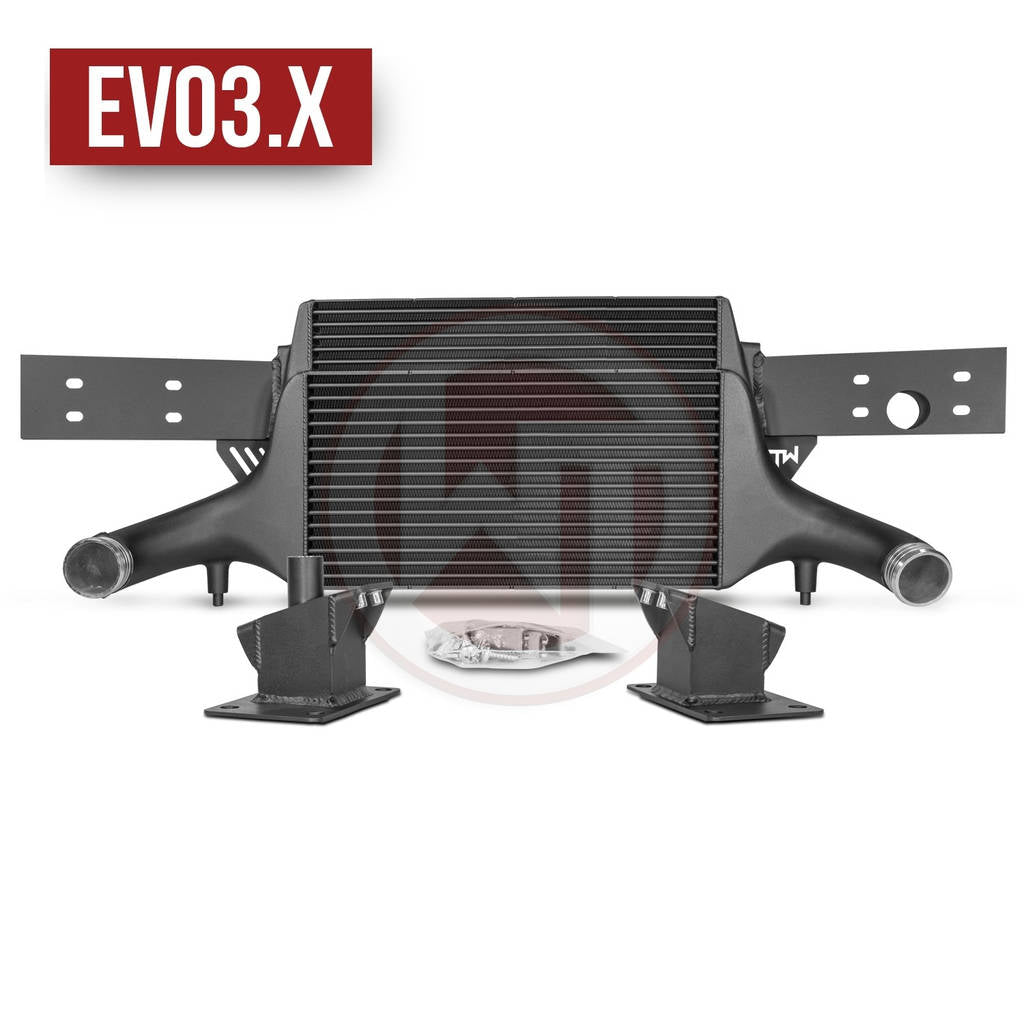

The new "EVO3.X" core option was developed in cooperation with a renowned German Audi tuner and is suitable for higher performance applications of 600PS and above. The intercooler size remains unchanged from the original version, but the internal core design has been further optimized for high power applications, ensuring optimal airflow and excellent cooling performance. For power applications below 600PS, the standard version is recommended.
Constructed with high-quality tube and fin cores featuring inside turbulators and cast aluminum end tanks optimized by CFD, this intercooler provides excellent cooling properties with minimal pressure drop. The kit is designed for easy installation at the original mounting points and forms a stable unit with the crossmember.
Comment: Recalibration of the ACC may be necessary.
- Improved cooling performance
- 84% larger inflow area
- 101% more charge air volume
- Plug & Play installation
Specifications:
- Core dimensions: 515mm x 367mm x 95mm (16.5L / 14.45Inch x 3.74Inch = 1006.9Inch³)
- Inlet and outlet: 68mm (2.67Inch)
- Weight: 15kg (EVO 3), 19kg (Competition)
- OEM intercooler cooling surface: 1024cm² (158.7Inch²)
- OEM charge air volume: 8.2L (500.4Inch³)
- Wagner Tuning EVO 3 Competition cooling surface: 1890cm² (293Inch²)
- Wagner Tuning EVO 3 Competition charge air volume: 16.5L (1006.9Inch³)
Kit comes with::
- 1 intercooler including crossmember
- 1 mounting material
- 1 installation instruction
- 1 part certification
Vehicle Compatibility:
- 2015-2016 Audi RS3 8V Sportback 270KW/367PS
- 2017+ Audi RS3 8V Sportback/Sedan 294KW/400PS
