WAGNER TUNING 200001091 Competition Intercooler Kit OPEL Insignia 2.8 V6 Turbo 4x4

Description WAGNER TUNING 200001091 Competition Intercooler Kit OPEL Insignia 2.8 V6 Turbo 4x4

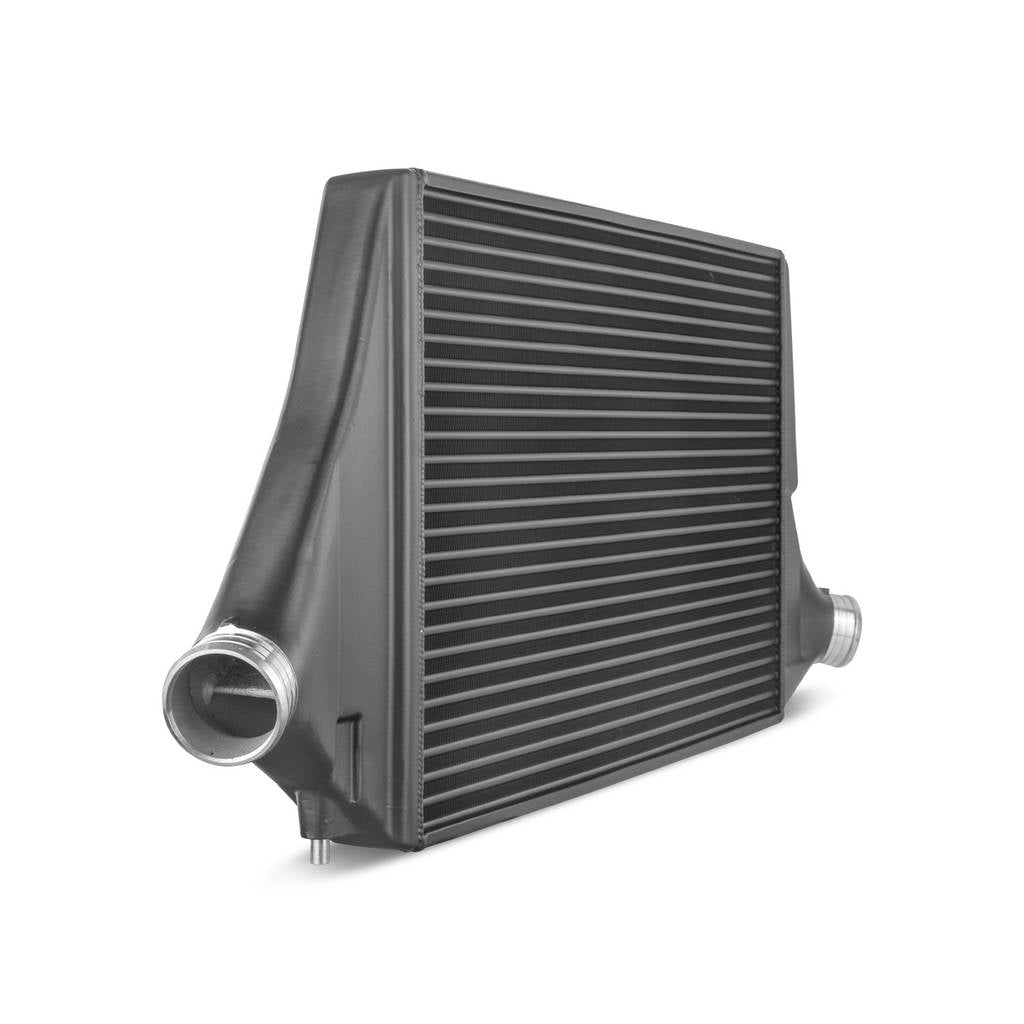

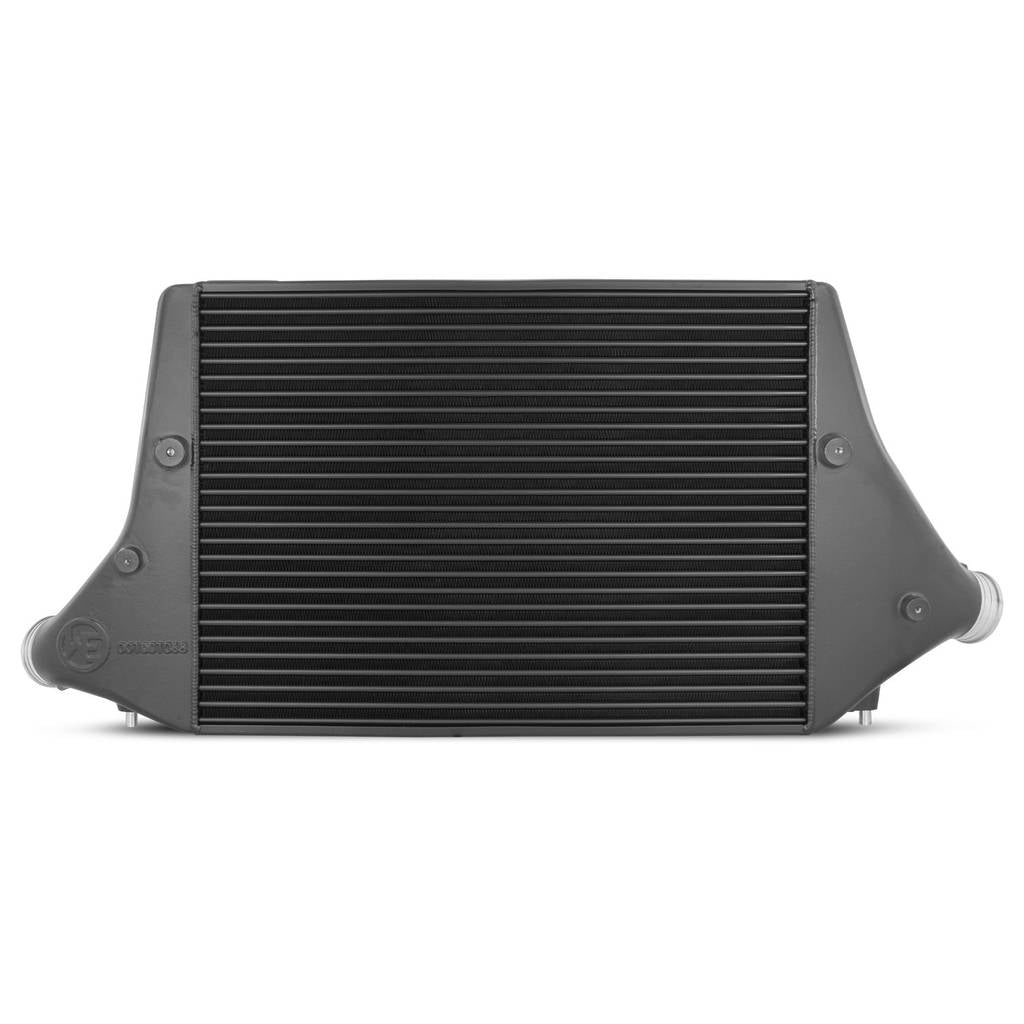

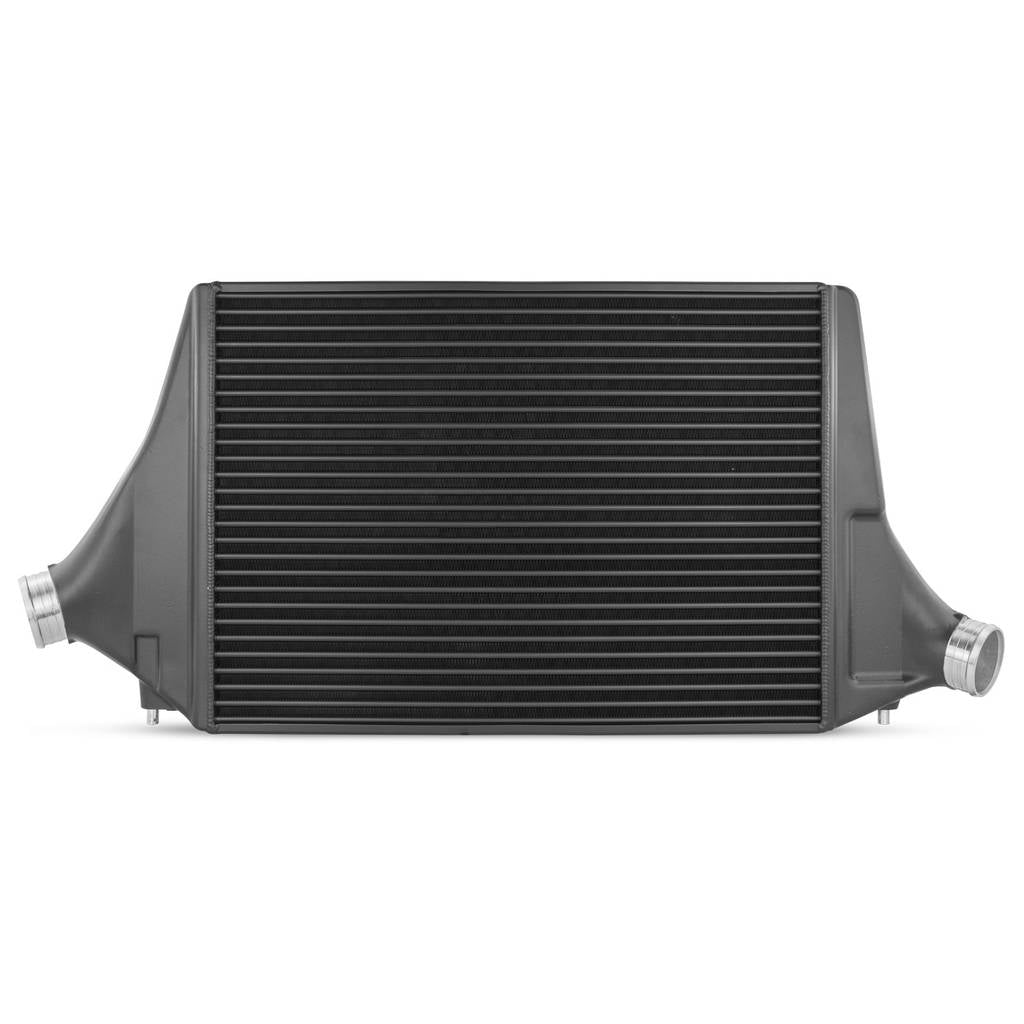

The Wagner Tuning Competition Intercooler is designed for the Opel Insignia 2.8 V6 Turbo and OPC models. This upgrade increases charge air volume by 138% compared to the factory intercooler, providing improved engine cooling and reduced back pressure. The intercooler features a high-performance mesh and flow-optimized cast aluminum end boxes with internal air baffles for even air distribution.

The kit is developed for racing applications and tested for pressure stability up to 6 bar. It includes a special anti-corrosion coating for durability and optimal thermal conductivity. The enlarged 70 mm connection diameter and a weight of only 9.75 kg contribute to optimal airflow. A parts certificate is included for legal use on public roads.

• 138% more charge air volume compared to OEM
• High-performance mesh and flow-optimized end boxes
• Pressure tested up to 6 bar for racing applications
• Parts certificate included for legal street use

Specifications:

• Net dimensions: 610 mm x 440 mm x 65 mm
• Cooling surface: 2684 cm² (+10% vs. OEM)
• Intercooler volume: 17.4 liters (+138% vs. OEM)
• OEM net dimensions: 665 mm x 368 mm x 30 mm
• OEM cooling surface: 2447.2 cm²
• OEM intercooler volume: 7.3 liters
• Connection diameter: 70 mm
• Weight: 9.75 kg
• Installation: Plug & Play (easy replacement)
• Part number: 200001091

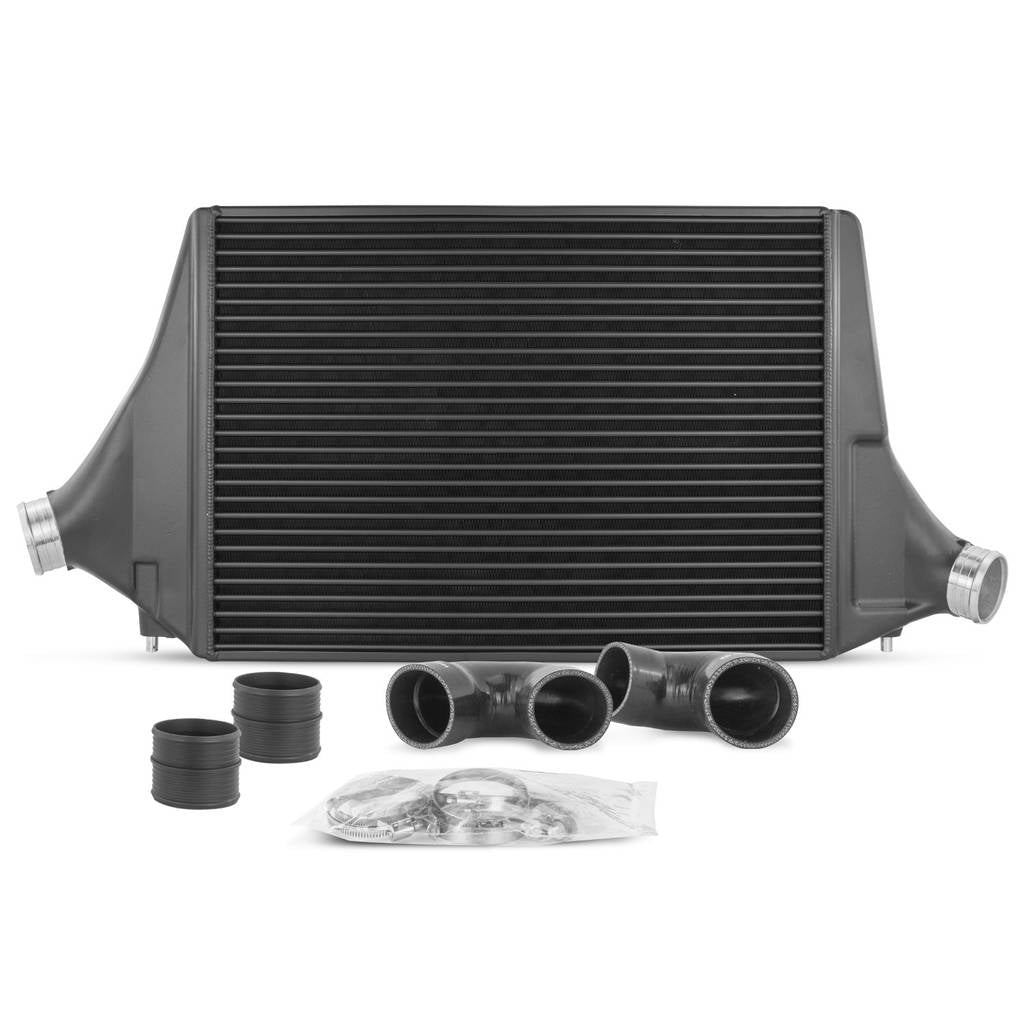

Kit comes with::

• 1x Wagner Tuning intercooler
• 2x silicone hoses
• 1x mounting material
• 1x installation instructions

Vehicle Compatibility:

• 2008-2017 Opel Insignia A 2.8 V6 Turbo 4x4
• 2009-2017 Opel Insignia A 2.8 V6 Turbo OPC
