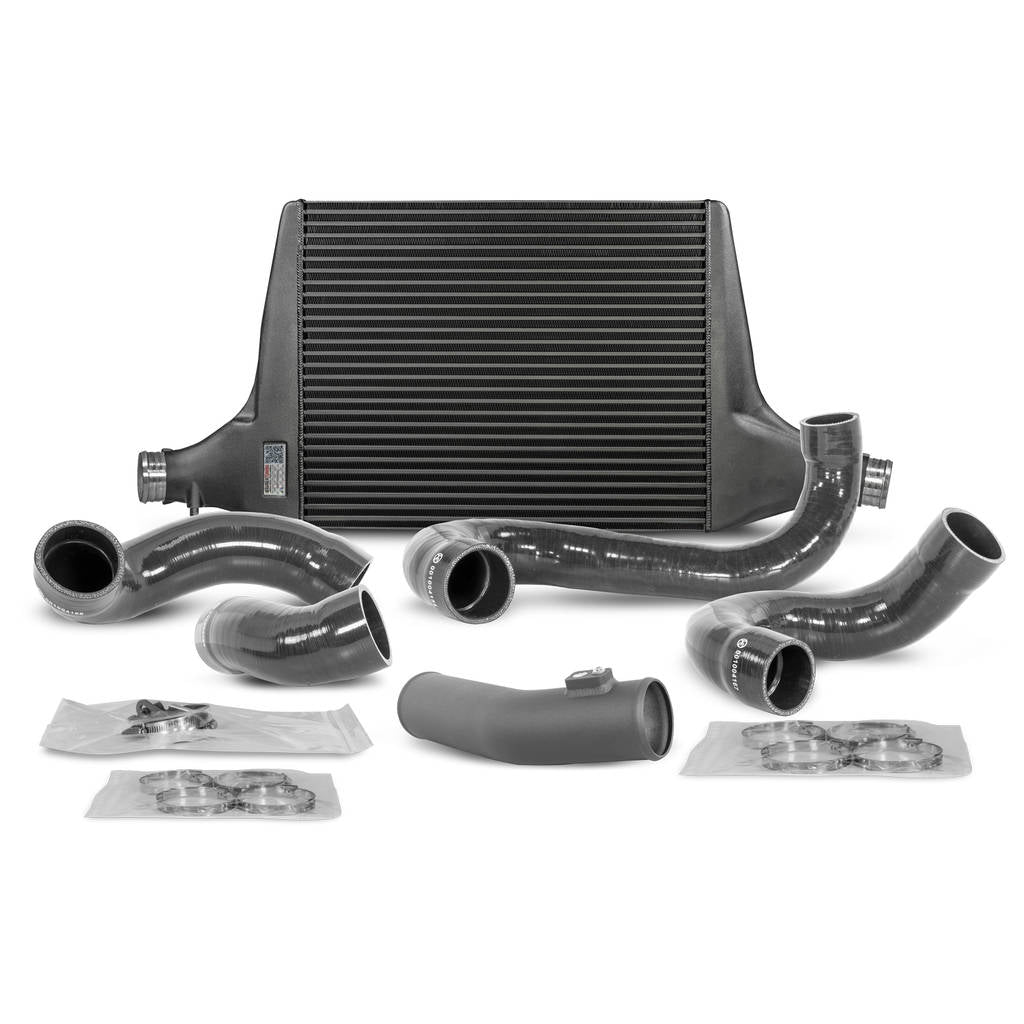

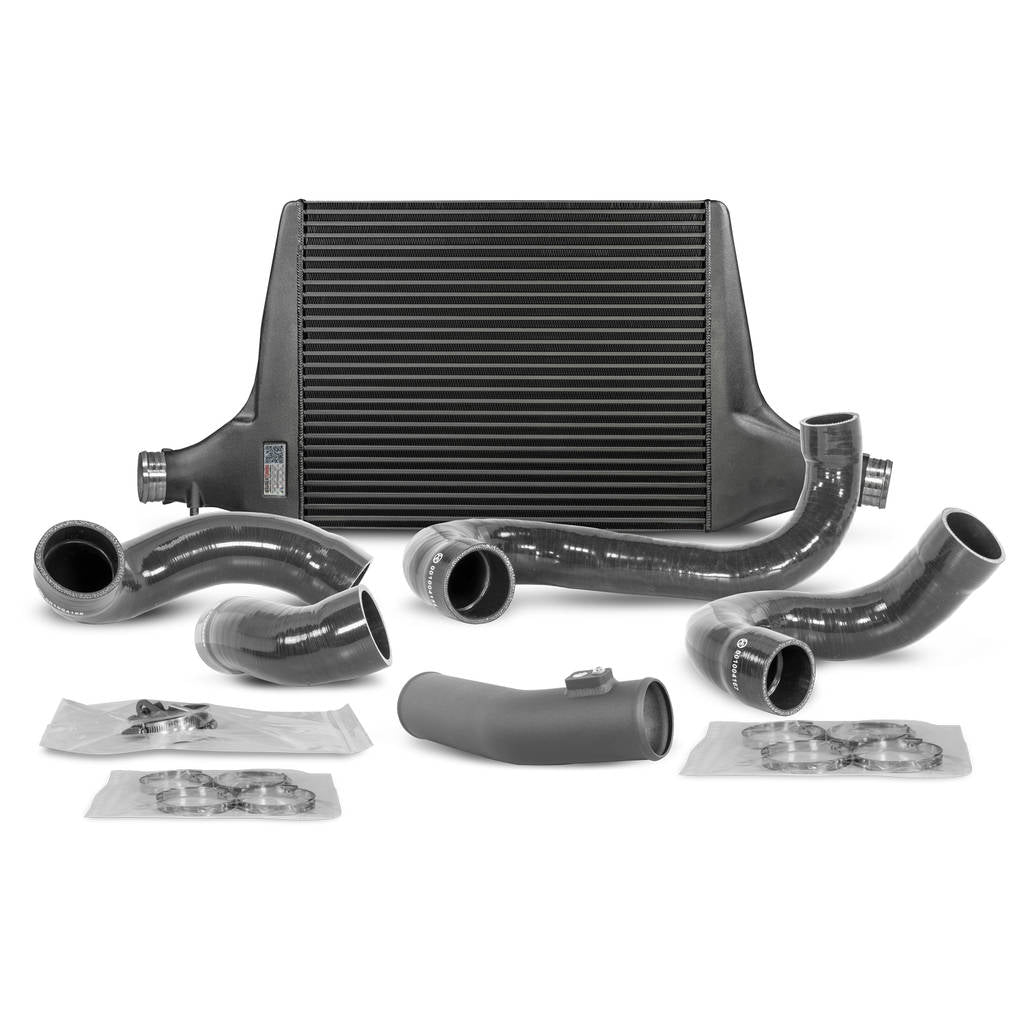

WAGNER TUNING 200001120.PIPE Competition Intercooler Kit AUDI S4 B9 3.0TFSI Photo-0

WAGNER TUNING 200001120.PIPE Competition Intercooler Kit AUDI S4 B9 3.0TFSI

€1.140,00

VAT included. Shipping calculated at checkout

WAGNER TUNING P/N: 200001120.PIPE
Quantity:

This item is considered special order and is not available for immediate pickup or dispatch. Price and ETA may vary. Please note that no returns, cancellations, or refunds allowed on special orders.

Pickup available at Kelberg Warehouse Usually ready in 24 hours

WAGNER TUNING 200001120.PIPE Competition Intercooler Kit AUDI S4 B9 3.0TFSI

Kelberg Warehouse

Pickup available, usually ready in 24 hours

Auf der Struth 4
53539 Kelberg
Germany

+491732982897

Description WAGNER TUNING 200001120.PIPE Competition Intercooler Kit AUDI S4 B9 3.0TFSI

The Competition high performance intercooler is designed to maximize vehicle performance. It features a 134% larger inflow area and 105% more charge air volume compared to the conventional intercooler. The net dimensions are 550 mm x 445 mm x 70 mm, providing a total volume of 17,130 cc.

The intercooler uses a high quality Tube Fin mesh with internal turbulators for maximum heat transfer and efficient airflow. Despite its size, it weighs only 9.5 kg, minimizing additional load on the vehicle. The cast aluminum end boxes are optimized using CFD flow analysis for excellent cooling properties and minimal backpressure.

All charge air coolers are equipped with an anti-corrosion coating that also offers excellent heat conduction. The kit is ready to install and allows for easy replacement with the stock intercooler, requiring no complex conversion. The product is tested up to 6 bar and is pressure stable. Optionally, the kit is available with complete charge air piping, including three reinforced silicone hoses and an aluminum charge air tube.

Note: The supplied brackets are only suitable for the EU model.

  • 134% larger inflow area compared to stock
  • 105% more charge air volume than the original intercooler
  • Plug and Play installation
  • Pressure tested up to 6 bar

Specifications:

  • Net dimensions: 550 mm x 445 mm x 70 mm (17,130 cc)
  • Weight: 9.5 kg
  • Material: Tube Fin with internal turbulators
  • Anti-corrosion coating with heat conduction properties
  • Original intercooler core dimensions: 720 mm x 145 mm x 80 mm (8.35 L, 1044 cm²)
  • Wagner Tuning intercooler core dimensions: 550 mm x 445 mm x 70 mm (17.13 L, 2447 cm²)

Kit comes with::

  • Competition high performance intercooler
  • Supplied brackets (EU model only)
  • Optionally available: complete charge air piping with three reinforced silicone hoses and aluminum charge air tube

Vehicle Compatibility:

  • 2016+ Audi S4 B9 3.0 TFSI 260KW/354PS
  • 2016+ Audi S5 F5 3.0 TFSI 260KW/354PS
