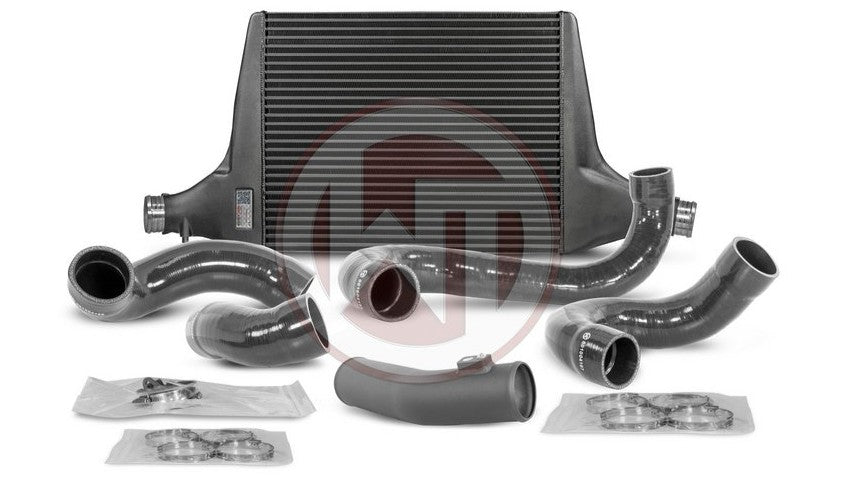

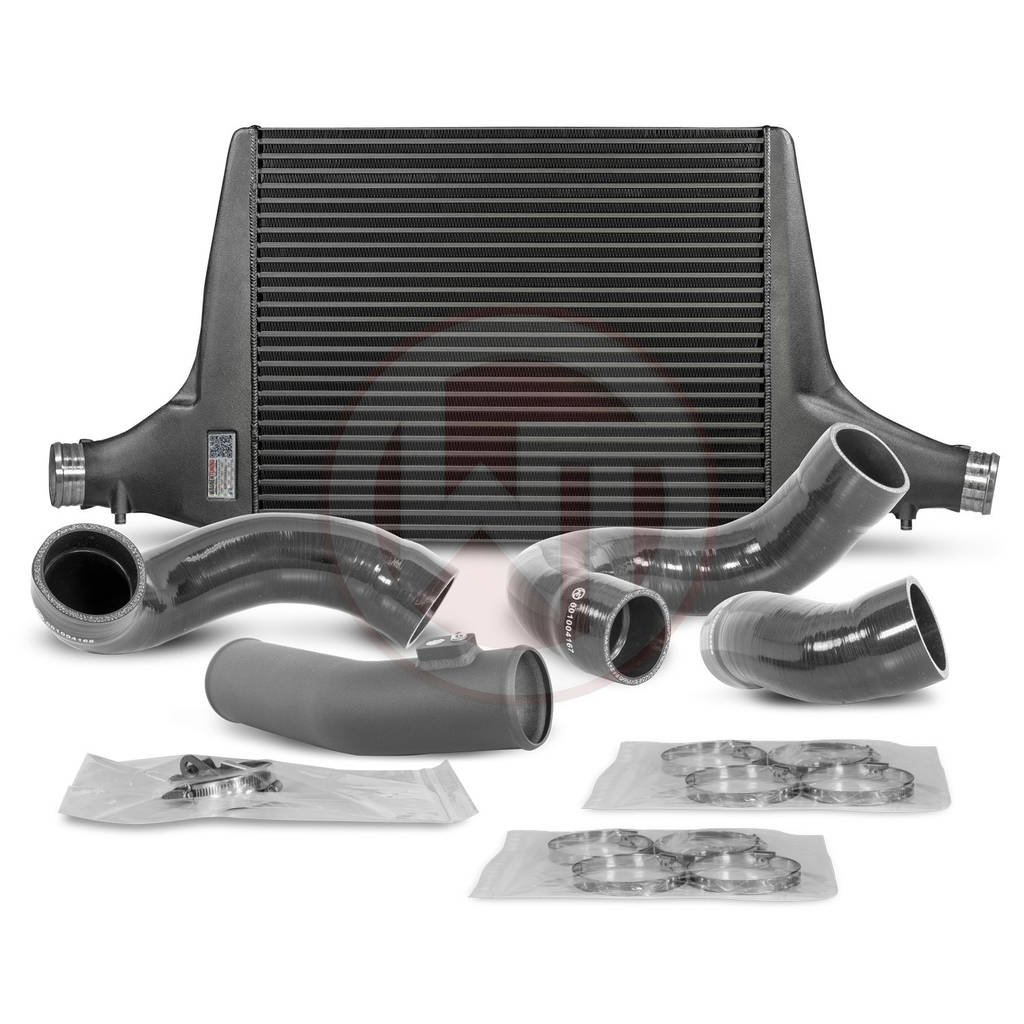

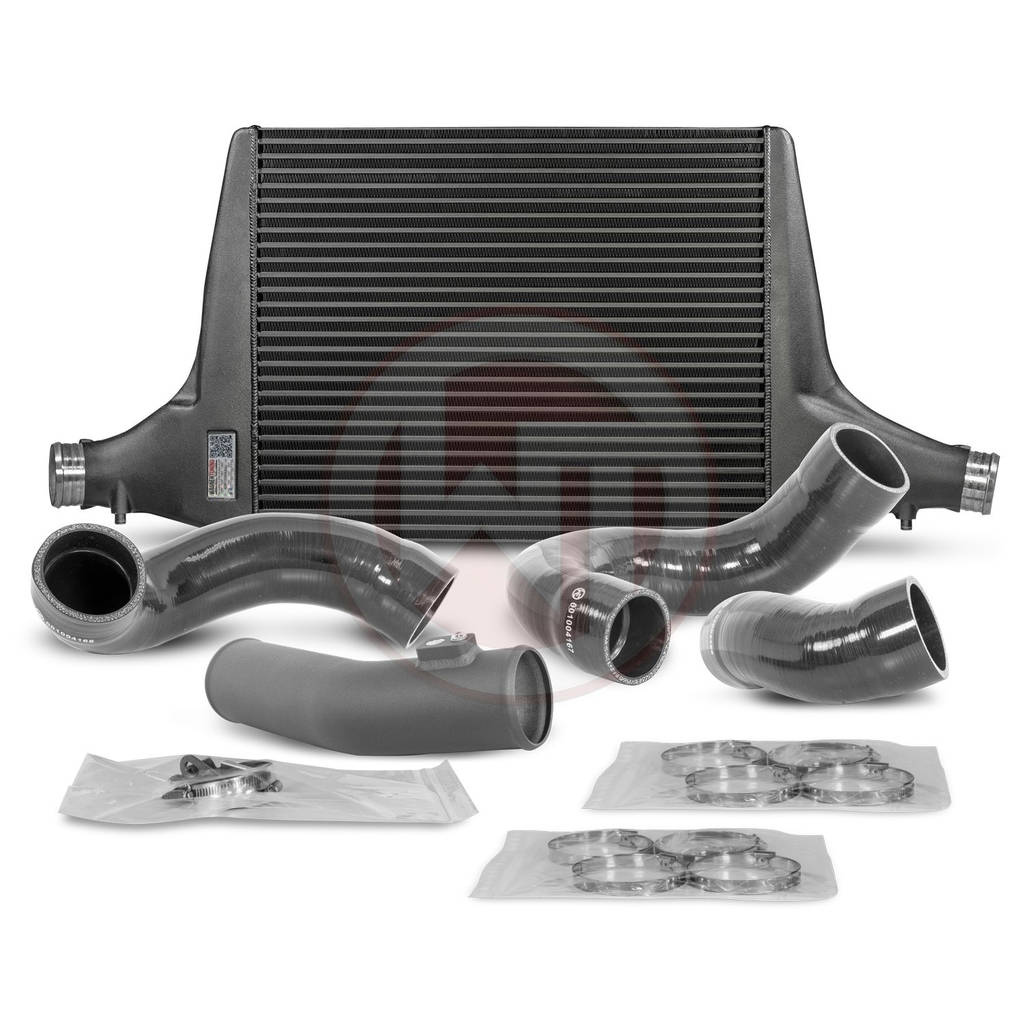

WAGNER TUNING 200001120USA.PIPE Competition Intercooler Kit AUDI S4 B9 3.0TFSI

Description WAGNER TUNING 200001120USA.PIPE Competition Intercooler Kit AUDI S4 B9 3.0TFSI

The Competition high performance intercooler is designed to maximize vehicle performance. It features a 134% larger inflow area and 105% more charge air volume compared to the conventional intercooler. The net dimensions are 550 mm x 445 mm x 70 mm, providing a total volume of 17.13 liters.

The intercooler uses high quality Tube Fin material with internal turbulators for maximum heat transfer and efficient airflow. Despite its large size, it weighs only 9.5 kg, minimizing additional load on the vehicle. The cast aluminum end boxes are optimized using CFD flow analysis for excellent cooling with minimal backpressure.

All charge air coolers include an anti-corrosion coating with excellent heat conduction properties, ensuring permanent and optimal cooling. The kit is ready to install and allows for easy replacement of the stock intercooler with a plug and play design. Pressure tested up to 6 bar and suitable for racing applications.

Note: The supplied brackets are only suitable for the US model.

• 134% larger inflow area and 105% more charge air volume
• High quality Tube Fin mesh with internal turbulators
• Lightweight design at 9.5 kg
• Plug and play installation

Specifications:

• Core dimensions original intercooler: 720 mm x 145 mm x 80 mm, V=8.35 Liter, A=1044 cm²
• Core dimensions Wagner Tuning intercooler: 550 mm x 445 mm x 70 mm, V=17.13 Liter, A=2447 cm²
• Weight: 9.5 kg
• Part number: 200001120USA.PIPE

Kit comes with::

• 1 intercooler (coated black)
• 1 aluminum charge pipe (coated black) / optionally
• 3 reinforced silicone hoses (black) / optionally
• 1 mounting material
• 1 installation instruction

Vehicle Compatibility:

• 2016+ Audi S4 B9 3.0TFSI 260KW/354PS
• 2016+ Audi S5 F5 3.0TFSI 260KW/354PS
