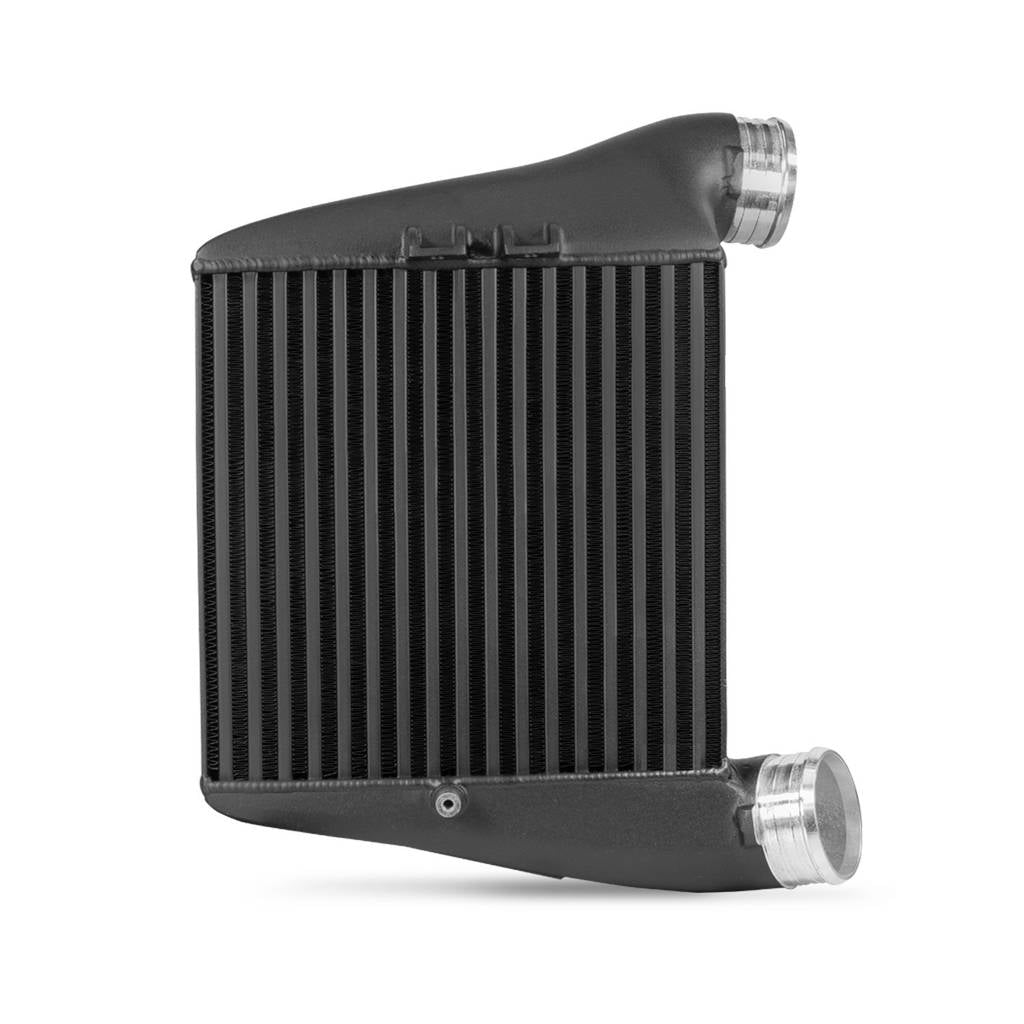

WAGNER TUNING 200001140.SINGLE Competition Intercooler Kit EVO2 AUDI A4 RS4 B5

Description WAGNER TUNING 200001140.SINGLE Competition Intercooler Kit EVO2 AUDI A4 RS4 B5

The Wagner Tuning EVO2 Intercooler for Audi RS4 B5 offers a 147% increase in core volume and features carbon air ducting. This upgrade is designed to significantly improve engine cooling, reduce back pressure, and deliver a substantial performance increase.

The high-performance intercoolers have core dimensions of 255 mm x 260 mm x 120 mm per cooler, providing a 43% larger front surface area and a 147% increase in core volume compared to standard intercoolers. The Competition High-Performance Intercooler core (Tube-Fin) and CAD-optimized cast aluminum end boxes ensure optimal airflow and minimal back pressure. Carbon air ducts are included for both performance and aesthetics, and the inlet and outlet diameters are increased to O65mm. Each cooler weighs 5.8 kg, combining lightweight construction with durability.

Note: Installation is at the original mounting points, but significant vehicle modifications are required. Please refer to the detailed installation instructions.

• 147% more core volume compared to OEM
• 43% larger front surface area than standard intercoolers
• Optimized airflow with minimal back pressure
• Includes carbon air ducts for improved performance and appearance

Specifications:

• Net dimensions: 255 mm x 260 mm x 120 mm (per cooler)
• Front surface area: +43% vs. OEM
• Intercooler volume: +147% vs. OEM
• Inlet and outlet: O65mm
• Weight: 2x 5.8 kg
• Installation: At original mounting points (vehicle modifications required)
• Part number: 200001140.SINGLE

Kit comes with::

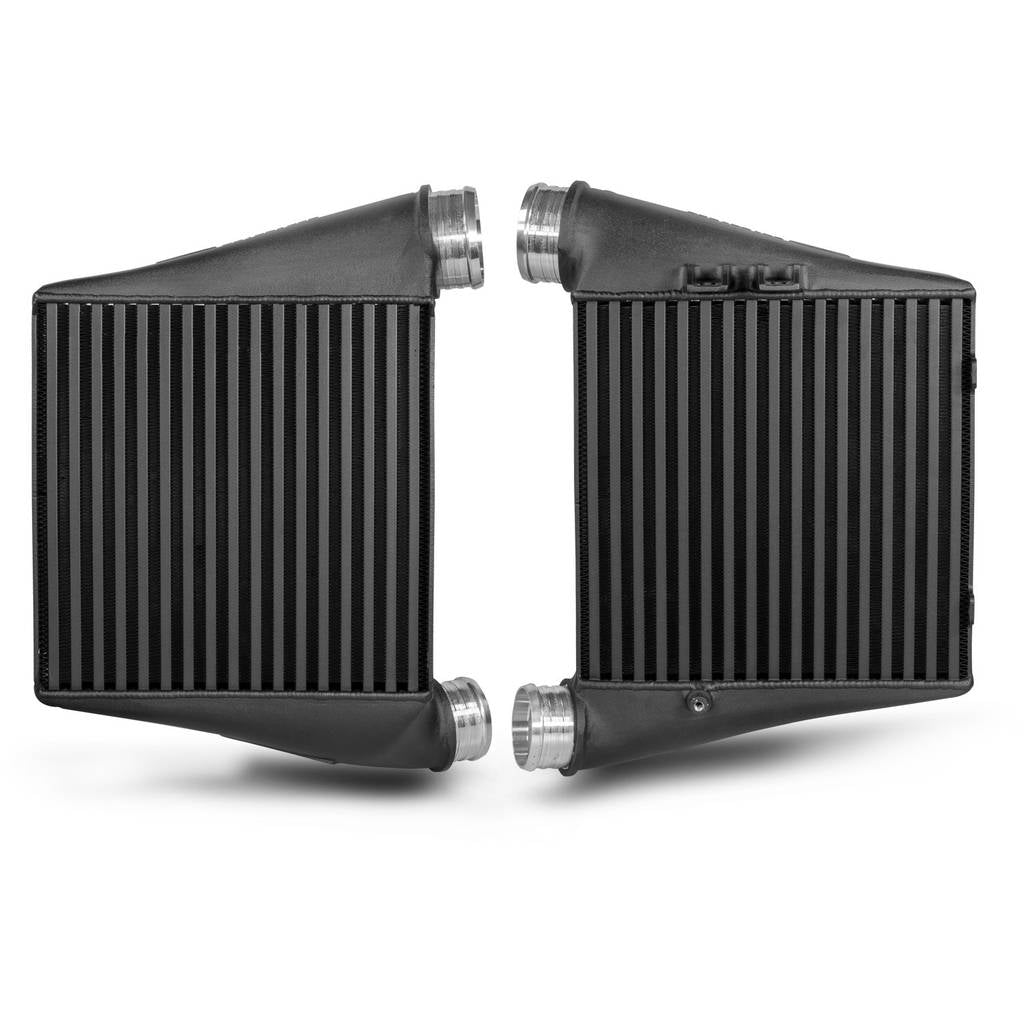

• 2 intercoolers (right, left)
• 4 silicone hoses
• 8 hose clamps
• 1 mounting material
• 1 installation instruction

Vehicle Compatibility:

• Audi RS4 B5
