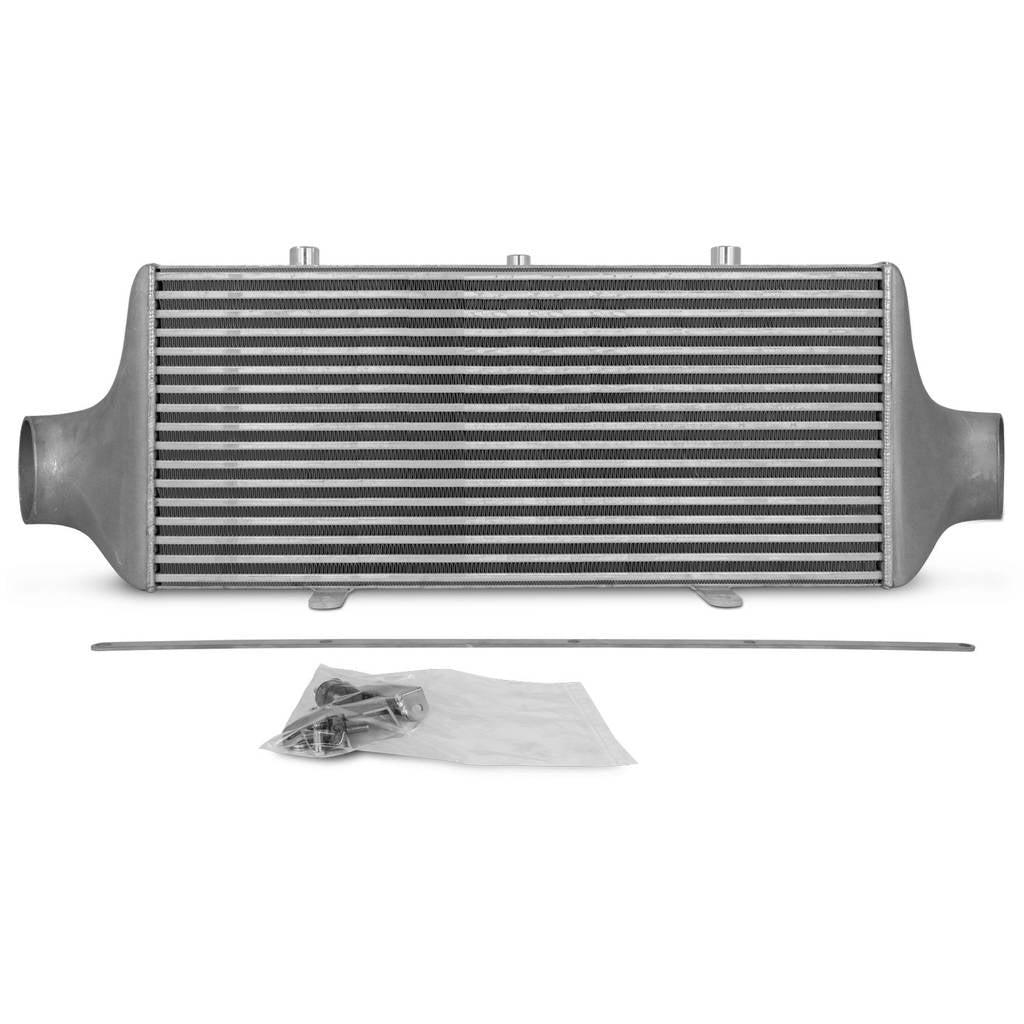

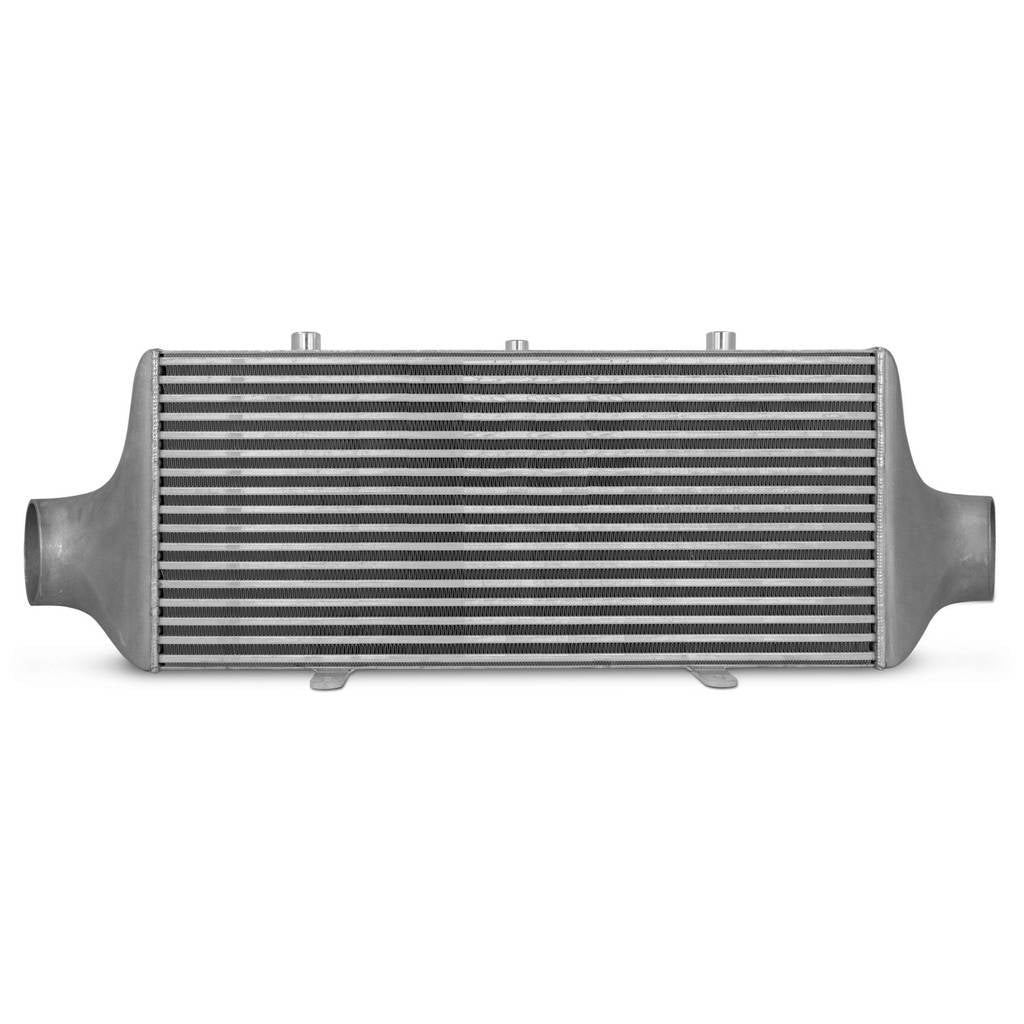

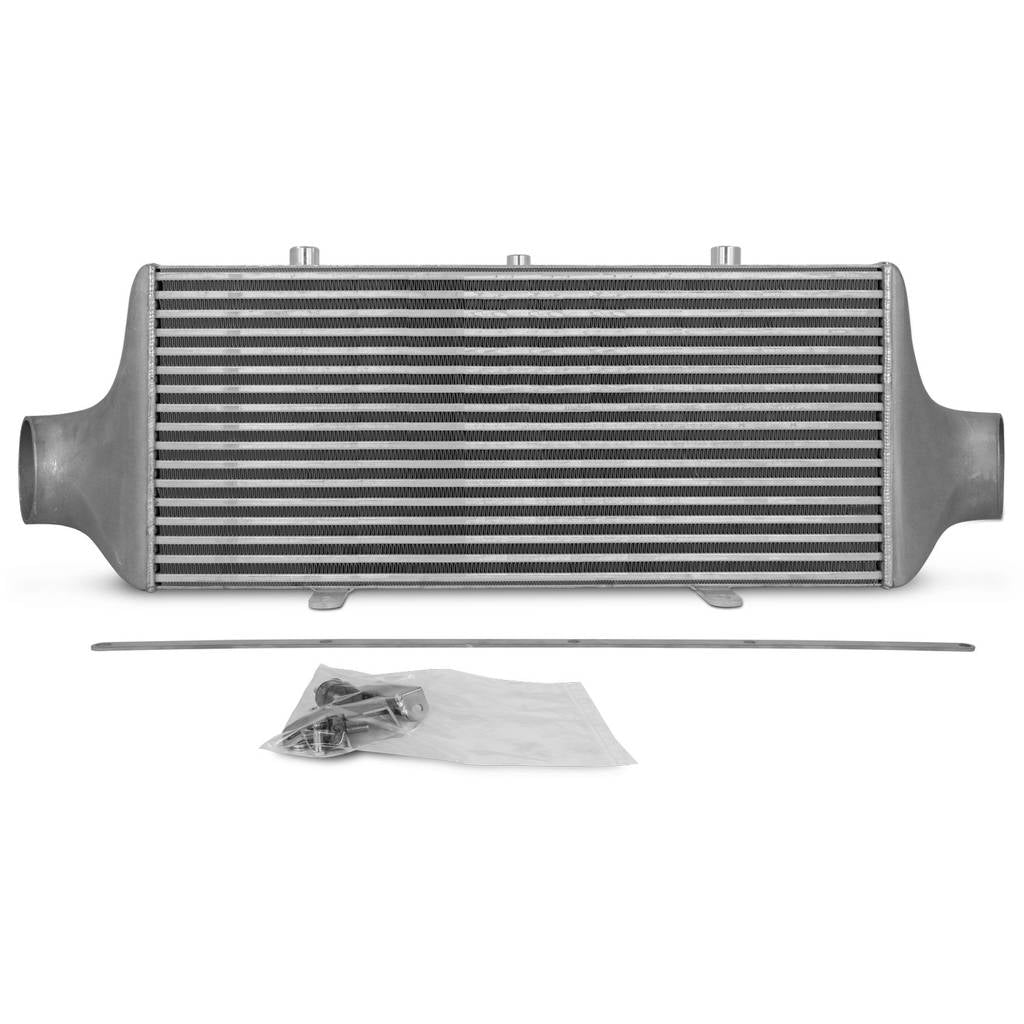

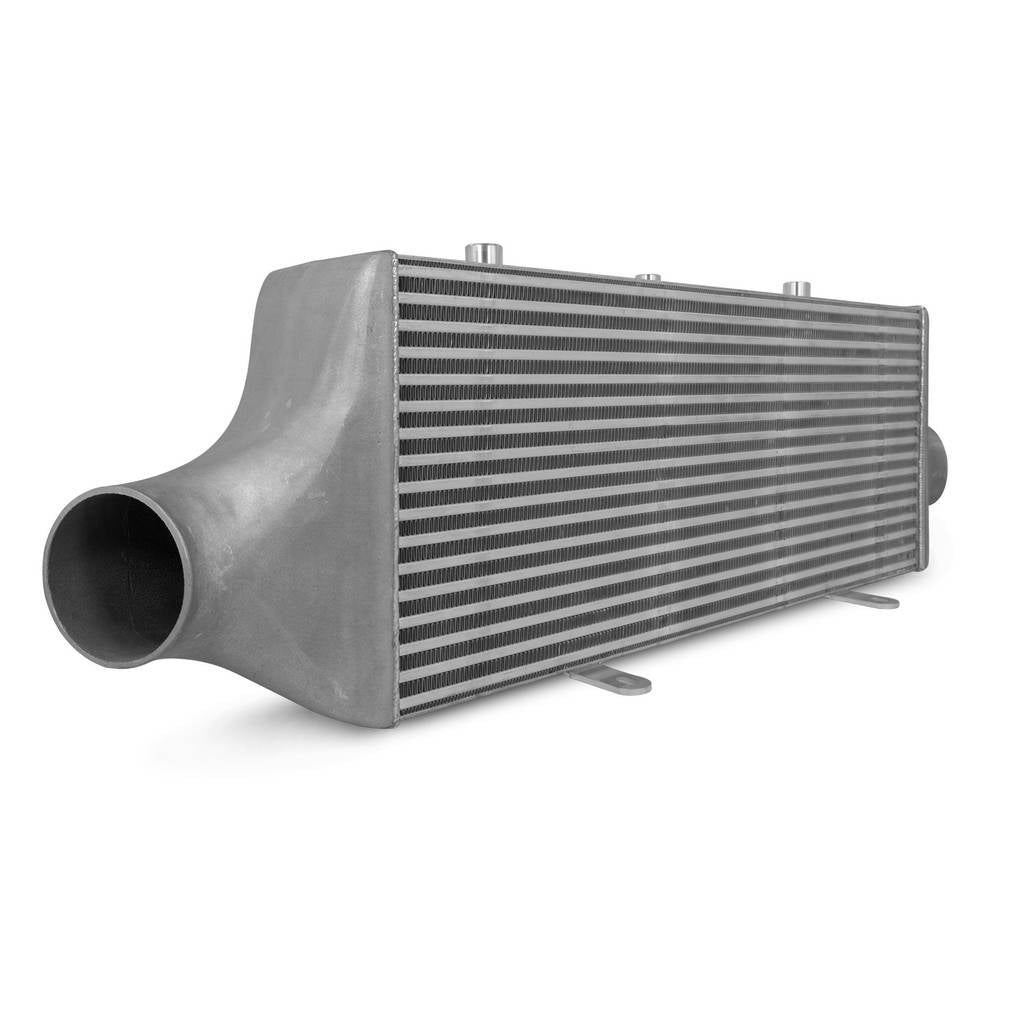

WAGNER TUNING 200001155.V.3.3 Competition Intercooler Kit EVO2 TOYOTA Supra JZA80 (MK4)

Description WAGNER TUNING 200001155.V.3.3 Competition Intercooler Kit EVO2 TOYOTA Supra JZA80 (MK4)

The WAGNERTUNING Competition Intercooler Kit EVO2 for Toyota Supra JZA80 MK4 features a new competition core (Tube Fin) with dimensions of 700 mm x 300 mm x 155 mm (27.5 Inch x 11.8 Inch x 6.1 Inch). This high-performance core provides a 262% larger frontal surface and 331% more core volume compared to the stock intercooler.

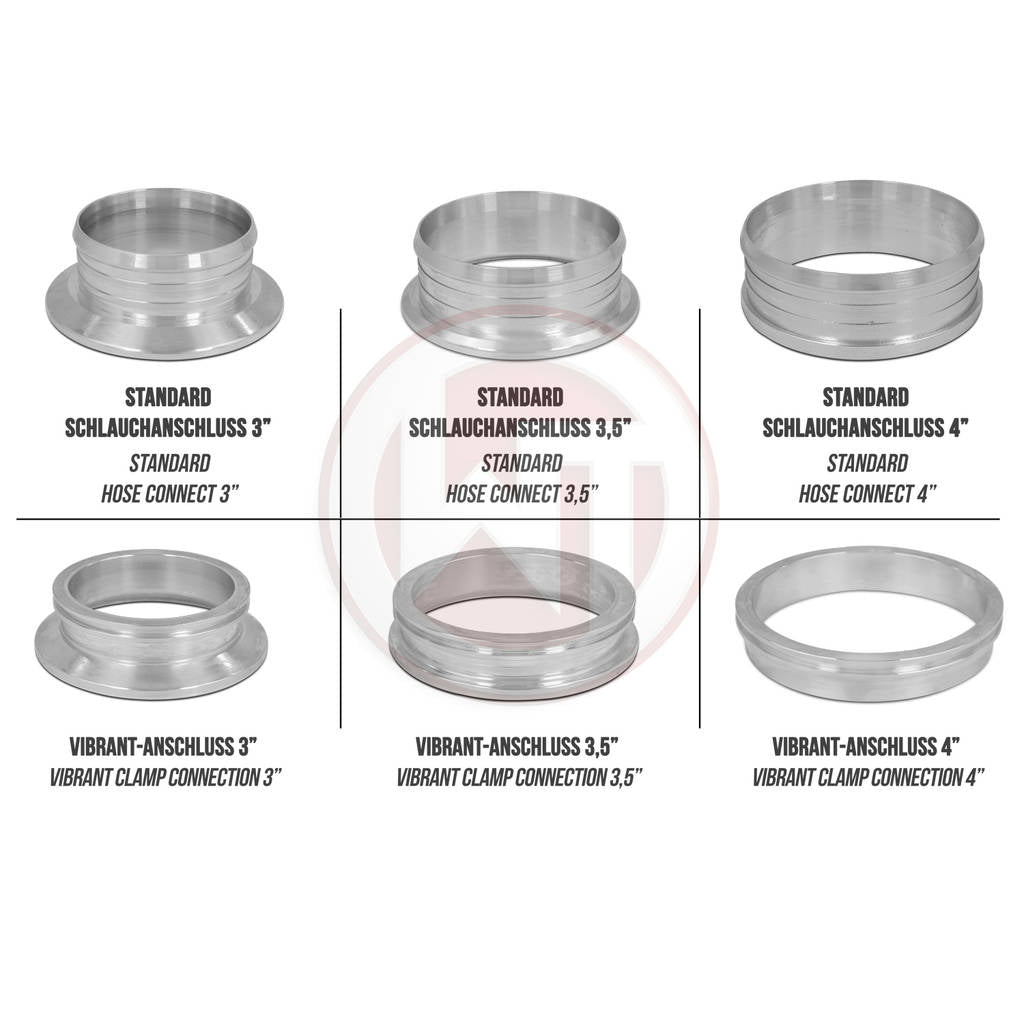

The aluminum cast end tanks are designed in CAD and optimized using CFD simulations for ideal internal airflow. The connection position is angled at 30° to the back. The cast aluminum is designed for a 4 Inch (O102mm) connection diameter and can be adapted to other sizes or shapes upon request. Standard silicon hose and Vibrant pipe connections are available in 3 Inch (O76mm), 3.5 Inch (O89mm), and 4 Inch (O102mm) sizes.

This intercooler offers excellent cooling properties with minimal back pressure. The lightweight competition core ensures sufficient airflow to adjoining components, such as the water cooler, making it suitable for racing use. Optimal cooling of the charged air results in a significant increase in performance. All products are subject to continuous quality monitoring.

Important notes for the installation: No Plug and Play installation. SMIC to FMIC swap (including all mounting material for the intercooler). Elimination of AC cooler. Expansion tank must be repositioned (separately available). Cooling loop for the power steering must be repositioned (separately available). Charge pipes must be modified according to the intercooler (not included in the kit).

• Competition core with 262% larger frontal surface and 331% more core volume than stock
• Aluminum cast end tanks designed for optimal airflow
• Multiple connection sizes and shapes available upon request
• Lightweight design with excellent cooling and minimal back pressure

Specifications:

• Core dimensions, stock intercooler: 270 mm x 215 mm x 130 mm / 10.6 Inch x 8.5 Inch x 5.1 Inch
• Volume, stock intercooler: 7.54 L / 460 Inch³
• Frontal surface area, stock intercooler: 580.5 cm² / 90 Inch²
• Core dimensions, WAGNERTUNING intercooler: 700 mm x 300 mm x 155 mm / 27.5 Inch x 11.8 Inch x 6.1 Inch
• Volume, WAGNERTUNING intercooler: 32.5 L / 1983 Inch³ (+331%)
• Frontal surface area, WAGNERTUNING intercooler: 2100 cm² / 325 Inch² (+262%)

Kit comes with::

• 1 intercooler (uncoated)
• 2 silicone adapter hoses (depending on the type of connection)
• 1 mounting material
• 1 installation instruction

Vehicle Compatibility:

• Toyota Supra JZA80 MK4
