WAGNER TUNING 200001155.V.35.4 Competition Intercooler Kit EVO2 TOYOTA Supra JZA80 (MK4)

Description WAGNER TUNING 200001155.V.35.4 Competition Intercooler Kit EVO2 TOYOTA Supra JZA80 (MK4)

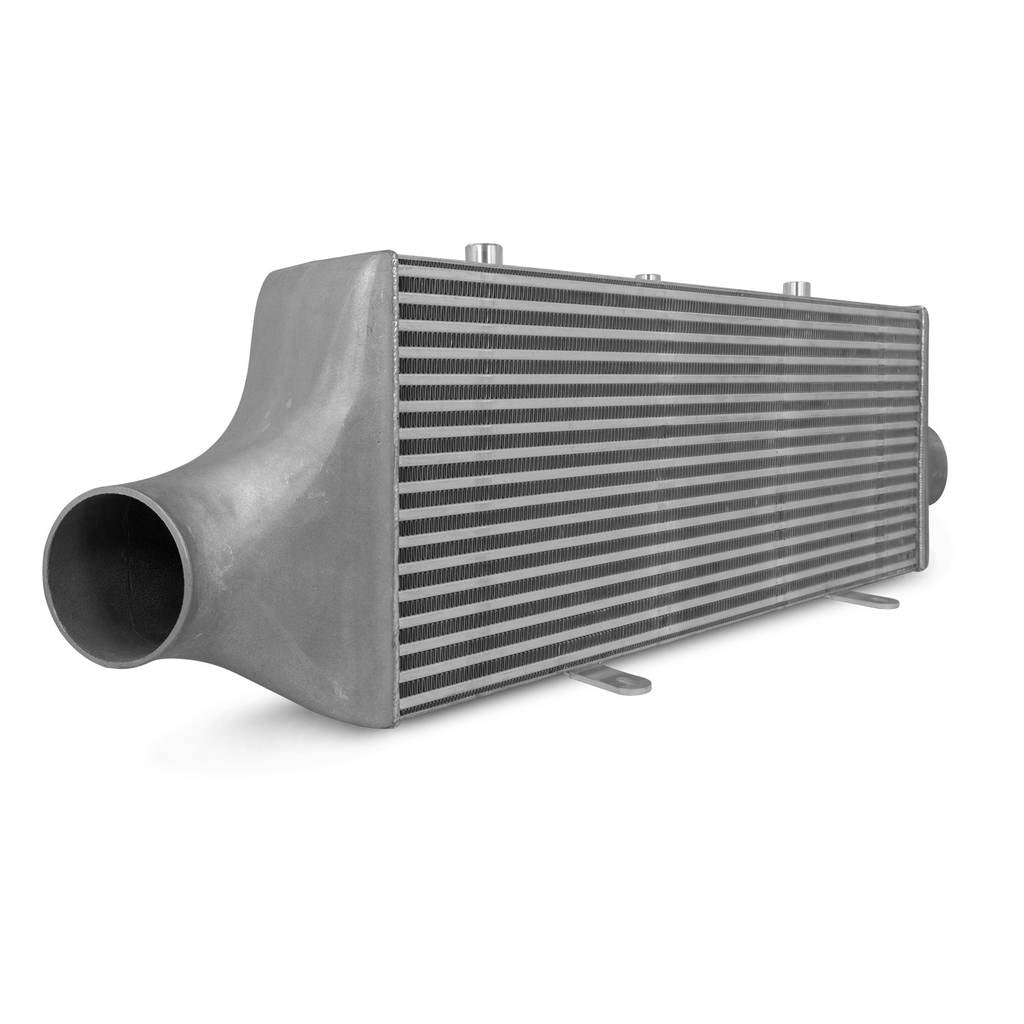

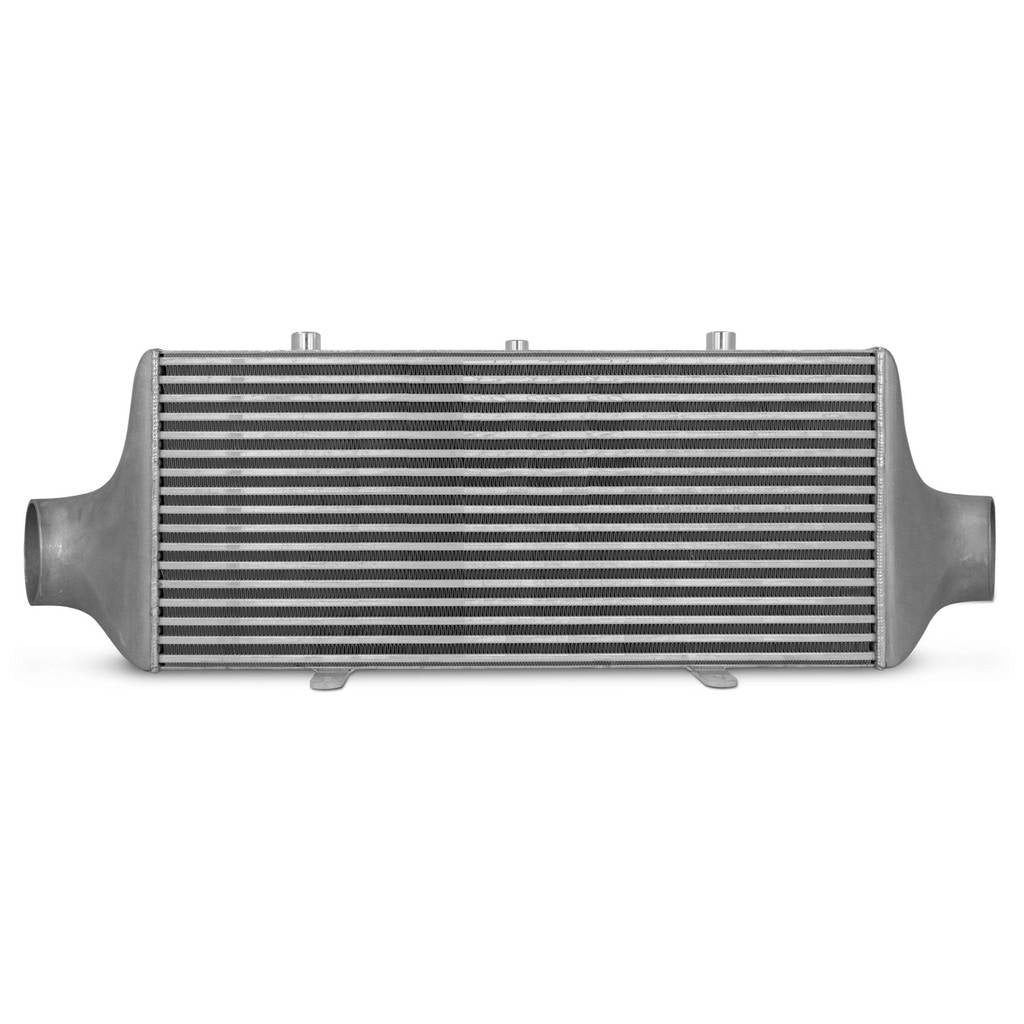

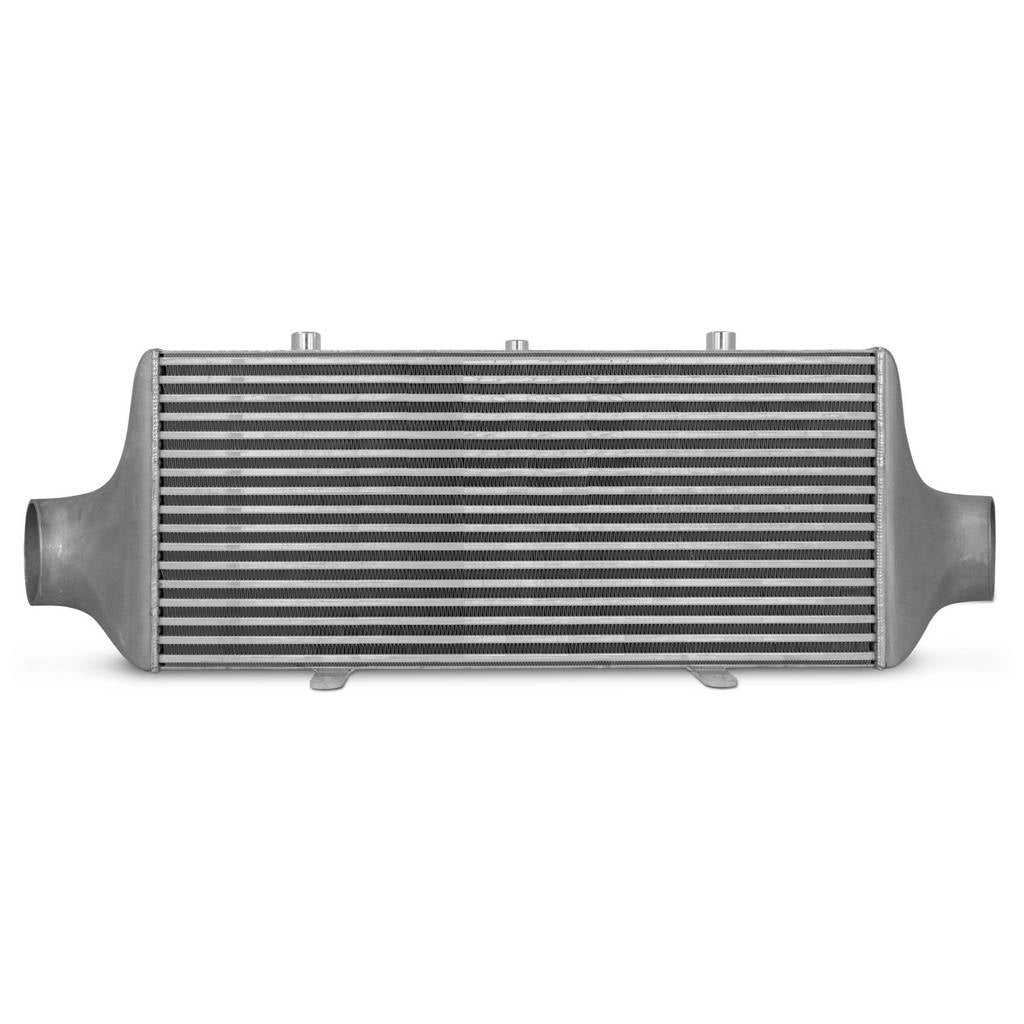

The WAGNERTUNING Competition Intercooler Kit EVO2 for Toyota Supra JZA80 MK4 features a new high-performance Tube Fin core measuring 700 mm x 300 mm x 155 mm (27.5" x 11.8" x 6.1"). This core provides a 262% larger frontal surface area and 331% more core volume compared to the stock intercooler.

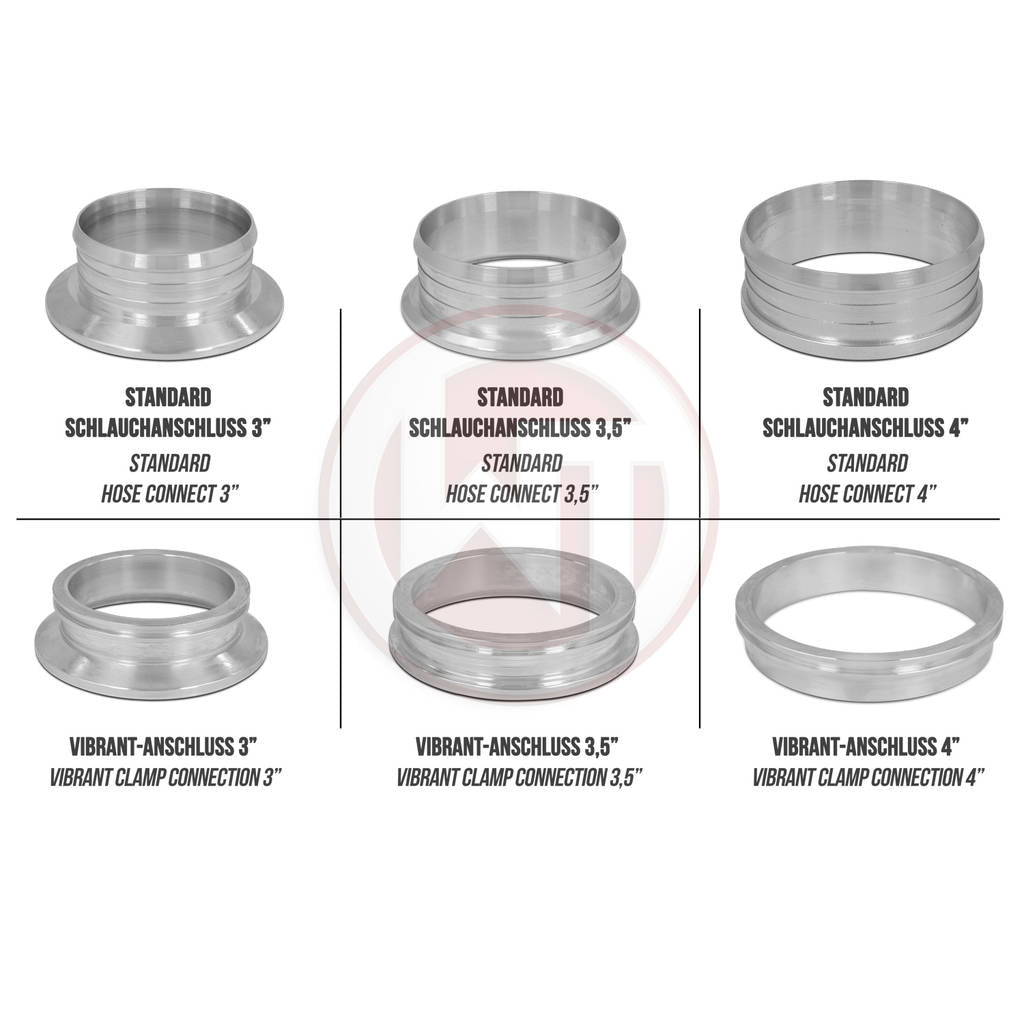

The cast aluminum end tanks are designed using CAD and optimized with CFD simulations for ideal internal airflow. The connection position is angled at 30° to the back, with a standard connection diameter of 4" (102 mm), adaptable to various sizes and shapes upon request. Standard silicone hose and Vibrant pipe connections are available in 3" (76 mm), 3.5" (89 mm), and 4" (102 mm) diameters.

This intercooler delivers excellent cooling properties with minimal back pressure. The lightweight competition core ensures sufficient airflow to adjoining components, such as the water cooler, making it suitable for racing applications. All products undergo continuous quality monitoring.

Important: No Plug and Play installation. SMIC to FMIC swap (including all mounting material for the intercooler). Elimination of AC cooler required. Expansion tank must be repositioned (separately available). Cooling loop for the power steering must be repositioned (separately available). Charge pipes must be modified according to the intercooler (not included in the kit).

• High-performance Tube Fin core with increased surface area and volume
• CAD-designed, CFD-optimized cast aluminum end tanks
• Multiple connection options and adaptable sizes
• Lightweight design with minimal back pressure

Specifications:

• Core dimensions (stock intercooler): 270 mm x 215 mm x 130 mm / 10.6" x 8.5" x 5.1"
• Volume (stock intercooler): 7.54 L / 460 in³
• Frontal area (stock intercooler): 580.5 cm² / 90 in²
• Core dimensions (WAGNERTUNING intercooler): 700 mm x 300 mm x 155 mm / 27.5" x 11.8" x 6.1"
• Volume (WAGNERTUNING intercooler): 32.5 L / 1983 in³ (+331%)
• Frontal area (WAGNERTUNING intercooler): 2100 cm² / 325 in² (+262%)

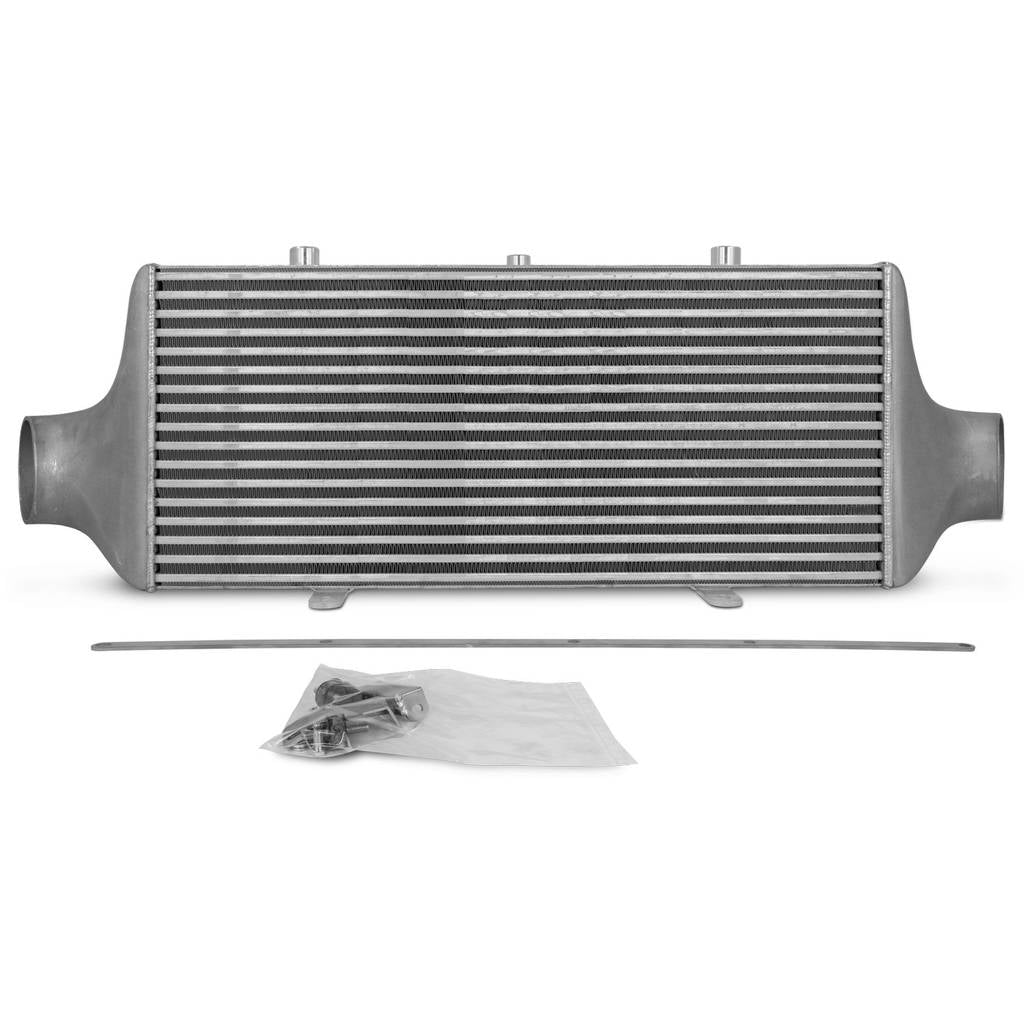

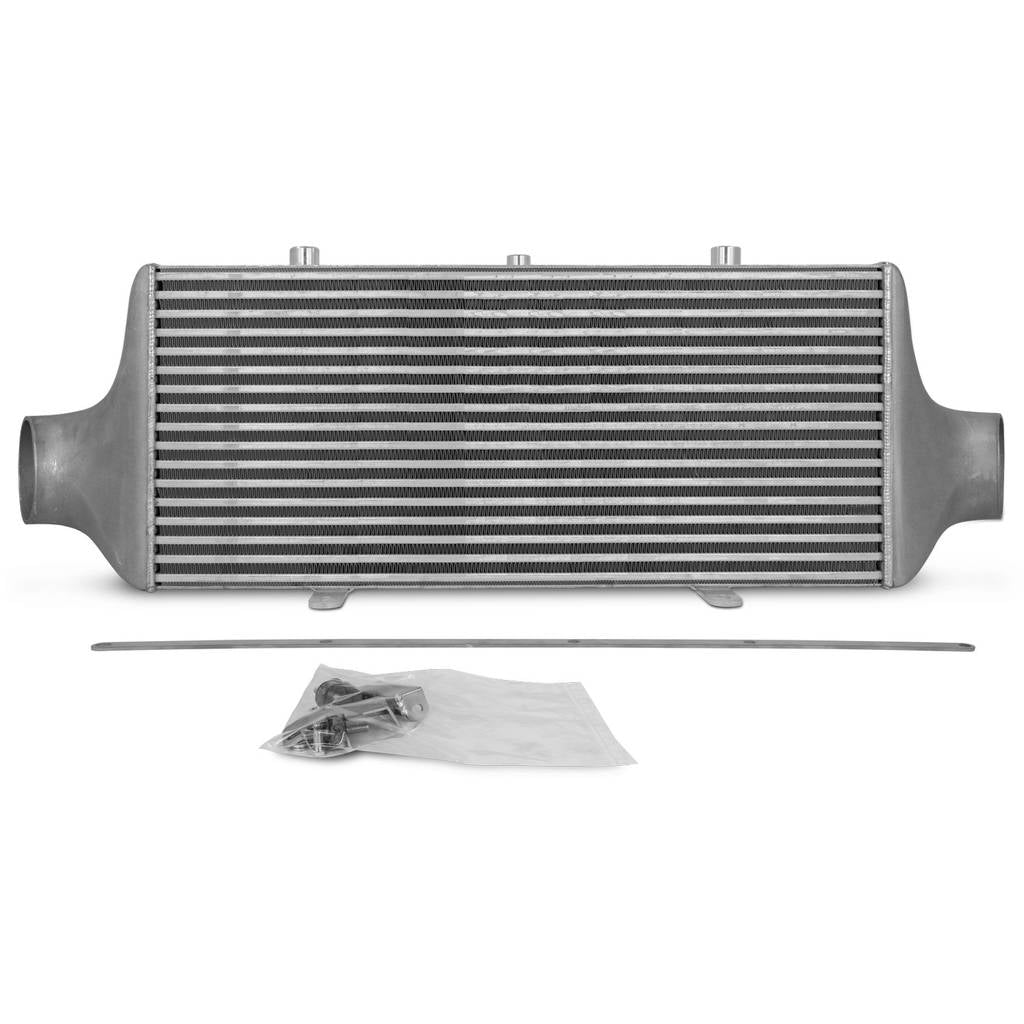

Kit comes with::

• 1 intercooler (uncoated)
• 2 silicone adapter hoses (depending on the type of connection)
• 1 mounting material
• 1 installation instruction

Vehicle Compatibility:

• Toyota Supra JZA80 MK4
