WAGNER TUNING 200001155.V.4.3 Competition Intercooler Kit EVO2 TOYOTA Supra JZA80 (MK4)

Description WAGNER TUNING 200001155.V.4.3 Competition Intercooler Kit EVO2 TOYOTA Supra JZA80 (MK4)

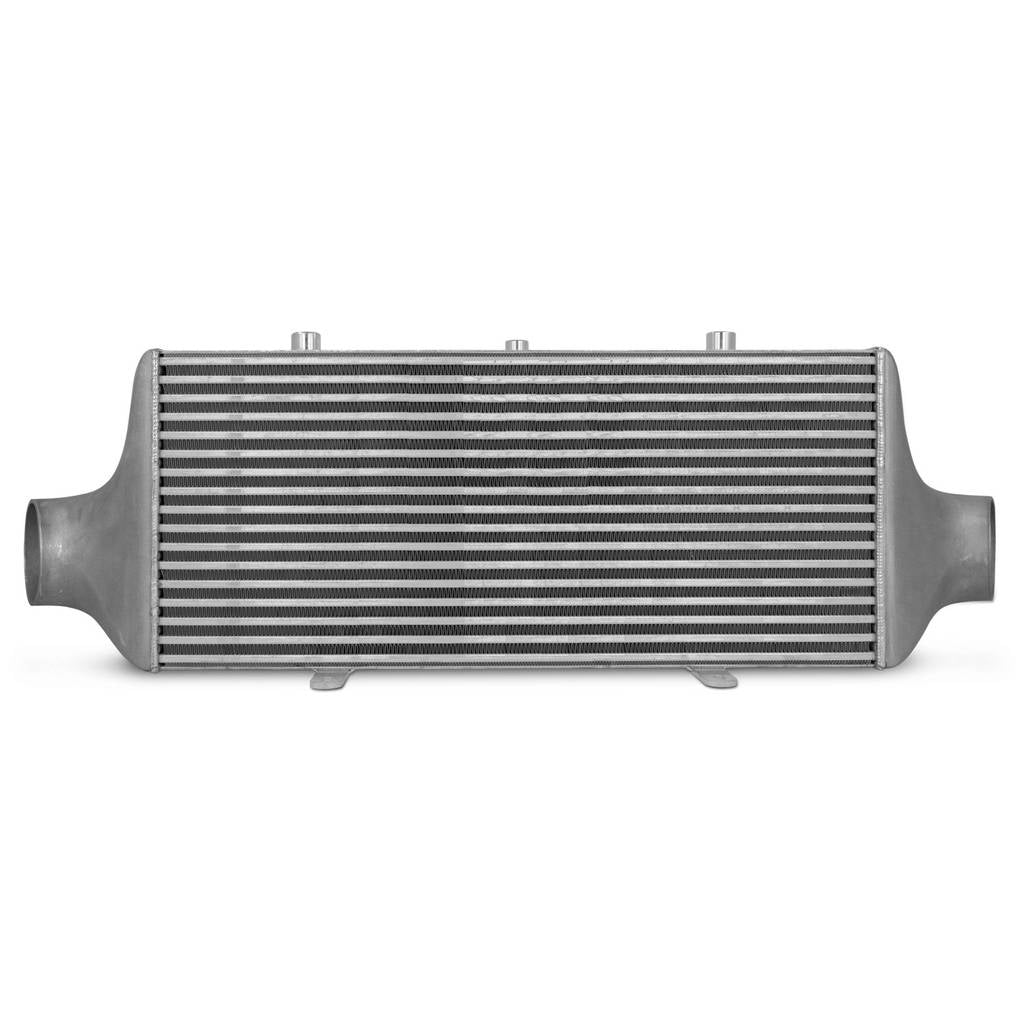

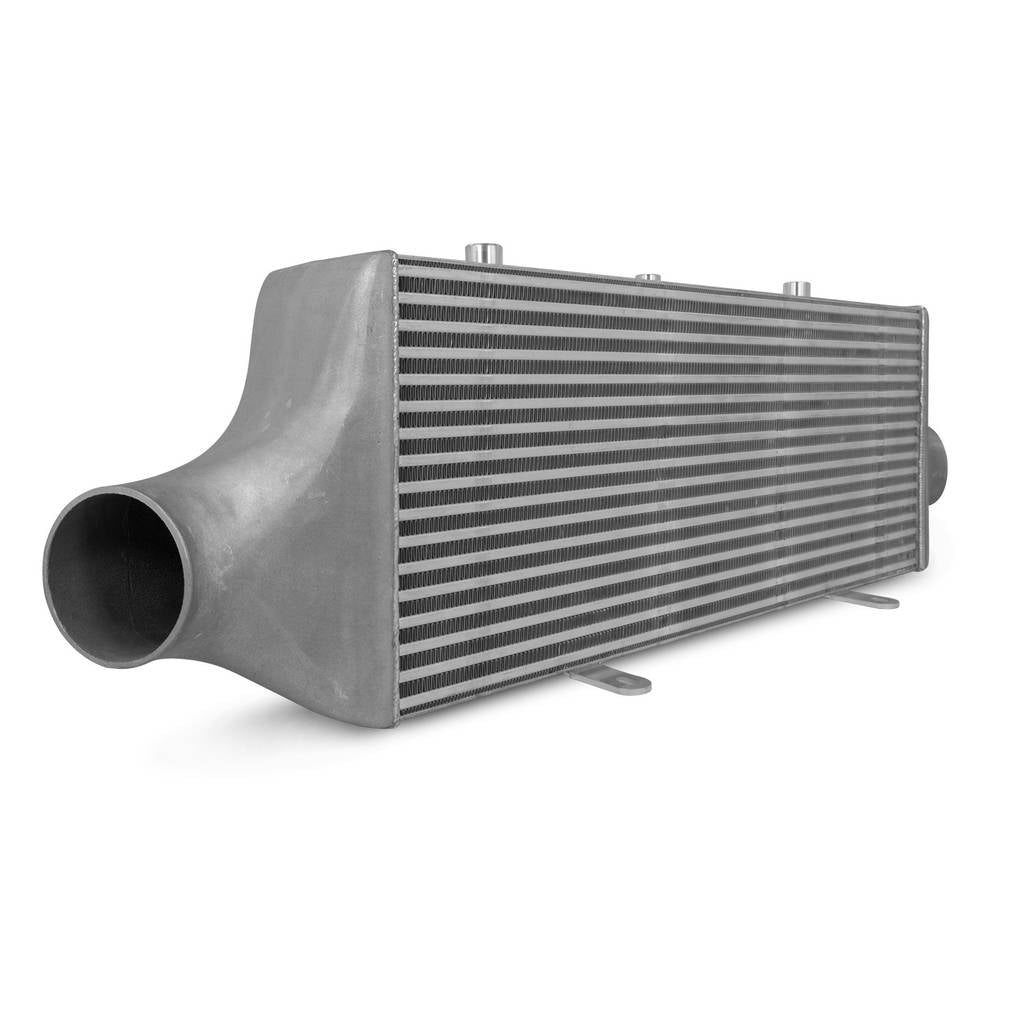

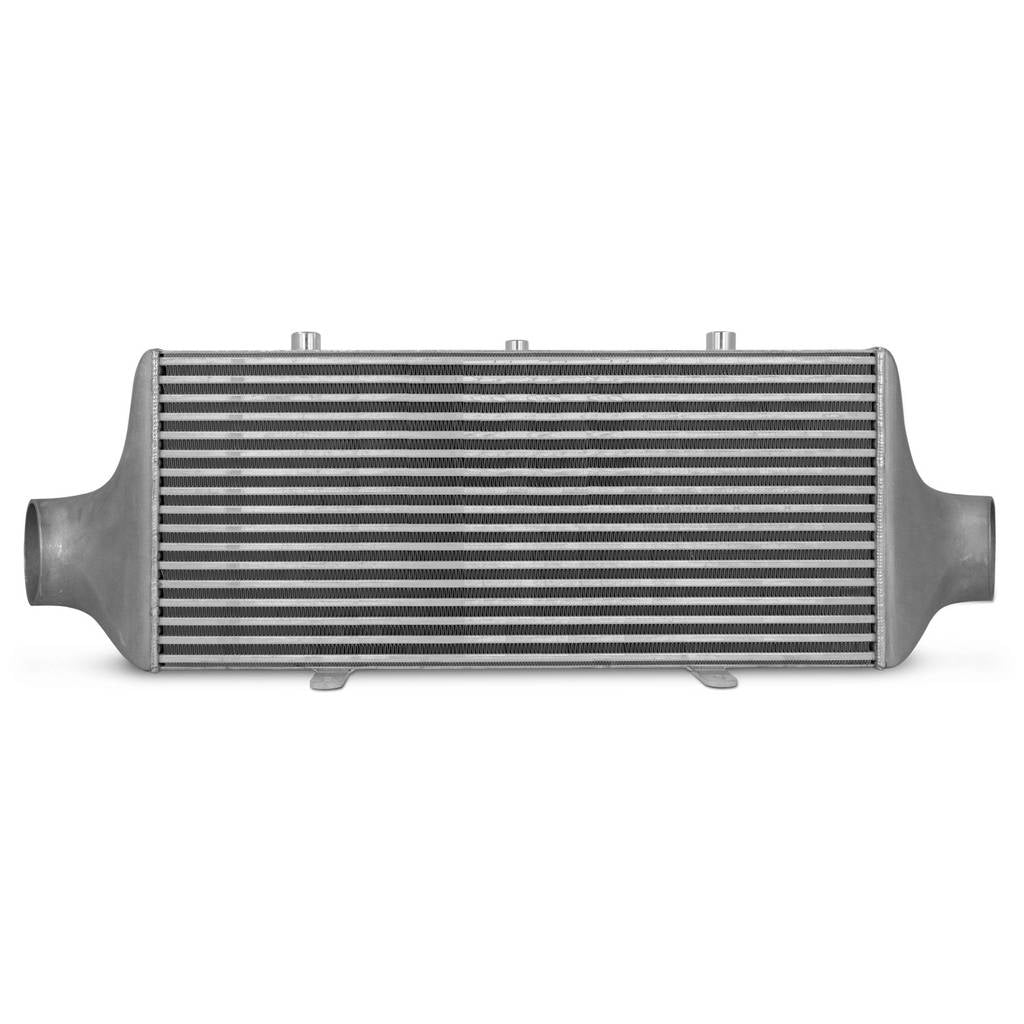

The WAGNERTUNING Competition Intercooler Kit EVO2 for the Toyota Supra JZA80 MK4 features a new high-performance Tube Fin core measuring 700 mm x 300 mm x 155 mm (27.5" x 11.8" x 6.1"). This core provides a 262% larger frontal surface and 331% more core volume compared to the stock intercooler.

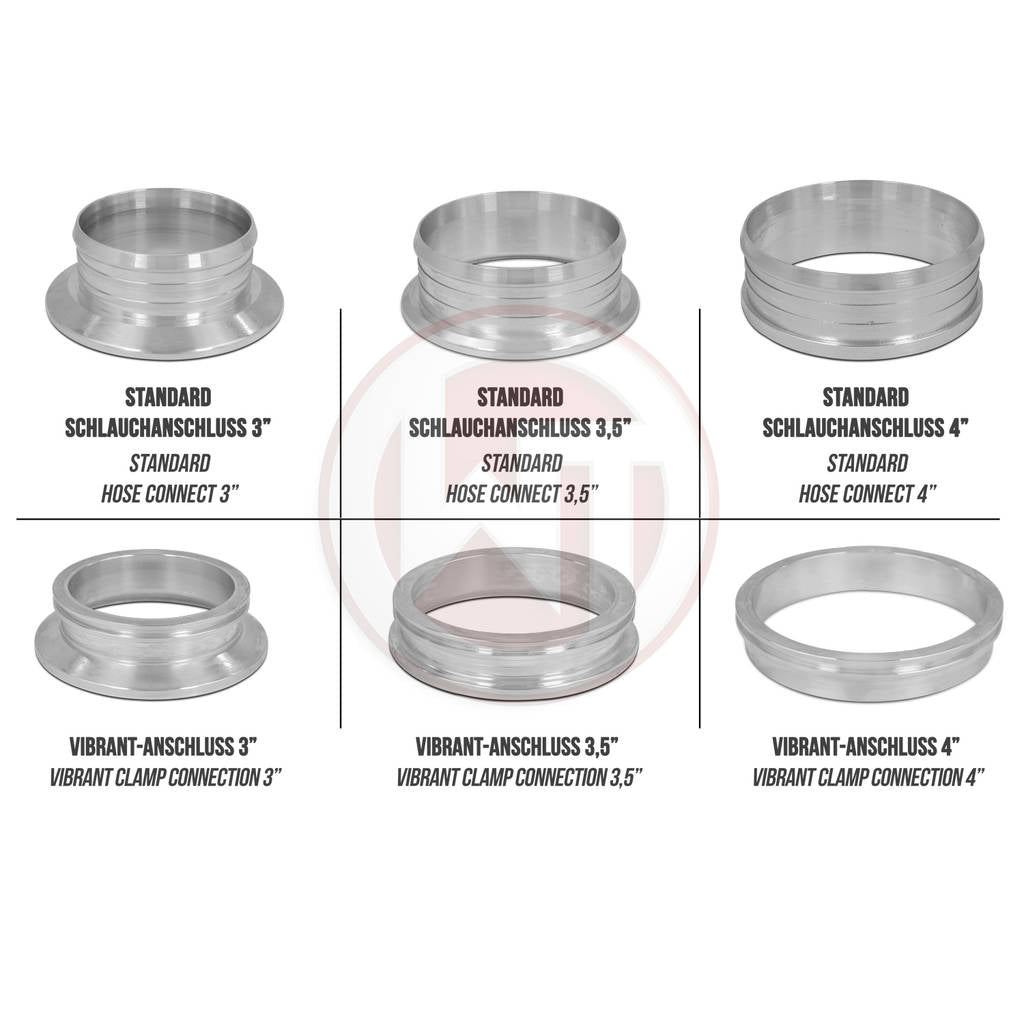

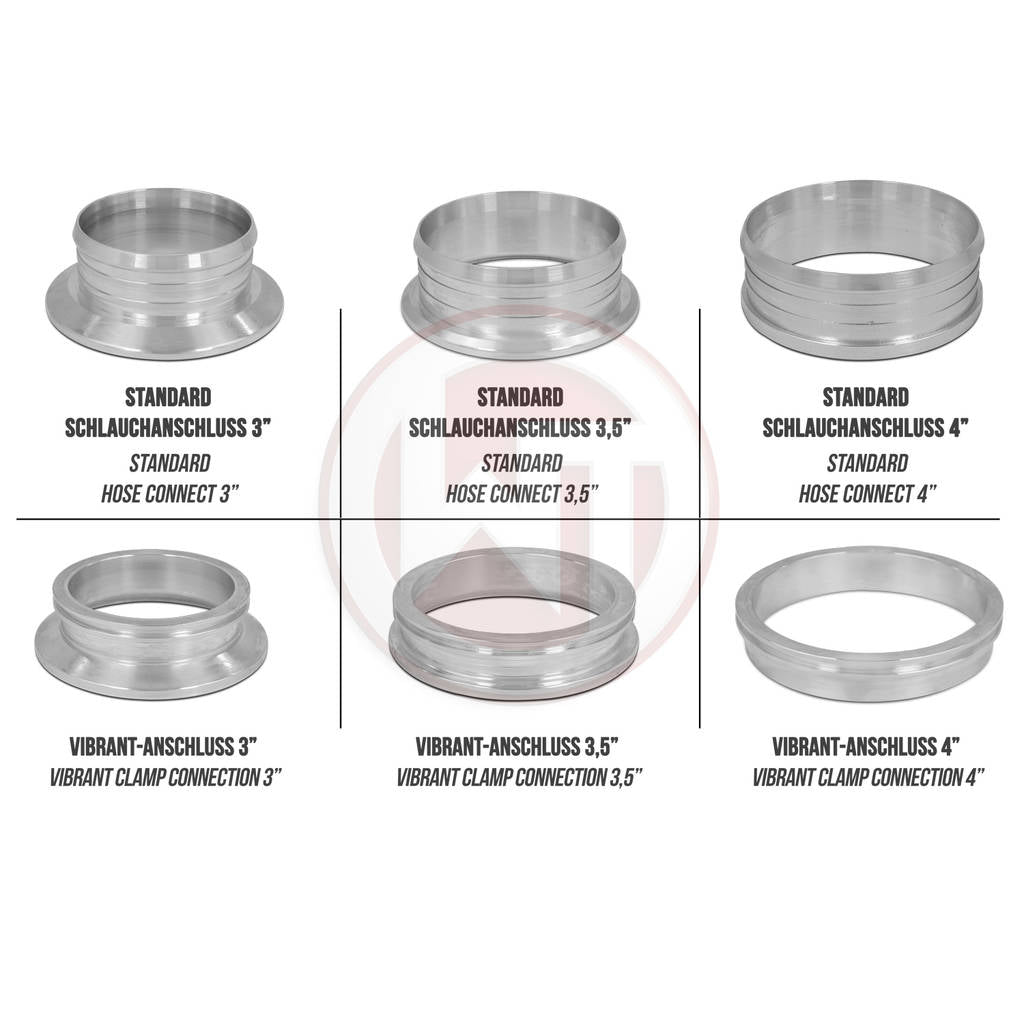

The cast aluminum end tanks are designed in CAD and optimized using CFD simulations for ideal internal airflow. The connection position is angled at 30° to the back, with a standard connection diameter of 4" (102 mm), adaptable to other sizes or shapes as required. The kit supports standard silicone hose and Vibrant pipe connections in 3" (76 mm), 3.5" (89 mm), and 4" (102 mm) diameters.

This intercooler offers excellent cooling properties with minimal back pressure. The lightweight competition core ensures sufficient airflow to adjoining components, such as the water cooler, making it suitable for racing applications. All products undergo continuous quality monitoring.

Important notes for the installation: No Plug and Play installation. SMIC to FMIC swap (including all mounting material for the intercooler). Elimination of AC cooler. Expansion tank must be repositioned (separately available). Cooling loop for the power steering must be repositioned (separately available). Charge pipes must be modified according to the intercooler (not included in the kit).

• High-performance Tube Fin core with significantly increased surface area and volume
• CFD-optimized cast aluminum end tanks for ideal airflow
• Multiple connection options for hose and pipe sizes
• Lightweight design suitable for racing use

Specifications:

• Core dimensions, stock intercooler: 270 mm x 215 mm x 130 mm (10.6" x 8.5" x 5.1")
• Volume, stock intercooler: 7.54 L (460 in³)
• Frontal area, stock intercooler: 580.5 cm² (90 in²)
• Core dimensions, WAGNERTUNING intercooler: 700 mm x 300 mm x 155 mm (27.5" x 11.8" x 6.1")
• Volume, WAGNERTUNING intercooler: 32.5 L (1983 in³) (+331%)
• Frontal area, WAGNERTUNING intercooler: 2100 cm² (325 in²) (+262%)

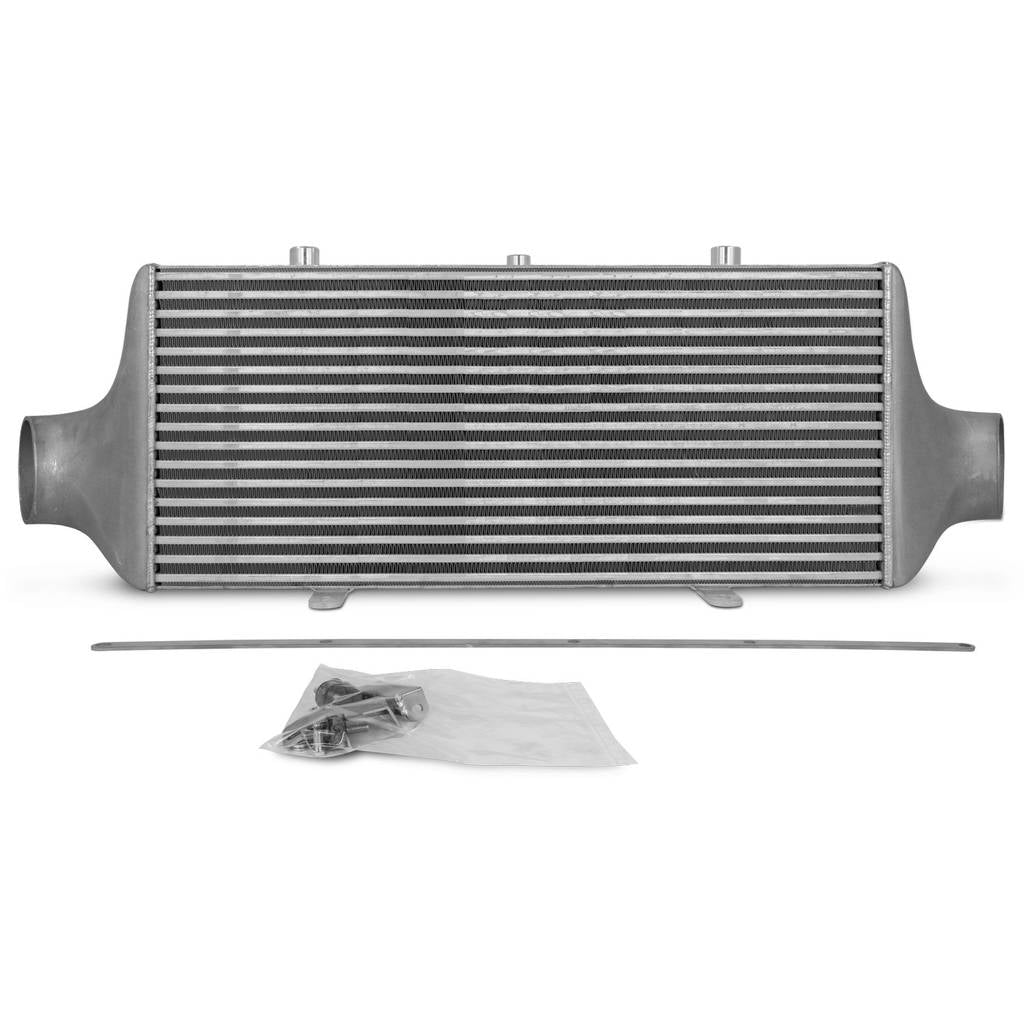

Kit comes with::

• 1 intercooler (uncoated)
• 2 silicone adapter hoses (depending on the type of connection)
• 1 mounting material
• 1 installation instruction
