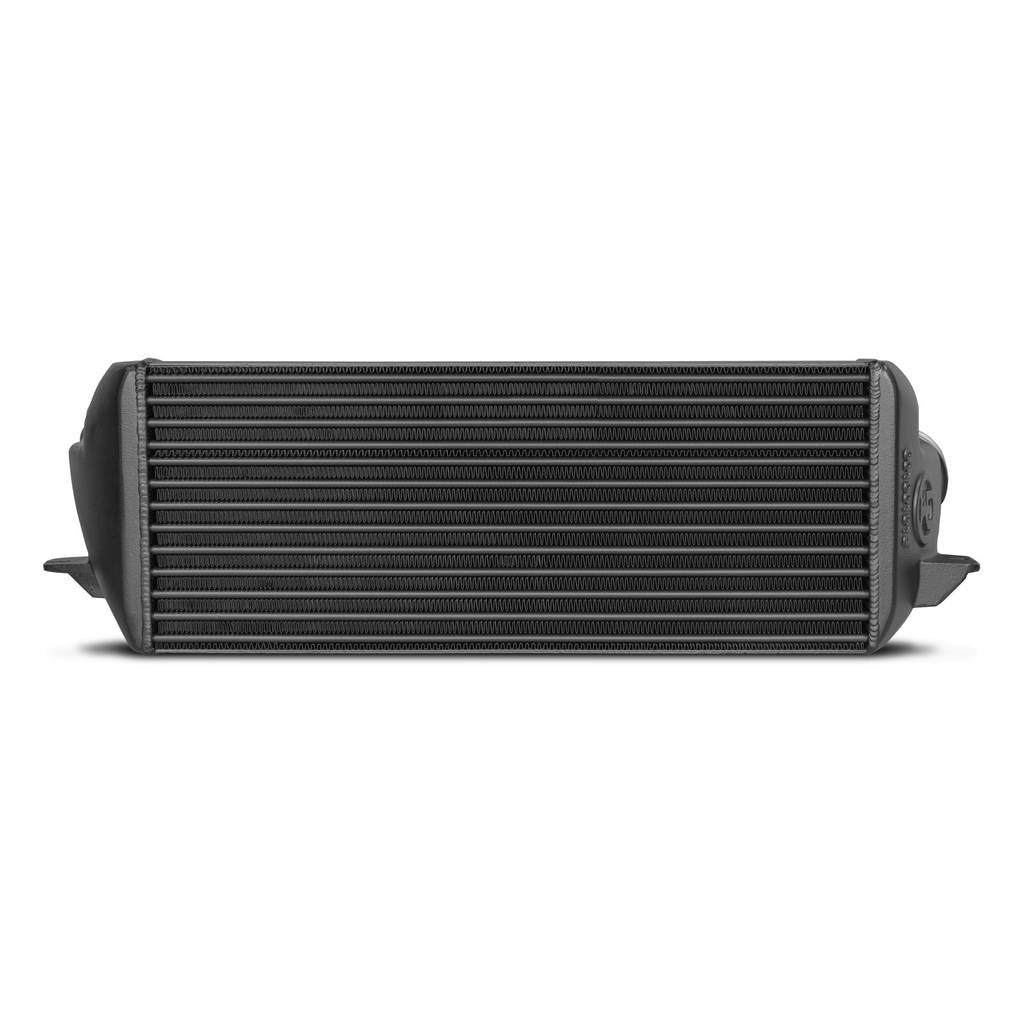

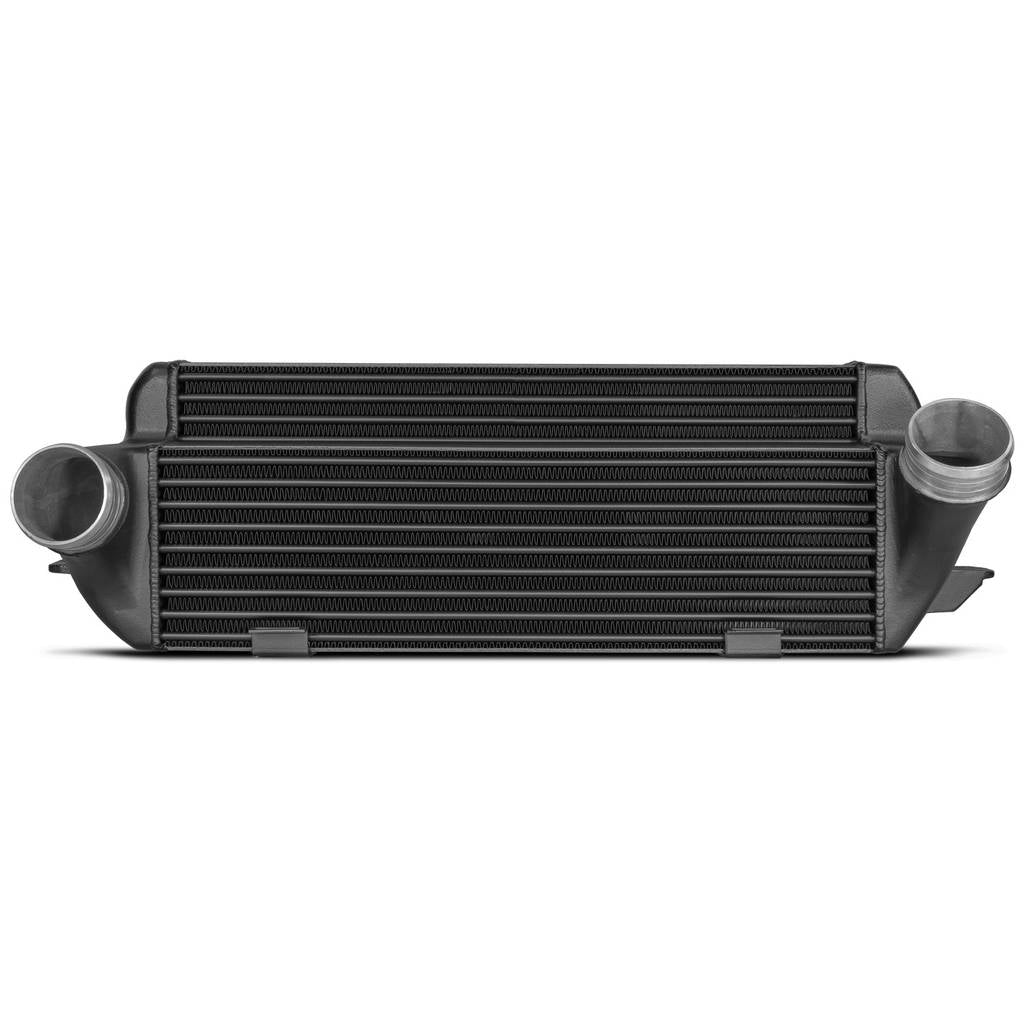

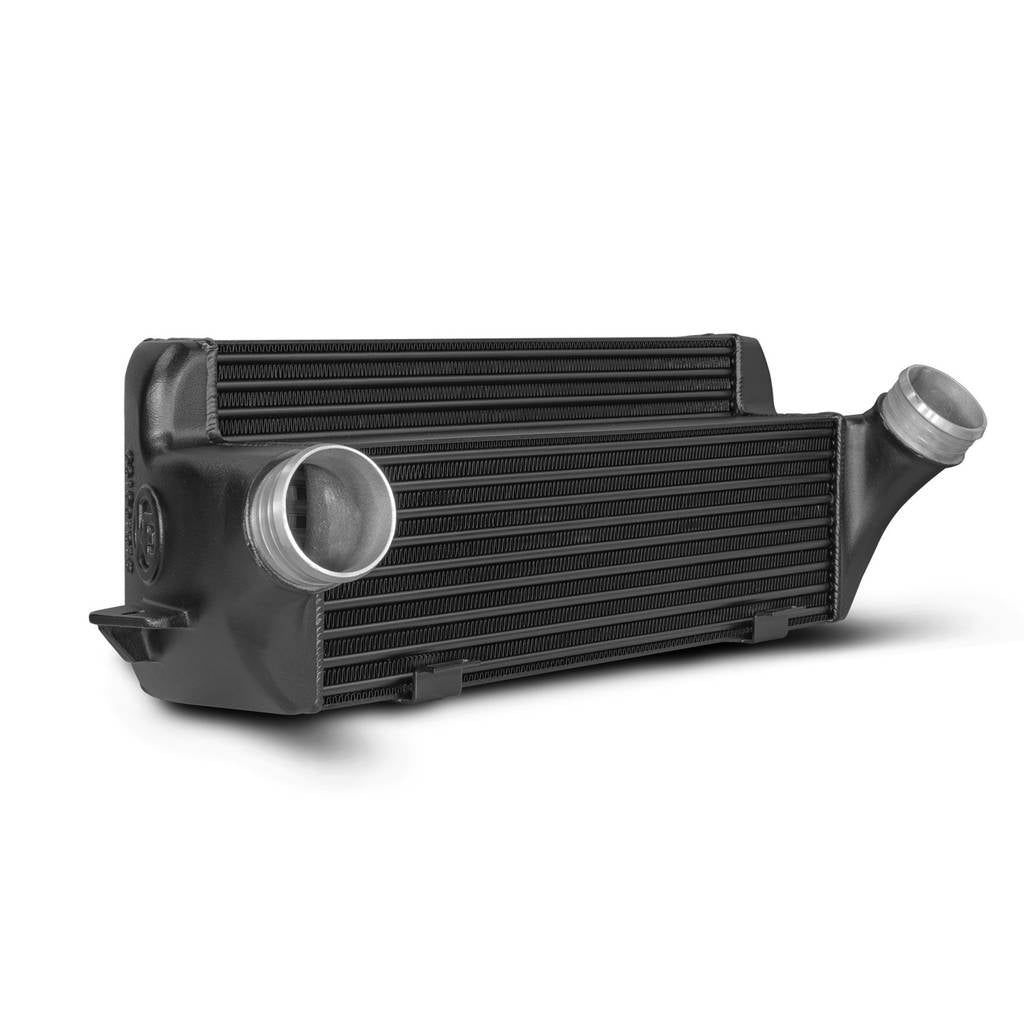

WAGNER TUNING 200001170 Competition Intercooler Kit EVO2 BMW E90 335d

Description WAGNER TUNING 200001170 Competition Intercooler Kit EVO2 BMW E90 335d

The Wagner Tuning EVO 2 Intercooler is designed for the BMW 335d E90-E93, offering an 87% increase in charge air volume compared to the standard intercooler. This upgrade provides improved cooling performance and helps minimize back pressure, allowing for a significant increase in engine performance.

The Competition high-performance intercooler features a core with internal turbulators and cast aluminum end boxes optimized using CAD and CFD simulations. The original click connections are removed, and the inlet and outlet diameters are increased to Ø70 mm for optimal airflow. The intercooler weighs only 7.4 kg and features a special anti-corrosion coating for durability and effective cooling under extreme conditions.

Installation is straightforward with a precision fit, although minor adjustments to the radiator support are required. The kit is ready to install and replaces the standard intercooler.

• 87% more charge air volume compared to OEM
• 65% larger flow area for improved cooling
• Optimized airflow and reduced back pressure
• Lightweight construction with anti-corrosion coating

Specifications:

• Dimensions: 520 mm x 210 mm x 150 mm (stepped)
• Flow area: 1092 cm² (+65% vs. OEM 663 cm²)
• Net volume: 13.6 liters (+87% vs. OEM 7.29 L)
• Inlet/outlet: Ø70 mm
• Weight: 7.4 kg
• Installation: Plug-and-play (adjustments necessary)
• Part number: 200001170

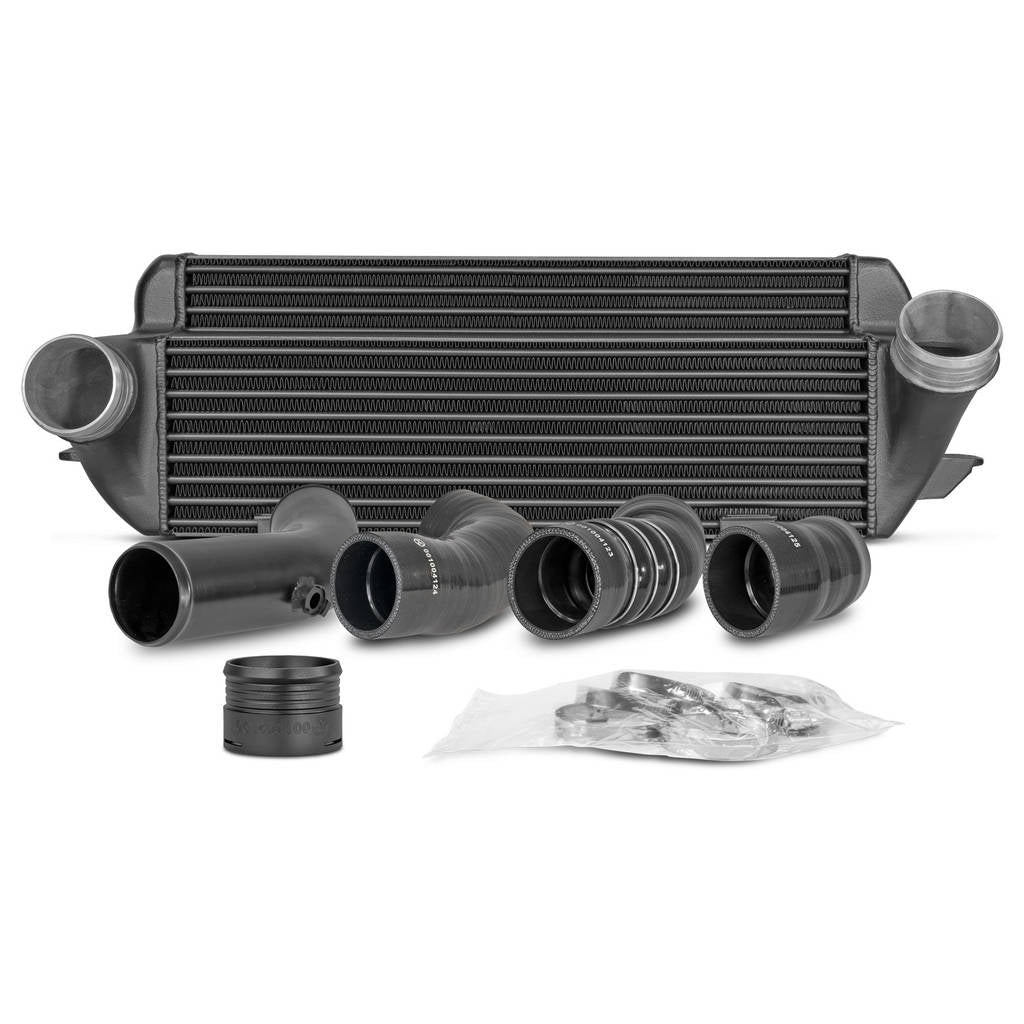

Kit comes with::

• 1x intercooler (black coated)
• 3x silicone hoses
• 1x aluminum adapter (black anodized)
• 1x aluminum charge air pipe (black anodized)
• 1x mounting material
• 1x installation instructions

Vehicle Compatibility:

• BMW 335d E90/E91/E92/E93 (2005-2013)
