WAGNER TUNING 700001067.NOACC.S Competition Package EVO3 AUDI RS3 8V with cat pipes

Description WAGNER TUNING 700001067.NOACC.S Competition Package EVO3 AUDI RS3 8V with cat pipes

The competition package for the Audi RS3 8V Sportback/Sedan 294KW/400PS (08/2017+) includes the intercooler upgrade kit EVO 3 and the downpipe kit.

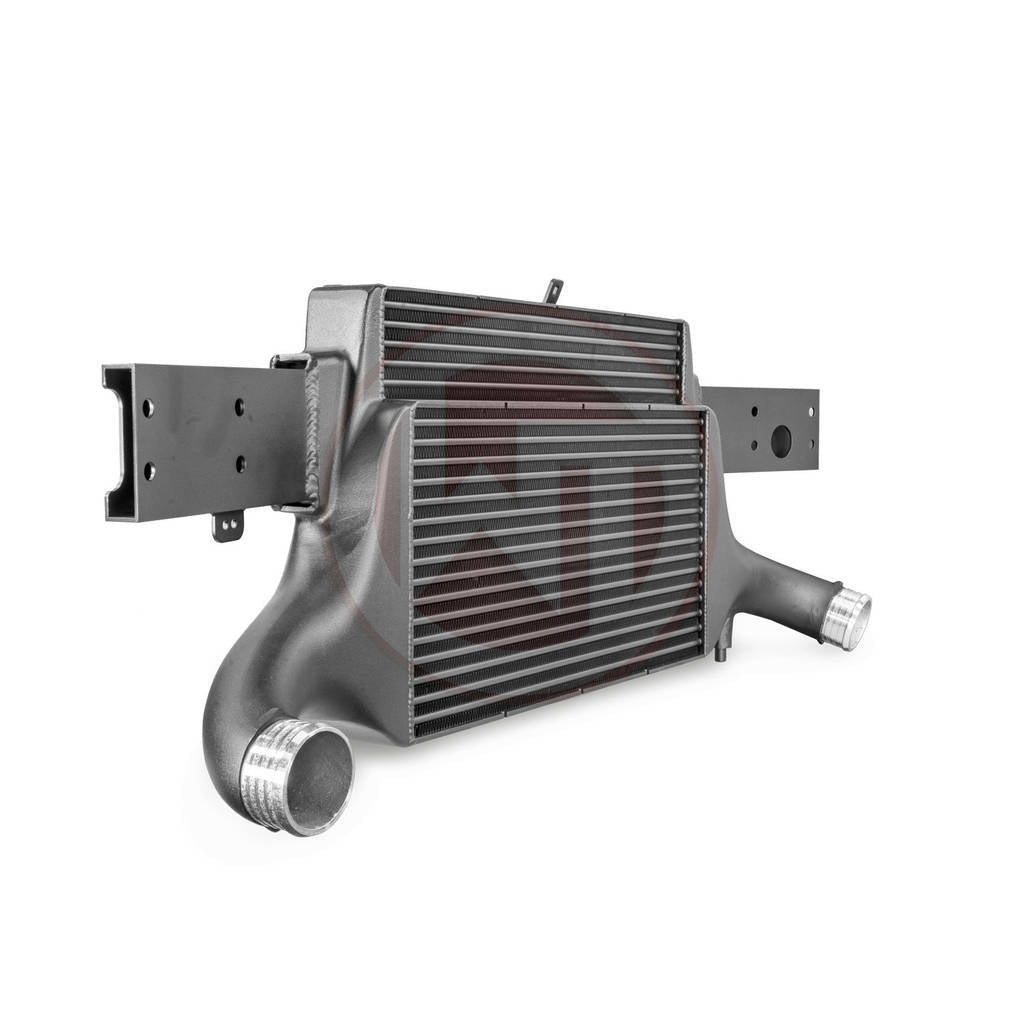

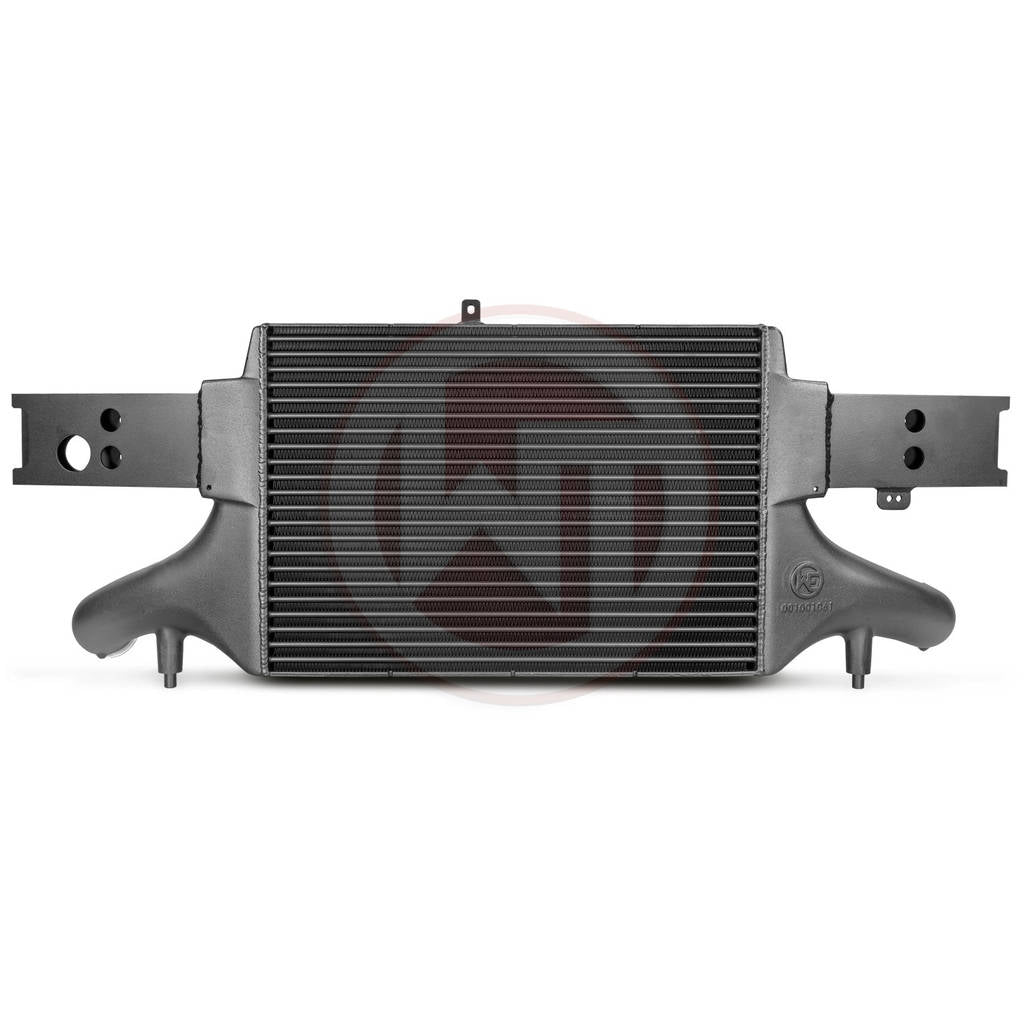

The Intercooler Upgrade Kit 200001081 features a high-performance core with dimensions of 515mm x 367mm x 95mm (stepped), providing an 84% larger inflow area and 101% more charge air volume compared to the original intercooler. The newly developed competition core ensures sufficient airflow to adjacent components, such as the water cooler. The end boxes are made of cast aluminium and optimized using CFD flow analysis. Integrated air baffles at the inlet ensure even filling of the charge air cooler. The intercooler and crossbar form a stable unit, weighing 14.3 kg, and can be installed at the original mounting points as a 1:1 replacement. The system is tested up to 6 bar and is pressure-resistant.

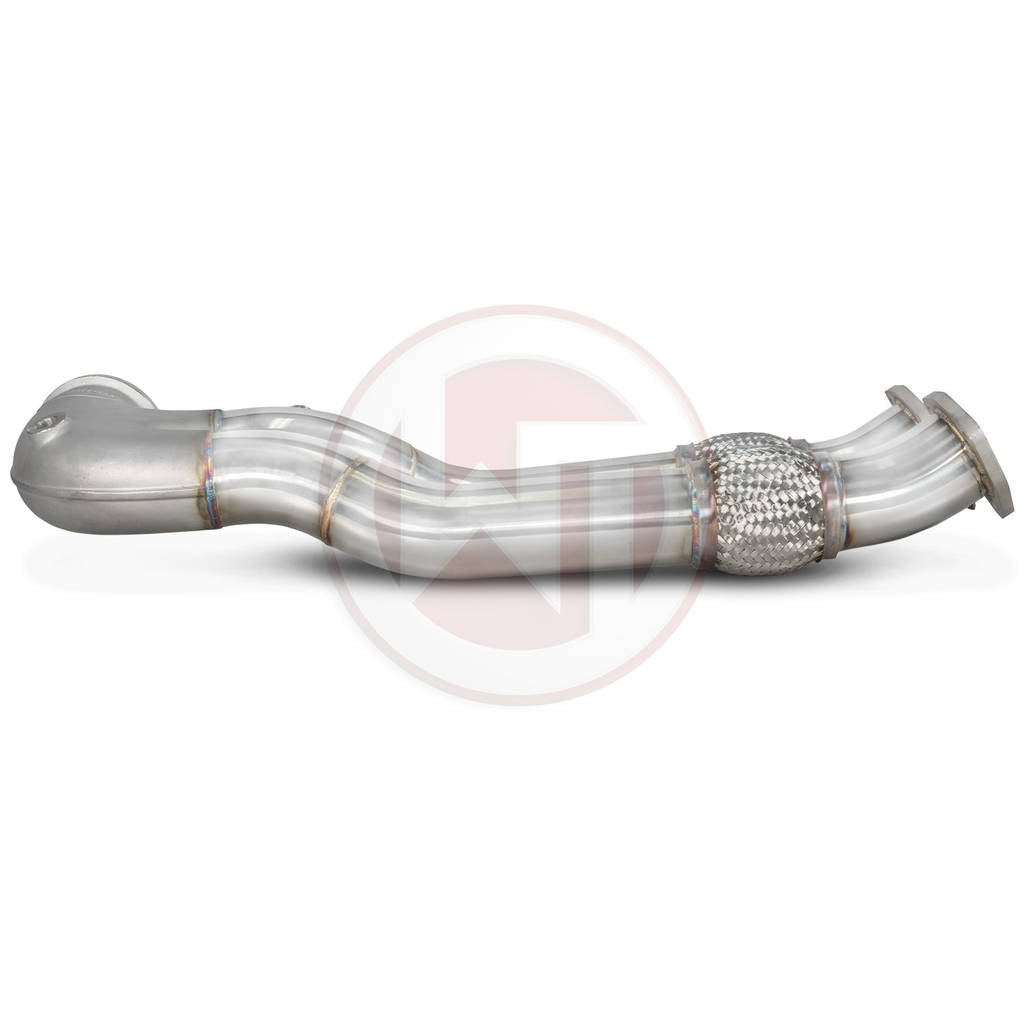

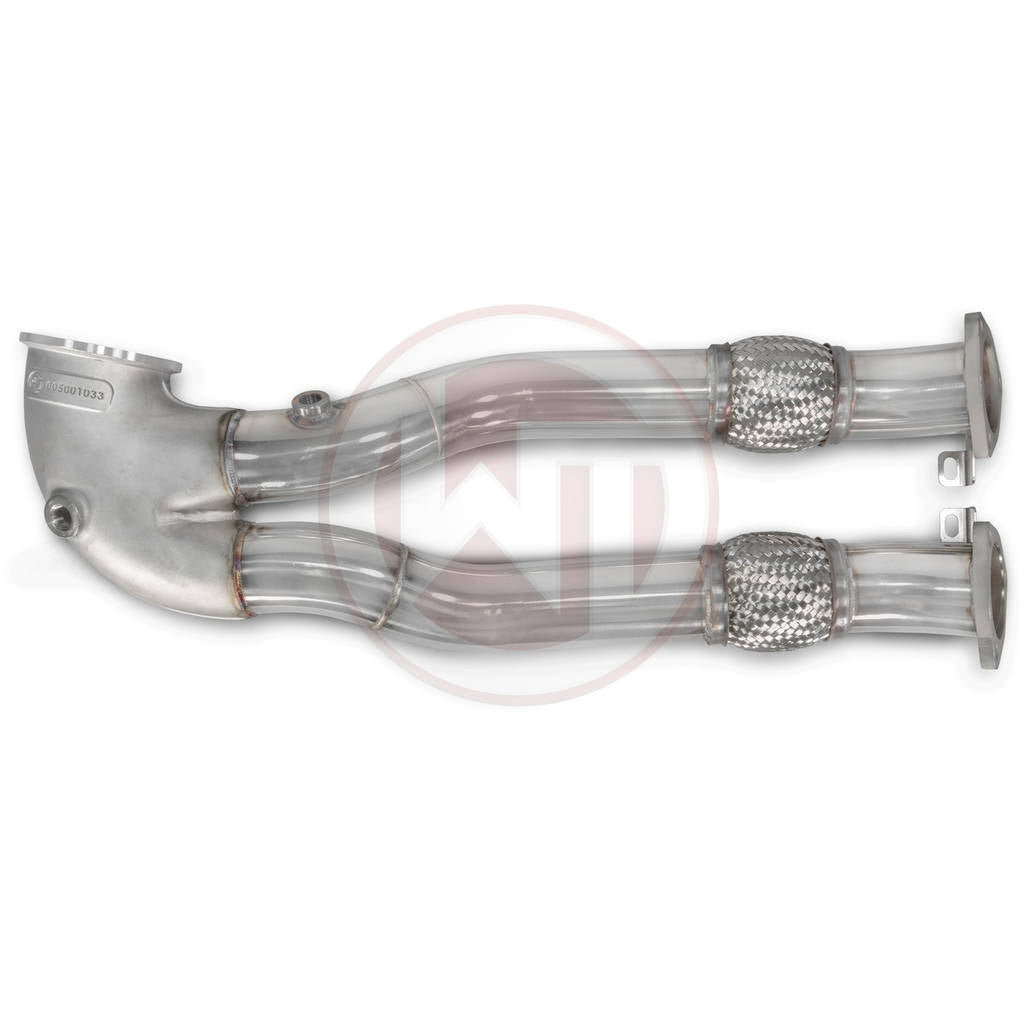

The Wagner-Tuning Downpipe Kit for Audi RS3 8V facelift models is made from high-quality cast stainless steel 1.4301 (SS304) for durability and corrosion resistance. It is designed without a pre-cat for maximum power and features 2x O70mm diameter for improved flow dynamics. The kit is CAD-designed and flow-optimized, equipped with 2 lambda probe connections, and offers 100% accuracy of fit for easy replacement with the standard part. It reduces the thermal load on the turbocharger and increases performance through back pressure reduction. Compatible with the original aftercat pipes (not OPF), and optionally available with aftercat pipes with 2x200CPSI racing catalytic converters.

Important: It is recommended to use the standard version for power classes up to 600PS and the X version for power classes from 600PS.

Remark: Recalibration of the ACC may be necessary.

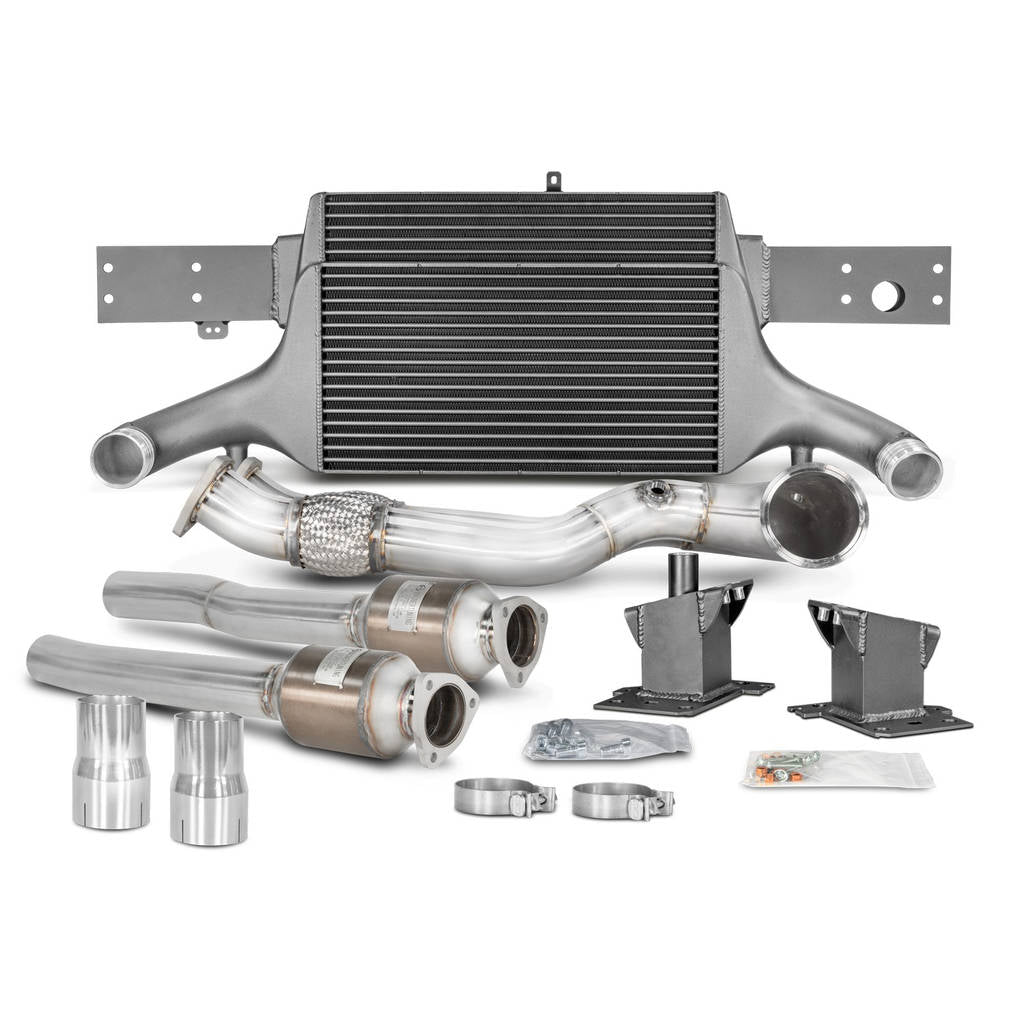

• Intercooler upgrade kit EVO 3 and downpipe kit included
• Intercooler core offers 84% larger inflow area and 101% more charge air volume than OEM
• Downpipe kit made from high-quality cast stainless steel 1.4301 (SS304)
• Direct 1:1 replacement at original mounting points

Specifications:

• Intercooler core dimensions: 515mm x 367mm x 95mm (stepped), 16.5L volume
• OEM intercooler cooling surface: 102,400mm², charge air volume: 8.2L, inlet/outlet: O68mm
• Wagner Tuning EVO 3 Competition cooling surface: 189,000mm², charge air volume: 16.5L, inlet/outlet: O68mm
• Downpipe kit material: stainless steel 1.4301 (SS304), 2x O70mm diameter, 2 lambda probe connections

Kit comes with::

• 1 intercooler together with the crossbar
• 1 mounting material
• 1 installation instructions
• 1 TUV parts certificate (OPF models excluded)

Vehicle Compatibility:

• Audi RS3 8V Sportback 270KW/367PS 2015-2016
• Audi RS3 8V Sportback/Sedan 294KW/400PS 2017+ (OPF models not included in TGA)
