WAGNER TUNING 700001068 Competition Package EVO3 BMW F-serie N55 cat.7/13+

Description WAGNER TUNING 700001068 Competition Package EVO3 BMW F-serie N55 cat.7/13+

The Competition package for the BMW F-series includes the intercooler upgrade kit and the N55 downpipe kit with a 300 CPI racing catalytic converter. This package is designed for BMW M135i(x) F20/F21 from 07/2013 and BMW M235i(x) F22/F23 models.

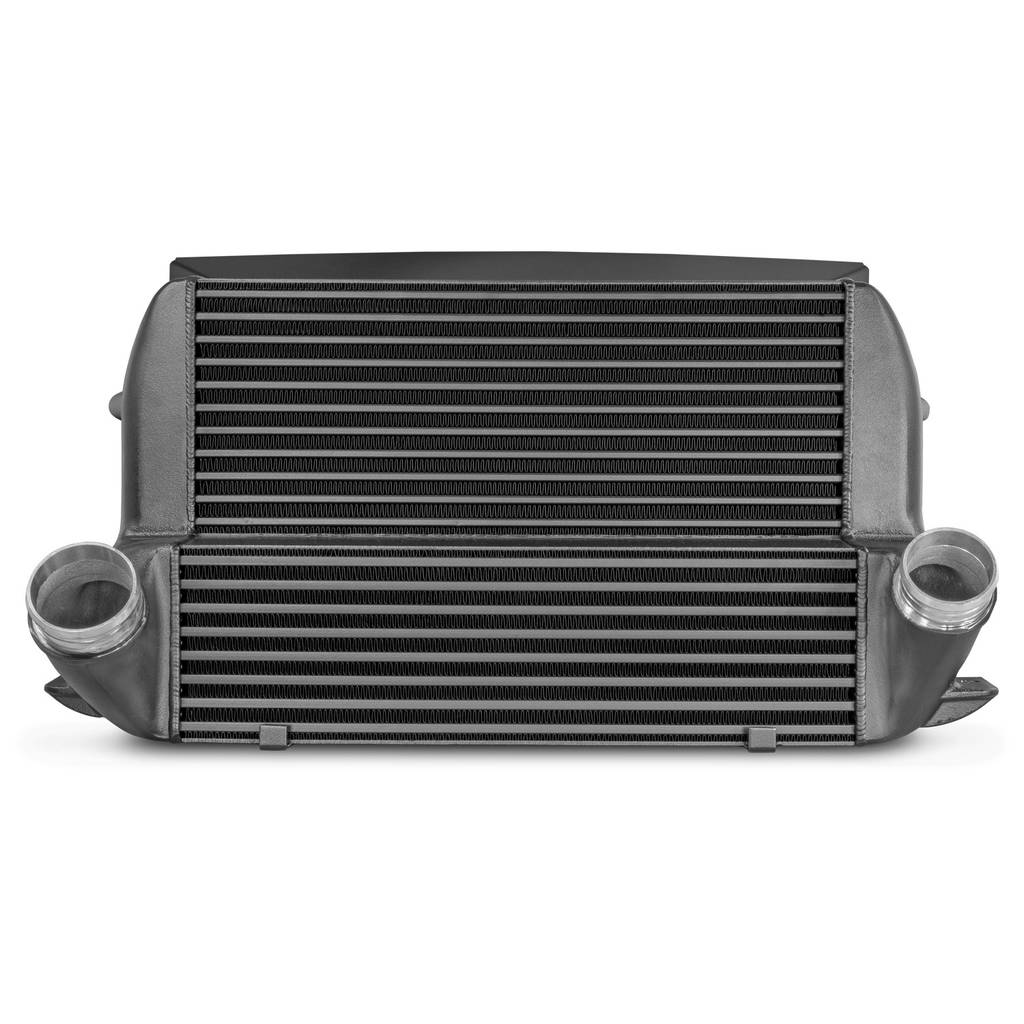

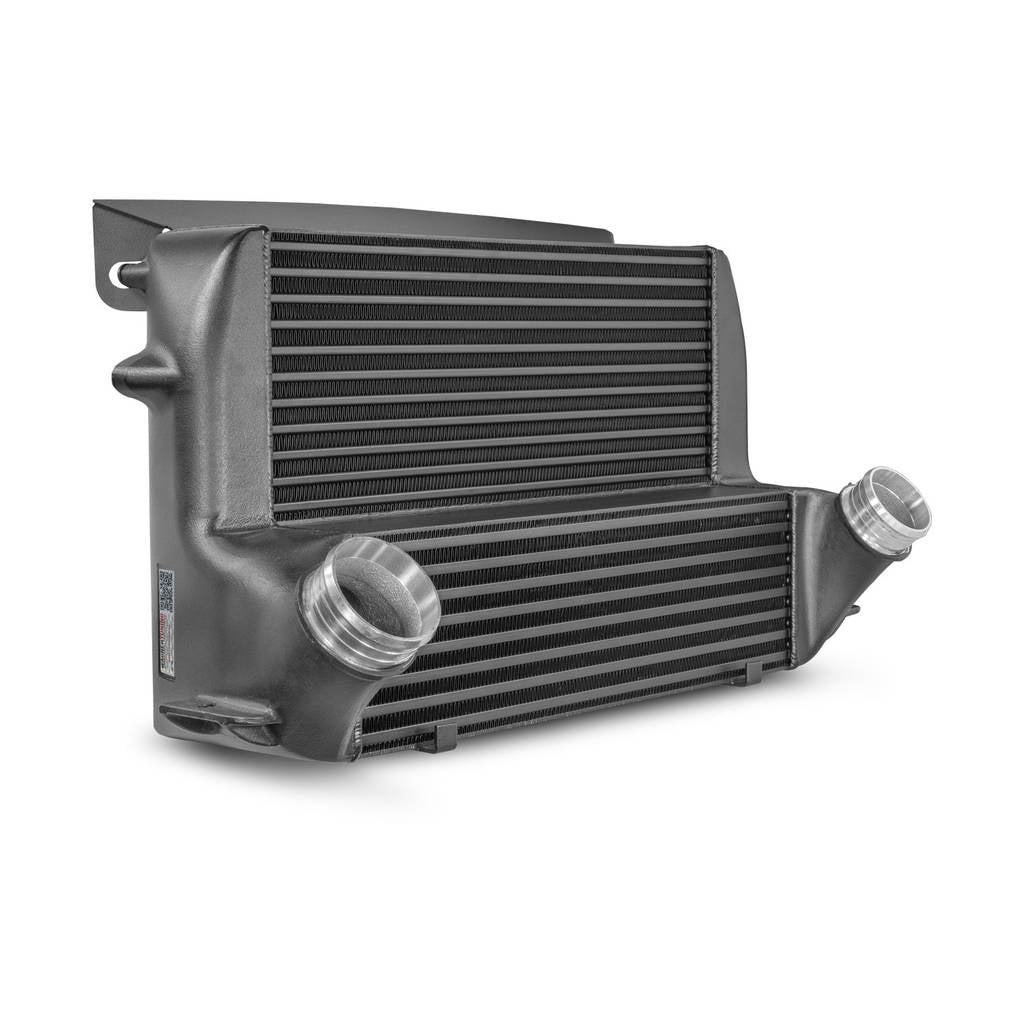

The Wagner Tuning EVO3 high performance intercooler kit is engineered for demanding tuning levels, offering a 165% larger flow area and 223% more charge air volume compared to the standard intercooler. The core measures 510mm x 345mm x 180mm (stepped, 23.56L). The high-performance core uses Tube Fin technology with internal turbulators, and the cast aluminium end boxes are optimized for flow using CFD analysis.

The EVO3 kit eliminates the original click connections, increasing the inlet diameter to Ø65mm and the outlet to Ø76mm. It includes two reinforced silicone hoses and an aluminum charge air pipe. The intercooler features an anti-corrosion coating for durability and optimal heat conduction. The kit is ready to install and includes a modified crossbar, though minor adjustments to the radiator support may be necessary due to its size. The EVO3 Competition intercooler kit is pressure-stable up to 6 bar and is suitable for racing applications.

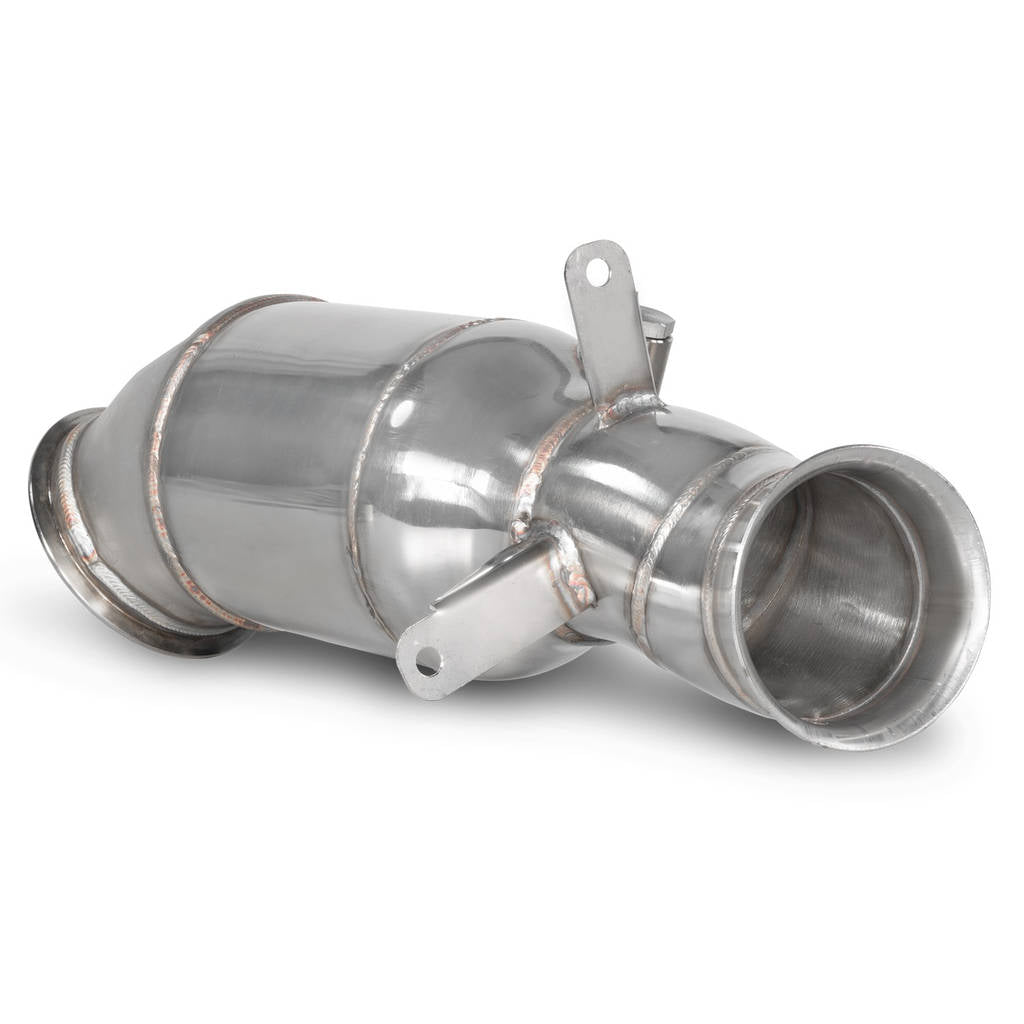

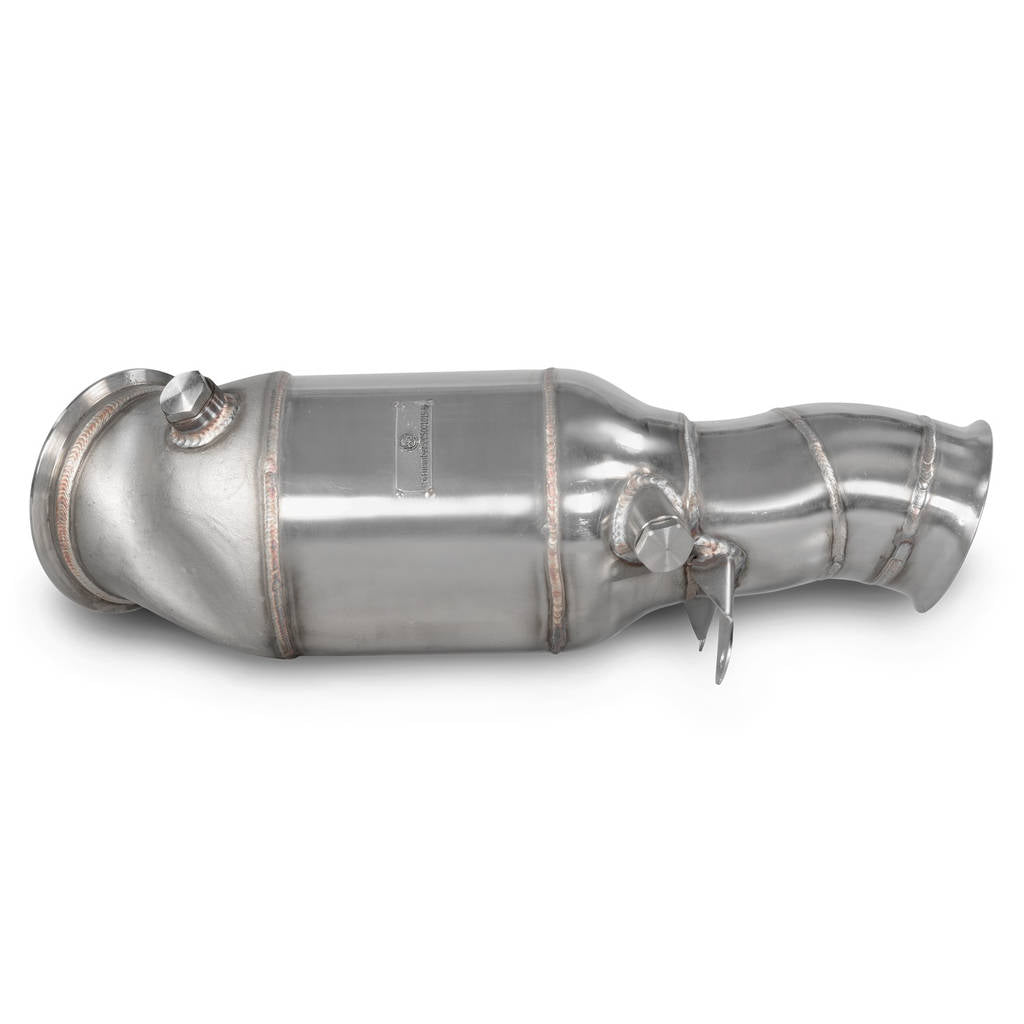

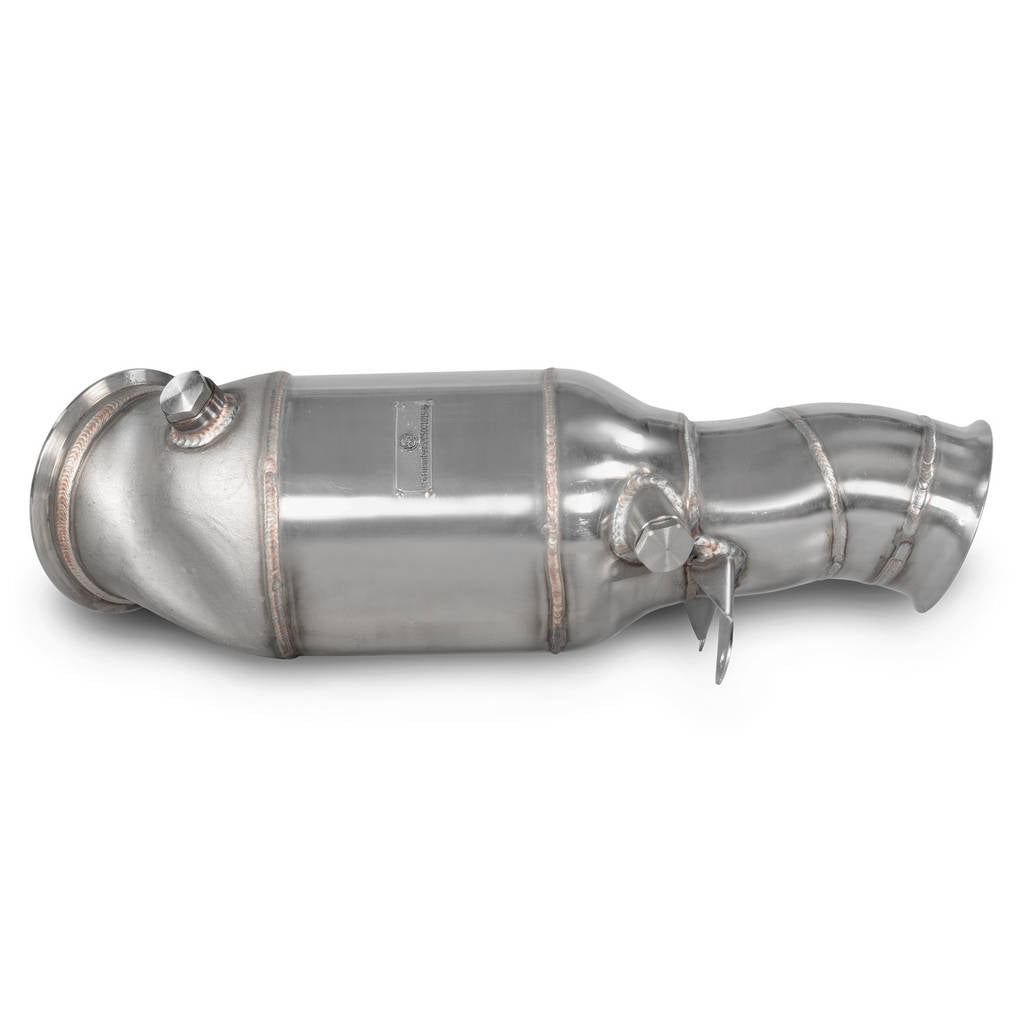

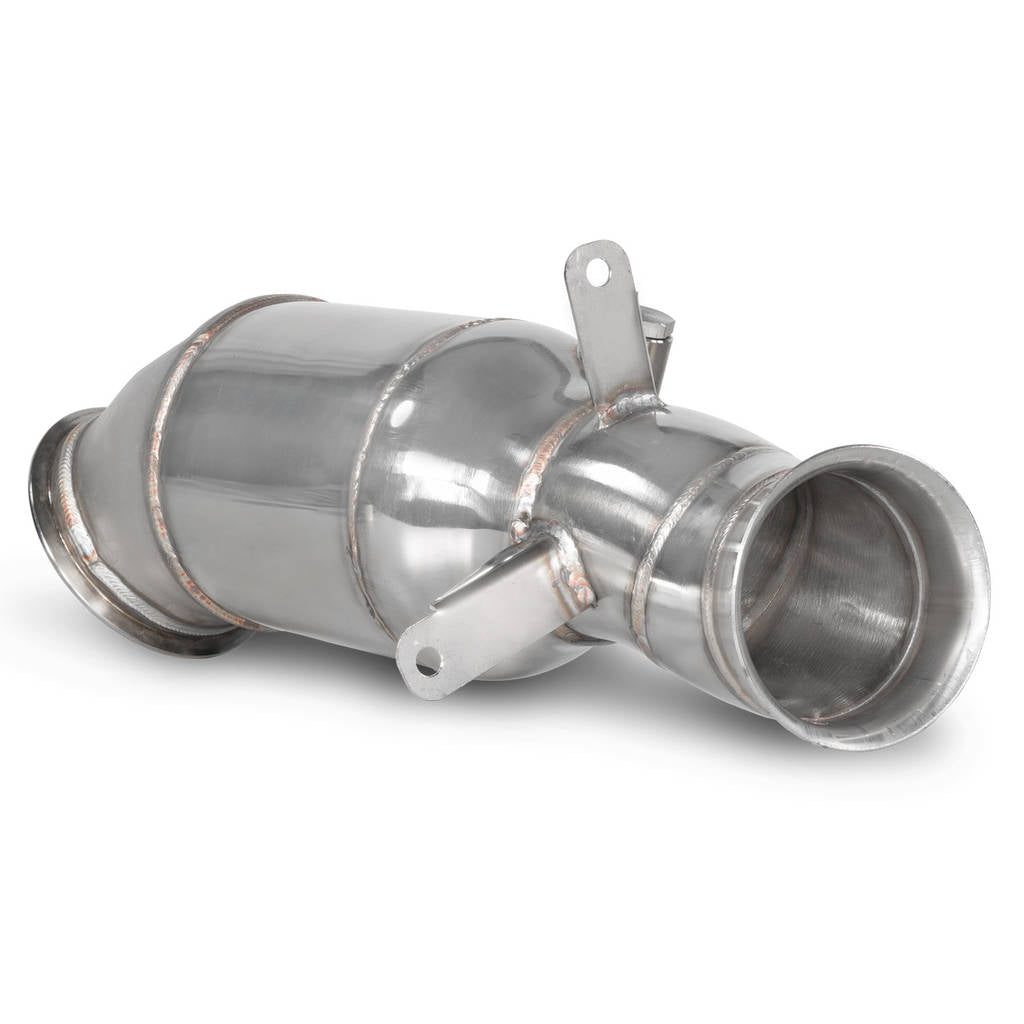

The Downpipe-Kit N55 with 300CPI catalyst features a 76mm diameter for improved exhaust gas flow, is made from stainless steel 1.4301 (SS304), and includes two lambda probe connections. The racing main catalytic converter (300 CPSI) has a Euro 6 coating. The kit is lightweight at 4.0 kg and designed for a perfect fit, replacing the standard part without additional adjustments. The connection diameter is 118mm.

Note: Not suitable for xDrive models.

Note: Not approved in the STVO area.

Note: Error display in the DME possible.

Disclaimer for catalytic converters: Wagner Tuning catalytic converters are intended for use on OEM vehicles for performance optimization and are not intended for use with ECU tuning. Wagner Tuning is not responsible for damage caused by vehicle modifications, such as a tuned ECU or deactivation of the boost cut-off, or by engine malfunctions that create rich/lean conditions. Warranty claims require proof that the engine is unchanged and maintained according to the manufacturer's specifications. The end user is responsible for the legality of using a non-OEM catalytic converter in their region.

• Intercooler upgrade kit with 165% larger flow area and 223% more charge air volume
• Downpipe kit with 300 CPSI racing catalytic converter and Euro 6 coating
• Pressure-stable up to 6 bar and optimized for high-performance applications
• Kit includes reinforced silicone hoses and aluminum charge air pipe

Specifications:

• Original intercooler dimensions: 510mm x 130mm x 110mm, V=7.3 liters, A=663 cm²
• Wagner Tuning intercooler dimensions: 510mm x 345mm x 180mm (stepped), V=23.56 liters, A=1759.5 cm²
• Intercooler weight: 13.8 kg
• Downpipe diameter: 76mm
• Downpipe weight: 4.0 kg
• Connection diameter: 118mm
• Part number intercooler: 200001144
• Part number downpipe: 500001013
• Replaces original BMW part number: 18328602882

Kit comes with::

• 1 intercooler
• 1 Ø76mm charge air pipe
• 1 external air duct
• 2 silicone hoses
• 1 aluminum adapter
• 1 crossbar
• 1 mounting material
• 1 assembly instructions

Vehicle Compatibility:

• BMW M135i(x) F20/F21 (from 07/2013) with N55 engine
• BMW M235i(x) F22/F23 with N55 engine
