AQUAMIST 806-063 HFS3-V3.12 Water / Methanol Injection Kit w / o Tank (Red LED) Photo-0
AQUAMIST 806-063 HFS3-V3.12 Water / Methanol Injection Kit w / o Tank (Red LED) Photo-1

AQUAMIST 806-063 HFS3-V3.12 Water / Methanol Injection Kit w / o Tank (Red LED)

Sale price€890,81

VAT included. Shipping calculated at checkout

AQUAMISTP/N: 806-063 HFS3-V3.12
Quantity:

This item is considered special order and is not available for immediate pickup or dispatch. Price and ETA may vary. Please note that no returns, cancellations, or refunds allowed on special orders.

Pickup available at Kelberg Warehouse Usually ready in 24 hours

AQUAMIST 806-063 HFS3-V3.12 Water / Methanol Injection Kit w / o Tank (Red LED)

Kelberg Warehouse

Pickup available, usually ready in 24 hours

Auf der Struth 4
53539 Kelberg
Germany

+4926916879995

Nürburgring Showroom

Pickup available, usually ready in 24 hours

Nürburgring Boulevard 2
53520 Nürburg
Germany

+4926916879995

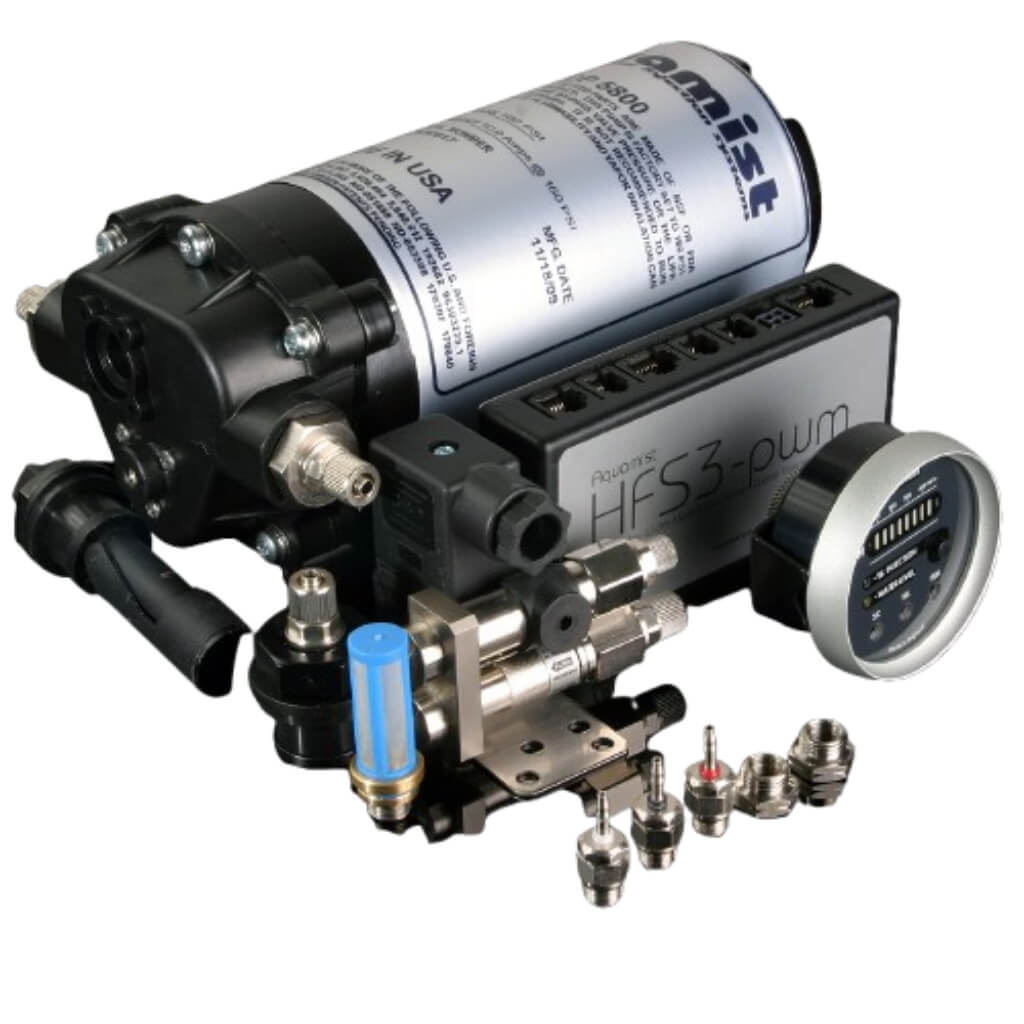

Aquamist have been pioneering the IDC based water injection system since 2003 with great success. The HFS3-pwm system is designed to complete the Aquamist’s PWM-valve delivery system line-up, it allows precise metering of water/methanol injection for the modern high performance engine. The dash gauge, flow sensor and “Plug and Play” features are standard to minimise installation time.

The system retrieves the fuel flow (IDC) and manifold pressure signals (MPS) from the engine management system as the prime source to control the flow of water. This enables perfect balance of water to fuel flow under all engine loads.

The system can also be controlled by a third-party ECU with its own custom water/methanol flow map. A “Fast Acting Valve” (FAV) controls the delivery rate based on the PWM signal from the HFS-3 controller. A constant line pressure (160 psi) is provided by the Aquatec pump working in the “by-pass” mode. A PWM valve system guarantees wide dynamic range. There is a non-gauge/flow sensor option (HFS-2) for non-critical application where a failsafe is not needed. A dash switch is provided instead.
