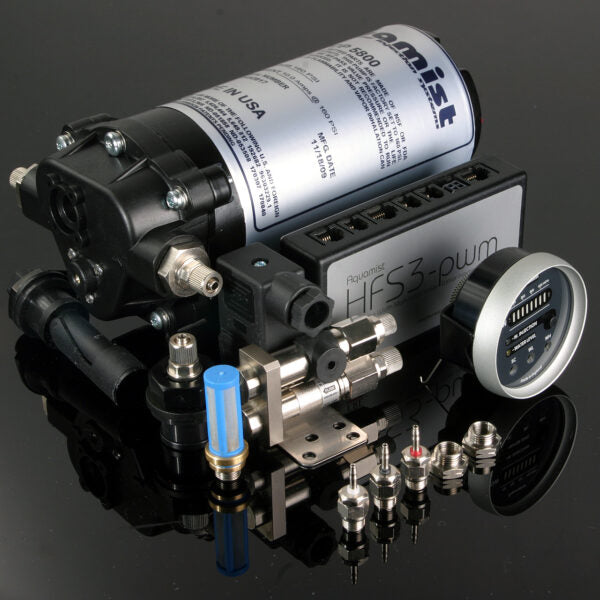

AQUAMIST 806-063-red-pump Water / methanol injection kit system HFS3-V3.1 with pump 3000cc/min (red led)

Aquamist offering a 3000cc/min pump option for 1000hp+ engines. It is not recommended for engines below 950hp. When this option is selected, Aquamist will include the 1600cc FAV and large flow sensor tube.

Aquamist have been pioneering the IDC based water injection system since 2003 with great success. The HFS3-pwm system is designed to complete the Aquamist’s PWM-valve delivery system line-up, it allows precise metering of water/methanol injection for the modern high performance engine. The dash gauge, flow sensor and “Plug and Play” features are standard to minimise installation time.

The system retrieves the fuel flow (IDC) and manifold pressure signals (MPS) from the engine management system as the prime source to control the flow of water. This enables perfect balance of water to fuel flow under all engine loads.

The system can also be controlled by a third-party ECU with its own custom water/methanol flow map. A “Fast Acting Valve” (FAV) controls the delivery rate based on the PWM signal from the HFS-3 controller. A constant line pressure (160 psi) is provided by the Aquatec pump working in the “by-pass” mode. A PWM valve system guarantees wide dynamic range. There is a non-gauge/flow sensor option (HFS-2) for non-critical application where a failsafe is not needed. A dash switch is provided instead.

The user can disable the system and reduce the manifold pressure to wastegate pressure if needed.
