AQUAMIST 806-691-1x22 10L Baffled Tank With Bracket (1x22mm Hole)
Quantity:
This item is considered special order and is not available for immediate pickup or dispatch. Price and ETA may vary. Please note that no returns, cancellations, or refunds allowed on special orders.
Pickup available at Kelberg Warehouse
Usually ready in 24 hours
AQUAMIST 806-691-1x22 10L Baffled Tank With Bracket (1x22mm Hole)
Kelberg Warehouse
Pickup available, usually ready in 24 hours
Auf der Struth 4
53539 Kelberg
Germany
Nürburgring Showroom
Pickup available, usually ready in 24 hours
Nürburgring Boulevard 2
53520 Nürburg
Germany

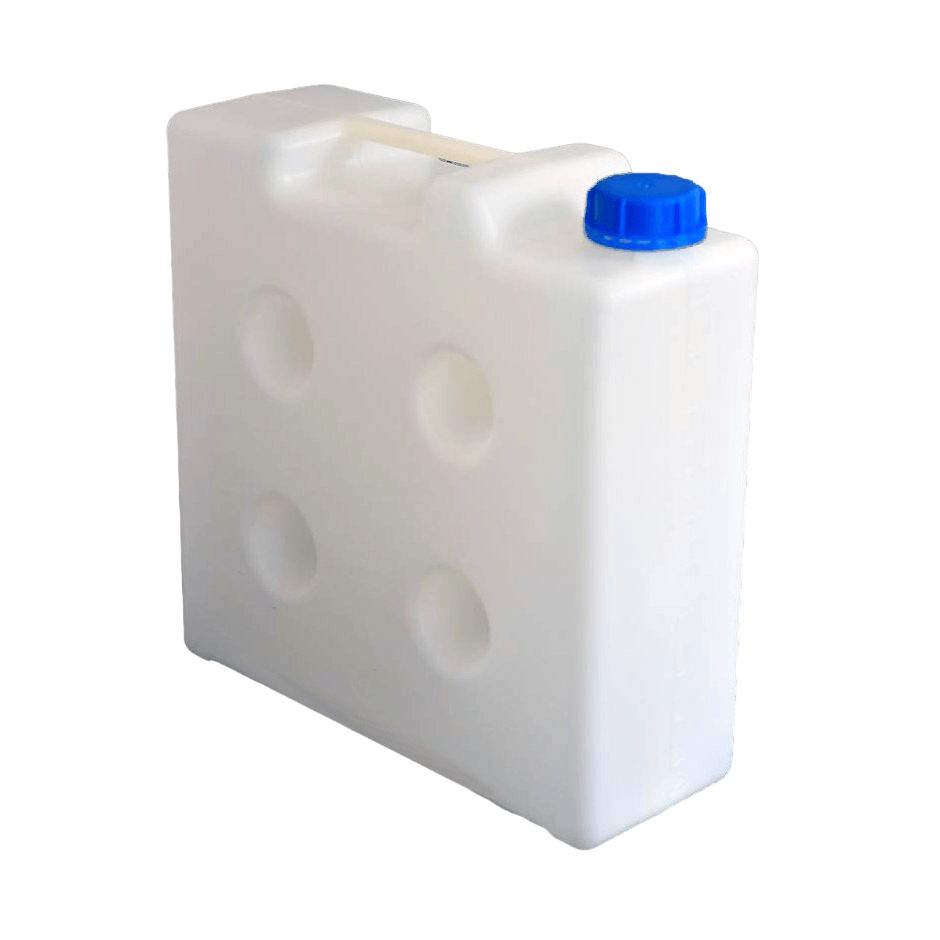

The AQUAMIST is offering a 10L version of the 5L compact tank. (internally baffled).
- Only 143mm (5.6″) wide. 335 (13″) deep and 335 (13″) tall.
- Capacity: 10 litres (2.64 US gallons).
- Tank adaptor and level sensor are not included (for illustration purpose only) as all kits come supplied.
- Pre-drilled holes (22mm) for aquamist tank adaptor and tank level sensor.

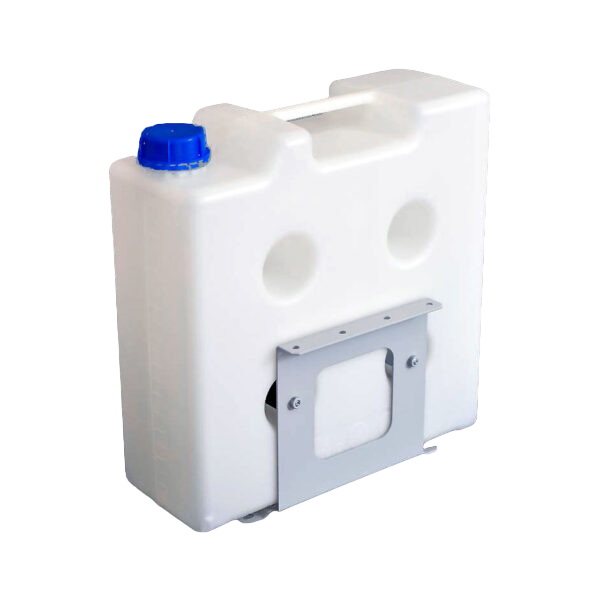

- A mounting bracket is supplied.
- A remote venting option is offered for high methanol concentration, minimise the health hazard caused by methanol fumes.
- The bracket is egonormically designed to minimise installation time. Offering chassis floor or cross-rail mounting options.
- Four holes at the centre section of the bracket is intended for mounting an aquatec pump below.
- Bracket is constructed with 2mm zinc plated mild steel plate and powder-coated (light grey).
- The structure is very strong. All fixing fasteners are supplied.
- Thanks to the internal baffle, it utilises the full capacity more effective compared to a non-baffled tank.
